SCULPFUN S9 90W High Precision laser diode module for Home DIY Household laser engraving machine for wood

$299.00

SKU: 3356090012971 Category:

Description

SCULPFUN S9 90W High Precision laser diode module for Home DIY Household laser engraving machine for wood
Products Description
Product Model

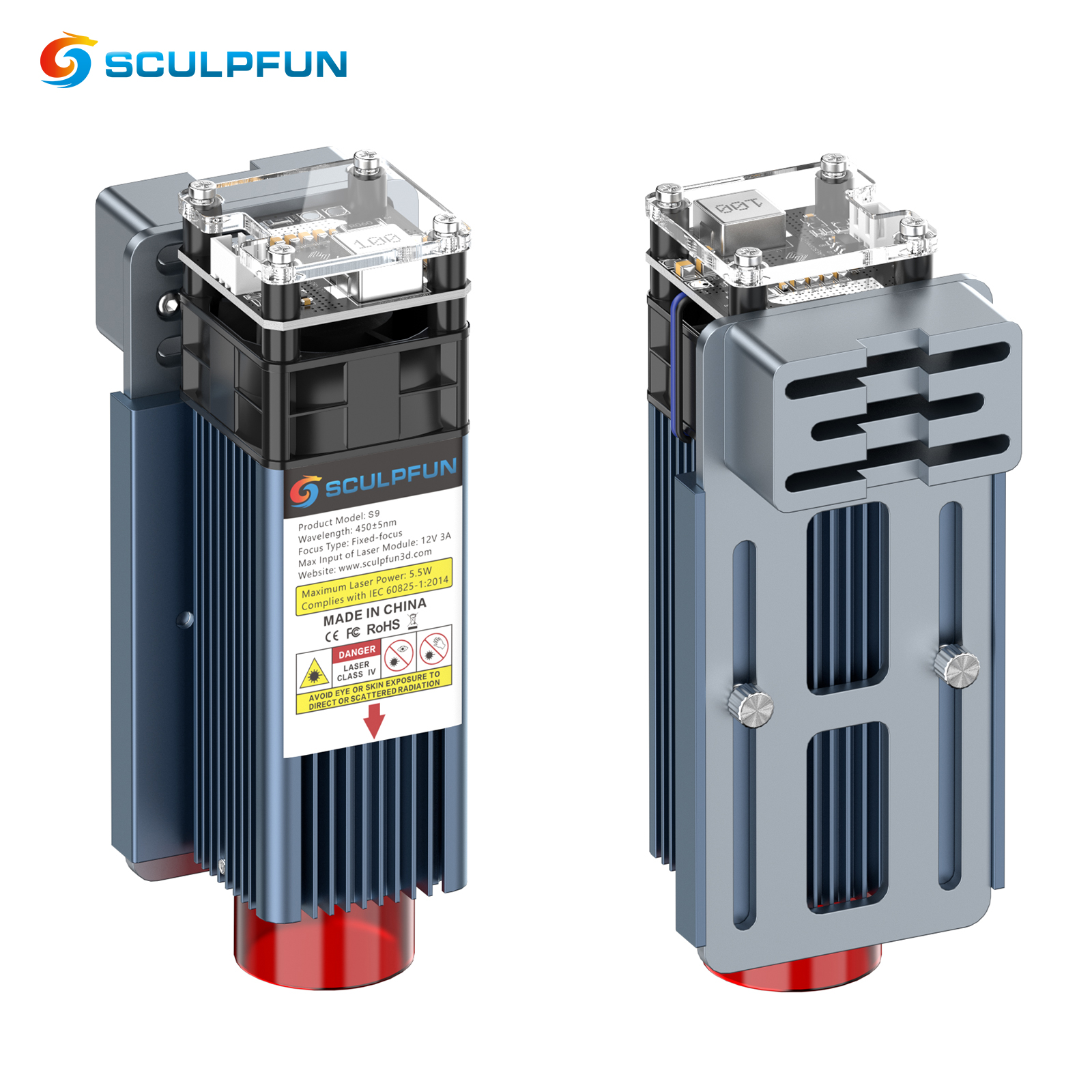

SCULPFUN S9 Laser module
Applicable Machines

laser engraving machines such as SCULPFUN, ATOMSTACK, ORTUR, ELEKSMAKER, or DIY 3D printers, CNC machine tools.
Engraving Materials
paper, paper, cardboard, plastic, white, PCB board, alumina, stainless steel, black metal, ceramic
Cutting Materials
thin board, acrylic board, cardboard, non-woven fabric, bamboo, some plastic board;
Laser Effect Power

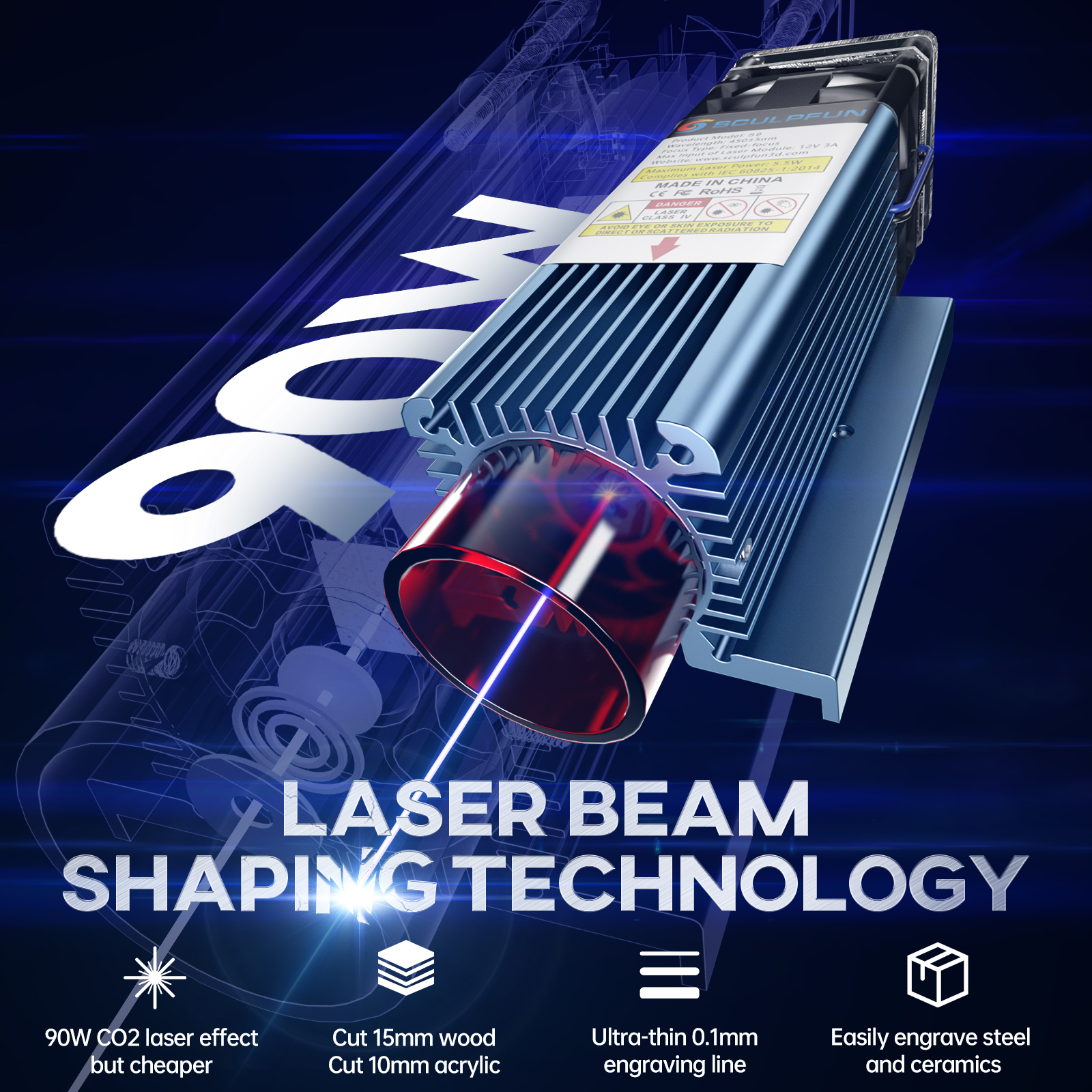

Cutting effect similar to 90W CO2 laser
Laser Output Power

5.5-6W (light energy)
Laser Wave Length
455±5nm
Laser Type And Fixed Focus Method

fixed focus laser, fixed focus through 20mm measuring column

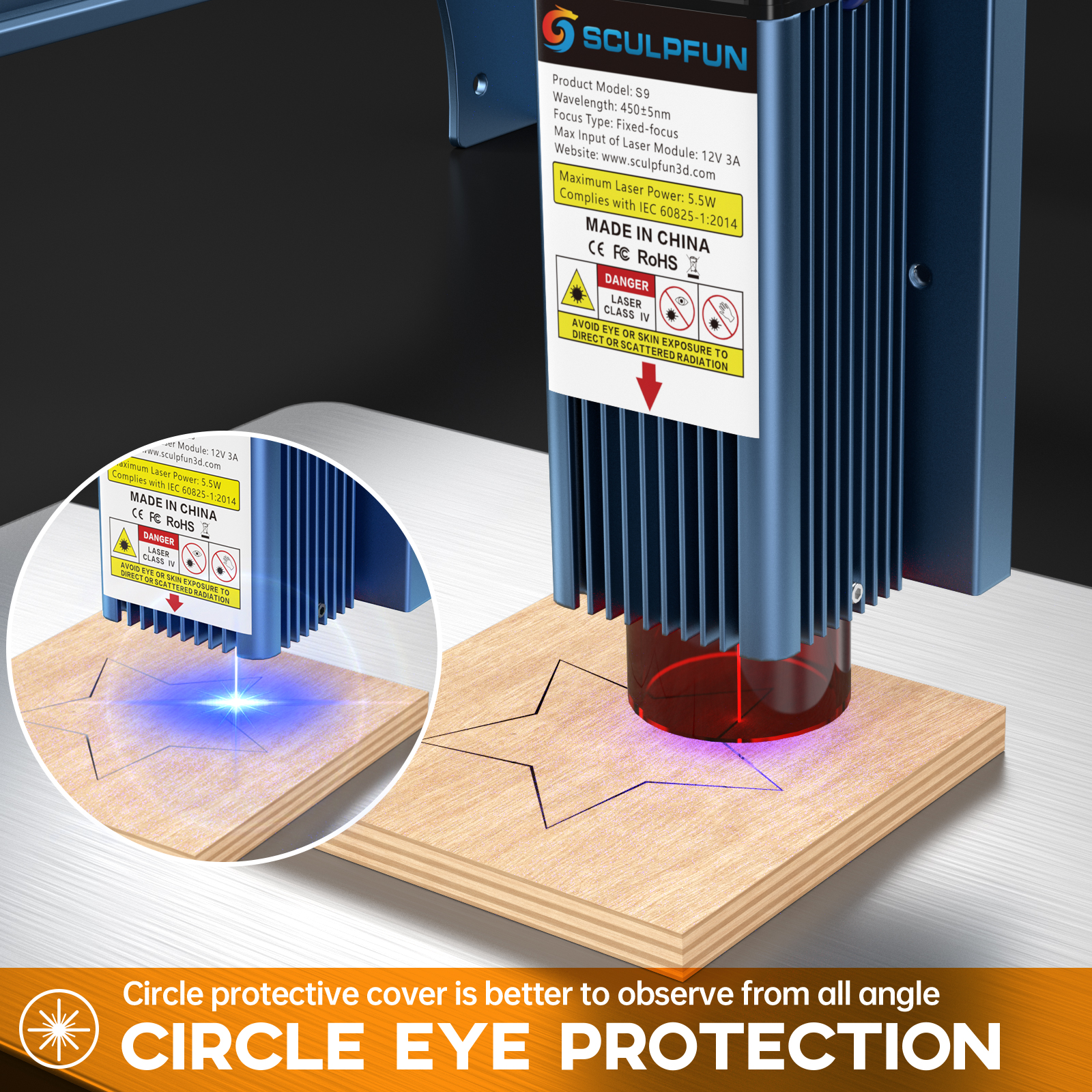

Laser Protective Cover
the ring-shaped violet filter cover protects the user’s eyes and prevents animals, etc. from contacting the laser spot.
Laser Shell Material

aluminum alloy
Laser circuit board parameters:
Circuit Board Size
40*40mm
Circuit Board
12V/PWM modulation board
Input Voltage
12V
Max Input of Laser Module
12V 3A
Wire Rod
HY2.0, 3Pin terminal (3-core cable, A: PWM +, B: GND, C: VCC ).
Operating Temperature
-20 ℃ to 70 ℃
Fan
12V 0.15A 4020 fan
Fan Speed
10000 rpm
Package Weight
0.5kg
Packing Size
11*12*18cm

S9 Laser Module packing list:

Laser head*1
Multi-function structural connection device *1
20mm measuring column*1
Screws and tool kit*1
Details Images

Additional information

Model Number

S9
