Parameters

Wavelength:532nm
Output Power:60mw
Working Voltage:10-12V
Working Current:<500mA
Working Life:3000-5000 Hours
Working Temperature:＋10 ℃~＋30 ℃
Laser Shape:Dot
Divergence:15mm
Beam Diameter:6mm-8mm
Lens:Glass
Dimensions:33*33*80mm

Features

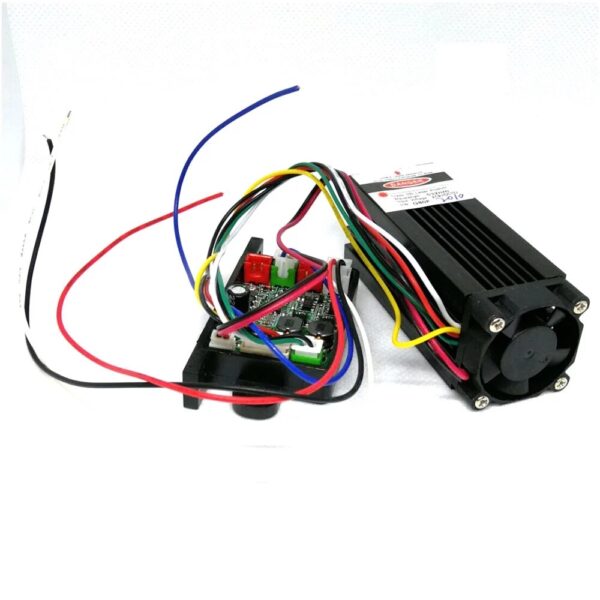

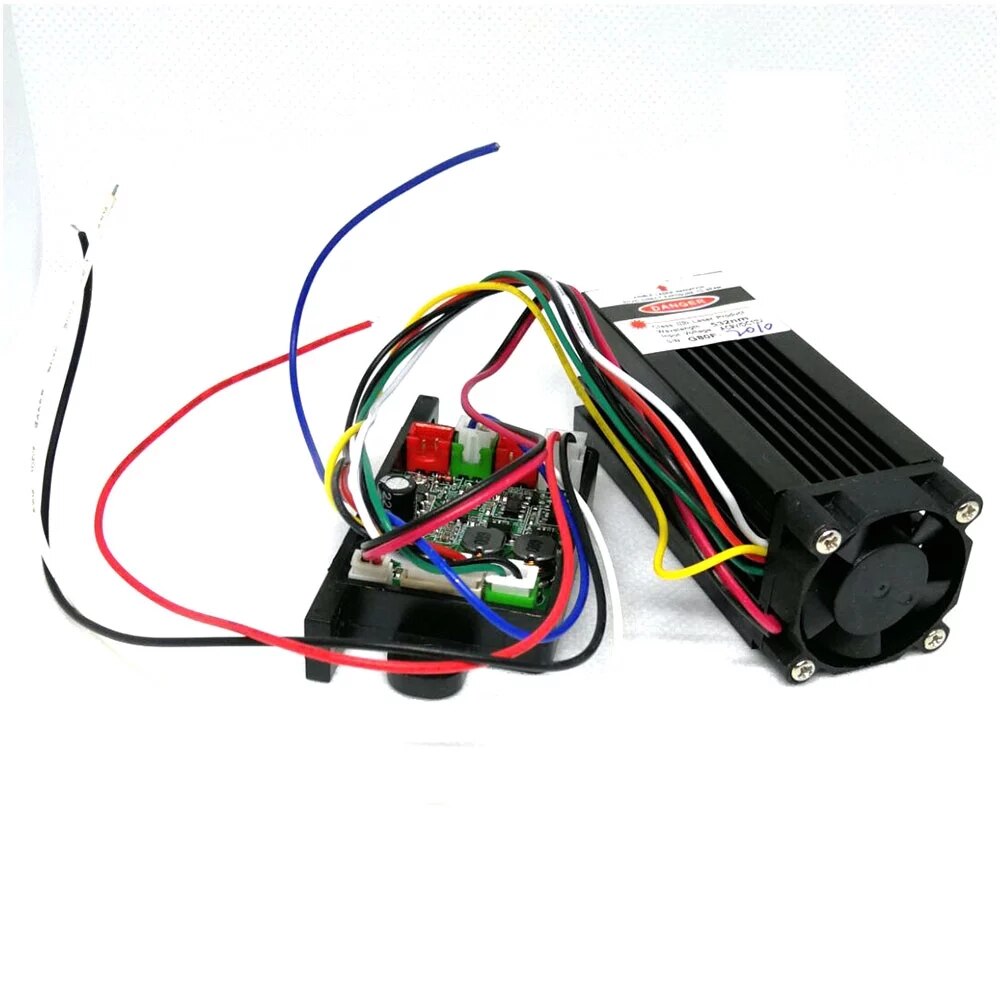

This Fat beam laser module brings with additional cooling fans, can work for long time.
Please add a 10-12VDC power to this laser module. Please add the power to the “12V+” and “12V-“. If you don’t use TTL(Blonk+,Blonk- in the middle),please just leave them unconnected.
This is a laser module for Laser show. Please take care this is a green laser with fat beam of beam diameter 12-15mm
completely different from normal type of green laser beam of only about 1-2mm

Care Instructions

Please protect the lens and keep it clean and avoid dust
Please avoid direct eye exposure to the laser beam and wear 532nm protection glasses when your operate this laser module.

Package

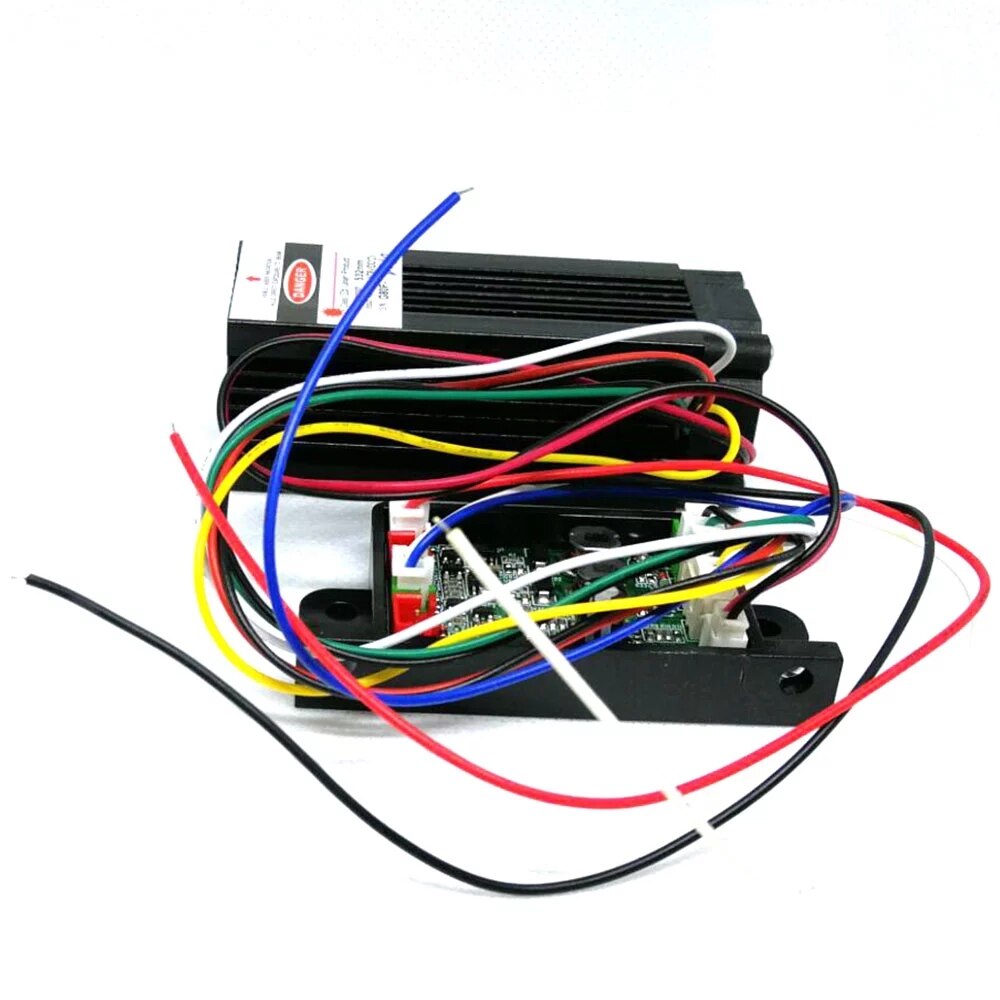

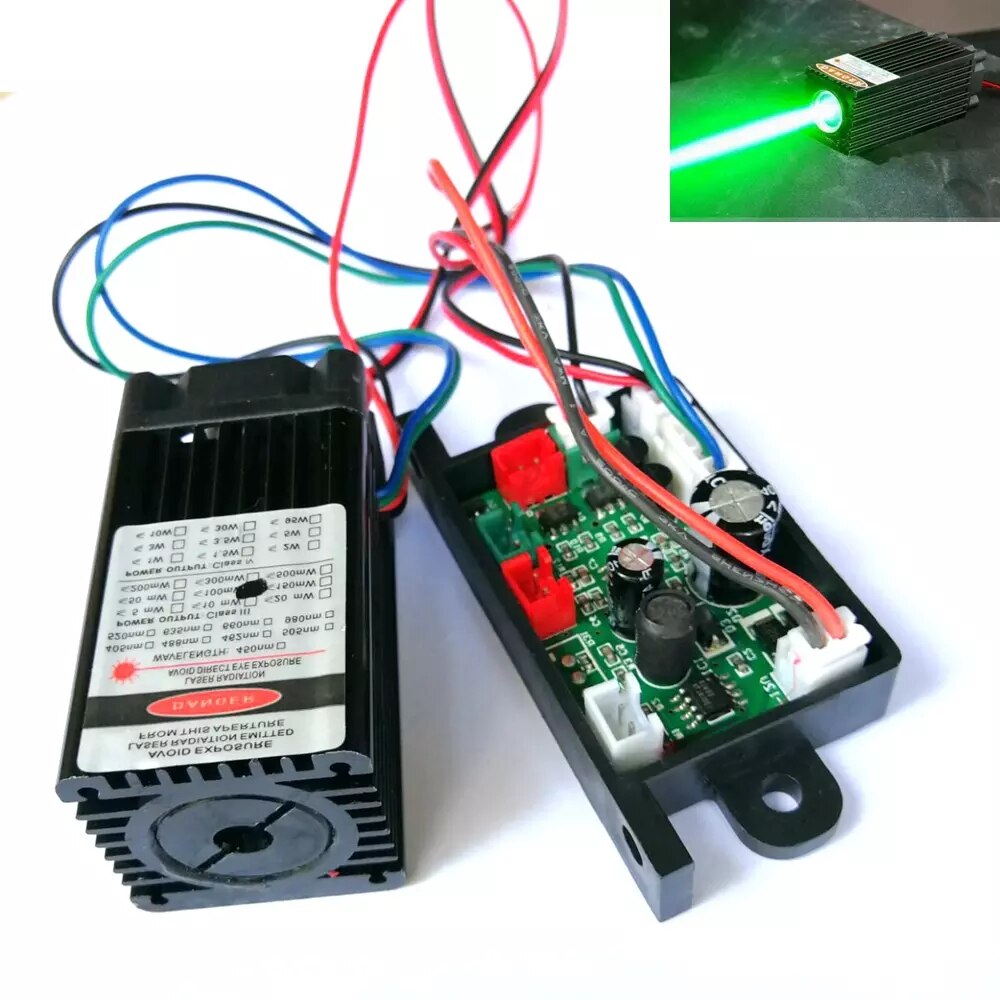

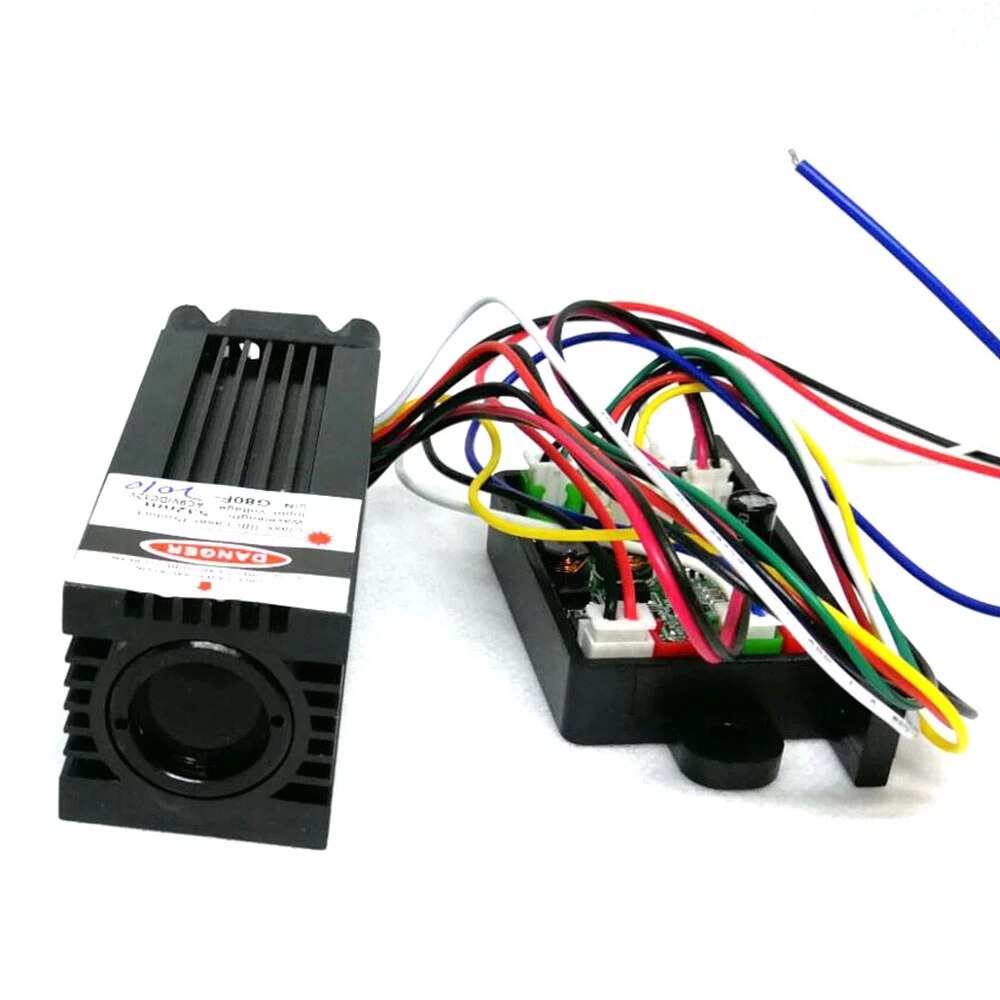

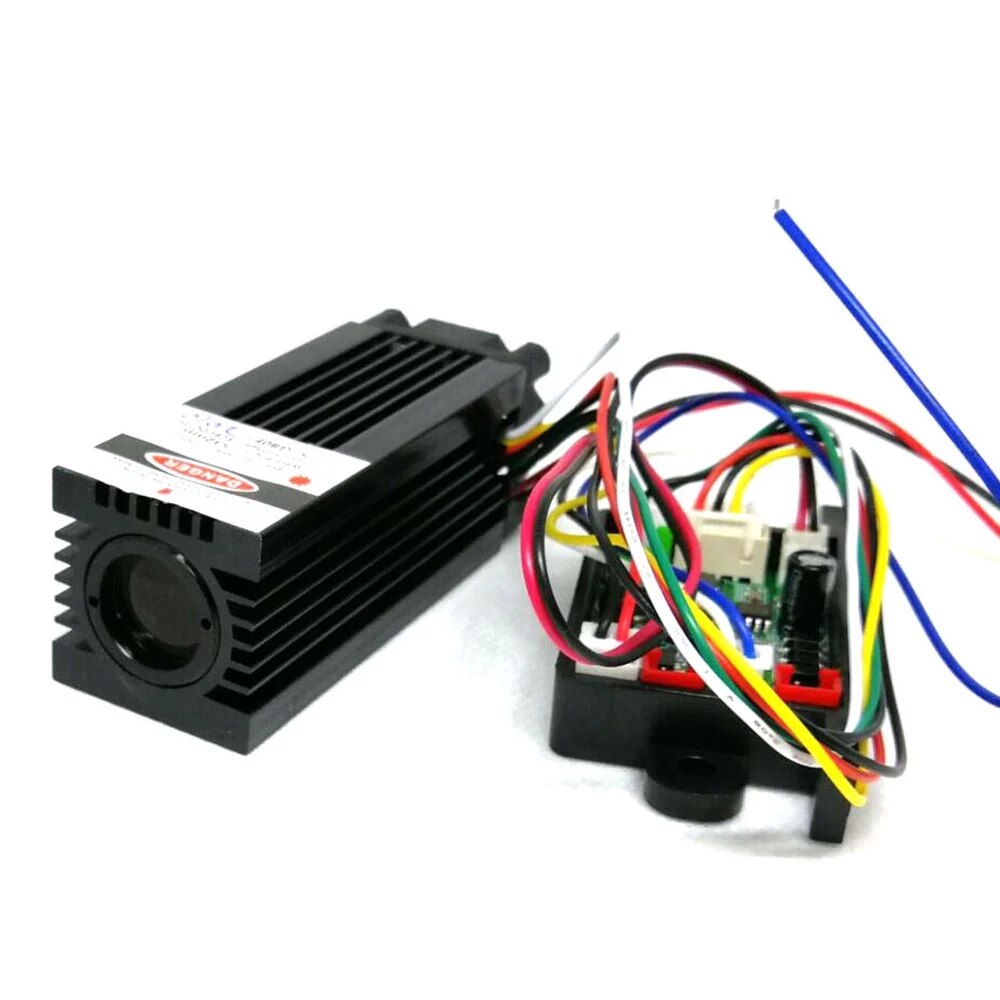

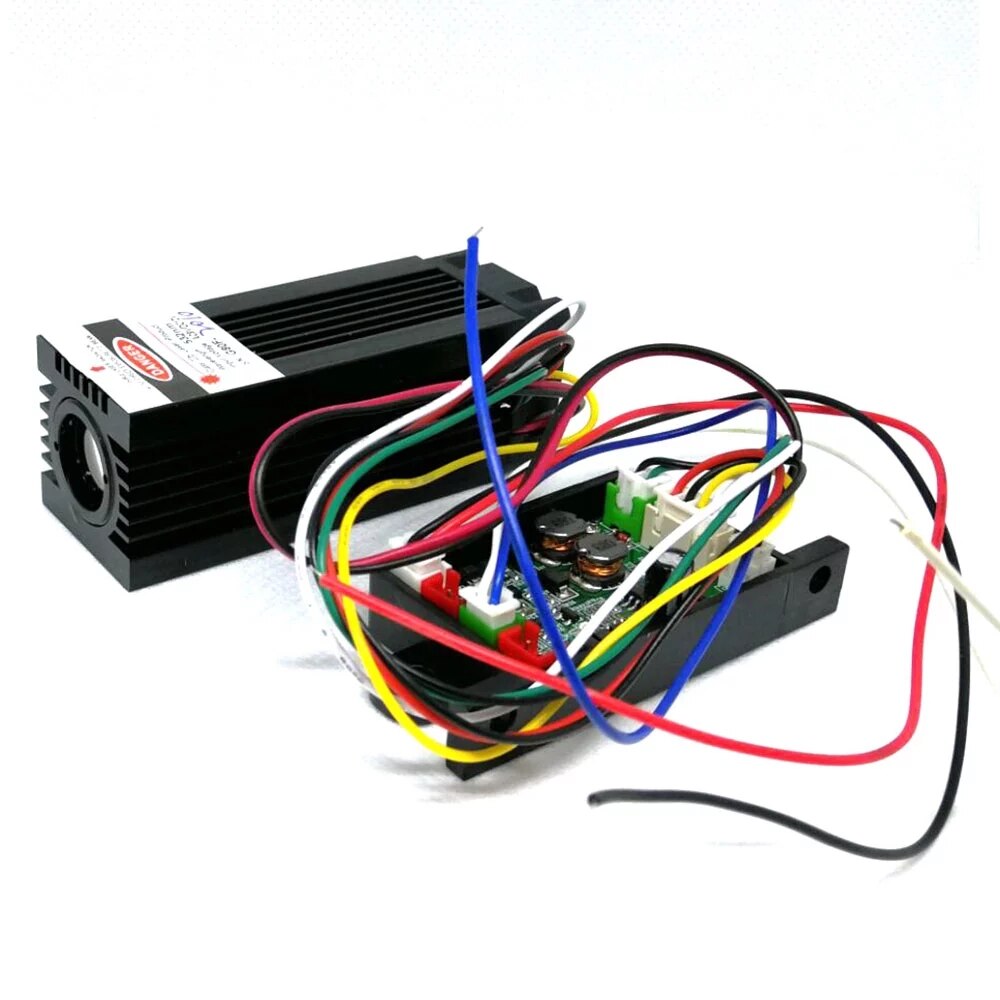

1pcs 532nm 60mW 12V Green Laser Diode Module Fat Beam LED Lights
