lot OEM 10W RGB Full Color Laser Module High Power Laser Diodes TTL Analogue Laser Light

$3,900.00

SKU: 33019267227 Category:

Description

lot OEM 10W RGB Full Color Laser Module High Power Laser Diodes TTL Analogue Lase

  • Item Type: Stage Lighting Effect
  • Style: DMX Stage Light
  • Occasion: Professional Stage & DJ
  • Model Number: 10W RGB Laser Module
  • Power: 90W
  • Voltage: 90-240V
  • Brand Name: DYUE
  • Laser Name: 10W Laser Module
  • Color: RGB Laser Modules
  • Guaranteed Power: 10W
  • Power Red: 3.2W / 635nm
  • Power Green: 2.2W / 520nm
  • Power Blue: 5.4W / 447nm
  • Beam Specifications: ca. 6mm / 2.3mrad
  • Laser Sources: CW Diode, DPSS Laser
  • Laser Class: 4
  • Main Feature: High Power Laser Diode

2pcs/lot OEM 10W RGB Full Color Laser Module High Power Laser Diodes TTL Analogue Laser Light

Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show

Specifications:
Wavelength: 635/520/447nm ( error range 5nm)

Operating mode: CW

Output power:10W

Ratio power: Red laser 3.2W, Green laser 2.2W, Blue laser 5.4W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)

Beam divergence: less than 2 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 30mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year

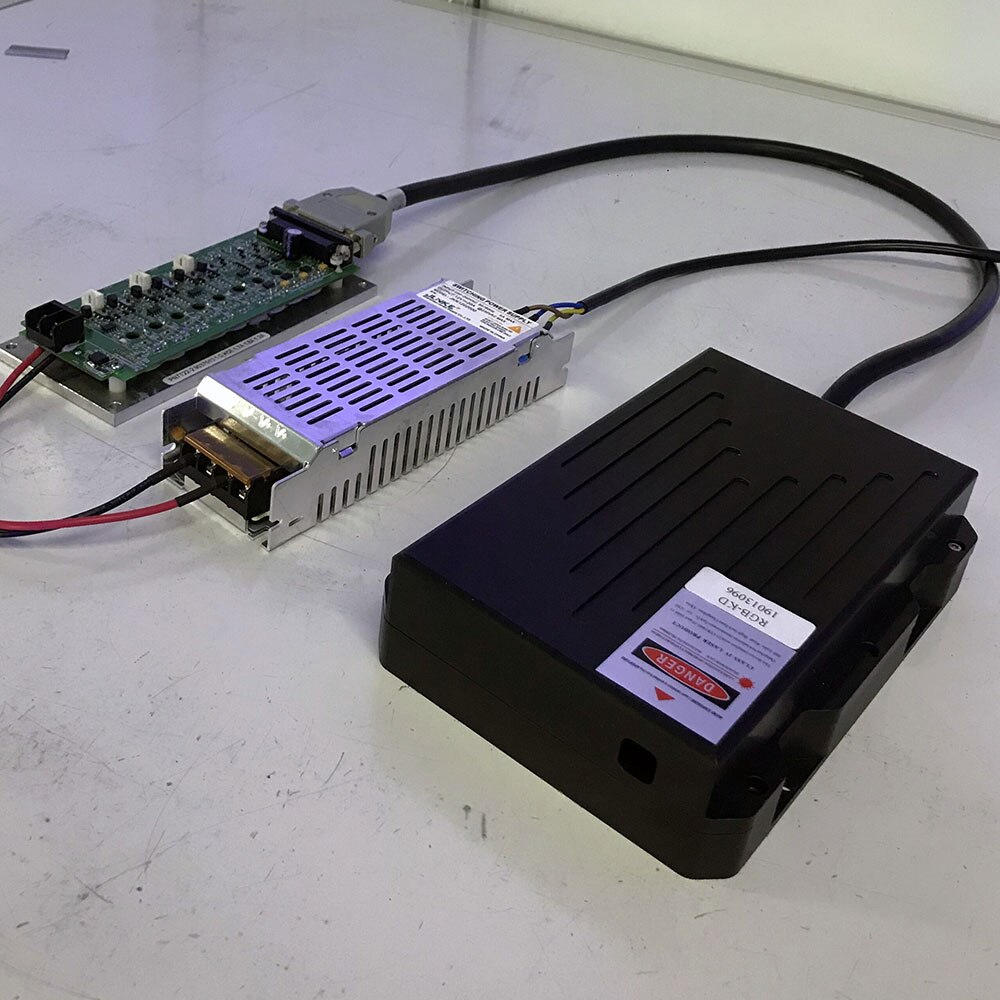

Packing Lists:

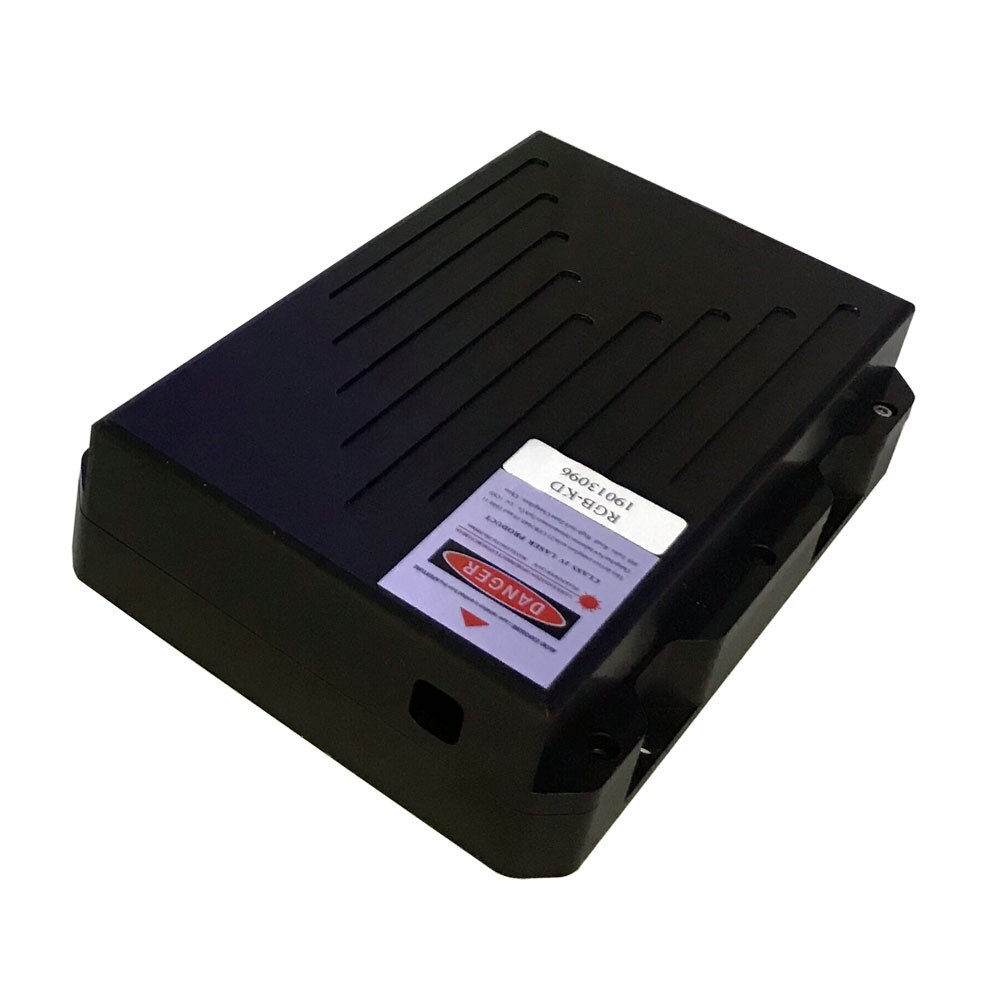

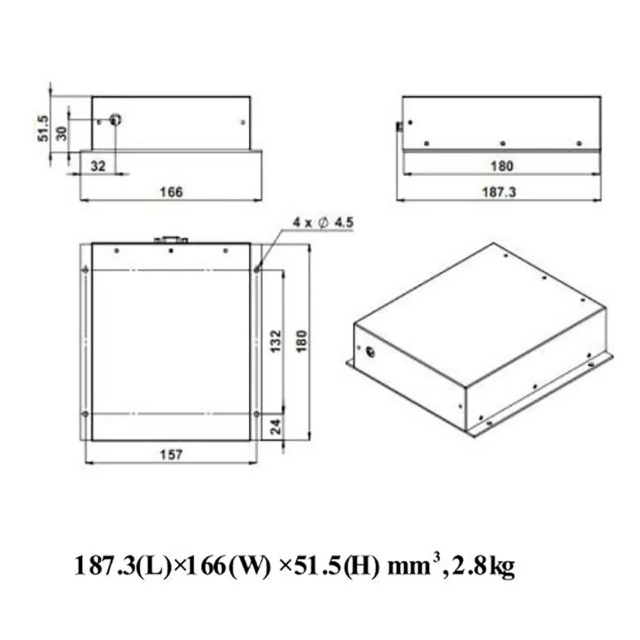

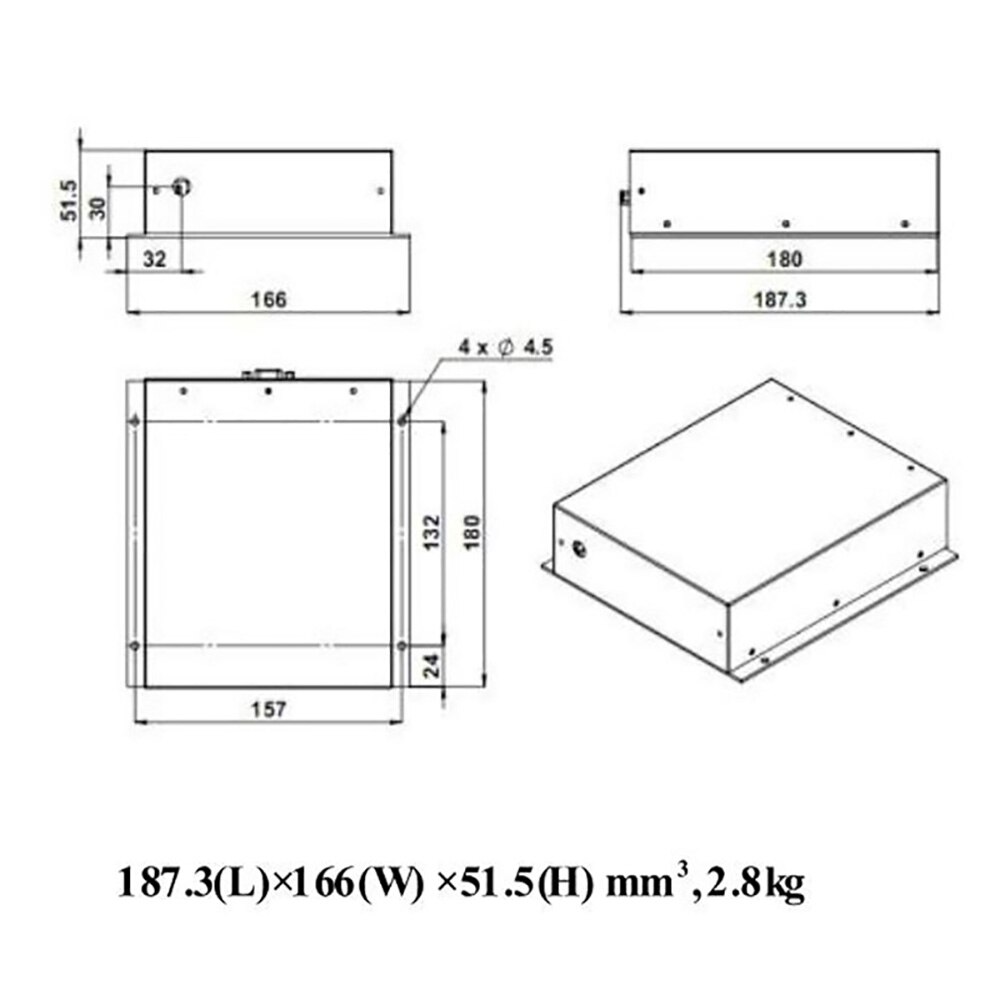

1pcs 10W RGB Laser Head

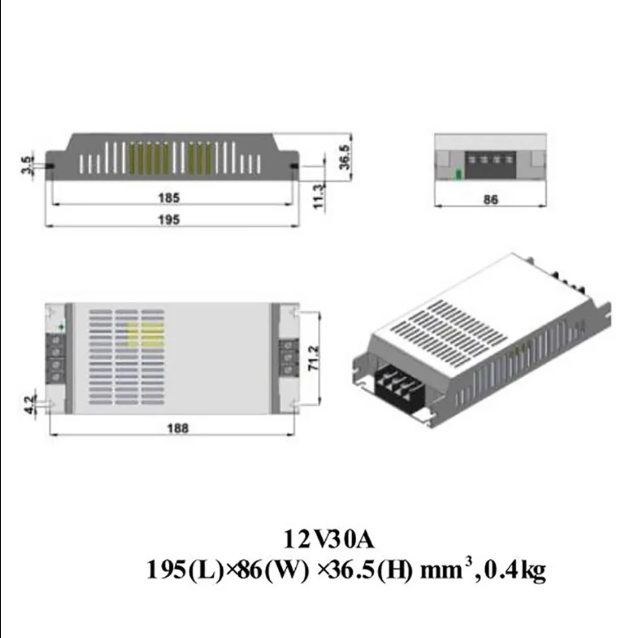

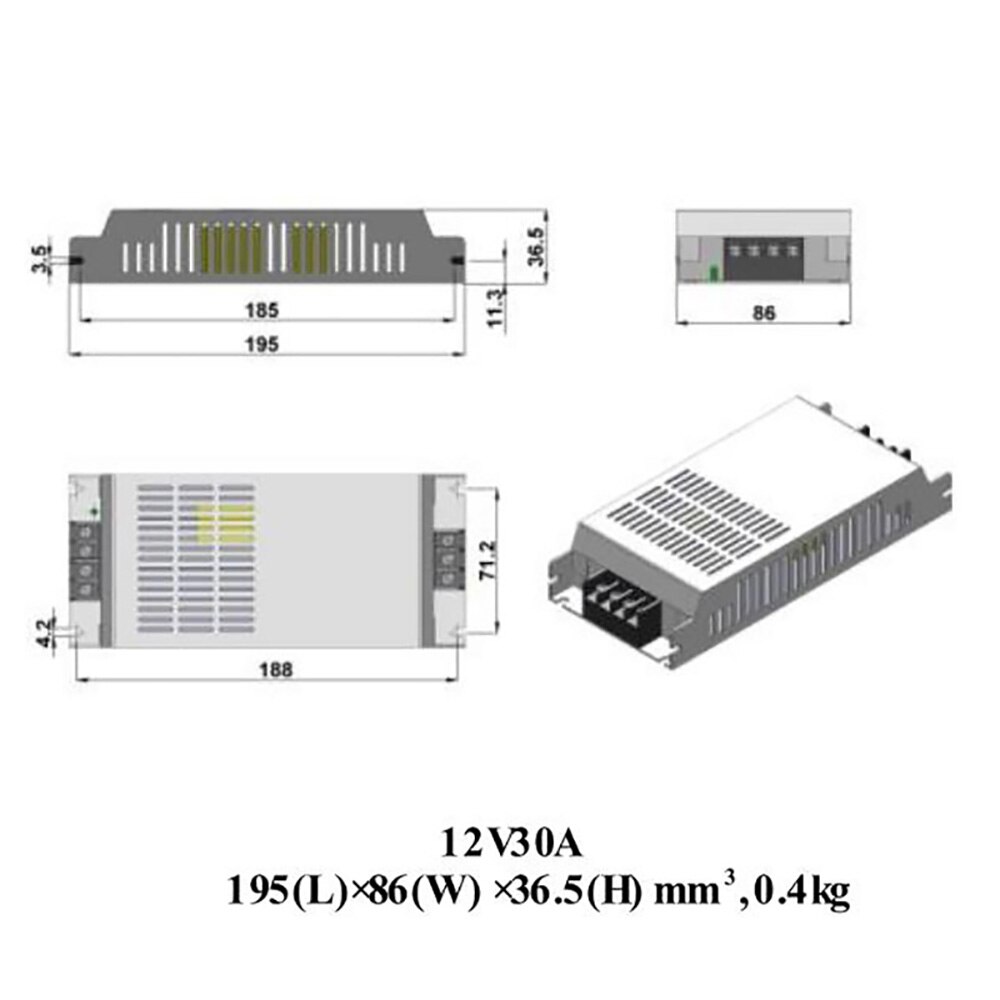

1pcs  Power Supply

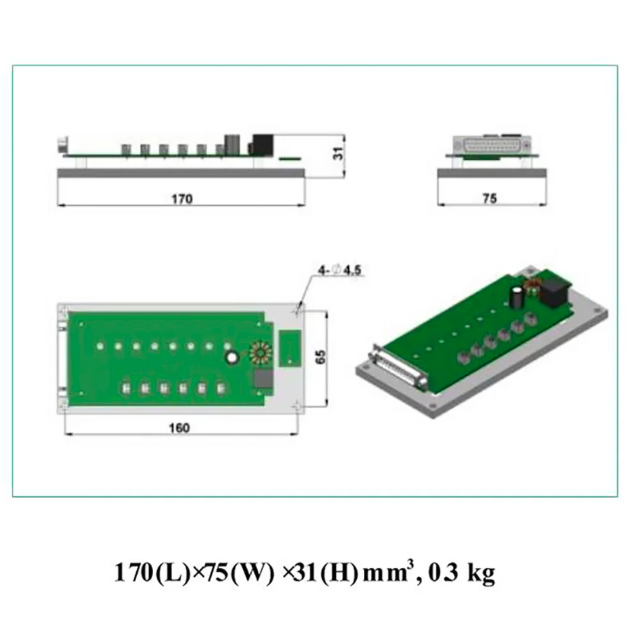

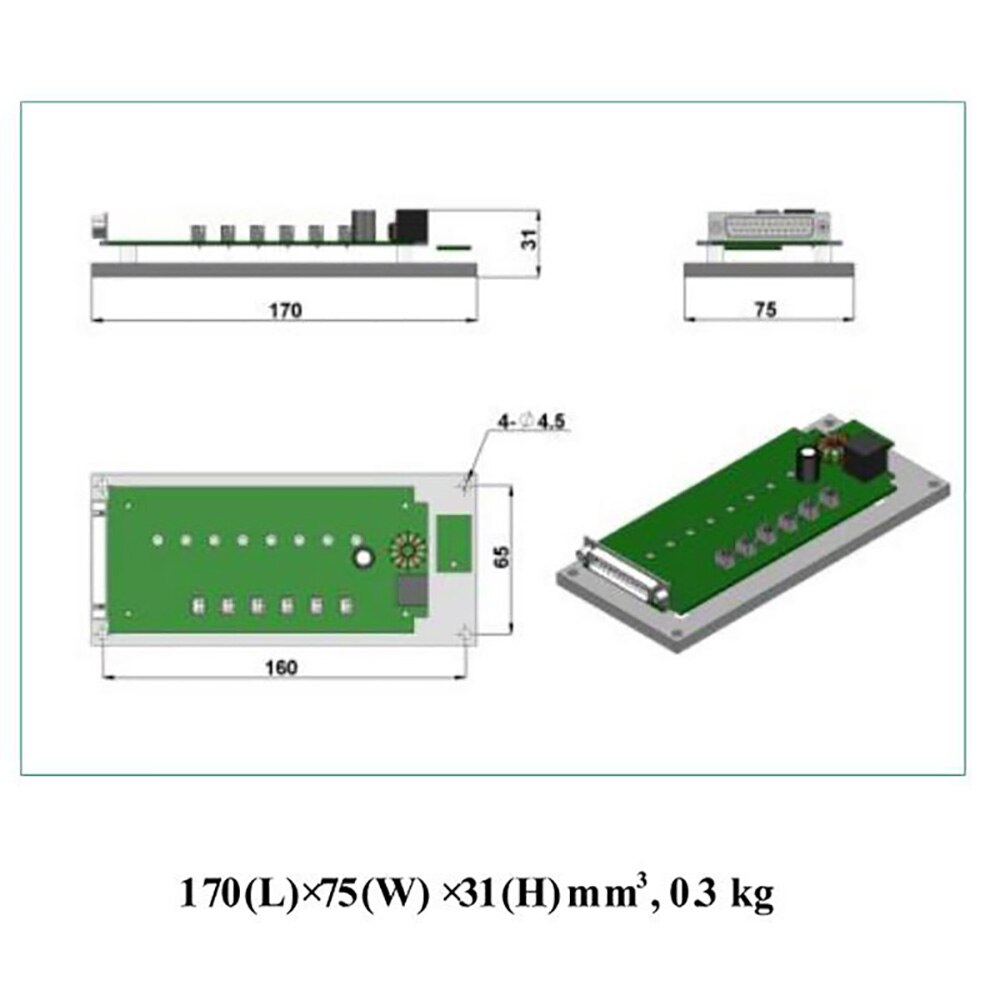

1pcs  Driver Board

2pcs/lot OEM 10W RGB Full Color Laser Module High Power Laser Diodes TTL Analogue Laser Light

Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show

Specifications:
Wavelength: 635/520/447nm ( error range 5nm)

Operating mode: CW

Output power:10W

Ratio power: Red laser 3.2W, Green laser 2.2W, Blue laser 5.4W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)

Beam divergence: less than 2 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 30mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year
Packing Lists:
1pcs 10W RGB Laser Head
1pcs  Power Supply
1pcs  Driver Board

Specifications:
Wavelength: 635/520/447nm ( error range 5nm)

Operating mode: CW

Output power:10W

Ratio power: Red laser 3.2W, Green laser 2.2W, Blue laser 5.4W

Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)

Beam diameter: 6X6, 3.5X5, 3.2X3.2 (mm, at the aperture)

Beam divergence: less than 2 (full angle, mrad)

Polarization direction: Horizontal + Vertical

Warm-up time: less than 5 minutes

Beam height from base plate: 30mm

Operating temperature: 25 degrees celsius (error range 3)

Power supply: 90-240V AC

Modulaton option: TTL / Analog

Expected liftetime: 10000 hours

Warranty: 1 year
Packing Lists:
1pcs 10W RGB Laser Head
1pcs  Power Supply
1pcs  Driver Board
