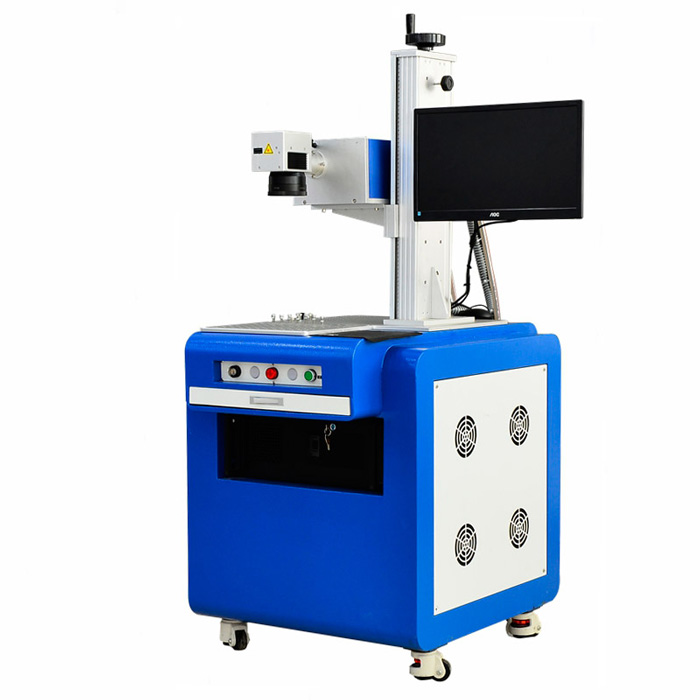

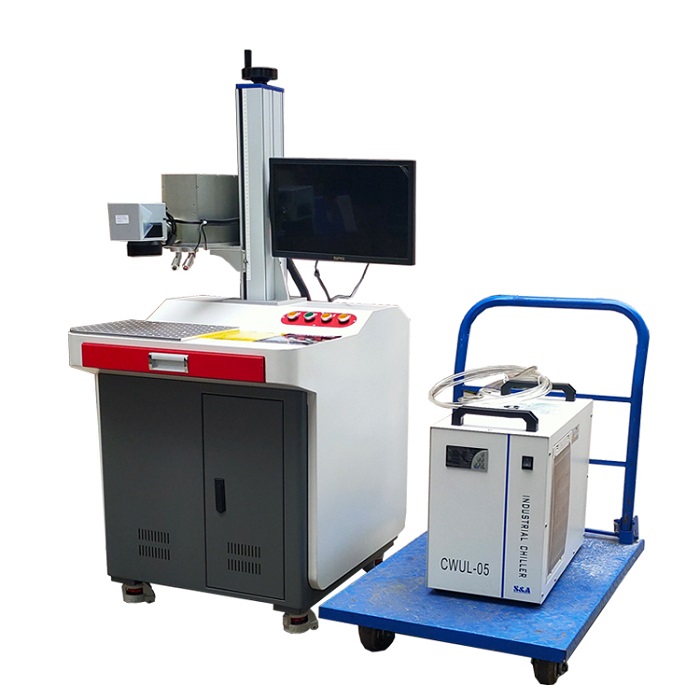

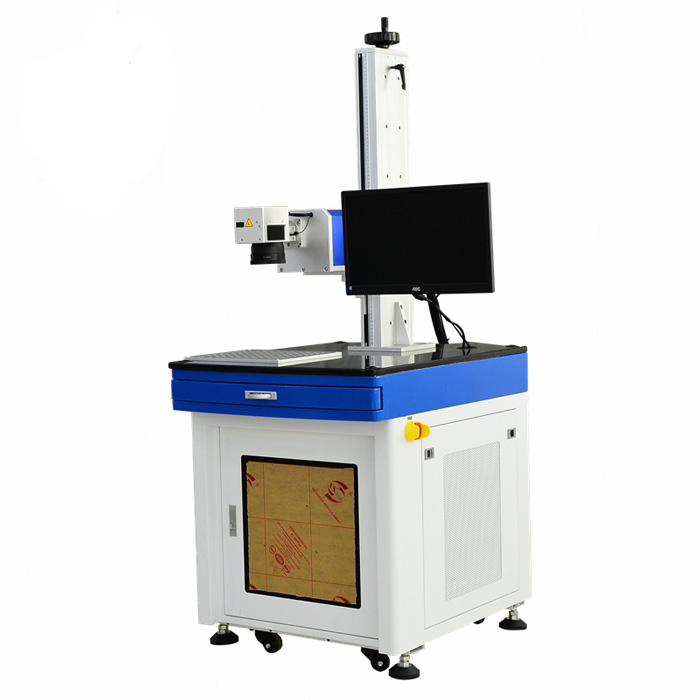

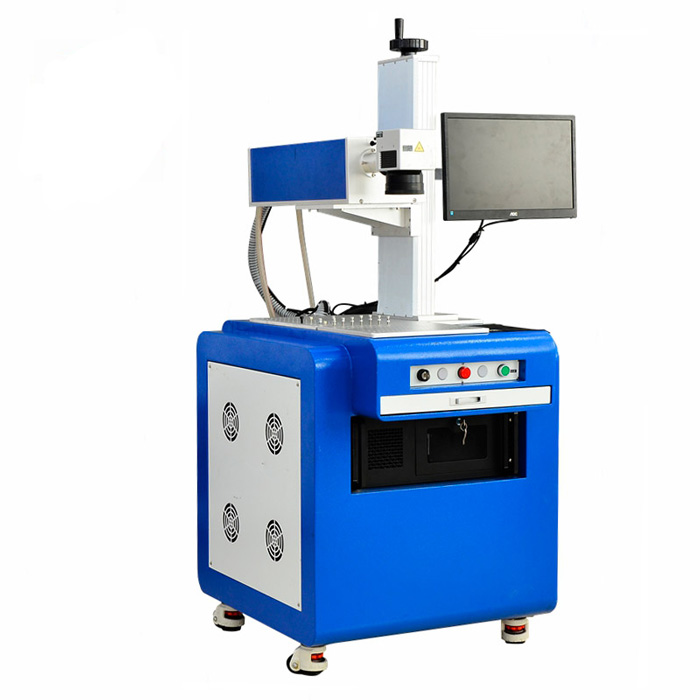

zixu 3w pcb uv laser marking machine price

$7,800.00$10,920.00

SKU: 3466074018651 Category:

Description

 Ultra Violet Printer,the principle with the laser marking machine similar, are using a laser beam in a variety of different material surface marked with a permanent mark. Marking effect is through the short wavelength laser directly interrupted the molecular chain of matter (different from the long-wave laser generated by the evaporation of the surface material exposed deep material) to show the required etching patterns, text. Can be achieved in the assembly line on-line flight marking function, mainly for the thin fragile items such as shallow markings: photovoltaic solar glass. On the basis of cold working, the effect of processing the material will be better results, better development, in the use of cold laser processing, the material impact of the probability reduced to one percent.









3d Crystal Laser Engraving Machine



Parameter

Parameter index

Unit

 Illustration

Laser wavelength

354.7

nm



Average output power

3.0-5.0

W

@30kHz

pulse width

<20

ns

@30kHz

Pulse repetition frequency

10-100

KHz



Laser output mode

TEM00





Beam quality

<1.2





Spot diameter

0.8+-0.1

mm

Measured at window

Beam divergence angle

<1.2

mrad



Beam circularity

>90





Pulse stability

<3

%

RMS/@30kHz

Power stability

<5

%

RMS/8hr

Beam pointing stability

<30

urad/℃



Polarization degree

>100:1





Polarization direction

Horizontal





Working temperature and humidity

10to35  <80

℃  %



Storage temperature and humidity

-20 to 65 <90

℃  %



Power

100-240 50/60<500

VAC Hz W

Single  phase

Warranty

15

months






Laser Engraving Machine Application

Printer 3d Crystal Laser Engraving Machine Machine: Automatic Application System Suitable for ultra-fine processing of high-end market, cosmetics, medicines, and other polymer materials on the surface of the bottle marking. Particularly suitable for plastic, glass ,crystal marking


_15.jpg_16.jpg_18.jpg_19.jpg .jpg

Additional information

Model Number

uv laser marking machine with computer, uv laser marking machine without computer, uv laser marking machine with computer and rotary fixture

Power

5w, 3w
