ZBTK 8.5mm Galvanometer Fiber Laser Galvo scanner Head For Laser Fly Marking Machine

$1,378.76

SKU: 3462053018651 Category:

Description

ZBTK 8.5mm Galvanometer Fiber Laser Galvo scanner Head For Laser Fly Marking Machine

Product Description

    ZB2D81 series galvanometer scanners are high precision high speed Small galvanometer scanners. In addition to competitive prices, it also has good performance, which inherits the outstanding performance of the Zbtk high-end galvanometer scanner series. It has the characteristics of good linearity, small temperature drift, high precision, fast speed, good stability and strong anti-interference ability. It can meet 90% of the requirements of fiber laser applications, is one of the very widely used galvanometer scanners, and enjoys a good reputation and satisfaction among many users.





SPECIFICATIONS FOR ZB2D81 SERIES GALVO SCAN HEAD
Optical Performance Reflection Wavelength 1064nm,10600nm,355nm
Input Aperture 8.5mm
Typical Scan Angle ±0.35rad
Nonlinearity <0.5mrad
Dynamic Performance Tracking Error 0.12ms
1% of full Scale Step Response time 0.22ms
Repeatability <15urad
Gain Drift <50ppm/k
Offset Drift <50urad/k
Long-term drift over 8 hours <0.1mrad
Marking Speed 4m/s
Positioning Speed 20m/s
Input Signal Digital Interface xy2-100
Power Requirements ±15VDC,≥3A
Others Outline Dimension LWH(mm):100x70x70
Weight 1510g
Operation Temperature 10℃ ~50℃

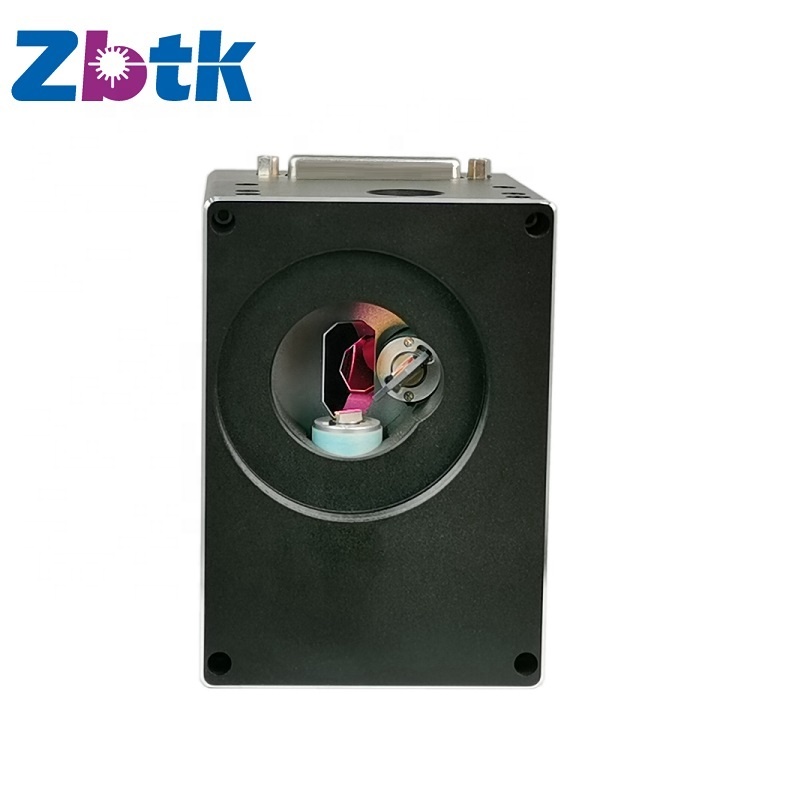

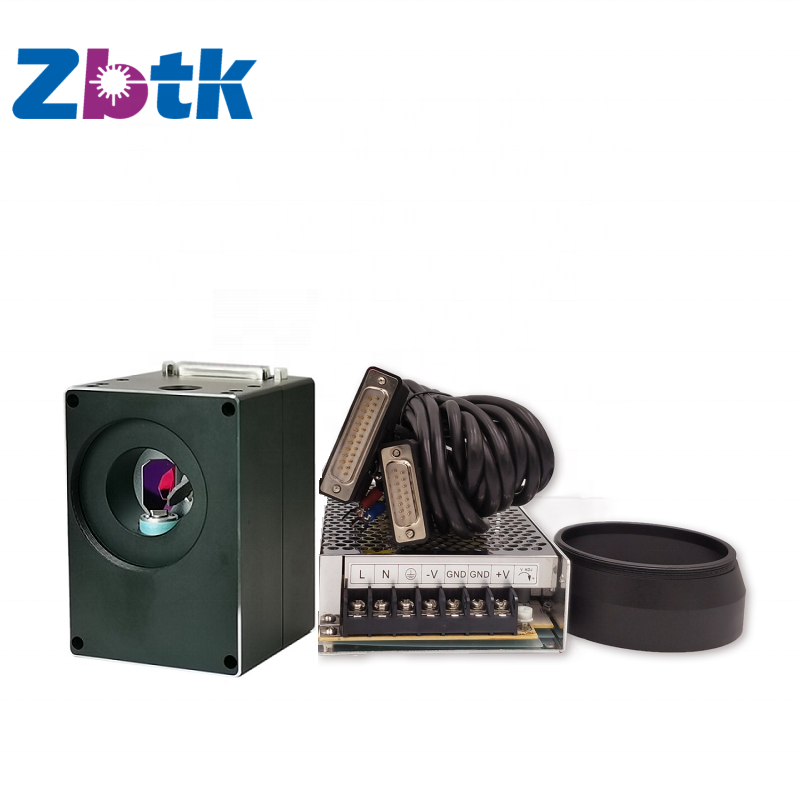

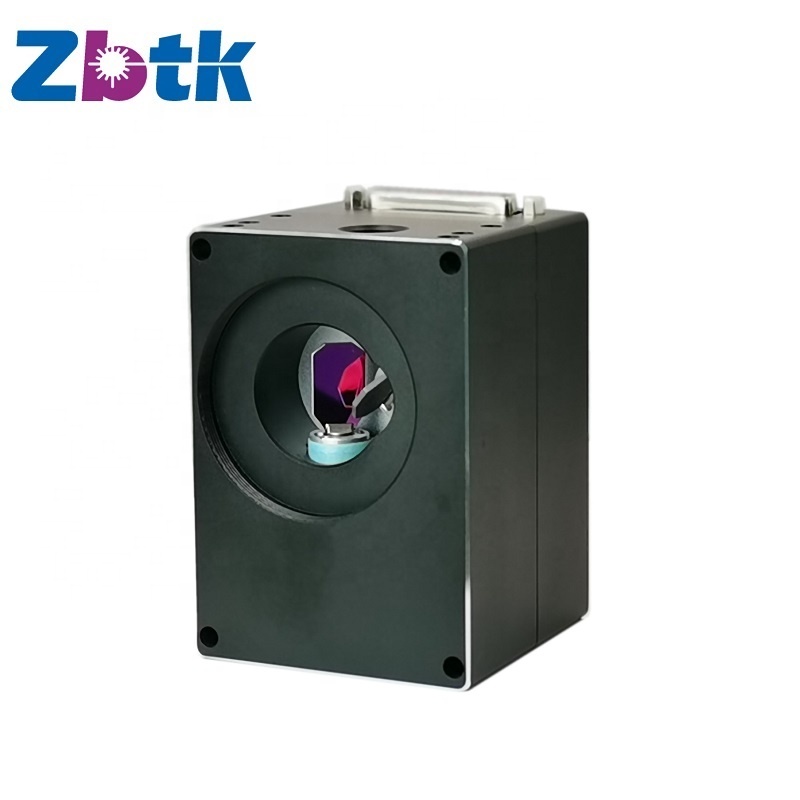

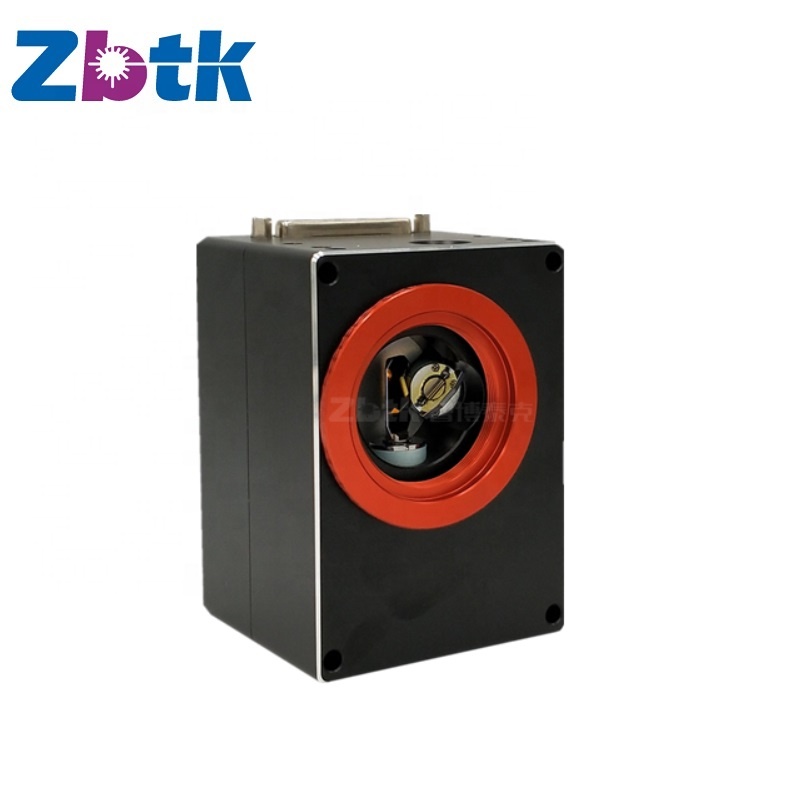

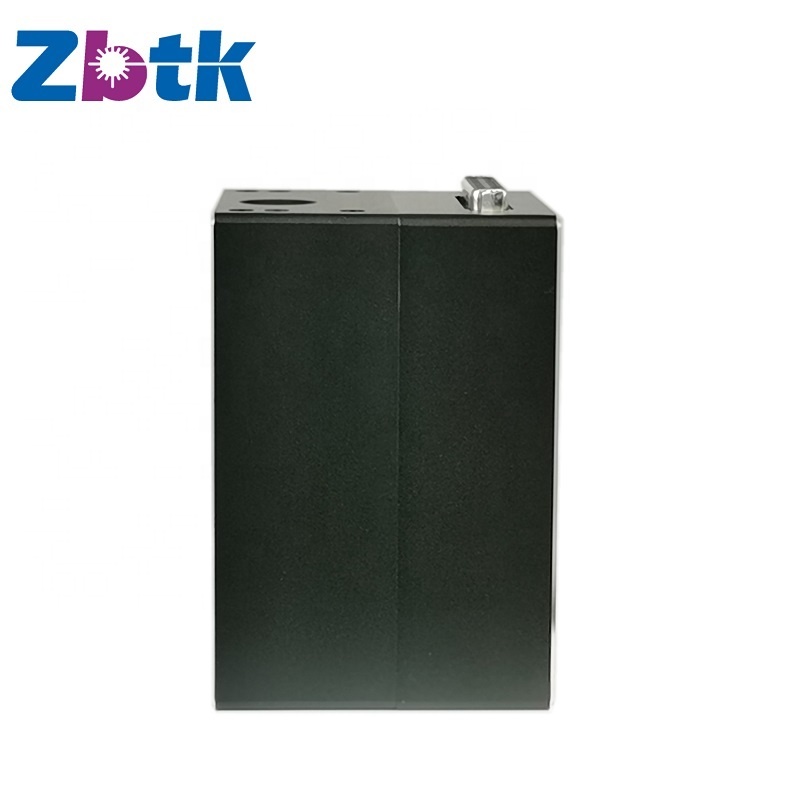

Detailed Images

ZB2D8A6ZB2D8A1ZB2D8A3ZB2D8A4ZB2D811

.jpg

ZB2D82

Additional information

Model Number

ZB2D81
