Zbtk 10mm Double red light fast focus laser scanning galvanometer galvo scan head for laser marking machine

$548.08$613.08

SKU: 3462065018651 Category:

Description

Zbtk 10mm Double red light fast focus laser scanning galvanometer  galvo scan head for laser marking machine

Product Description



ZB2D103R series galvanometer scanner is a cost-effective dual red light assisted focus galvanometer scanner. Can focus quickly and use more convenient. In addition to competitive prices, it also has good performance, which inherits the outstanding performance of the Zbtk high-end galvanometer scanner series. It has the characteristics of good linearity, small temperature drift, high precision, fast speed, good stability and strong anti-interference ability. It can meet 90% of the requirements of fiber laser applications, is one of the very widely used galvanometer scanners, and enjoys a good reputation and satisfaction among many users.





SPECIFICATIONS FOR ZB2D103R SERIES GALVO SCAN HEAD
Optical Performance Reflection Wavelength 1064nm,10600nm,355nm,532nm
Input Aperture 10mm
Typical Scan Angle ±0.35rad
Nonlinearity <0.8mrad
Dynamic Performance Tracking Error 0.2ms
1% of full Scale Step Response time 0.4ms
Repeatability <15urad
Gain Drift <50ppm/k
Offset Drift <50urad/k
Long-term drift over 8 hours <0.1mrad
Marking Speed 2m/s
Positioning Speed 10m/s
Input Signal Digital Interface xy2-100
Power Requirements ±15VDC,≥3A
Others Outline Dimension LWH(mm):114x96x94
Weight 1510g
Operation Temperature 10℃ ~50℃

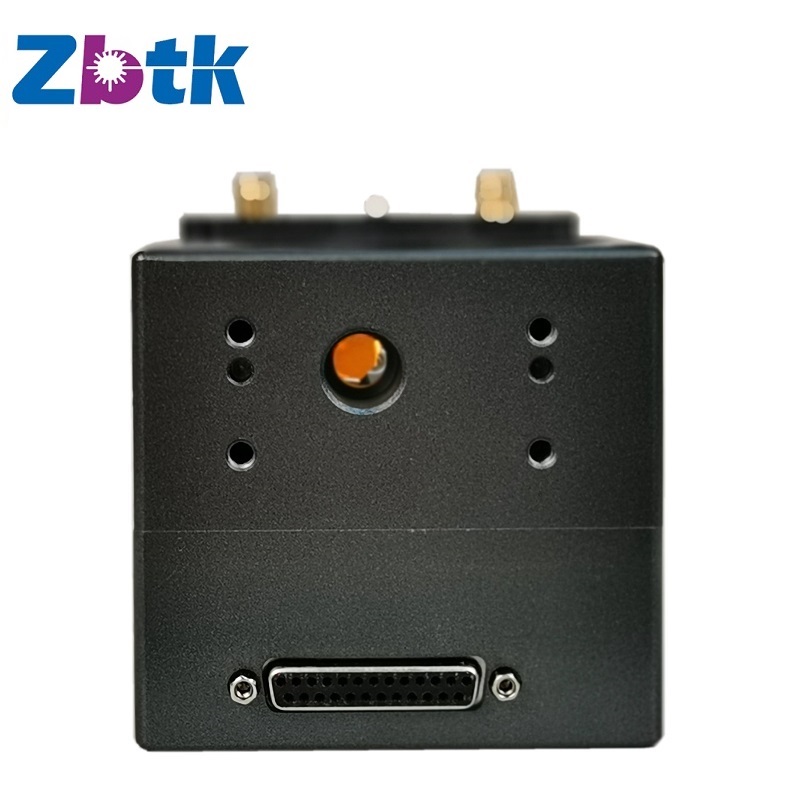

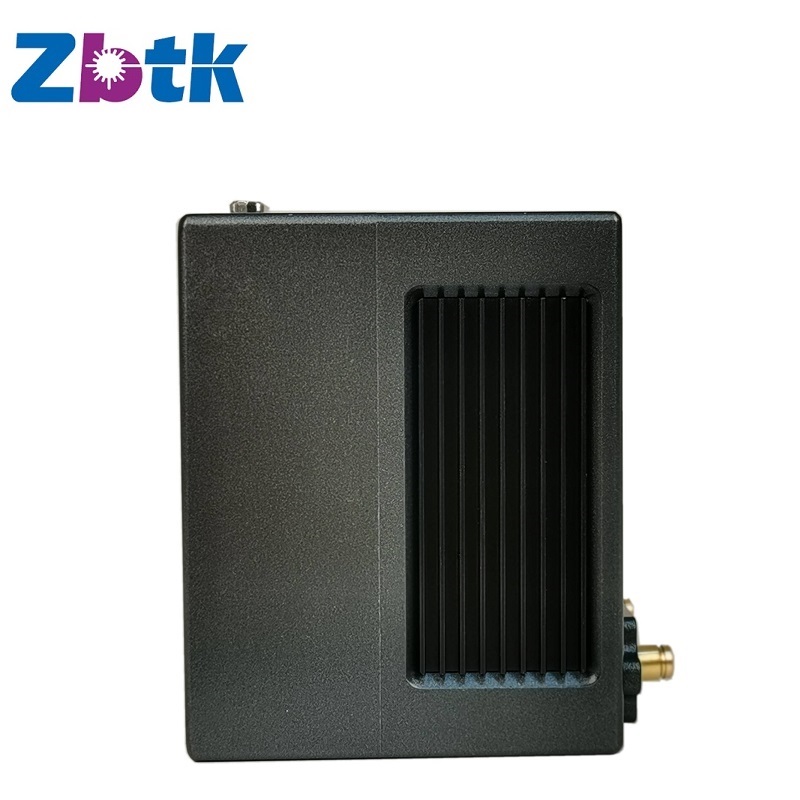

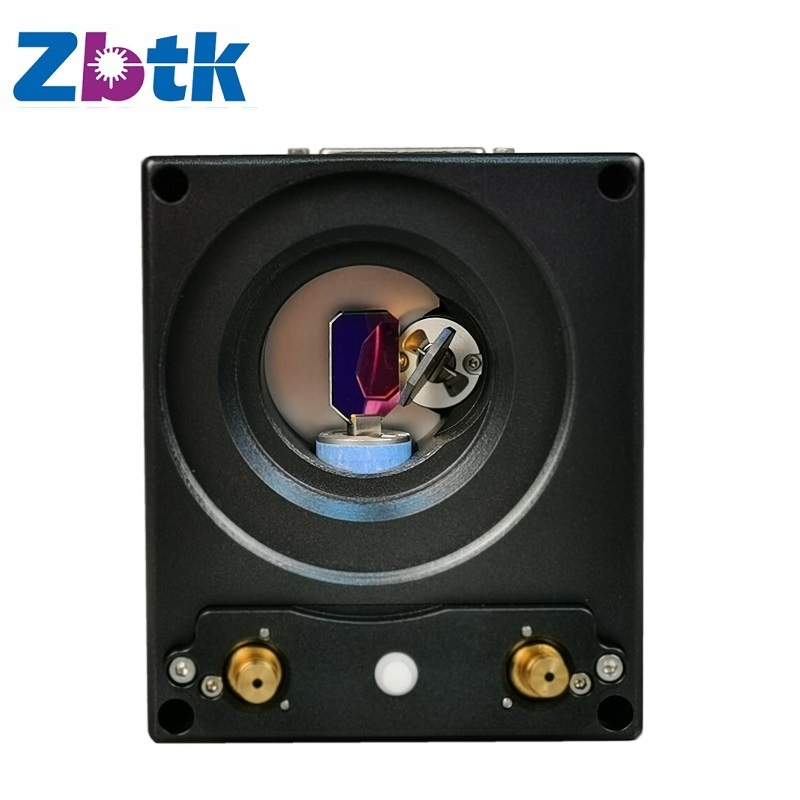

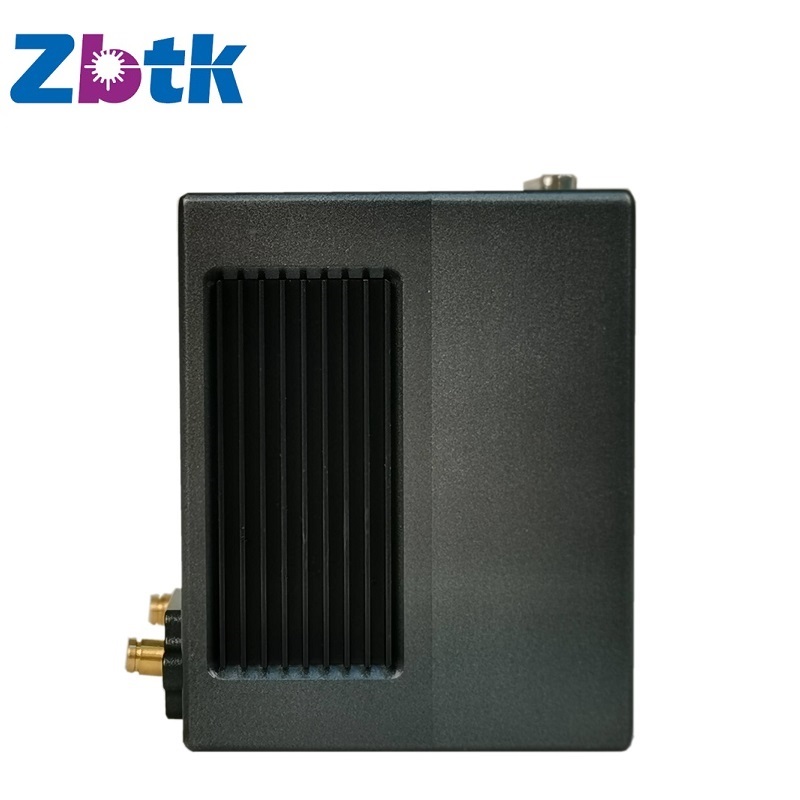

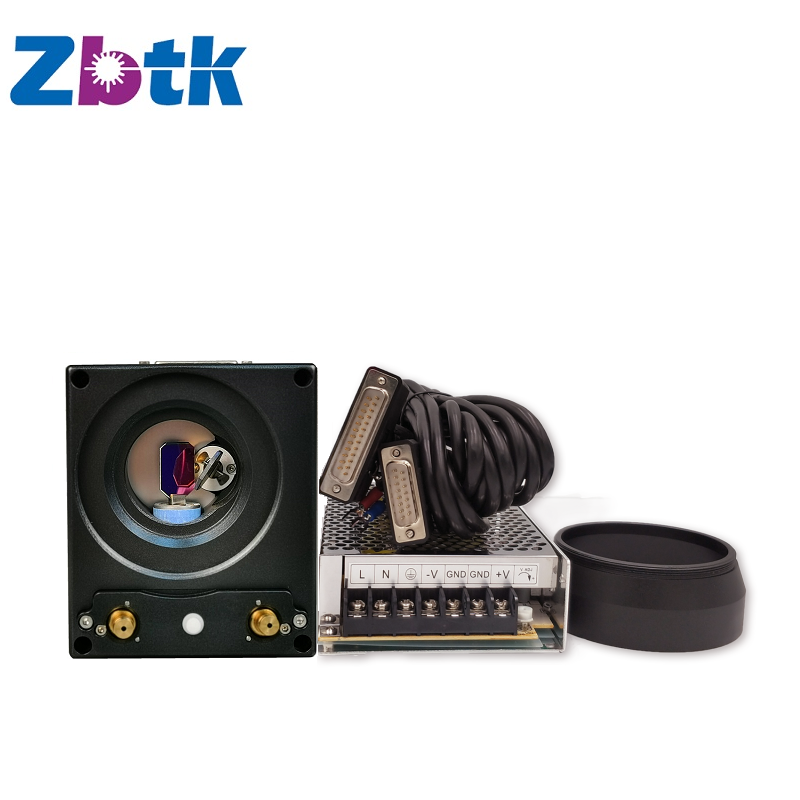

Detailed Images


.jpg


Additional information

Model Number

ZB2D103RD, ZB2D103RB, ZB2D103RC, ZB2D103RA
