Model：FF80-EAIR

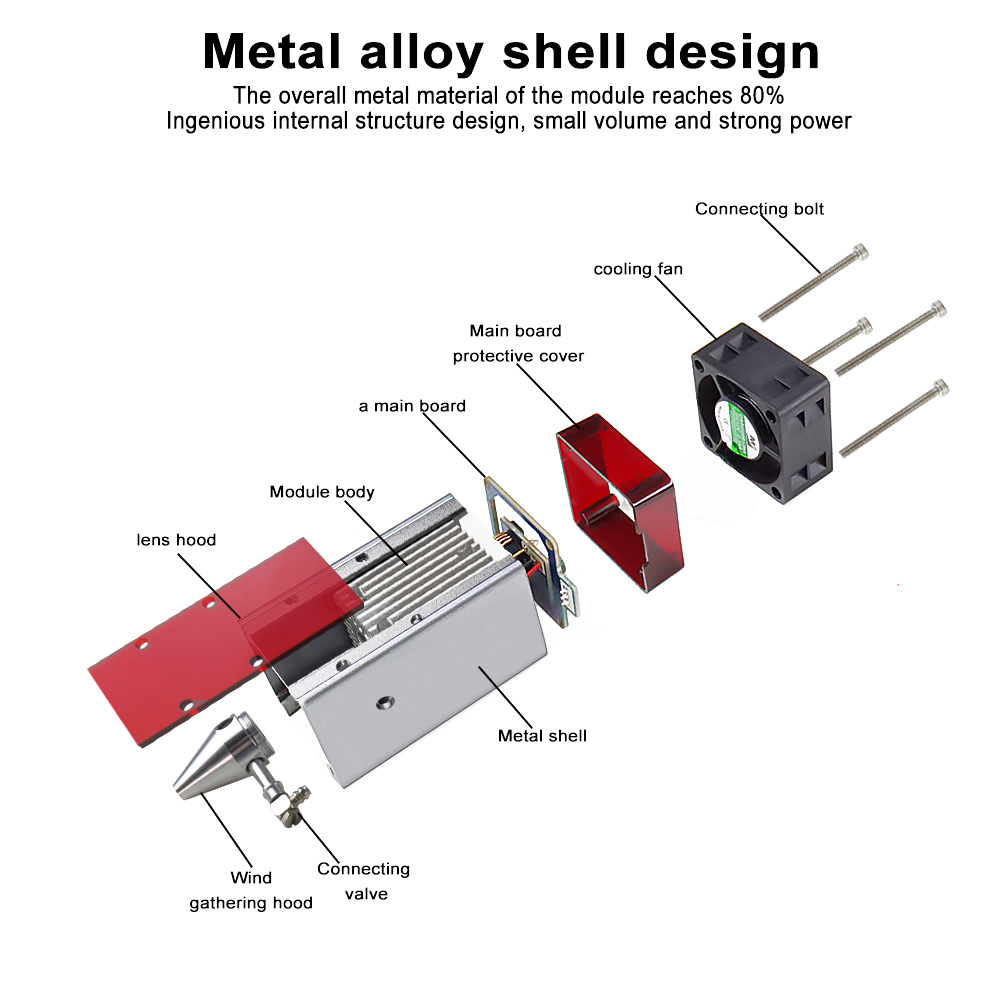

Heatsink Material：Aircraft Aluminum + Brass Shell

Luminous Color：Blue

Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan

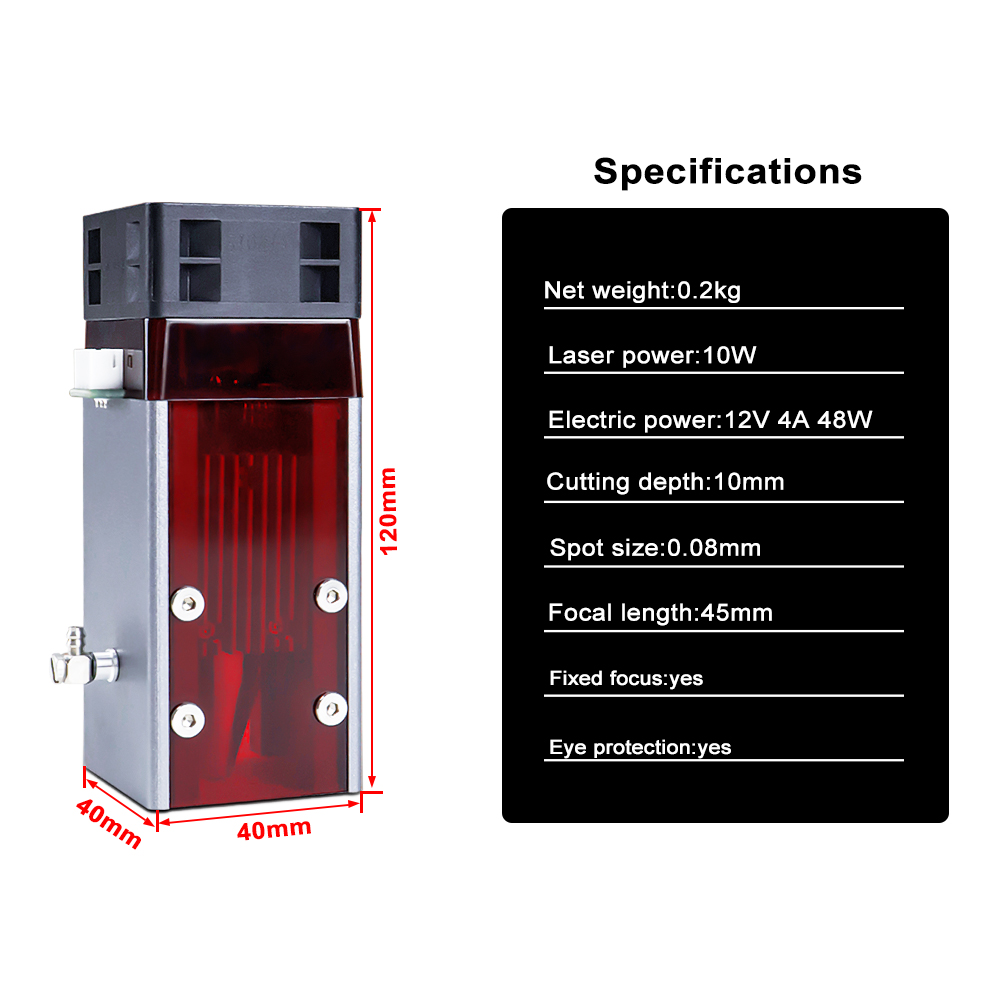

Dimension：4x4x12CM

Can Cut/Engrave : MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/PVC

Module Input：40-80W

Optical power output：10W

Wavelength：450nm

Beam Shape：0.08X0.08mm

TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation

PWM/TTL Input：DC3.3V-12V

Drive Mode：External ACC

Safe temperature range：<60 ℃

Module weight：200g ( The lighter the weight, the smaller the move inertia, the better the performance )

Life Time：10000-20000 hours

1– Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

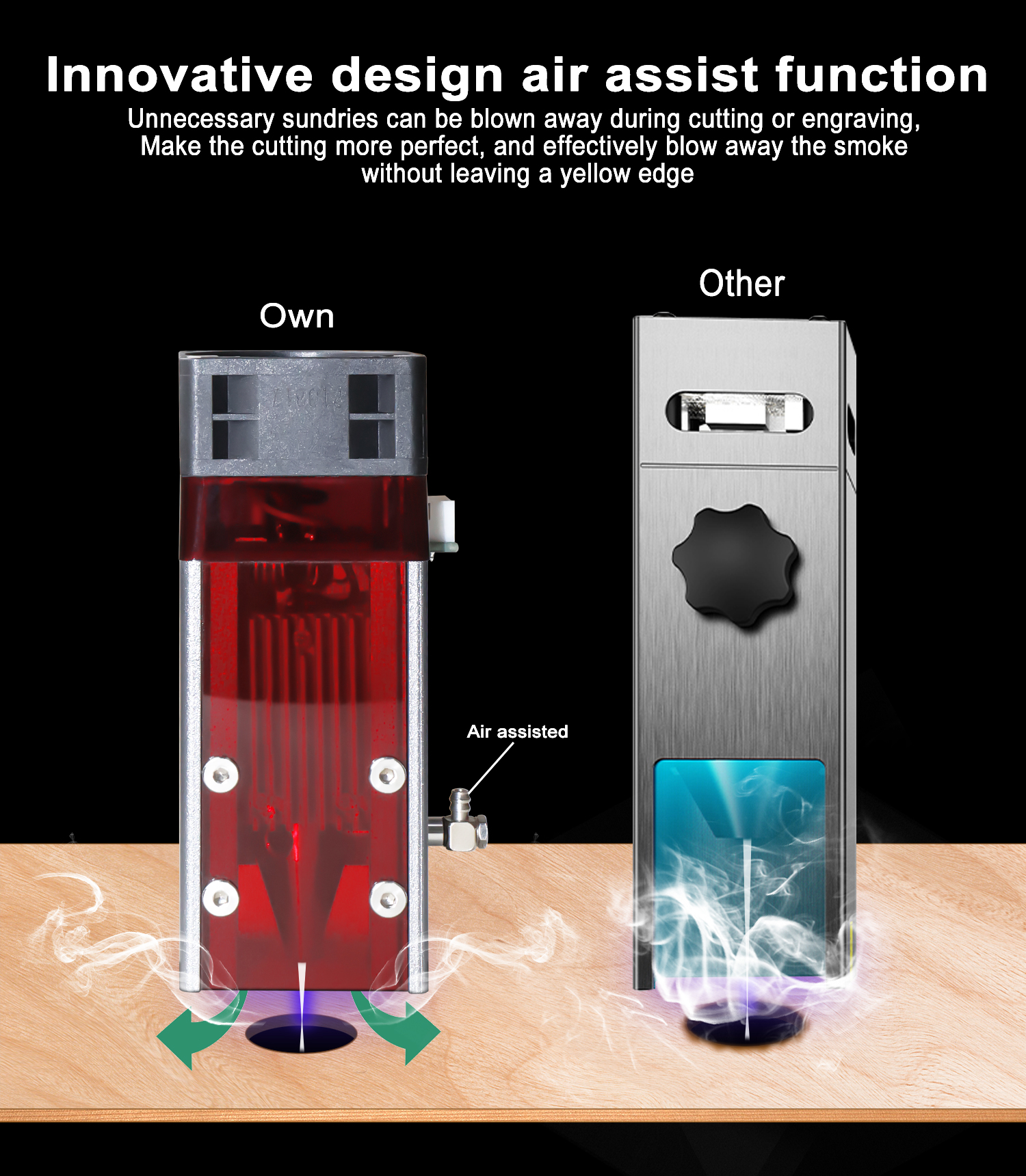

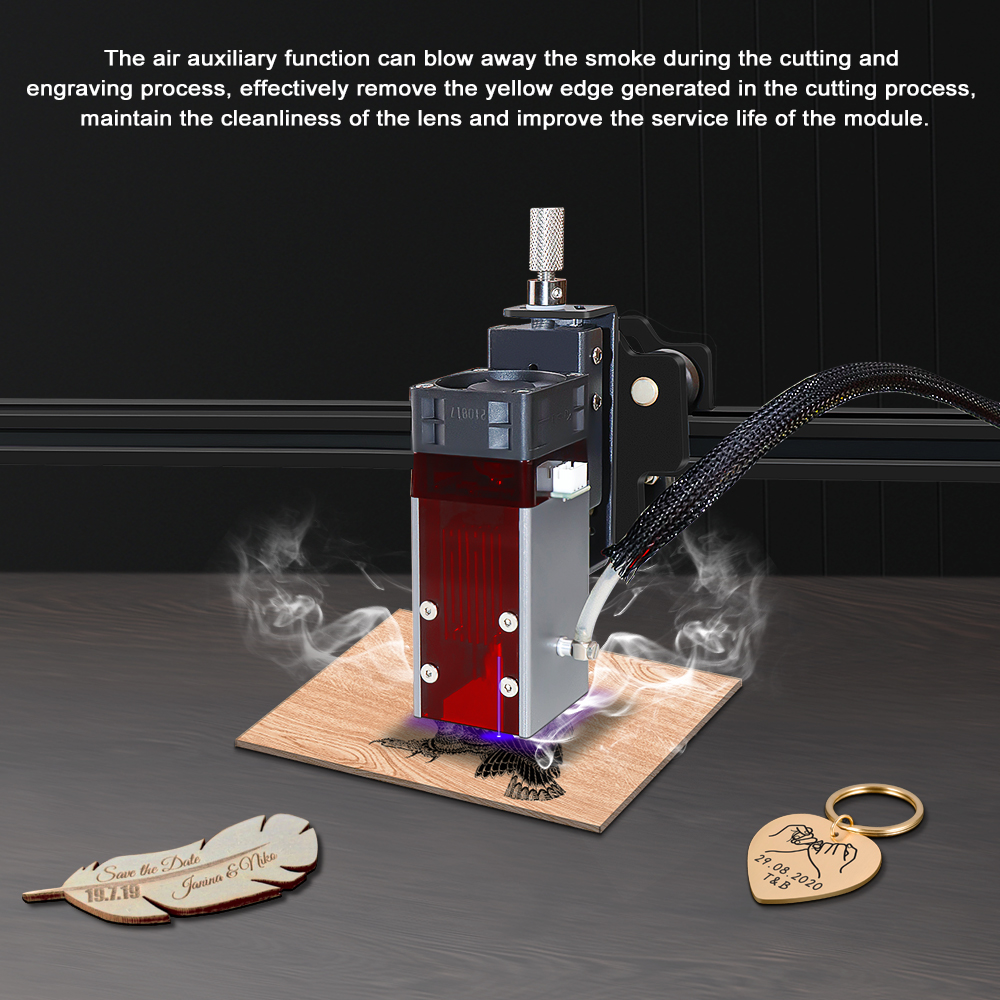

2– Built-in Air assist Interface, it is easy and convenient to use a air bump to improve cutting and engraving accuracy and speed.

3– Metal Nozzle, the head is metal to improve safety, no worry burn the plastic protective cover again.

4– Smaller and Lighter, the upgraded laser module head is compacted 0.2kg/0.44lb, the lighter the weight, the smaller the move inertia, the better performance for printing.

5– Cooling System, temperature sensor intelligent control + 12000 rpm 40mm cooling fan, can working 20 hours Continuously.

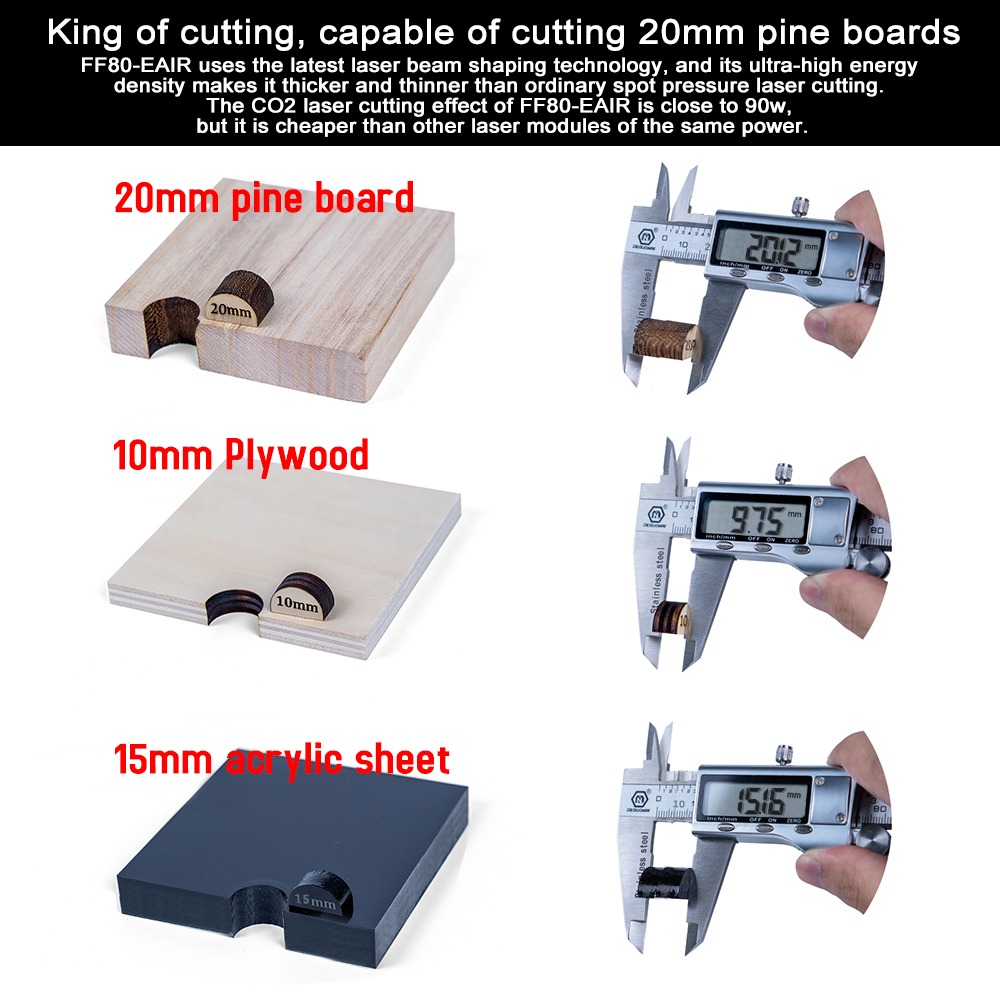

6– 10W Optical power output, 6mm plywood by 1 pass, 10mm pine board by 1 pass(straight line), 5mm black acrylic board by1 pass, Able to engrave stainless steel, but it needs good focus adjustment.

7– More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.

8– Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for laser module, can work with lase machine from Neje, Ortur, Two tress and so on.
