Description



Match with 130watt,150watt,180watt co2 laser glass tube

I. Intelligent laser power supply Z150 Main Feature

1. PFC wide voltage AC90V-AC250V input, global universal.

2.  High intelligence: Z150 power supply can communicate with motion controller,the controller panel can display Z150 power supply working condition, the users can know and judge the fault easily

3. Open circuit protection function, if the output high voltage open circuit or not connected well, the Z150 power supply will automatically cut off the high voltage.

4.   Multi-function LCD screen: One LCD screen can show two Z150 power supplies working condition, easy used for 130w-150w double-heads laser cutting machines.

5.  High voltage discharge function, no residual voltage after turn off, very safe for user.

6. Excellent cover with patent design: Good appearance, better heat dissipation.

II. Z150 Laser Power Supply specifications









III.Z150 Laser Power Supply Terminal definition



P1 High voltage indicator light

P2 FG: ground connection; AC: input

P3 Test button

P4 terminal definition

P5 Communication Connector



P4 terminal definition

TH	Input Signal	The control of laser: TH≥3V, emitting laser; TL≤0.3V, no laser.
TL	Input Signal	The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser.
WP*1	Input Signal	The control of laser: TH≥3V, no laser; TL≤0.3V, emitting laser.
G	GND	This foot must be connected well with the shell of laser machine and the ground of control board.
IN*2	Input Signal	The control of laser power: Both 0-5V analog signal  and PWM signal can control the laser power.
5V	Output Power	Output 5V, the maximum output current is 20mA.



   Connecting method of P5 terminals:

1.  If P5 terminals connect with Ruida controller





2.  If P5 terminals connect with LCD display:





IV.Z150 laser power supply Manual Test Method

Firstly make sure Z150 power supply and laser tube correct well, disconnect the control terminal and press the RED button” TEST” on Z150 power supply for 5-10seconds to check if there is laser output from laser tube.This method is easily to judge if power supply is ok.

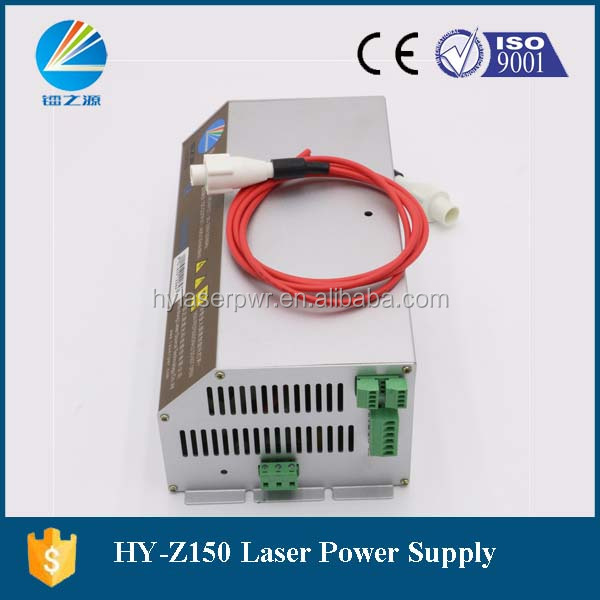

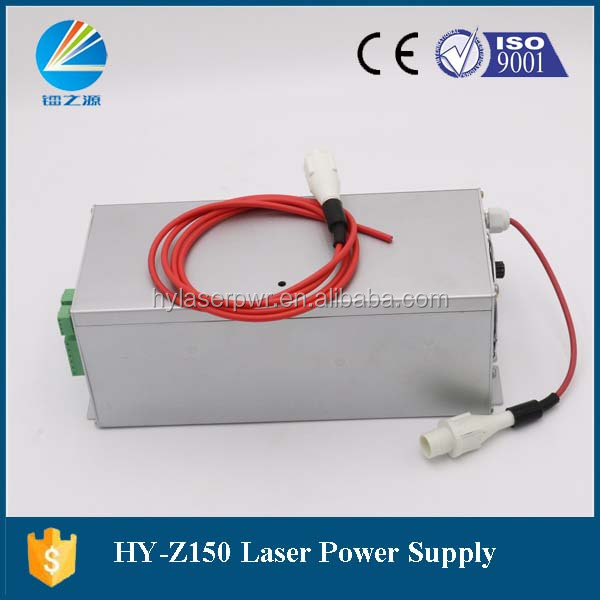

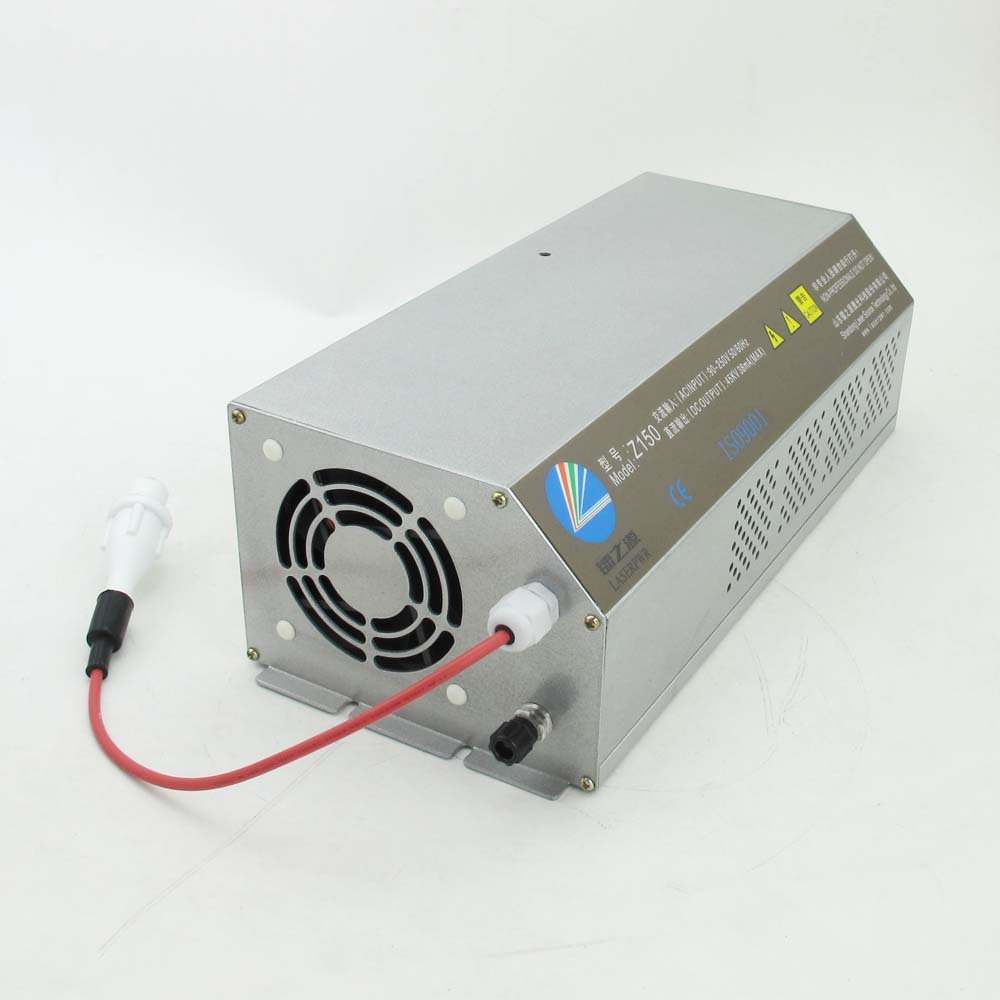

V.Z150 Intelligent Laser Power Supply picturres











VI. Installation Size









Z150 intelligent power supply packing photos;



Shipping by SEA, AIR, EXPRESS for your choice





Shandong Laser Source Technology Co.,Ltd. is the same as Jinan Hongyuan Electric Co., Ltd



(China) Jinan Leizhiyuan Electric Appliance Co.,  Ltd.   is a high-tech enterprise, located in the core area of electronically developed regions-Jinan. Professional designer & manufacturer & exporter of laser power supply with 15 years experience,

Hongyuan Electric Technical Support

Technical Support:

1. All our item is pass the ISO9001 and CE quality Certification.

2. We are the manufactory of the Co2 Laser Power Supply, and have strict quality control system,so that we can

supply the best quality products with lowest prices for our client.

3. We have a professional technical support group for all the item selling. If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.

4. Manual testing: Make sure the power supply and laser tube wiring correct firstly, offline the control line and then press the red button” TEST” to test laser tube out light or not, this method can be simple judgment power supply is working correctly.









We produce strictly according to ISO9001:2008 international quality management system elements

of conduct production activities.











 For more detail information of our laser power supply, please contact us freely,

we will try our best to help you.
