Yongli RLT-30 co2 laser wood marking machine spare parts 30w RF co2 laser tube

$1,323.78

SKU: 3486049018651 Category:

Description

Product Description

Yongli Laser Co2 RF laser sources can operate at high repetition rates and have low power drift in operation. In addition, they have higher beam quality. For example, if paper needs to be marked, the power is set to a low value. The average service life of our Yongli RLT-30 Co2 RF laser metal tube 30W is expected to be around six years (20,000 Hours Service Life). After that, an exchange for a new or upgraded laser source is required. With ceramic tubes, contamination of the gas mixture by air flowing in from the outside is rarely or never the case. Often the full laser power can be achieved again by adjusting the power electronics (readjusting the frequency for the antenna driver) or by replacing a defective board (typically a power amplifier defect).

Product Paramenters

Model

RL-30

Rated Power

30w

Mode Quality

TEM00
Beam Divergence

7.5±0.5 mrad

Beam Size

1.8±0.2mm

Power Instability

≤±5%

Wavelength

10.6±0.1μm

Polarization
Linear Polarization(100:1) Parallel to the width direction
Operating frequency and duty cycle
0~25kHz,0~100%
Weight
6.2kgs
Gross Weight
9.8kgs
Size
357*92.5*142mm
Input Voltage
Maximum average current 12A,requires the power supply to withstand peak current 18A, not less than 1ms
Head Load
<575W
Maximum case temperature
<60℃ (140°F)
Ambient temperature at work
<15~40℃(59~104°F)
Humidity
Non-condensing
Shipping and storage enviroment temperature
-10~60℃(14~140°F)

Installation Instructions

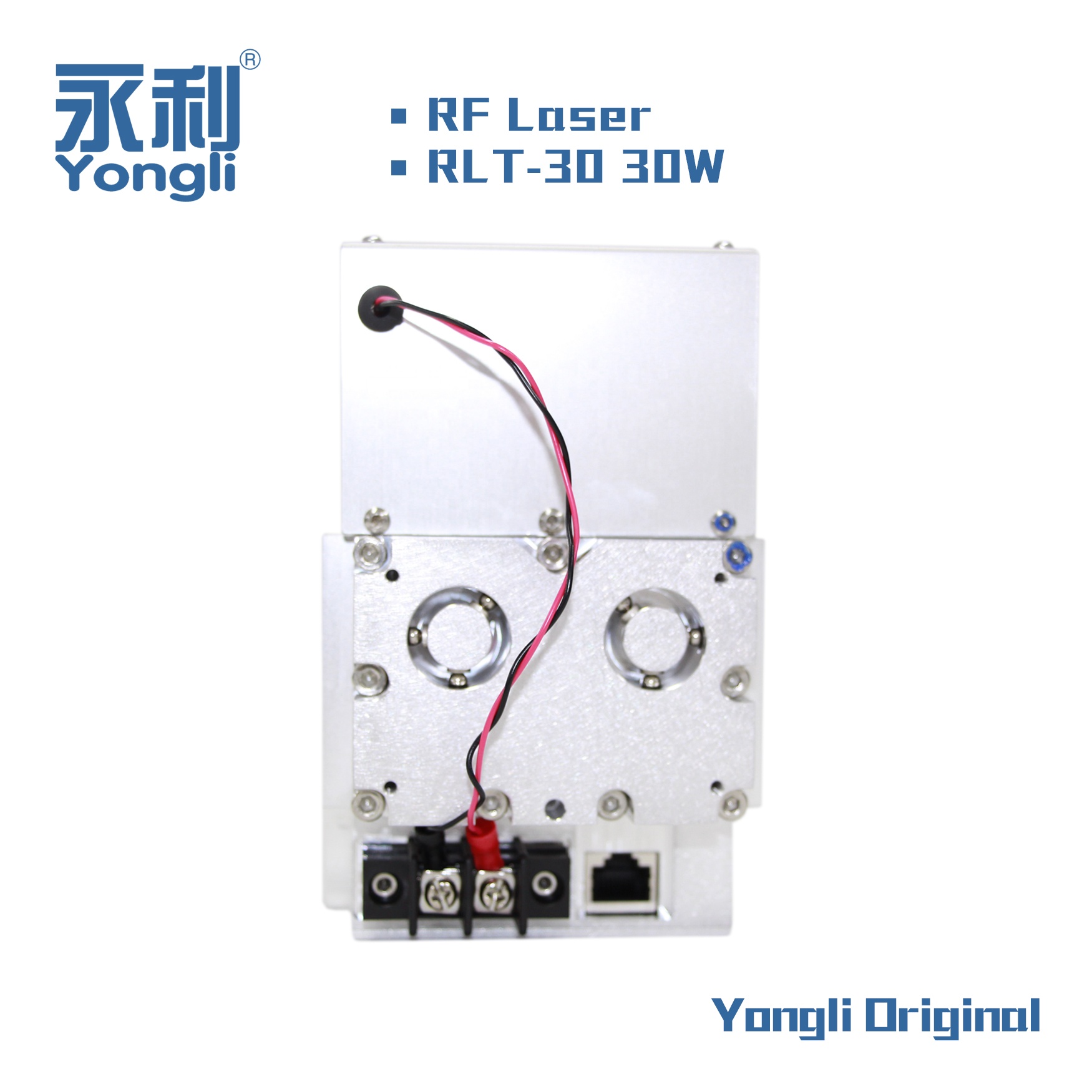

The connection Interface

Yongli RF CO2 Laser tube can replace other common brand of co2 laser tube.

The power supply it is compatible with
Model No.: SE-600-48

Application

For CO2 Laser Marking Machine


-Achieve high speed static or dynamic online marking code

-Mark/Engrave clearly
-Hard-wearing quality
-High engraving and marking efficiency
-Environmentally-friendly

For Medical treatment

-CO2 Fractional Laser Scare Removal Skin Resurfacing Device

-CO2 laser therapy
-RF Stretch Marks Removal CO2 Fractional Laser Machine
-RF Tube Laser Generator Vaginal Tightening Laser
-Cosmetology surgery apparatus

For CO2 Laser Cutting Machine


-High and stable power -Cutting better than Fiber laser For Non-metal

-The speed of cutting is faster
-Cutting Leather, wood,plastics etc
-The wavelength influence the cutting effect

Additional information

Model Number

RLT-30
