Description
YLE-3000-200J Laser Spare Parts IPL & Diode Laser Energy Meter for Laser Hair Removal
|
Product name
|
laser energy meter
|
|
Laser energy measuring range
|
10mJ-200J
|
|
Receiving aperture size
|
65mmx25mm
|
|
Spectral range
|
350nm – 2500nm
|
|
Measurement uncertainty
|
<5%
|
|
Applicability
|
IPL, 808nm intense pulse laser etc
|
|
Resolution
|
0.1mJ
|
|
Type of cooling
|
Air cooling
|
|
Response time
|
3-5s
|
|
Interface Type
|
BNC
|
|
Power Dissipation
|
<10W
|
|
Warranty
|
1 Year
|
Product Description
This IPL laser energy meter can be used to measure the emitted energy of IPL laser hair removal. It has a very high cost performance.
It is very easy to operate.

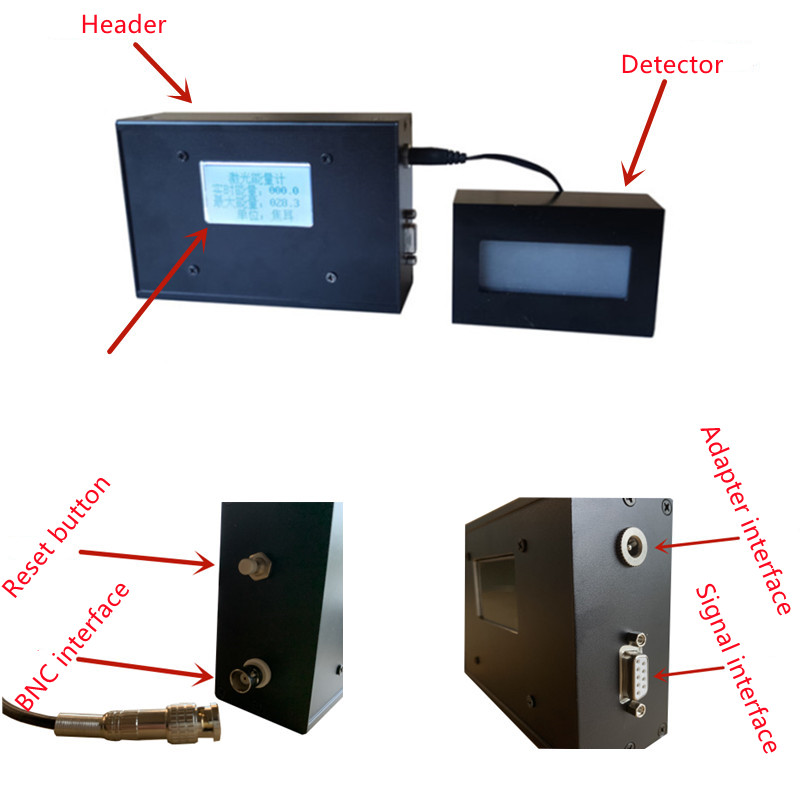

1. Connect the other end of the signal wire probe BNC with the LCD digital display header.
2.Trigger the light pulse to aim at the center of the absorber.

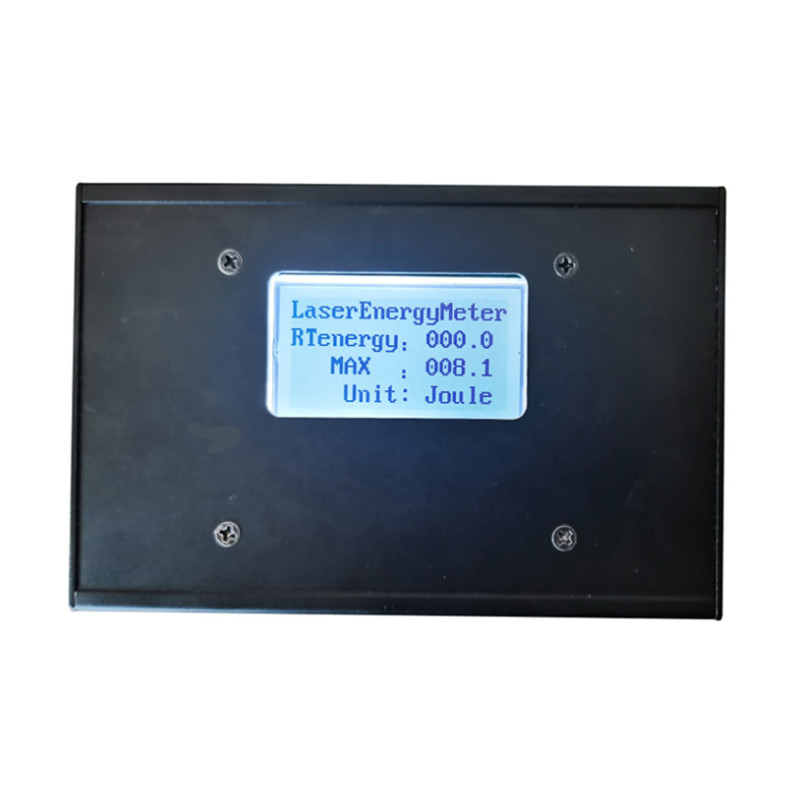

3. The LCD digital display header will show the real-time energy and the maximum energy(J).
2.Trigger the light pulse to aim at the center of the absorber.
3. The LCD digital display header will show the real-time energy and the maximum energy(J).
After reseting, you can measure repeatedly many times.
