Product Description

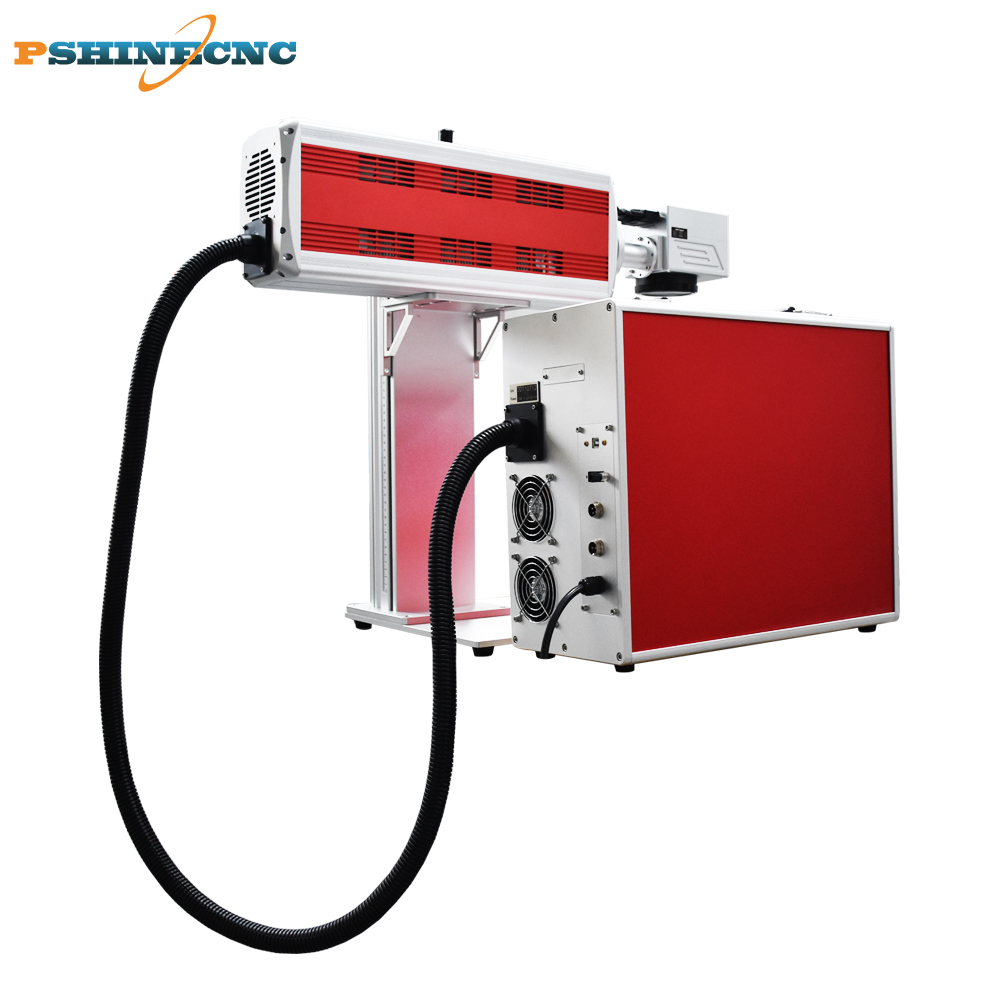

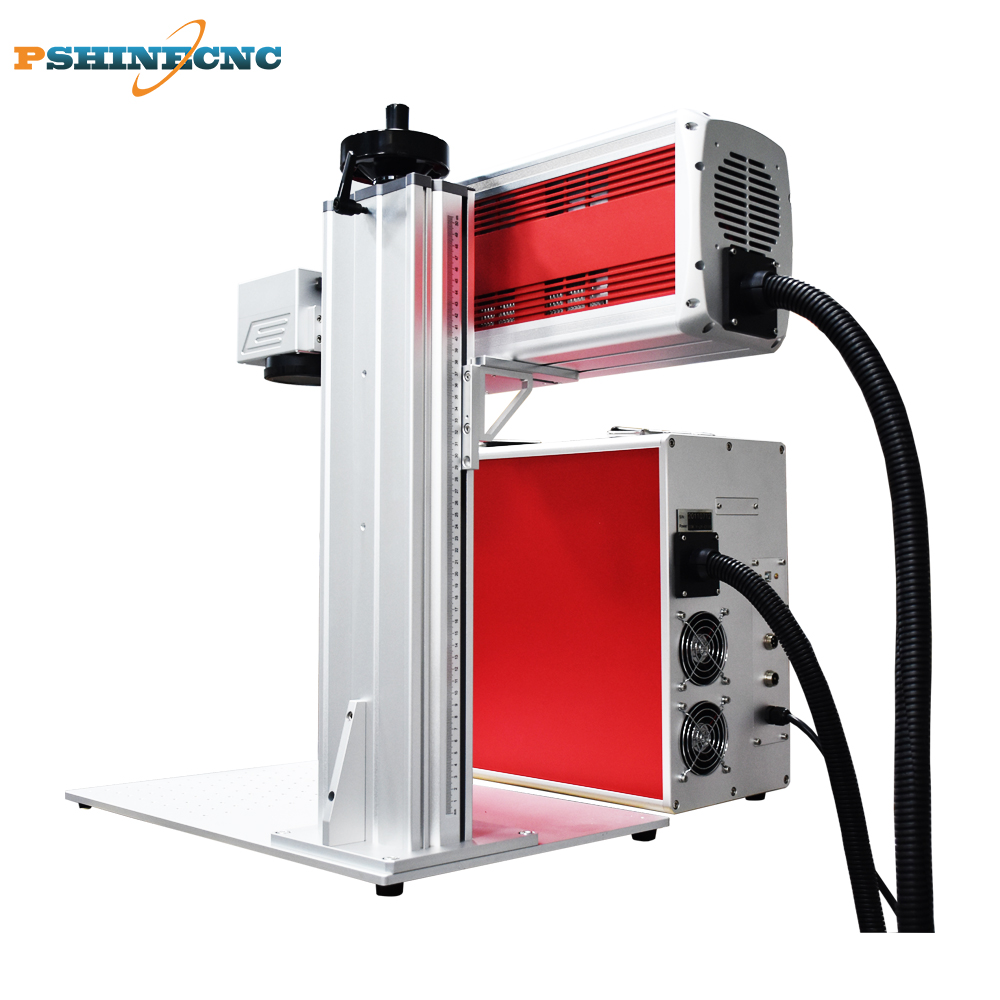

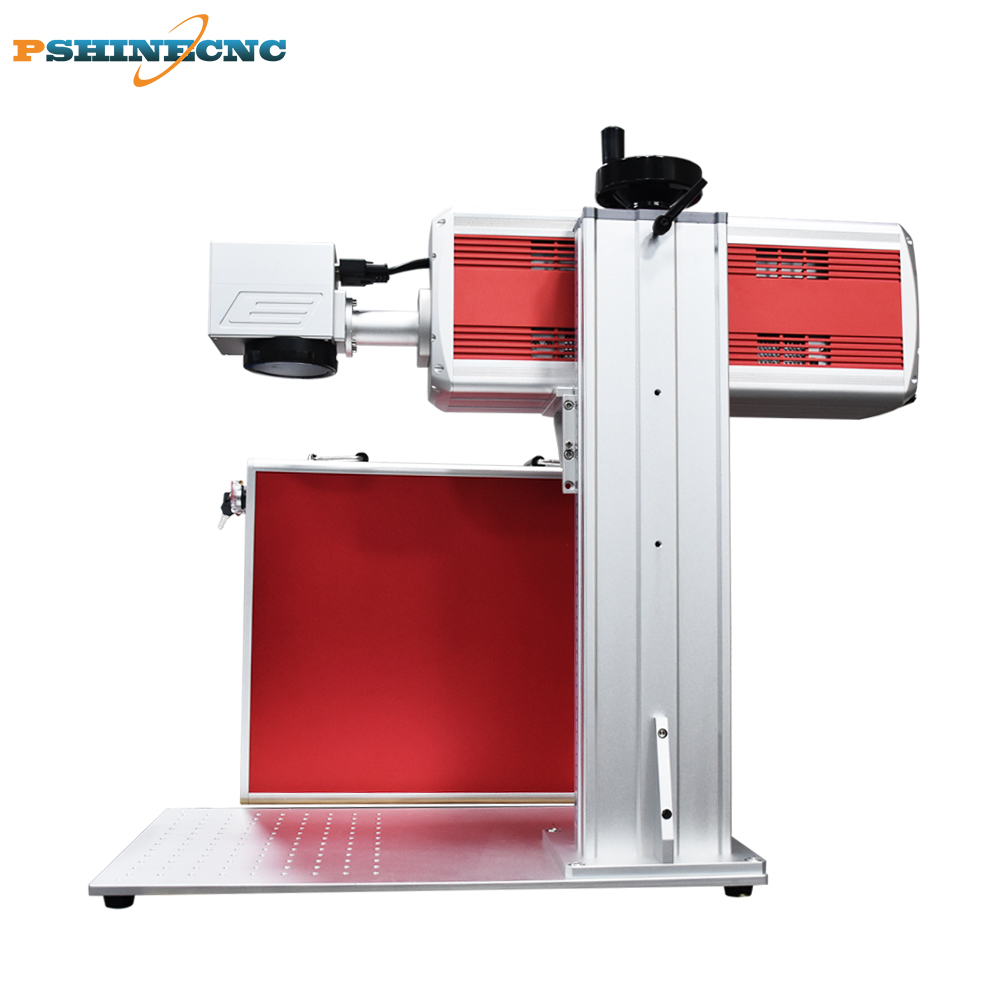

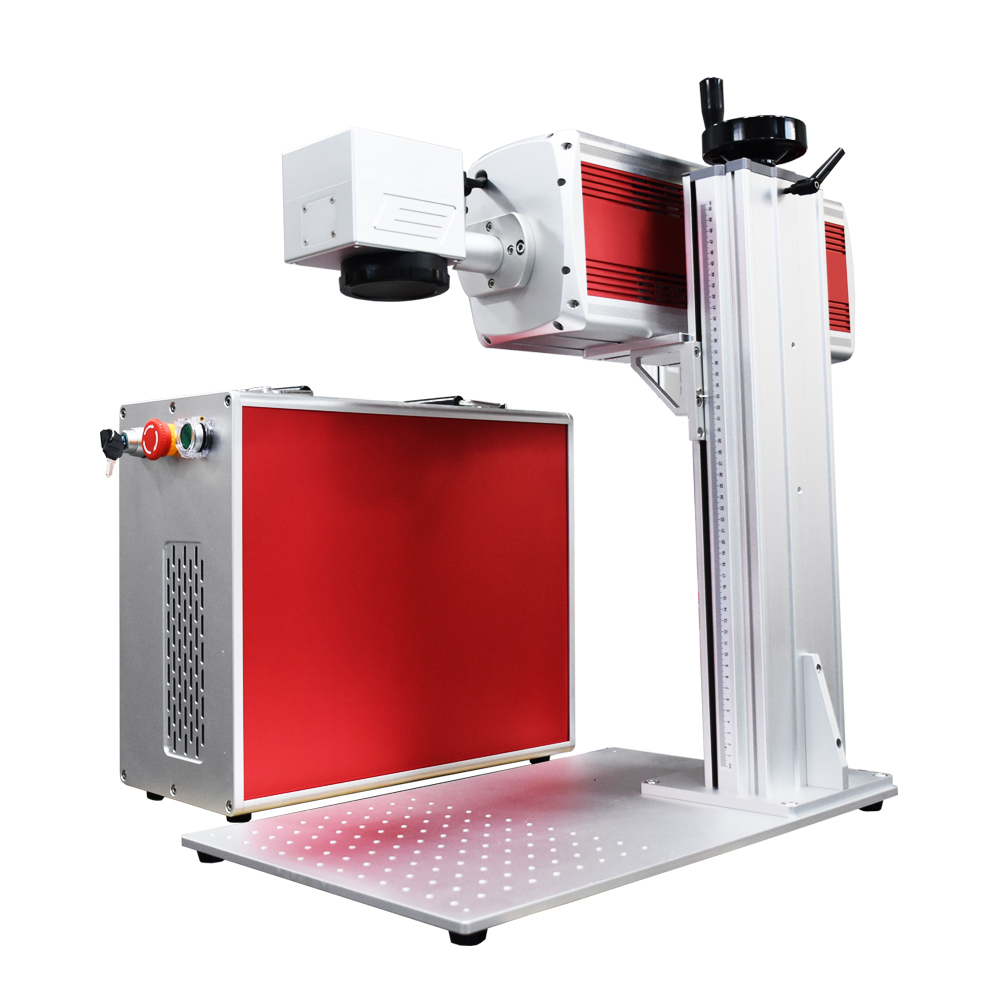

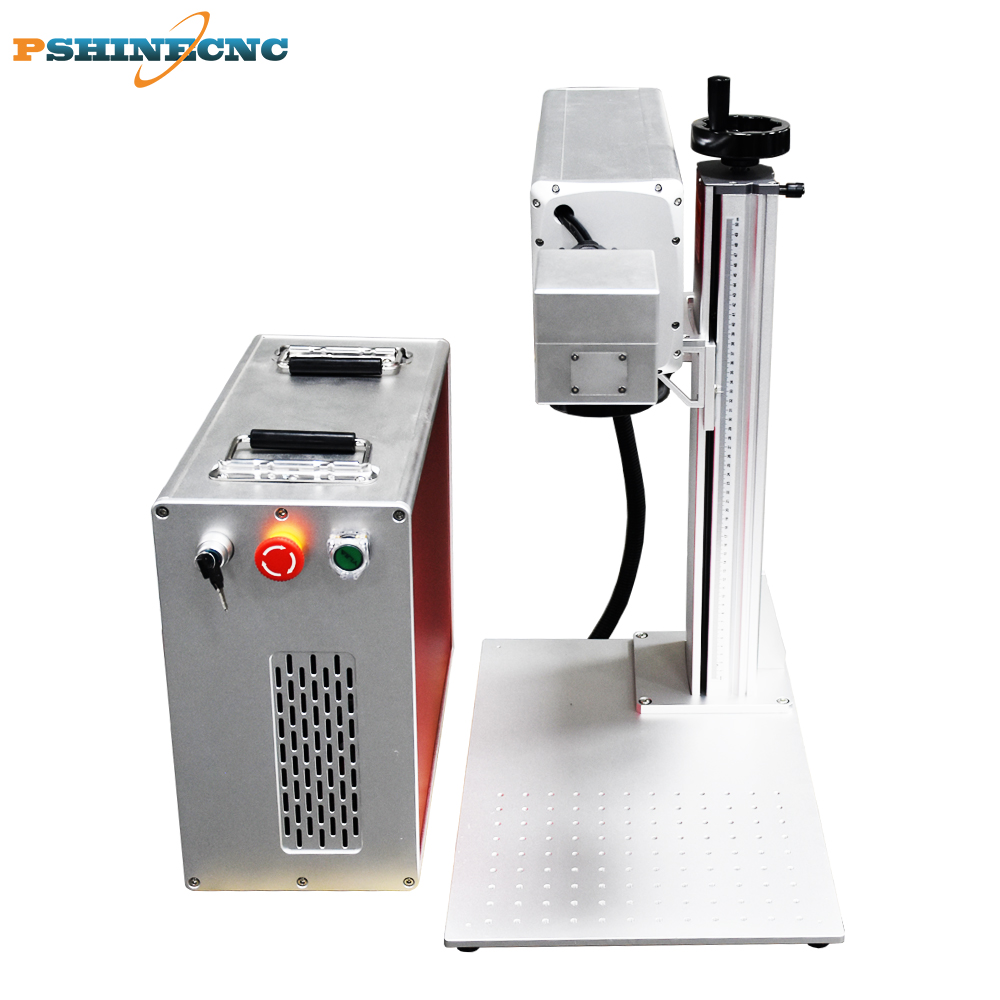

Portable Type Fiber Laser Marking Machine with JPT/MAX/RAYCUS Source
Fiber laser marking machine can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers.Many users buy it as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.
50W or above power fiber laser marking machine can have some cutting ability by mark many times, if want do some cut work of thin metal sheet like silver, aluminum, brass, gold 1mm thickness.
Material Transon fiber laser marker can mark:
1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal,etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc.
50W or above power fiber laser marking machine can have some cutting ability by mark many times, if want do some cut work of thin metal sheet like silver, aluminum, brass, gold 1mm thickness.
Material Transon fiber laser marker can mark:
1.Metal: Aluminum, silver, brass, copper, stainless steel, gold, iron, steel,Titanium,coating material, anodized or treated metal,etc.
2.Nonmetal: Hard plastic, rubber, marble, granite, ceramic, ABS, leather, electroplating materials, coating materials, epoxy,etc.
Specification
|
Model
|
PXF
|
|
Power
|
30W
|
|
Laser wavelength
|
1064nm
|
|
Frequency
|
20-80KHZ
|
|
Engraving speed
|
≤7000m/s
|
|
Power supply
|
90-260V/50Hz-60Hz
|
|
Cooling method
|
Air-cooled
|
|
Marking range
|
110*110mm, 150*150mm,200*200mm, 300*300mm(optional)
|
|
Power consumption
|
1.5KW
|
|
Laser source
|
DAVI
|
