Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: /- 10%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: Please Check Description
- is_customized: Yes
- Max. Operating Voltage: Please Check Description
- Model Number: WH148 B1K, B2K, B5K, B10K, B20K, B50K, B100K, B250K, B500K, B1M
- Rated Power: 1/2 W
Feature:
Durable product
Convenient and practical
Easy to adjust voltage and electric current with Knob

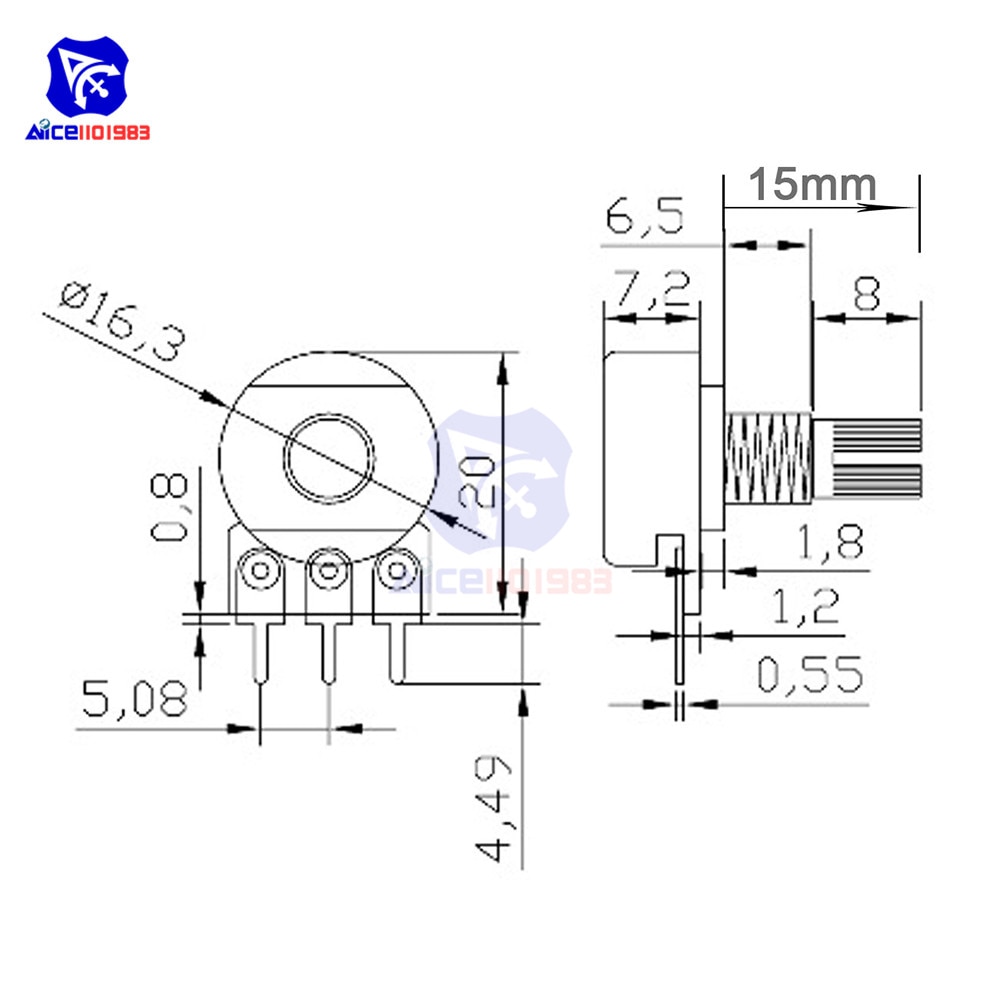

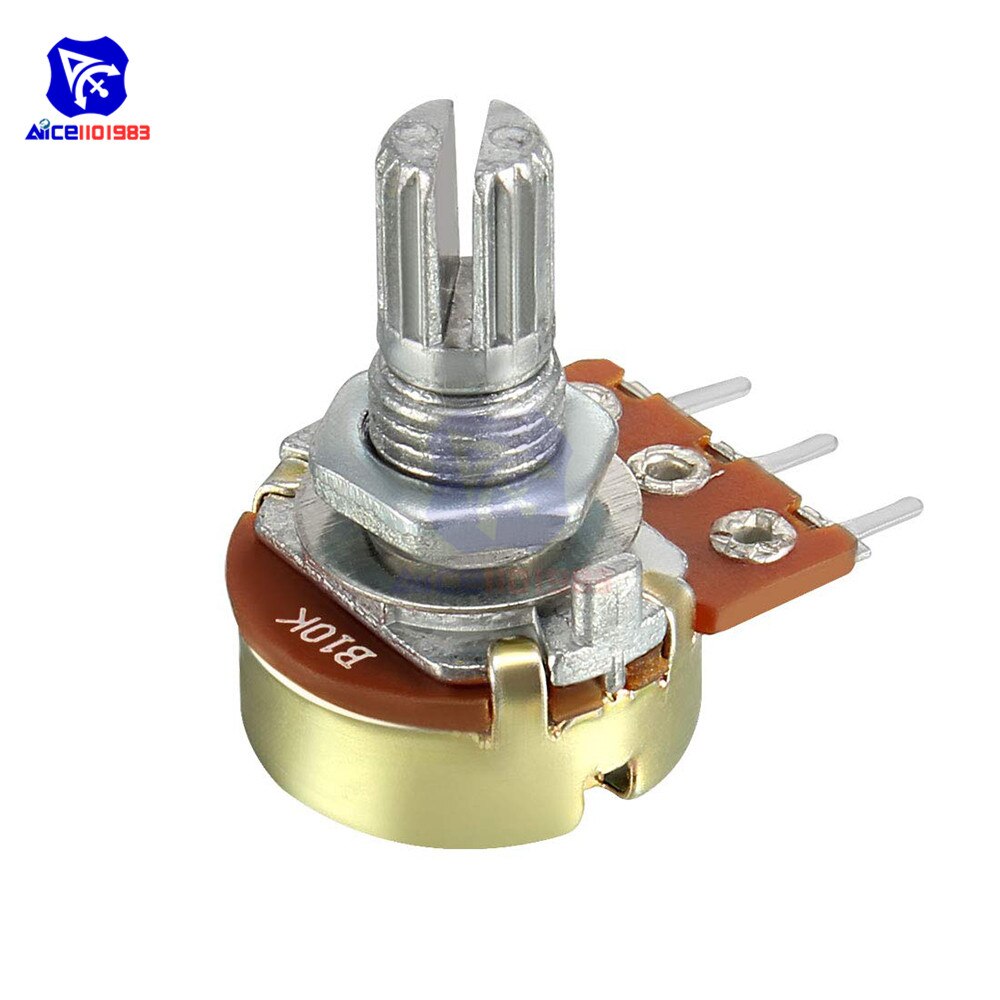

Potentiometer Specification:
Model: WH148
Resistance Taper: B
Type: single linear rotary
Material: Carbon Film+Metal
Terminal: 3 Pin
Resistance tolerance: ±10% -30% (According to the resistance value of potentiometer)
Total Rotation: 300°±5°
Rotation Torque: 20~200gf.cm

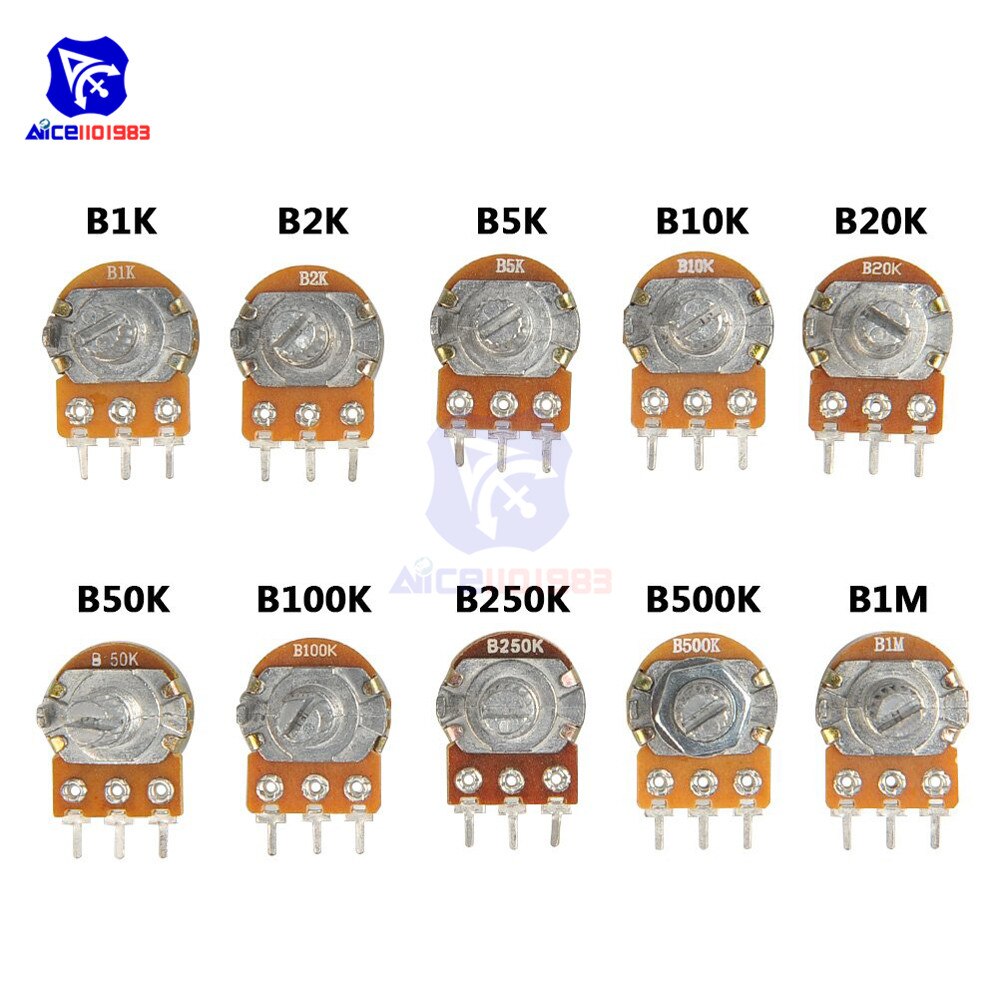

Resistance Value: 1K Ohm, 2K Ohm, 5K Ohm, 10K Ohm, 20K Ohm, 50K Ohm, 100K Ohm, 250K Ohm, 500K Ohm, 1M Ohm

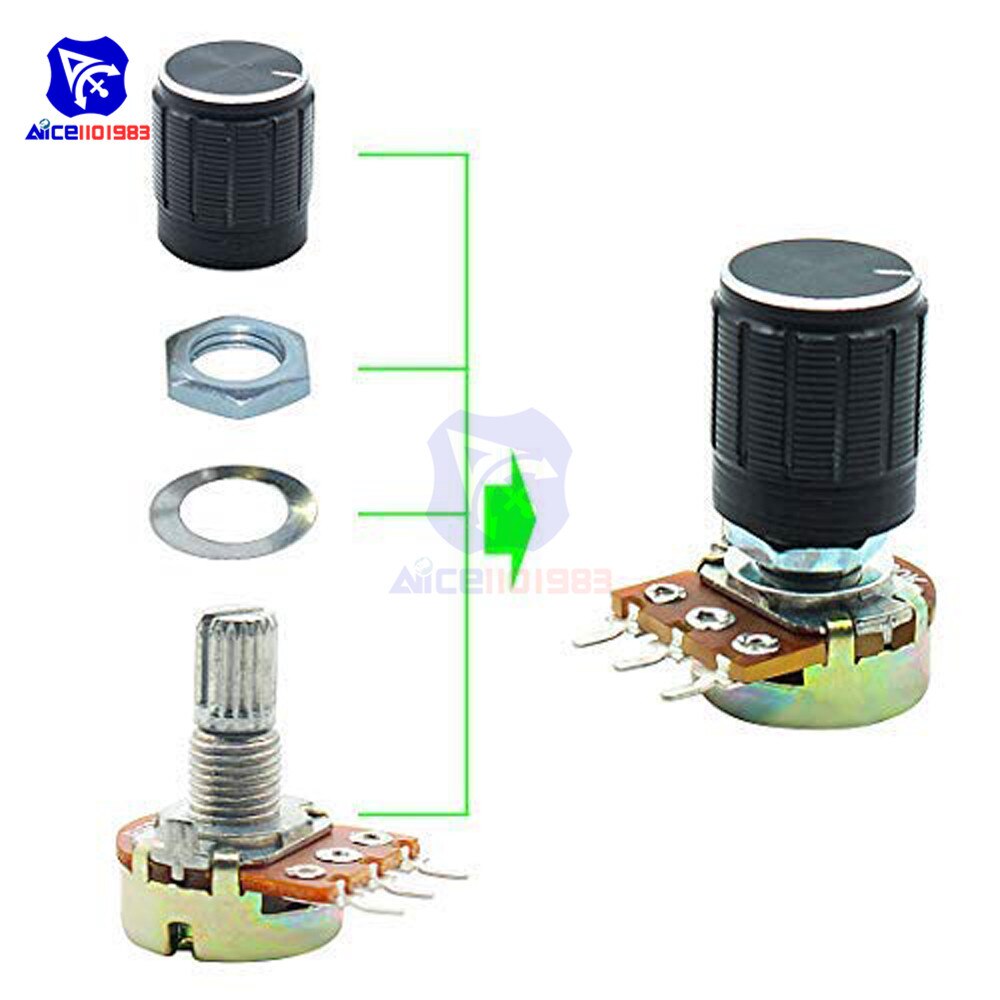

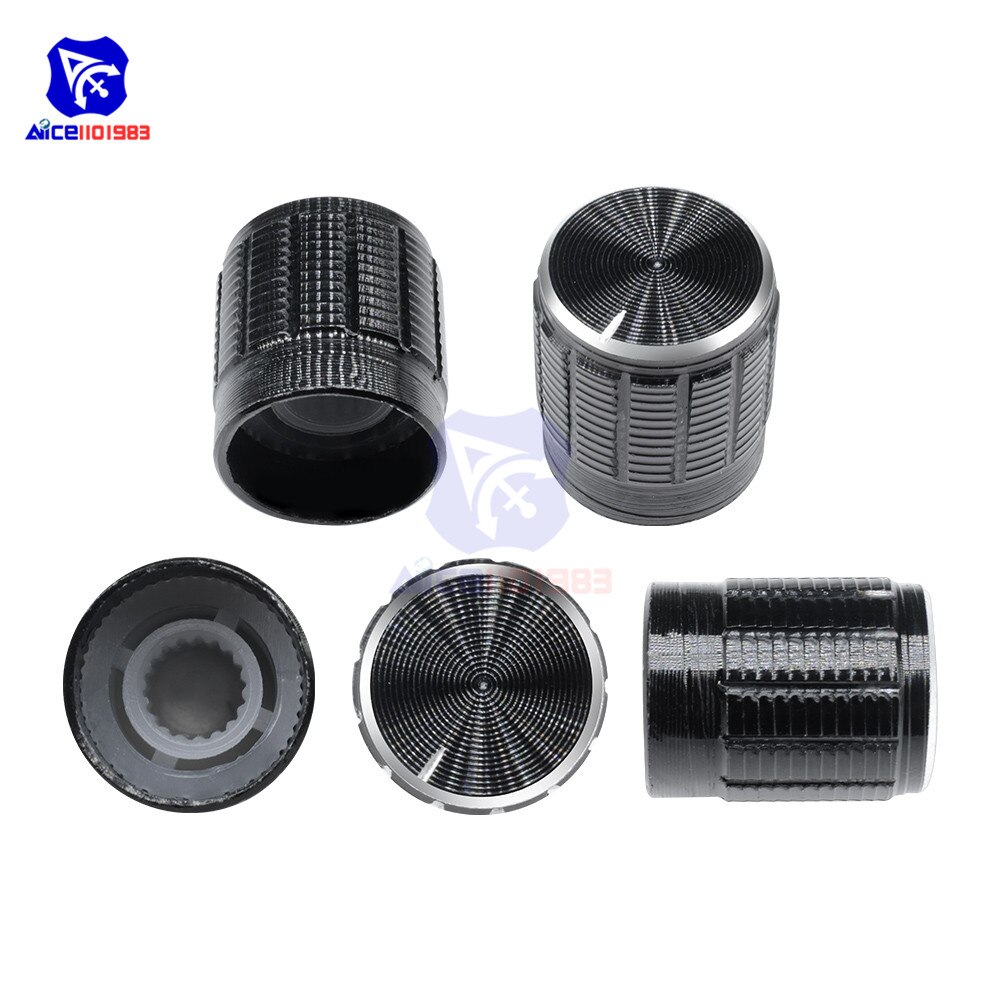

Knob Specification:
Item Name: Rotary Knob.
Material: Plastic, Metal
Color: Black, Silver Tone
Fit for Knurled Shaft Diameter: 6mm
Size: 15 x 16.5mm/ 0.59″ x 0.65″(D*H)
You could choose the following items as you wanted:
1 * B1K Potentiometer
1 * B2K Potentiometer
1 * B5K Potentiometer
1 * B10K Potentiometer
1 * B20K Potentiometer
1 * B50K Potentiometer
1 * B100K Potentiometer
1 * B250K Potentiometer
1 * B500K Potentiometer
1 * B1M Potentiometer
