Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- Warranty: 1 year
- Customized support: OEM, ODM
- Place of Origin: Shanghai, China
- Brand Name: Yesmylab

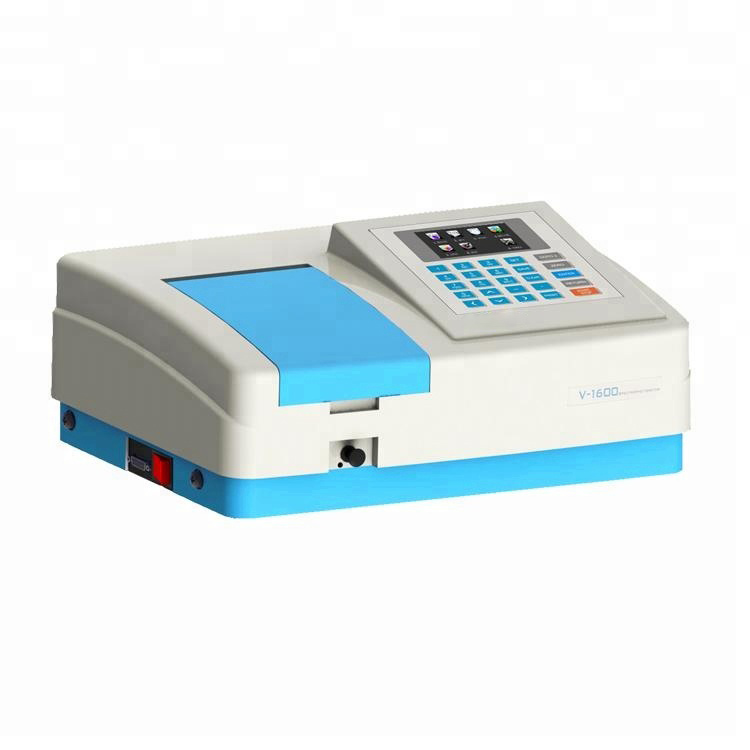

- Model Number: V1600
- Size: 49*37*31cm
- Weight: 16.5KG
- Focal Length: Bandwidth 4nm
- Wavelength Range: 320-1100nm
- Certification: CE, ISO9001, FCC, CMC, ROHS
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:259px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:18px;padding:5px 10px;width:442px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-7{vertical-align:top}#detail_decorate_root .magic-8{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-9{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-10{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-11{min-height:18px;padding:5px 10px;width:174px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-12{text-align:left}#detail_decorate_root .magic-14{min-height:18px;padding:5px 10px;width:154px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-15{min-height:18px;padding:5px 10px;width:164px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-16{min-height:18px;padding:5px 10px;width:172px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-17{width:750px}#detail_decorate_root .magic-18{overflow:hidden;width:373px;height:211.36666666666667px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:373px;height:211.36666666666667px}#detail_decorate_root .magic-20{overflow:hidden;width:373px;height:211px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{overflow:hidden;width:750px;height:425px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-22{margin-top:0;margin-left:0;width:469px;height:263px}#detail_decorate_root .magic-23{overflow:hidden;width:750px;height:377.8125px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:750px;height:377.8125px}
Product Description
Specification
|
item
|
value
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM, ODM
|
|
Place of Origin
|
China
|
|
Shanghai
|
|
|
Brand Name
|
Yesmylab
|
|
Model Number
|
V1600
|
|
Size
|
49*37*31cm
|
|
Weight
|
16.5KG
|
|
Focal Length
|
Bandwidth 4nm
|
|
Wavelength Range
|
320-1100nm
|
Features
1, Large LCD screen(480*272 Dots) with 65 thousand true color and support U disk data saving
2, Imported & Environmental Deuterium lamp, preventing from Ozone inhalation
3, Data output: Data can be exported to U disk (USB Output)
4, Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
5, Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
6, Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade
7, Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8, Pre-aligned design ensures the user can change lamps conveniently
9, With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off
protection
10, Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
11, With Si02 coating optical mirror, reducing the pollution from outside fully
12, Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics, Spectrum Scanning, DNA/Protein
test
4, Print port: Instrument can connect PCL printer for printing A4 paper (USB Port)
5, Adopted high-class grating with wholly hermetic light path design, to ensure the instrument has the super low stray light
6, Upgrade package can be downloaded from AOE web with S/N, support U disk one-key upgrade
7, Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp with advanced system
8, Pre-aligned design ensures the user can change lamps conveniently
9, With GLP self-check function, check the wavelength accuracy and Photometry accuracy, can provide test report and power-off
protection
10, Wavelength calibration, wavelength setting, change lamp source and dark current calibration automatically
11, With Si02 coating optical mirror, reducing the pollution from outside fully
12, Optional PC Software to expand the applications to Quantitative, Multi-Wavelength and Kinetics, Spectrum Scanning, DNA/Protein
test
Product Paramenters
|
Optical System
|
Single Beam, Grating 1200 lines/mm
|
Wavelength Range
|
320-1100nm
|
|
Spectral Bandwidth
|
4nm
|
Wavelength Accuracy
|
± 0.5nm
|
|
Wavelength Repeatability
|
≤ 0.2nm
|
Photometric Accuracy
|
± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.3% T (0-100% T)
|
|
Photometric Repeatability
|
0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs), ≤ 0.1% T (0-100% T)
|
Stray Light
|
≤ 0.04% T @ 360nm
|
|
Stability
|
± 0.001A bs/ h @ 500nm
|
Baseline Flatness
|
± 0.002Abs
|
|
Noise
|
± 0.0005A
|
Display
|
480 * 272 65 thousand true color TFT LCD
|
|
Photometric Mode
|
T, A, C, E
|
Photometric Range
|
0-200% T,-0.301-3.0A,-0~9999.9C
|
|
Detector
|
Silicon Photodiode
|
Light Source
|
Deuterium Lamp, Tungsten Lamp
|
|
Input
|
Membrane Keypad
|
Output
|
USB-A*2 Print and data output USB-B Connect PC
|
|
Compartment
|
Optional 8 Auto Cell holder, Solid Sample Holder, Micro Cell Holder, 10-100mm Cell Holder
|
|
|
Applications

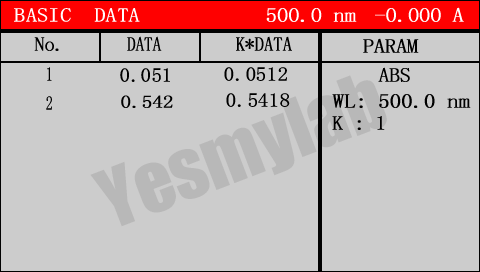

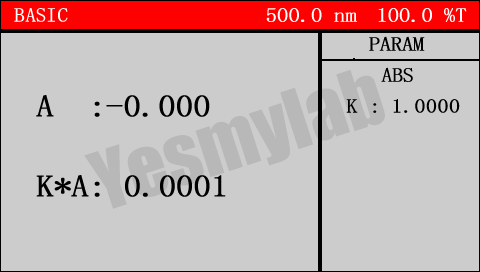

Photometric(Basic)：Set the factor K, The direct calculation of k*a results. Measurement data can be saved.

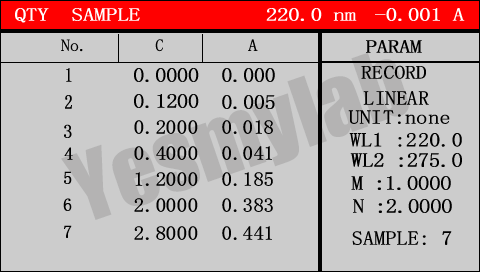

Quantitative– Test total nitrogen by double wavelength method(Qty）：

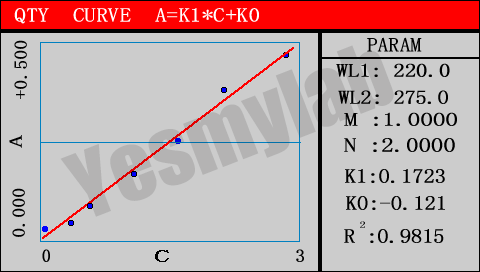

Double wavelength test method△A=MA1-NA2, can calculate the linear of inputted concentration C and △A,
Application: Test method of total nitrogen in water quality monitoring:
Double wavelength test method△A=MA1-NA2, can calculate the linear of inputted concentration C and △A,
Application: Test method of total nitrogen in water quality monitoring:

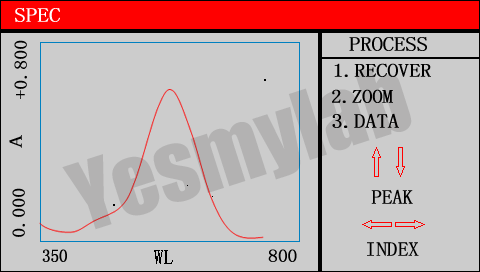

Spectrum（Spec）：Application for hexavalent chromium: The colored matter reacted from hexavalent chromium aqueous solution and diphenylcarbazide. One key for looking for the peak in spectrum function, looking in data sheet, as well.The position of absorption peak as picture 540nm.By marking the curve and quantitative to test the sample concentration.

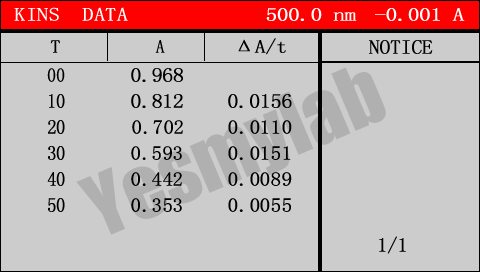

Kinetics(Kins)：Test the sample changes in a period, get △A/t, display the spectrum curve.

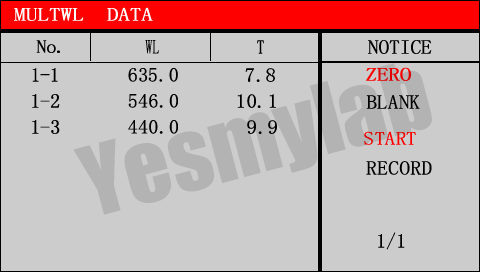

Multiple Wavelength Application(MultWL): Neutral filter 10% measurement accuracy.

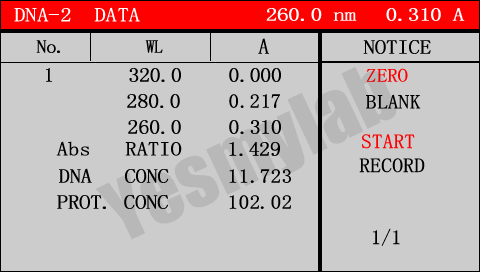

BIO(DNA/Protein): DNA/Protein test, test the sample’s protein and DNA concentration.

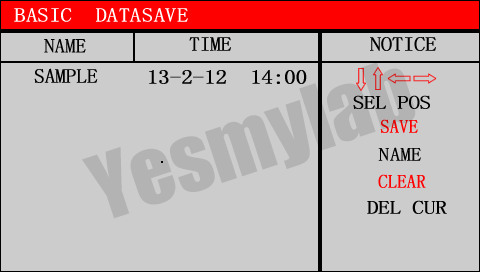

Save：Measurement data, scanning patterns are preserved at the host and disk U.

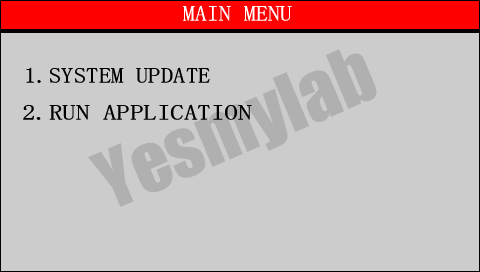

One Key Upgrade: Plug the USB with upgrade program, switch on and go to upgrade menu, press no. key 1, the instrument will be upgraded automatically.
Company Profile
Yesmylab Scientific Instruments Ltd was established to serve the laboratory market worldwide with an objective to be recognized as one of China’s leading manufacturers, exporters and marketers of top quality laboratory instruments and scientific equipments. We have been manufacturing a wide choice of quality laboratory analysis, testing and measuring instruments for various applications such as pH Meter, ORP Meter, Conductivity Meter, TDS Meter, Dissolved Oxygen, Electrochemical Sensors, Magnetic Stirrer, Spectrophotometer,Balance, Moisture Analyzer,etc. Our dedicated engineering and R&D team afford us the opportunity to continually develop new products in addition to implementing product improvements for our existing products. We’ll keep designing and manufacturing new and innovative research tools for the life science that cover nearly all of your laboratory needs. We continue to ensure total quality control of our products as all aspects of design and manufacture are performed in the company’s modern production facilities. At Yesmylab Scientific, we realize that our job is not complete until our customers are completely satisfied and we’ll achieve complete customer satisfaction by providing products with the highest quality at the most economical prices per timely delivery schedules. We’re dealing in an extremely wide range of laboratory instruments but our capacities extend far beyond that. OEM is available on request. We’re experienced in OEM services and can provide custom products made to customer specifications. Yesmylab Scientific cares about the products it makes and values the customers it serves. We’re always striving for supplying satisfactory products beyond expectations and also for win-win strategy providing a foundation for sustainable success for all our customers. We’re here for you and look forward to serving you.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2013,sell to Domestic Market(30.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
We are based in Shanghai, China, start from 2013,sell to Domestic Market(30.00%),North America(10.00%),South America(5.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
pH Meter,Balance,Magnetic Stirrer,UV/VIS Spectrophotometer,Moisture Analyzer
4. why should you buy from us not from other suppliers?
1. Good products and good price 2. 10 Years experience in scientific instrument 3. OEM is available on request 4. 10000+ Clients around the world 5. Fast supply capability
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
