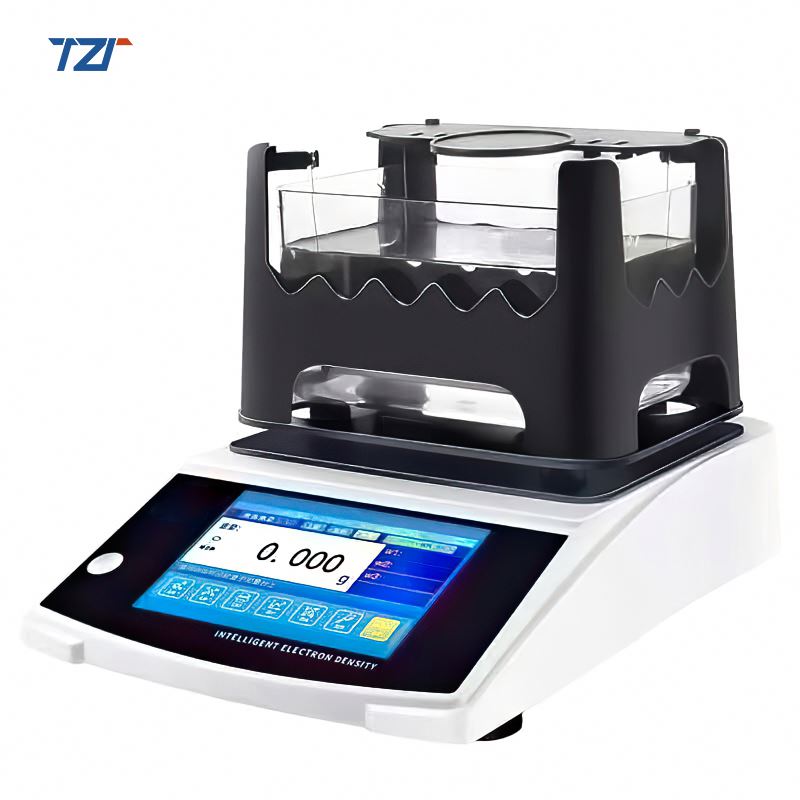

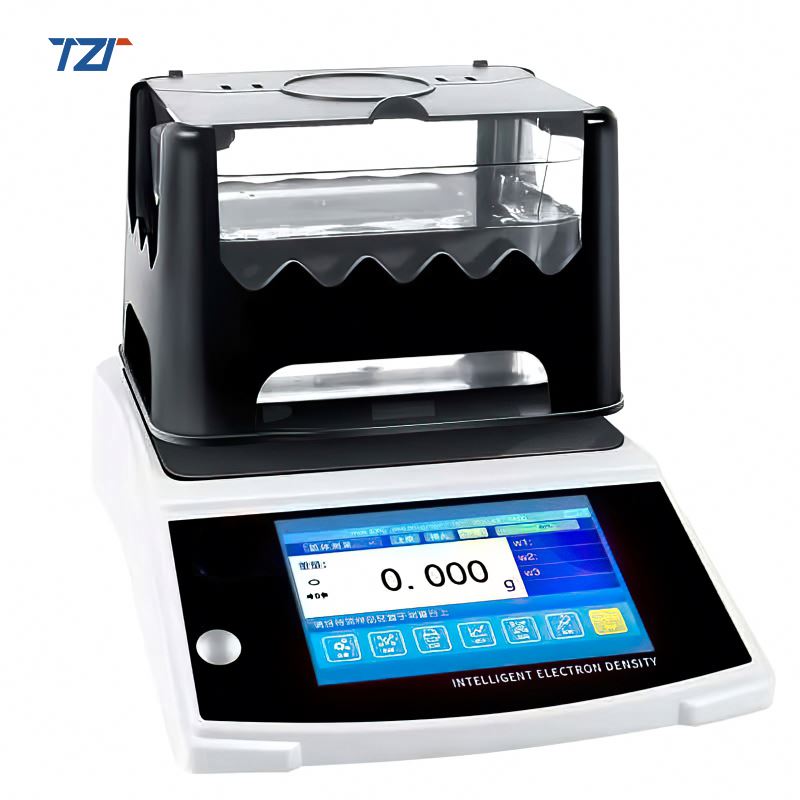

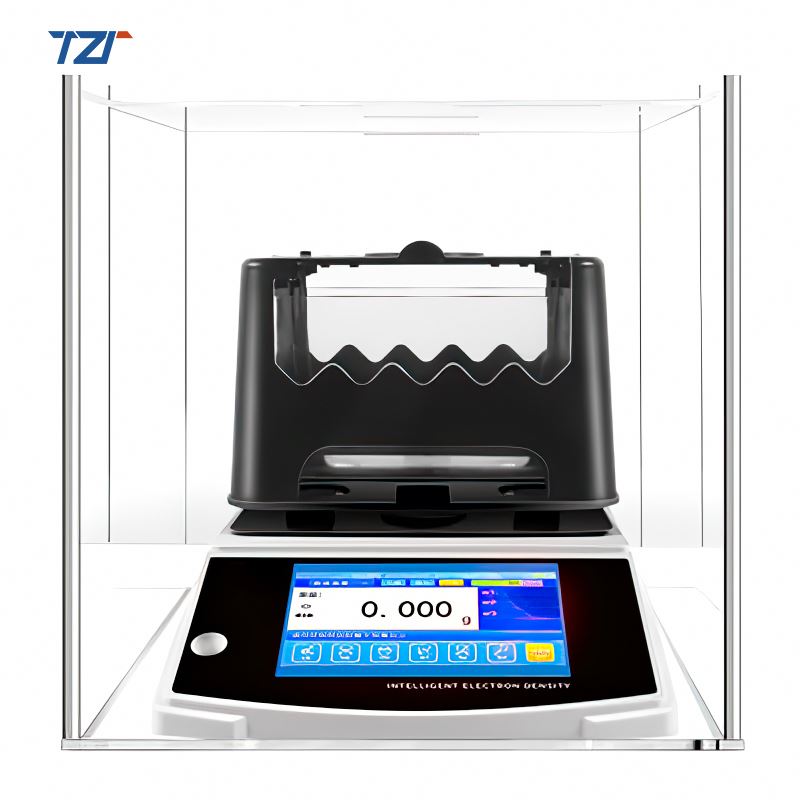

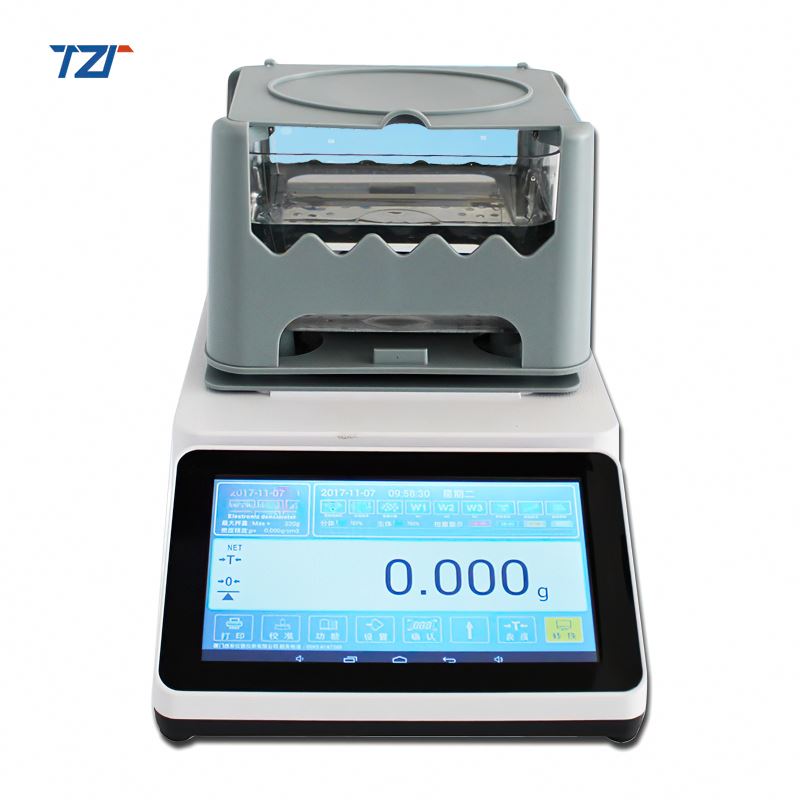

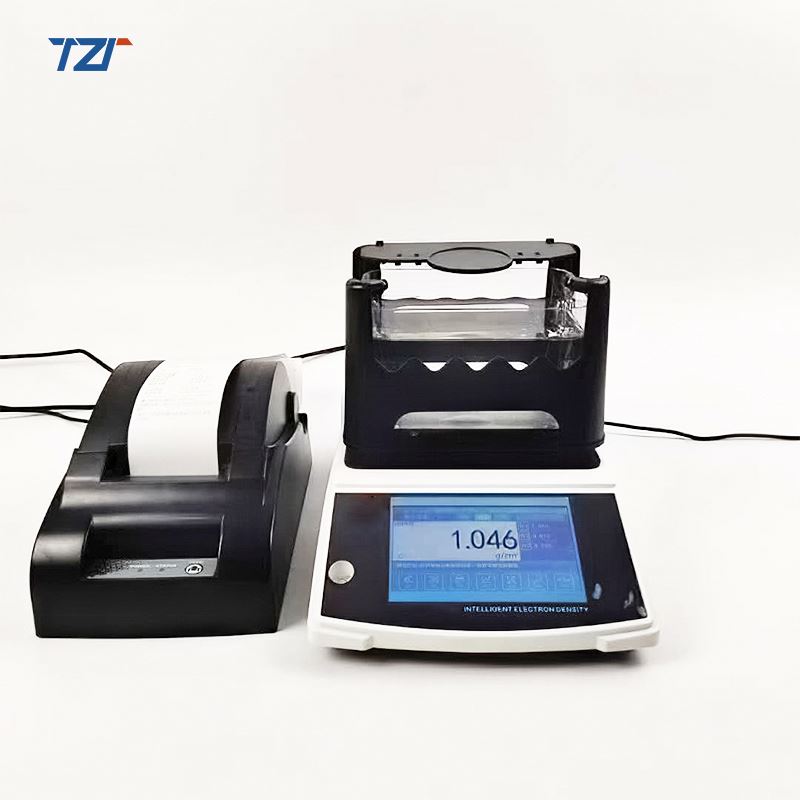

Electronic Gold Density Tester , Digital Density Meter , Gold Purity Analyzer FREESHIPPING

Warranty for 3 Years

WE WILL REPLACE A NEW MACHINE FOR YOU IF THERE ARE SOME TROUBLES WHICH MUST RETURN THE MACHINE TO CHINA TO REPAIR DURING USE. Confidence in product quality !!!



Technical parameters:



Model MZ	300G	600K
Maximum weight	300g	600g
Minimum weight	0.05g	0.01g
Density resolution	0.001g/cm³
Measuring time	5~10S
Testing board	Unibody high-capacity plastic testing board
Tank size	Length 15.3 × width 10.7 × height 8.0cm (can be customized according to the measured product size)
Measurement function	The results show that the K value, the% content and the density value of gold, Pt value,% content and density value of platinum; The s value,%, density value of silver, and% content and density value of other alloys
Measuring type	Traditional gold and platinum jewelry, bracelet, ring, large bullion, craft etc.
Measuring Mode	Gold mode, selected setting mode, specific gravity mode
Parameter setting	Water temperature setting, measuring medium density setting
Correction method	Auto calibration with one key, auto detection
Output method	Output and print testing data conveniently with standard communication interface of RS-232C
Main features	Simple operation, digital display, accurate measuring, stable, durable
Measuring Container	Unibody injection forming transparent professional measurement tank (size : L 169 mm *W 98 mm * H 83 mm)
Body size	21 X 17 X 17 cm
Packing size	38.5 X 19.5 X 33 cm

Product advantage:



1. Just two simple steps,the purity of precious metals and gold karat can be showed rapidly and accurately.No stains and scratches left on gold after testing. Needn’t use the sulfuric acid solution to test the standard samples.



2.Japanese original host, stable performance, accurate measurement



3.The gold K number and density, platinum Pt value and density can be accurately measured in only 5 seconds.Directly and circularly show the gold karat (including gold-cop.per-silver, gold-silver, gold-copper), gold purity%(including gold-copper-silver, gold-silver, gold-copper) .



4.More intuitive and more rapid to identify gold authenticity. It adopt special software design according to market demand which enable users to set the upper and lower limits of K number and Pt value.When the K value of testing gold is more than 24K, the instrument will display HI. When K value less than 12K, LO is displayed.



5. With the mixture proportion function, it can test other precious metals, such as: platinum, silver, palladium, copper, rhodium…and so on



6.Adopting a light and thin stainless steel can reduce the error caused by the buoyancy of the wire.

7. Adopting the design of big tank, it can decrease the inaccuracy caused by supporting wire’s buoyancy



8. Only applicable to solid metal sample which can be inlayed with gem stones . It can also be used as a precision electronic balance.



9.It has the function of actual water temperature compensation to avoid the deviation of measurement results caused by different water temperature



10.Built in rechargeable battery, equipped with wind shield, more suitable for field test



11.With RS-232C communication interface, convenient to connect PC and printer, xf-68 printer can be selected to print measurement data





Application fields:

 Pawn shops, precious metal recycling, jewelry silver buildings, banking, mining, jewelry manufacturing plants, jewelry testing centers, industries, gold and precious metal research laboratories and other industries



Measurement procedure:

Step 1:
Place gold on test board to measure weight in air,and then press MEMORY key button to memory.

Step 2:
Place the gold into water to measure weight in water,and then press MEMORY key button to memory. Density value is displayed.



Value showed: CS.:Gold karat(unit:k)

Press MENU key d.:density(unit:cm³)

Press MENU key agian CSP.:purity%(unit:%)

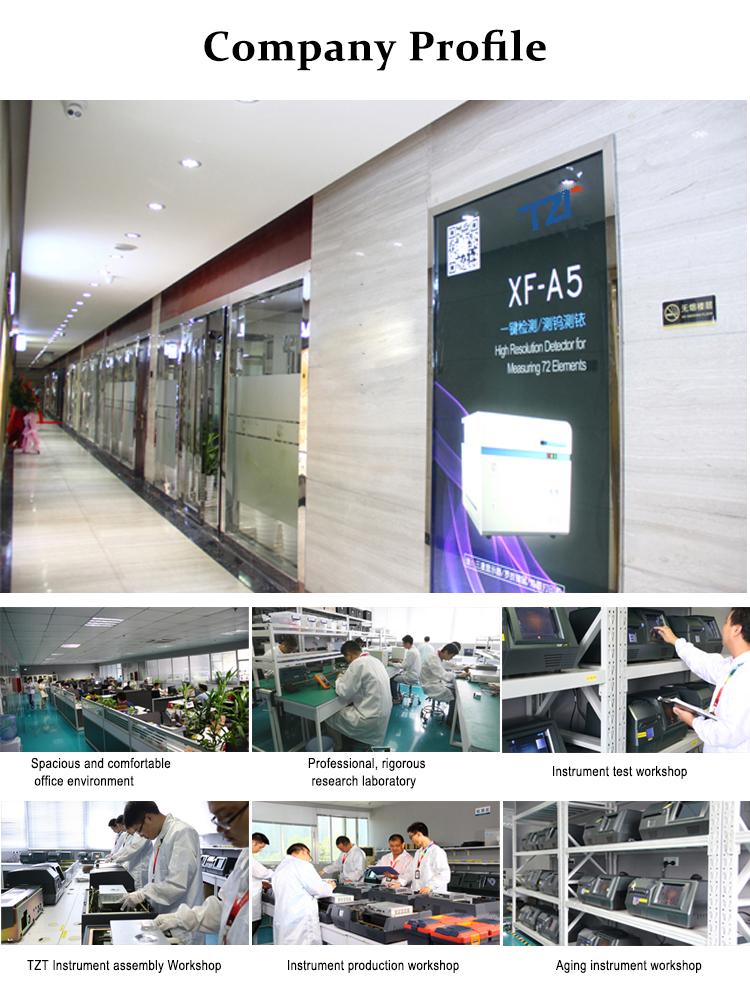

TZT was established in 2006 and specialized in researching, developing and producing X-ray Fluorescence (XRF) Spectrometers. Its research centers are located in Hong Kong, Shanghai,Shenzhen,Nanchang.

TZT is an ISO 9001:2000 Certified organization offers wide array of testing analyzers. These devices have achieved international CE, FCC and RoHS certifications. They are capable of fast, precise and non-destructive metal testing, making them suitable for use by Jewellery retailers, Jewellery manufacturers, precious metal refineries, pawn shops, government quality supervision and inspection institution, banks, laboratories. TZT product yields more than any other competitive brands.

 Portable Far Infrared Spectrometer Digital Gold Carat Meter Pen Tester

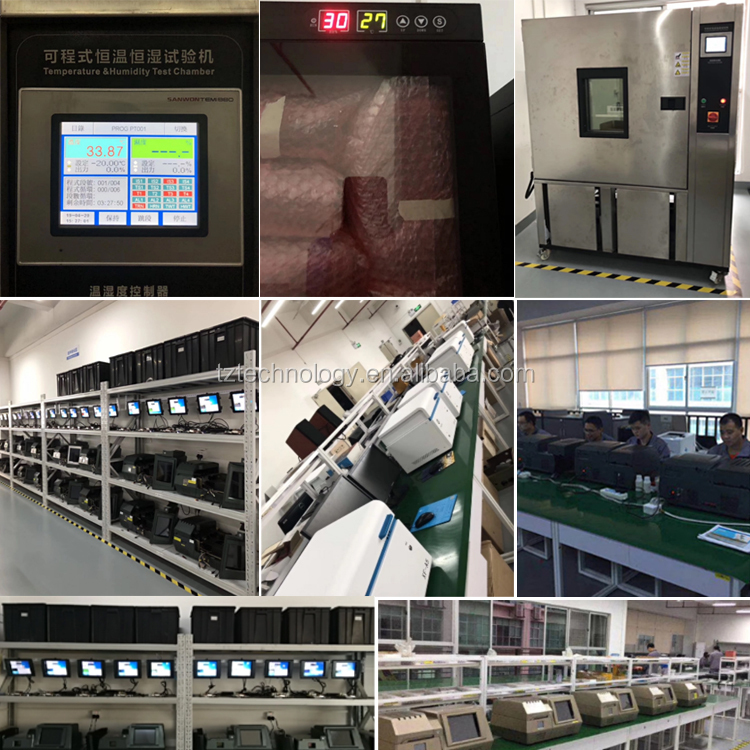

Quality Control System:

1. Every parts should be put in temperature and humidity test chamber for 72 hours before assembling.
2. Every machine need to do aging testing for another 72 before shipping

       3.Every machine is with its unique series number .Engineer will be responsed for the quality of the machine he made.


1: The whole machine is guaranteed for 12 months; provide technical service support for life.



2: During the warranty period, if the product has quality problems under normal use, after verification by Party B, it will provide free maintenance services and will not charge any fees to Party A; if the quality problem is not the instrument itself, it is due to user’s human factors. Party B needs Charge the cost of parts repair or replacement.



3: Response time: Within 24 hours.Any problem,our professional team can check for you remotely.











FAQ

1.How about quality and warranty of our products?

When you receive a product from Qun Long, it must be debuged by our production staffs,technical staff and warehouse management. And our technical staffs have more than 10 years experience. We can guarantee the warranty for three years from the date of receipt. If our machine fails to perform properly because of defects in materials or workmanship during three years warranty, We will be responsible for fixing or replacing new machine .



2.How about after-sales Service
(1)If errors occur, please refer to the troubleshooting tips of the instruction manual

(2)Please contact with our after-sales service department or distribution in time if can’t clear fault

(3)When you contact us with a service problem, we will act within 12 hours and provide solution within 24 hours.

(4)If the product have some big troubles and it must be sent back to our factory to repair during its warranty period, you just need to shipping the product to us and we will sent you a new one.The service is excluding if the machine is breakdown caused by following reasons:

a:Wrong operation
b:Fixed or refitted personally
c:The machine itself is not the reason caused breakdown
d:Applying the machine under the serious condition. Such as high temperature, moist, corrosive gas, or vibration.
e:Move or transportation as soon as installed
f:Consumables and easy-loss components
g:Natural disaster



3.How many days can you receive the products?

Product in stock will be sent within 48 hours. Delivery time is about 5-7 days.

4.How to shipping the product?

Product will be sent by International Express by air. Such as DHL, UPS, FEDEX, TNT, SF.

5.What is our return policy?

You are allowed to return goods within 7 days from the date of receipt. To return products,please contact our customer service with your invoice number, the item to be returned and the reason for the return. Goods must be returned freight prepaid. Returns will be subject to a restocking charge. Products can not be returned back when the products have been used or modified.



6.Are we manufacturer made copy product or original product?

We are the original manufacturer for densimerter, TZT is our own brand. The model starts with TZT is belongs to us generally.
