Description

7W/15W/20W Laser Module Laser Head Blue Lase for 3D Printer CNC Laser Engraving Machine Wood Marking Cutting Tool

Certification: ce

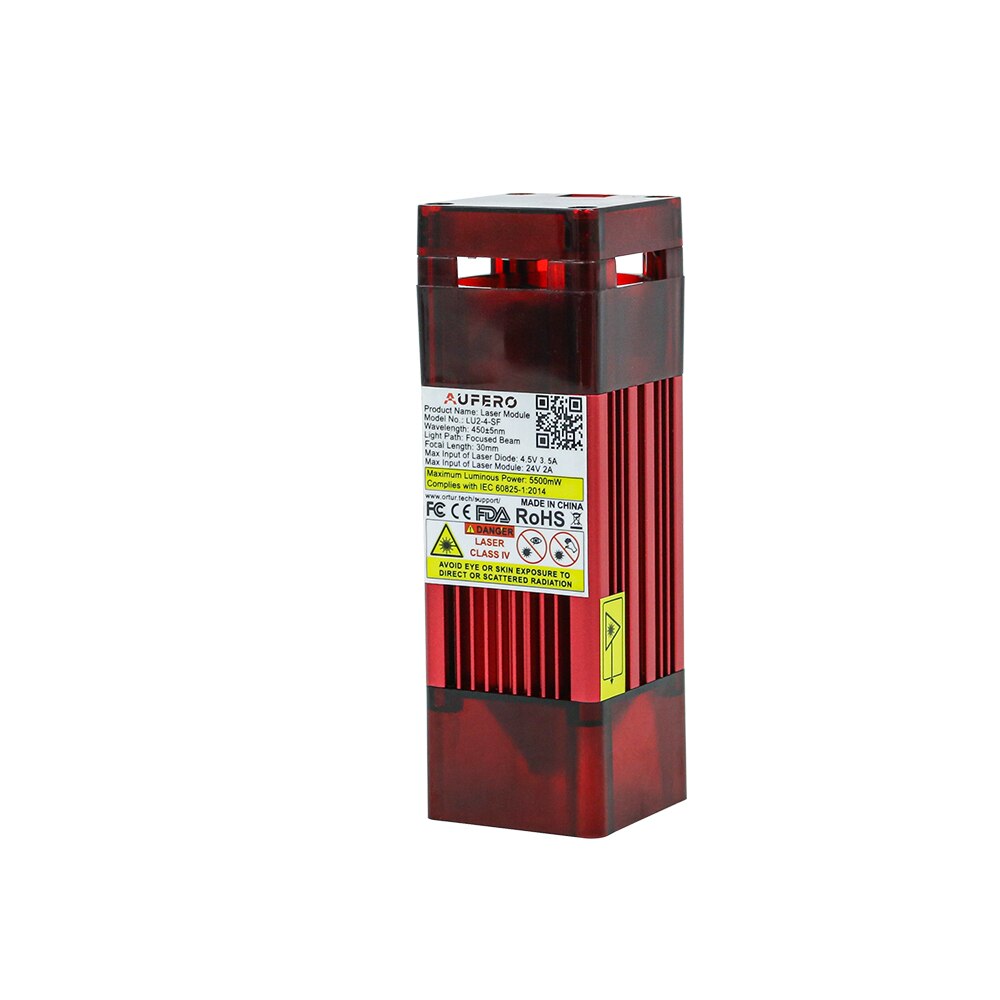

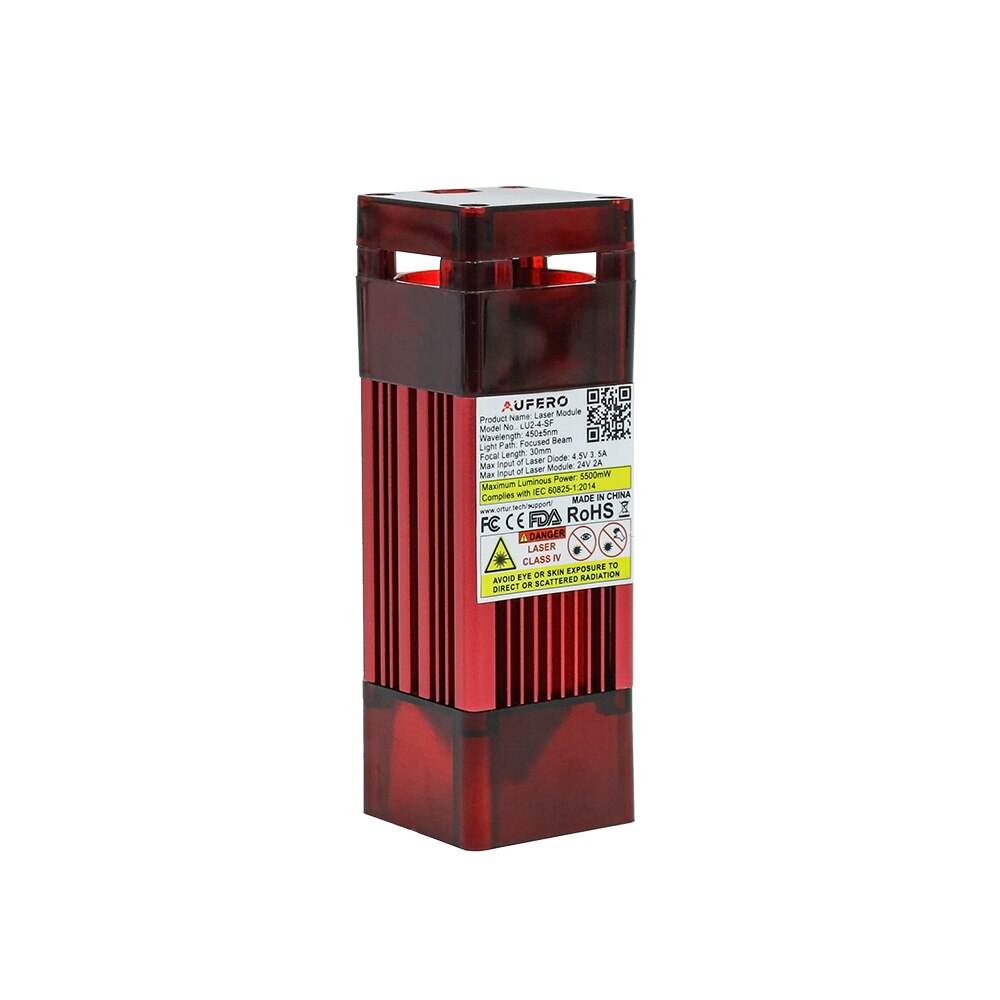

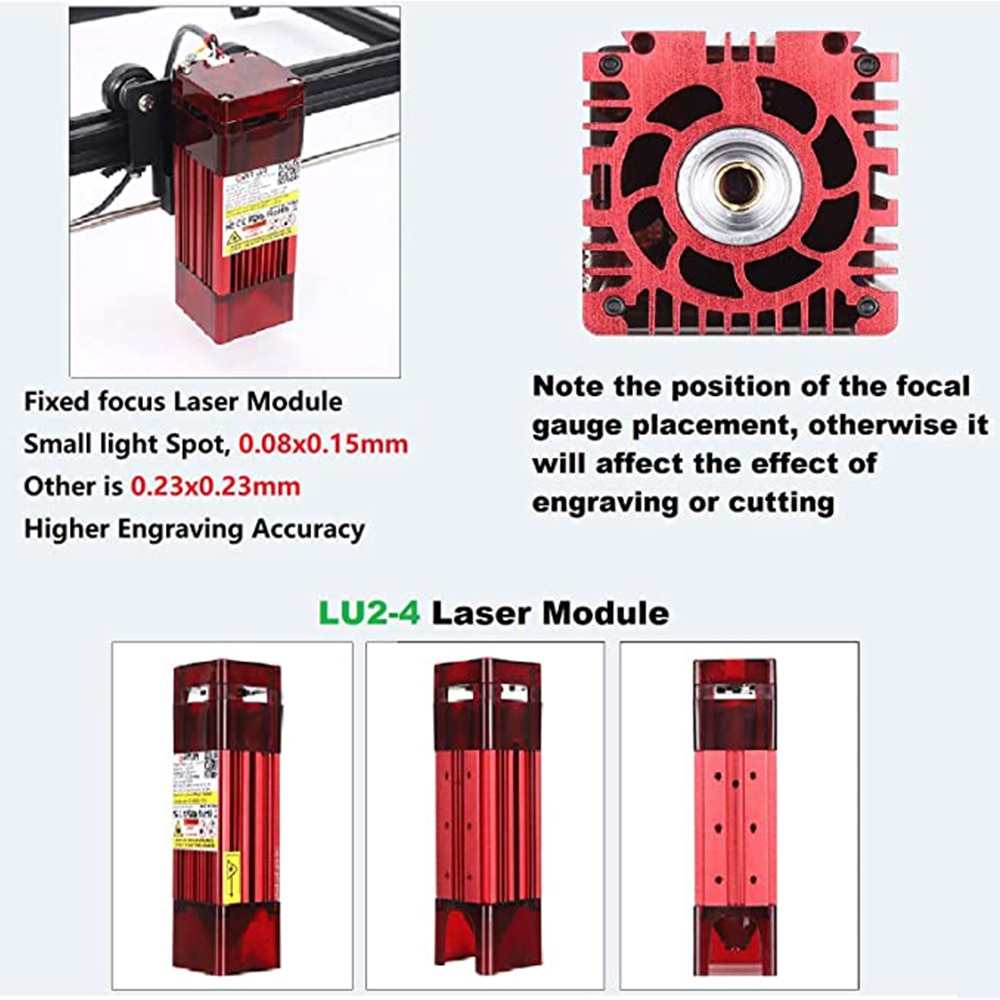

Model Number: LU1-2 LU1-3 LU1-4 LU2-4
Certification: CE
Is Smart Device: NO

7W/15W/20W Laser Module Laser Head Blue Lase for 3D Printer CNC Laser Engraving Machine Wood Marking Cutting Tool

ORTUR LU1-4 Descriptions

LU1-4 20W Fixed Focus Laser Module
Specifications:
Interface specification: 20W laser head: HY2.0, 4Pin terminal (3-core cable, combined with one negative empty port, red: VCC, black: GND, white: PWM +).
Lens: φ6 / glass
Drive position: 20W: external
Adjustable power: PWM adjustable
Focusing range: 20W: 19mm

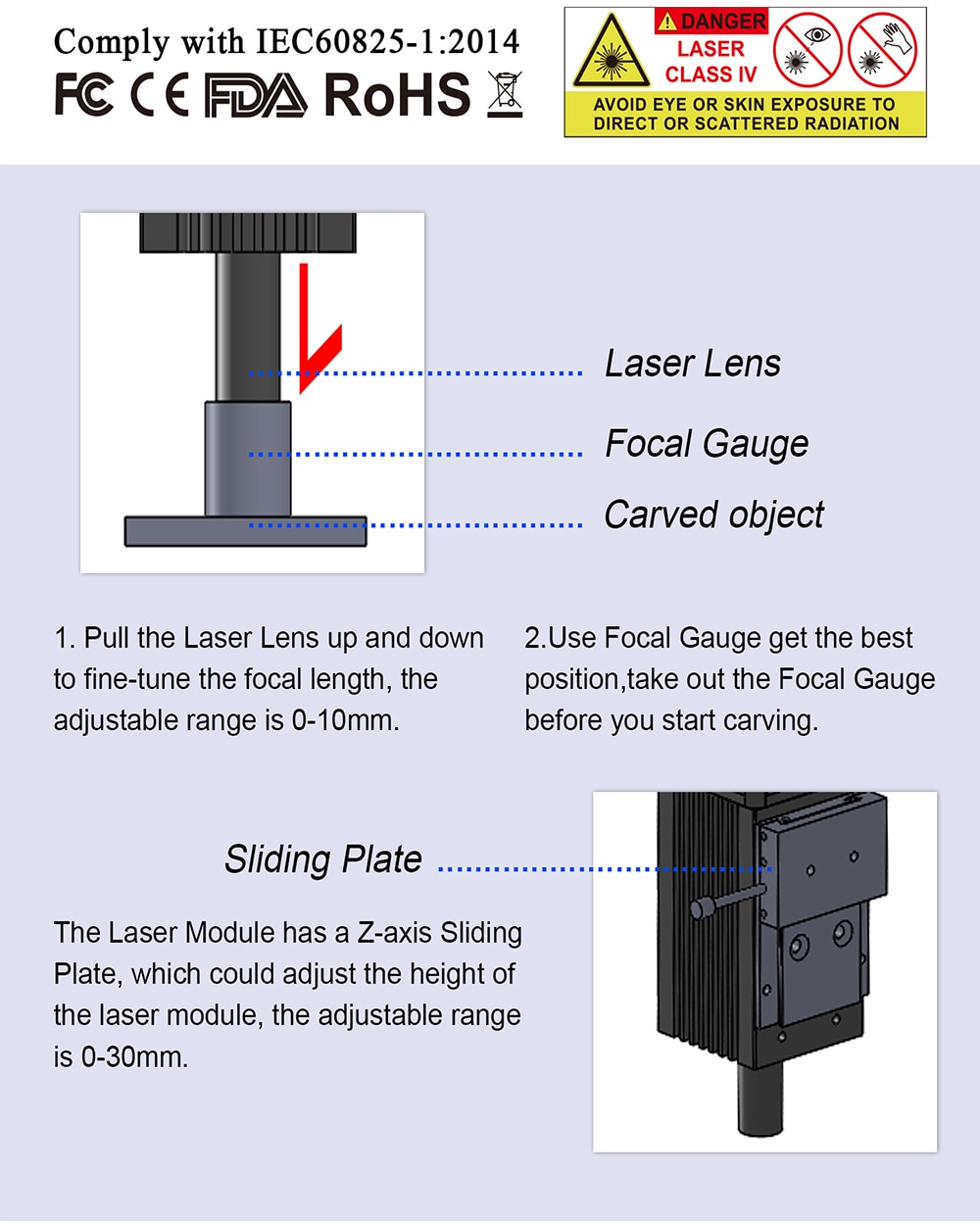

Factory focal length (adjustable): 20W: 55mm from light outlet (from bottom of radiator)
Drive protection: surge protection, overvoltage protection.
Input voltage: 12V
Input current: 20W: 2.1 A
Control line installation: pluggable
Fan:20W: 12V 0.15A 4020 fan
Fan speed: 10000 rpm
Operating temperature: -20 ℃ to 70 ℃

Specification

General	Type: Laser engraving module Material: Aluminum + copper + PCBA + glass lens + plastic Laser Power: 4500-5500mw Laser Reaching Range: 19mm Power By: 12V 2.1 A
Dimensions and Weight	Package weight: 0.4000 kg Package size (L x W x H): 18.00 x 8.00 x 8.00 cm / 7.09 x 3.15 x 3.15 inches
Package Contents	Package Contents: 1 x Fixed Focus Laser Module

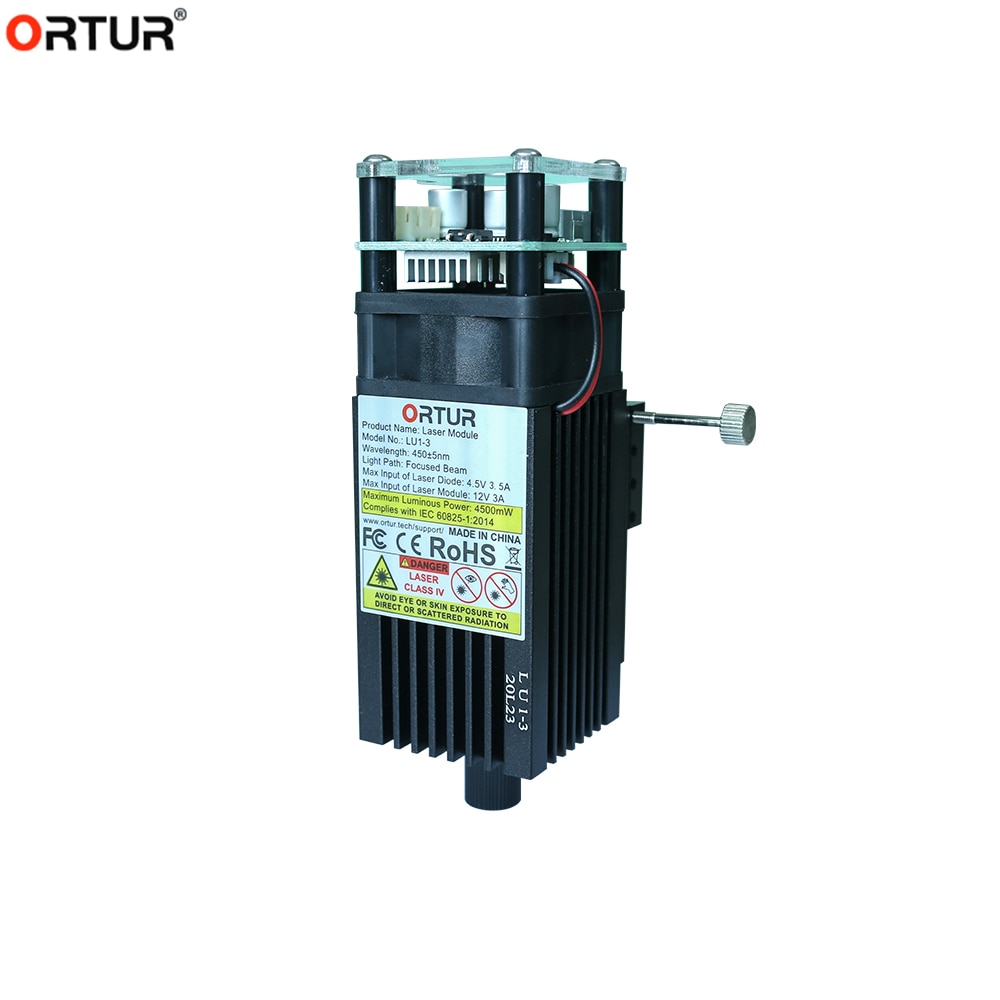

Ortur LU1-3 Descriptions

Parameters:
15W Fixed Focus Laser Module
● Interface specifications: HY2.0 4pin terminal (3 core cable, combined negative one empty port, red: VCC, black: GND, white: PWM +)
● Wavelength 445 ± 5nm
● Material: aluminum + copper + PCBA + glass lens + plastic
● Lens: glass
● Radiator: 40 x 40 x 80mm No. 6061 aluminum
● Drive position: external
● Power adjustable: PWM adjustable
● Focus / fixed focus: adjustable focus
● Focusing range: 19mm
● Drive protection: surge protection, overvoltage protection
● Control line installation: pluggable
● Fan: 12V 0.15A 4020 fan
● Fan speed: 10000rpm
● Working temperature: -20 Deg. C to 70 Deg. C
● LU15W Laser Module: Electric Power-15W, Luminous Power-4000-4500mW

Specification

General	Brand: Ortur Model Number: LU1-3 Type: Laser module Material: aluminum + copper + PCBA + glass lens + plastic Laser Power: Electric Power 15W / Optical Power 4.0 – 4.5W Laser Reaching Range: 19mm Power By: 12V, Output Current 1.8A
Dimensions and Weight	Package weight: 0.4000 kg Package size (L x W x H): 18.00 x 8.00 x 8.00 cm / 7.09 x 3.15 x 3.15 inches
Package Contents	Package Contents: 1 x Fixed Focus Laser Module

ORTUR LU1-2 Descriptions

Main Features:
● Material: aluminum + copper + PCBA + glass lens + plastic
● Interface specification: HY2.0 4pin ( 4 core cable, red: VCC, black: GND, yellow: PWM+, white: PWM- )
● Wavelength: 445 ± 5nm
● Lens: φ6 / glass
● Radiator: aluminum
● Driver board position: built-in
● Power adjustable: PWM adjustable
● Focus / fixed focus: adjustable focal length
● Focus range: 5 – 100mm
● Best focal length: 20 – 30mm from the light exit
● Input voltage: about 12V
● Input current: about 0.75A
● Control line installation method: pluggable
● Line length: 270mm
● Cooling fan: 12V / 0.1A 3010 fan
● Working temperature: -20 Deg.C to 70 Deg.C
● LU7W Laser Module: Electric Power-7W, Luminous Power-1100-1600mW
V Recommended application machine: laser engraving machine

General	Brand: Ortur Model Number: LU1-2 Type: Laser head Material: Aluminum + copper + PCBA + glass lens + plastic Laser Power: Electric power 7w / optical power 1.6w Laser Reaching Range: 445 ± 5nm Power By: no
Dimensions and Weight	Product weight: 0.1100 kg Package weight: 0.3000 kg Product size (L x W x H): 3.30 x 3.30 x 7.50 cm / 1.3 x 1.3 x 2.95 inches Package size (L x W x H): 5.00 x 5.00 x 9.50 cm / 1.97 x 1.97 x 3.74 inches
Package Contents	Package Contents: 1 x 7W Electric Power Laser Module
