Tokin AE0505D18 piezoelectric stack Actuator

$599.00

Category:

Description

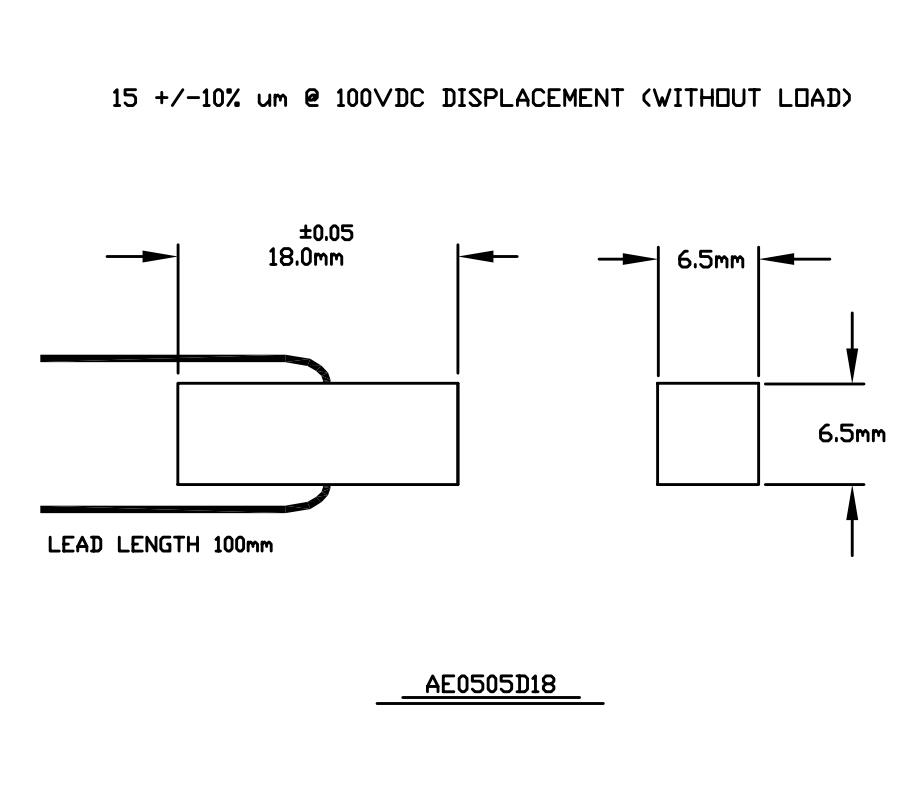

Tokin AE0505D18 piezoelectric stack Actuator, Max Displacement 15 µm, 6.5 mm x 6.5 mm x 18.0 mm.

These stacks consist of many piezoelectric ceramic layers that are assembles in series mechanically and in parallel electrically. To operate, connect the red lead of the device to the positive (+) terminal of the voltage source; do not reverse bias.

I. SPECIFICATIONS

Displacement at Maximum Drive Voltage: 15um+1.5
Maximum Drive Voltage (short term): 100 volts,(apply positive voltage to red lead,
reverse bias will destroy this device)
Operating Temperature Range:0C to + 45C(Actuator Temp.–20 to +85C)
Capacitance:1600 + 320(nF)
Clamping Force:853N
Resonant Frequency:69KHz (no mechanical load)
Young’s Modulus:4.4x10E10N/m2
Recommended Preload:<425N
AC or Pulsed operation causes the device the generate heat
