Description
TO33 780nm 80mw IR Laser Diode SANYO LD DL-7360-231S 785nm 100mw Infrared Light 3.3mm
- Certification:RoHS
- Item Type:Stage Lighting Effect
- Light Output:80mW
- Operating Voltage:1.9~2.4V
- Operating Current:115mA
Features
1. Absolute maximum ratings：100mW (CW)
240mW(Pulse)
2. TO-33 (diameter 3.3mm) packaged
Electrical and Optical Characteristics(Tc=25)
Lasing Wavelength:783nm(+-5nm)
Optical Output:80mW
Threshold Current:43mA
Operating Current:115mA
Operating Voltage:1.9V~2.4V
Operating Temperature:0 to +75
Beam Divergence(FWHM)
Parallel:8deg
Perpendicular:16deg
External dimensions(Unit : mm)

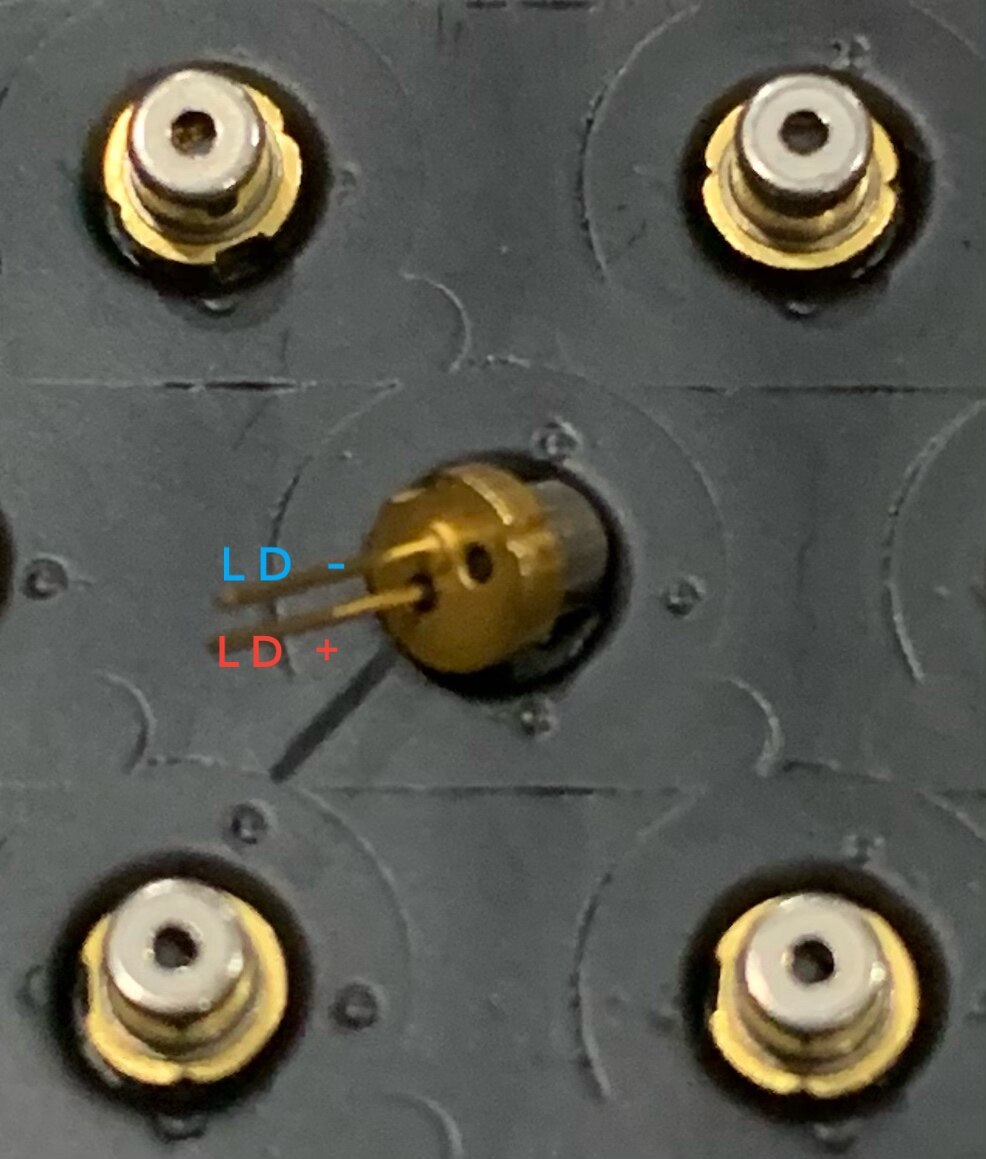

Pin Description
Pin1 LD Anode
Pin2 LD Cathode(case)
Pin3 Non Connect
