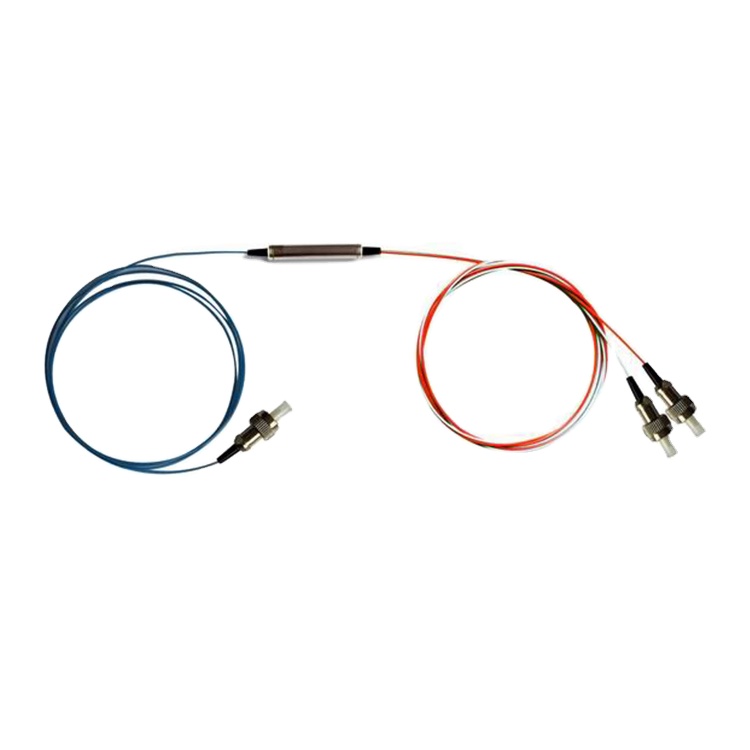

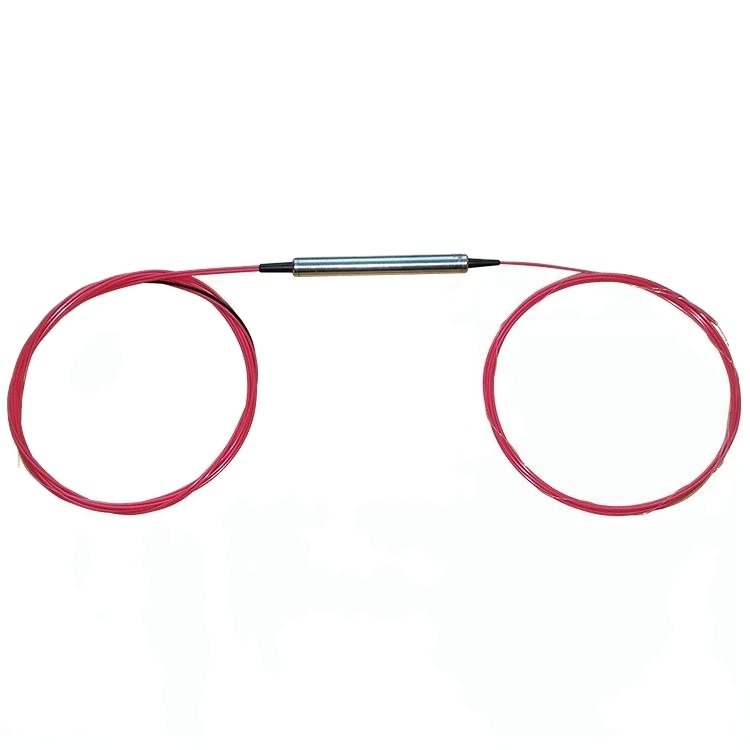

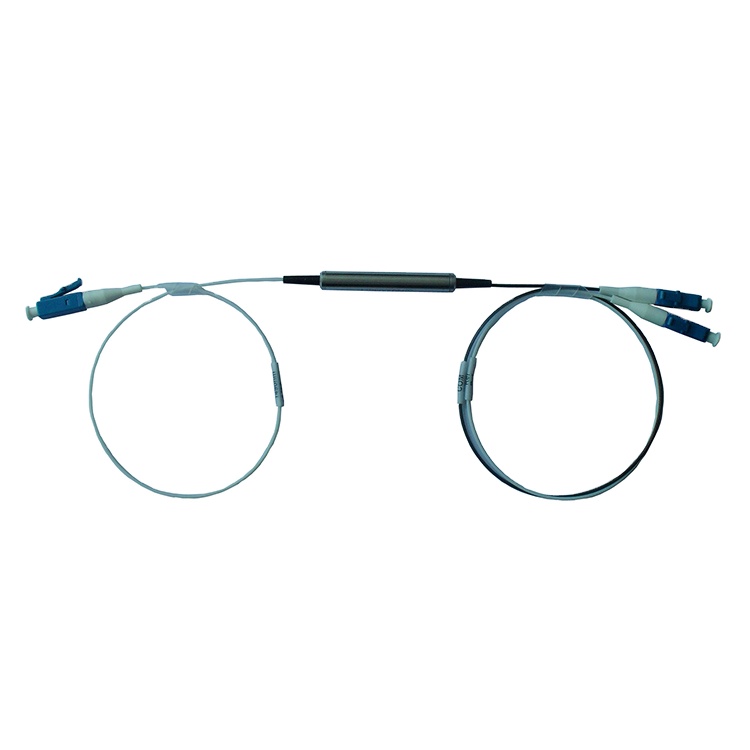

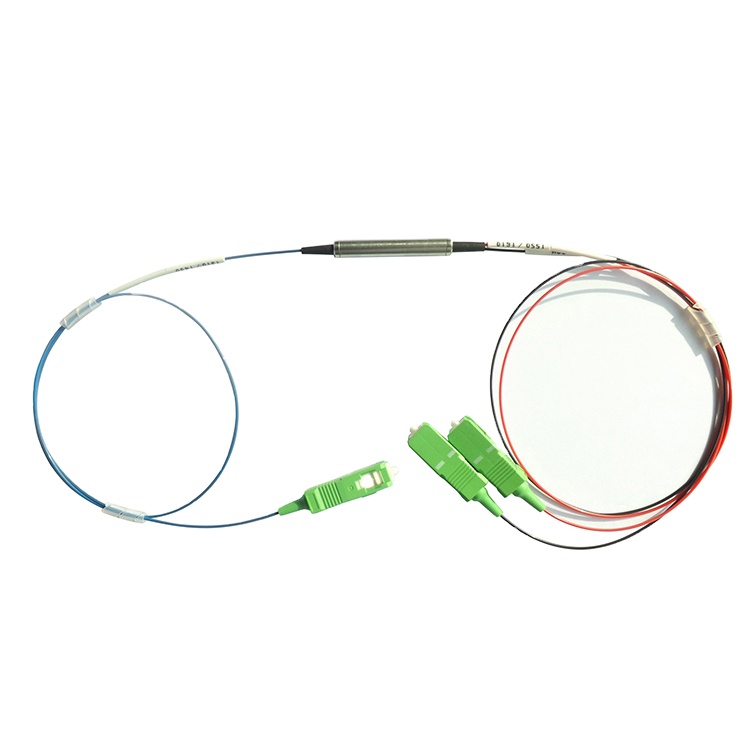

single stage/dual stage fiber optical isolator +wdm Hybrid Device for Fiber Amplifier
1. Description:
The IWDM is built based on isolator and thin film filter to fullfill hybrid isolator+WDM function in one single compact package, it includes two different confugration due to pump direction, “forward pump” and “backward pump”.
2. Features:
Wide Operating Wavelength
Low IL & PDL & High Isolation
High Stability and Reliability
3. Application:
Fiber Amplifier
Fiber optic Instrument
4. Specifications:
|
Parameters |
Unit |
1480/1550 |
980/1550 |
||
|
Isolator Stage |
— |
Single Stage |
Dual Stage |
Single Stage |
Dual Stage |
|
Isolation |
dB |
≥21 |
≥36 |
≥21 |
≥36 |
|
Insertion loss (Signal) |
dB |
≤0.6 |
≤0.8 |
≤0.9 |
≤1.0 |
|
PMD |
ps |
≤0.25 |
≤0.05 |
≤0.25 |
≤0.05 |
|
Signal wavelength range |
nm |
1528~1565(C-band) |
1528~1565(C-band) |
||
|
Pump wavelength range |
nm |
1450~1490 |
960~990 |
||
|
Insertion loss (Pump) |
dB |
≤0.5 |
≤0.6 |
||
|
Transmitted Isolation (Pump) |
dB |
≥30 |
≥30 |
||
|
Reflected Isolation (Signal) |
dB |
≥15 |
≥15 |
||
|
PDL |
dB |
≤0.10 |
|||
|
WDL |
dB |
≤0.3 |
|||
|
Directivity |
dB |
≥55 |
|||
|
Return loss |
dB |
≥50 |
|||
|
Thermal stability |
dB/℃ |
≤0.005 |
|||
|
Power handling |
mW |
≤500 |
|||
|
Operating temperature |
℃ |
0 ~ +70 |
|||
|
Storage Temperature |
℃ |
-40 ~ +85 |
|||
|
Package dimension |
mm |
5.5 × 38 |
|||
|
Fiber Type:( Common / Pump) |
— |
SMF-28e |
Hi1060 |
||
|
Fiber Type (Signal) |
— |
SMF-28 |
|||
Remark:
* Above specifications are for device without connector.
* For devices with connectors, please refer to patchcord spec., the “fiber length” is with connectors.
* Other WDM function can be customized.
5.Ordering lnformation:
|
PG- |
Stage |
Pump type |
Wavelength |
Pigtail type |
Package |
Connector |
Fiber length |
|
S=single stage D=dual stage |
F=forward Pump B=backward pump |
1598=T15/R98 1514=T15/R14 etc |
0=Bare fiber 1=0.9mm Loose tube 2=2mm 3=3mm S=specified |
5.5x38mm |
FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC etc |
05=0.5m 08=0.8m 1=1m 10=10m
|
