Silicon Photodiode Chip 4 * 4mm TO-5 Package Linear Measurement Silicon Photocell Photodetector

$179.00 – $199.00

SKU: 1005003232103442 Category:

Description

TO-5 Package Linear Measurement Silicon Photocell Photodetector

  • Type: Other
  • Color classification: SGPN88MQ SGPN88MQ-415
modname=ckeditor

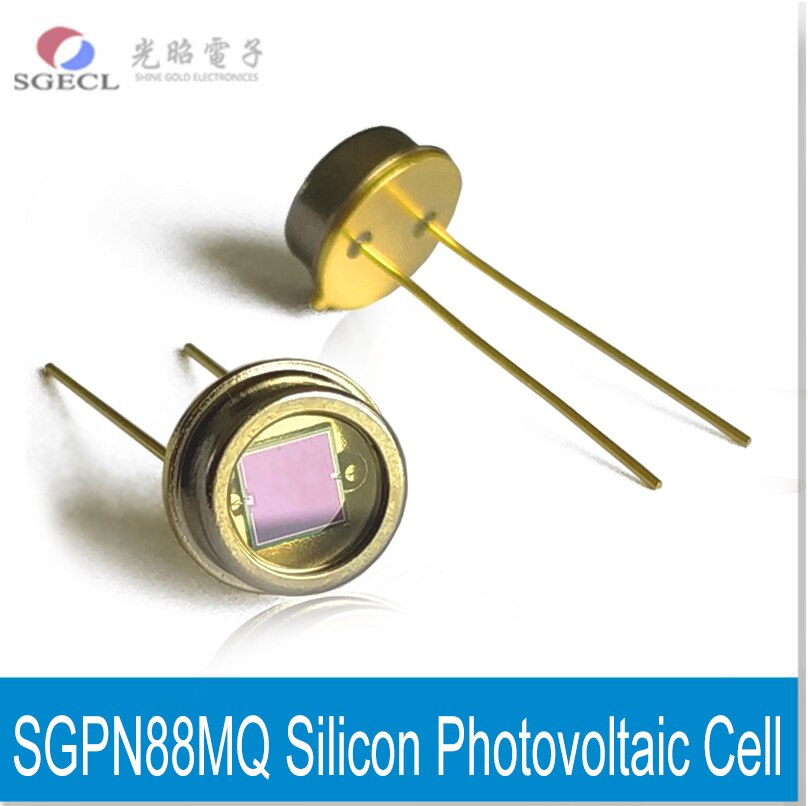

Model 1 ：SGPN88MQ Visible light to near infrared

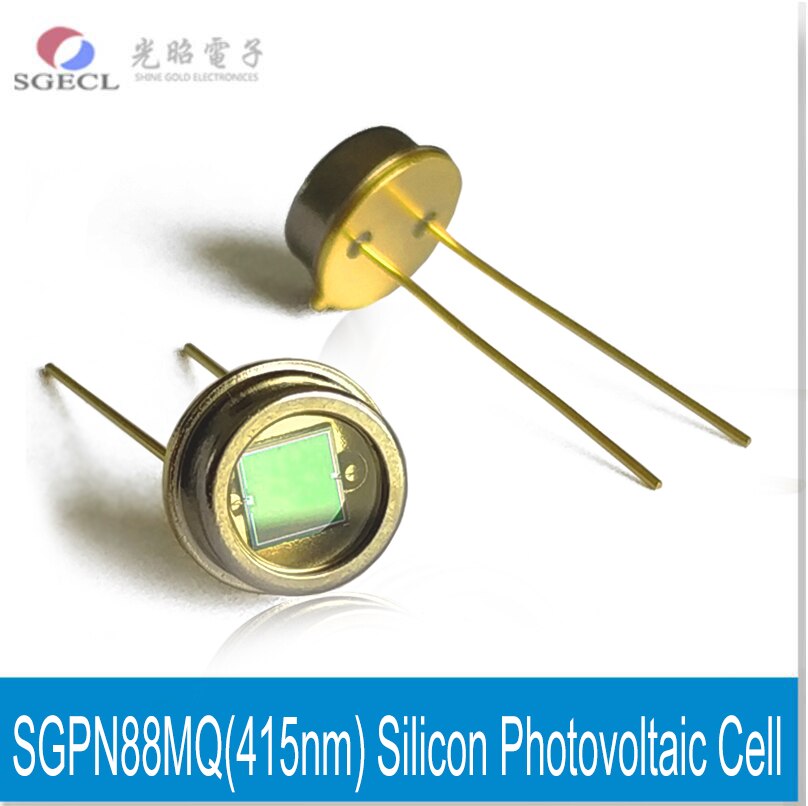

Model 2 ：SGPN88MQ-415 Violet blue light enhancement







model：SGPN88MQ
Window encapsulation form ： M:Metal shell base  Q:Quartz glass light window
Chip sizeL* W ： 3.7mm*3.7mm
Reverse voltageVR Max. ： ＜5V
Ambient operating temperatureTopr. ： -20 to +65℃
Storage temperatureTstg： -20to +85℃
Spectral response range（λ） 320-1050 nm
Peak wavelength（λp） 900 nm
Open circuit voltage（Voc）Ev=100Lux(Min) ≥330 mV
short-circuit current（Isc）Ev=100Lux(Min) ≥14μA
dark current（ID）Ev=0Lux VR=-1V(Max) ≤0.1nA
Junction capacitance（Cj）Ev=0Lux ；VR=0 400PF
response time(tr)RL=100Ω；Ev=1000Lux 1μs
be careful：In daily testing，There are many factors affecting the error of silicon photocell test results，for example： Light source properties（Natural light、Artificial light source、Incandescent lamp、Fluorescent lamp、Different colorsLEDThe spectra are different ）、supply voltageVddDifferent、Different angles of receiving light source，May cause parameter changes of technical indicators。

Standard light source of Nanyang Guangzhao Electronics Co., Ltd， Stipulated inAUnder light source，Color temperature2854k±50k, illumination10Lux~100LuxTest under，If there are special requirements，Please communicate with us in advance。



Typical application reference circuit

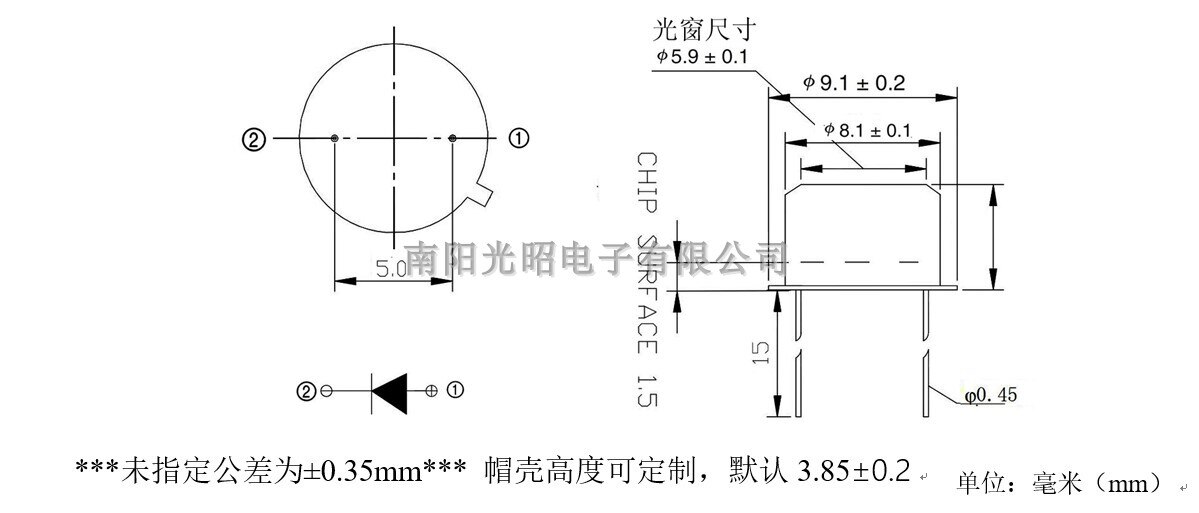

Dimension drawing：Companymm





 Silicon photocells are widely used，Such as photography、Automatic photometry of camera equipment；Various optical instruments：Illumination photometer、Spectrophotometer、Luminance meter、Photoelectric control of flame detector、Optical detector、Optical chopper, etc；It can also be used for photoelectric detection elements，Near infrared detector、Grating ranging、Currency Detector、Laser collimation characteristic identification and photoelectric control switch。
