Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±10%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -10 -85℃
- is_customized: Yes
- Max. Operating Voltage: Variable Resistors Single Turn Potentiometer
- Model Number: RV24YN20S
- Rated Power: 2W

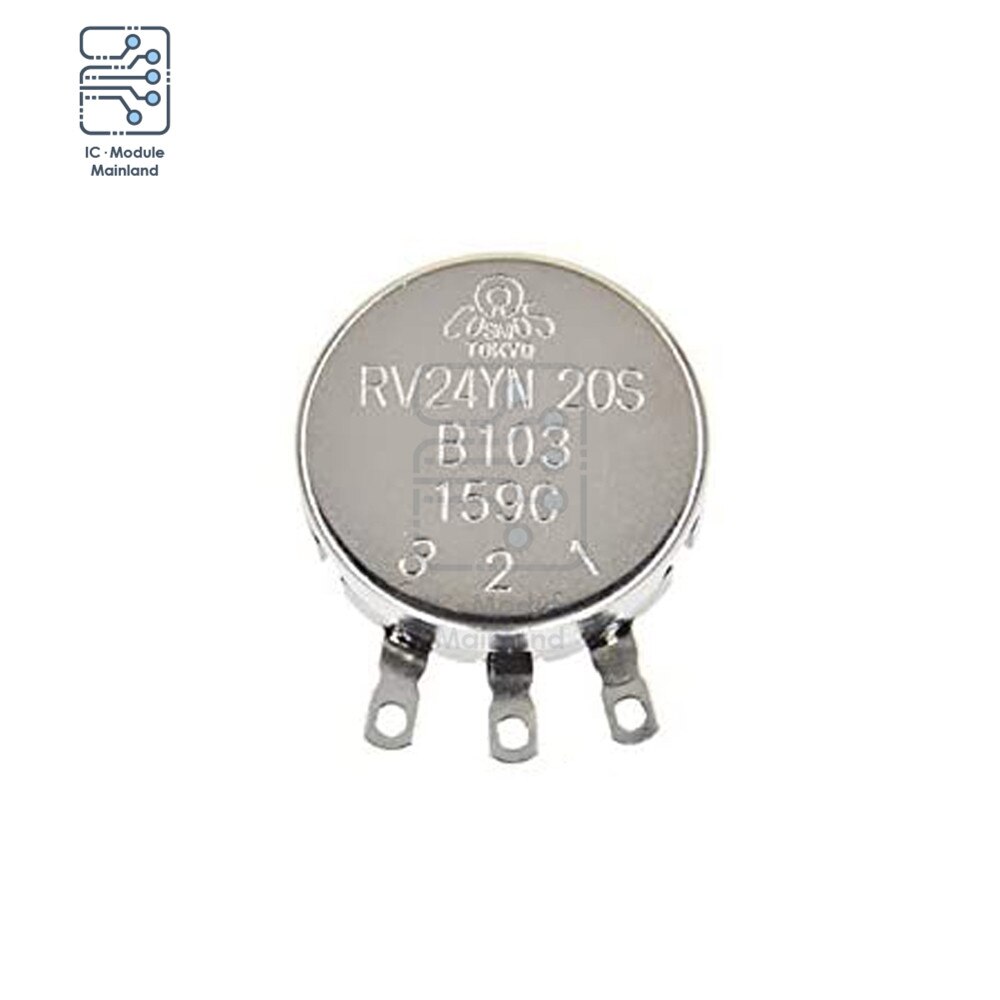

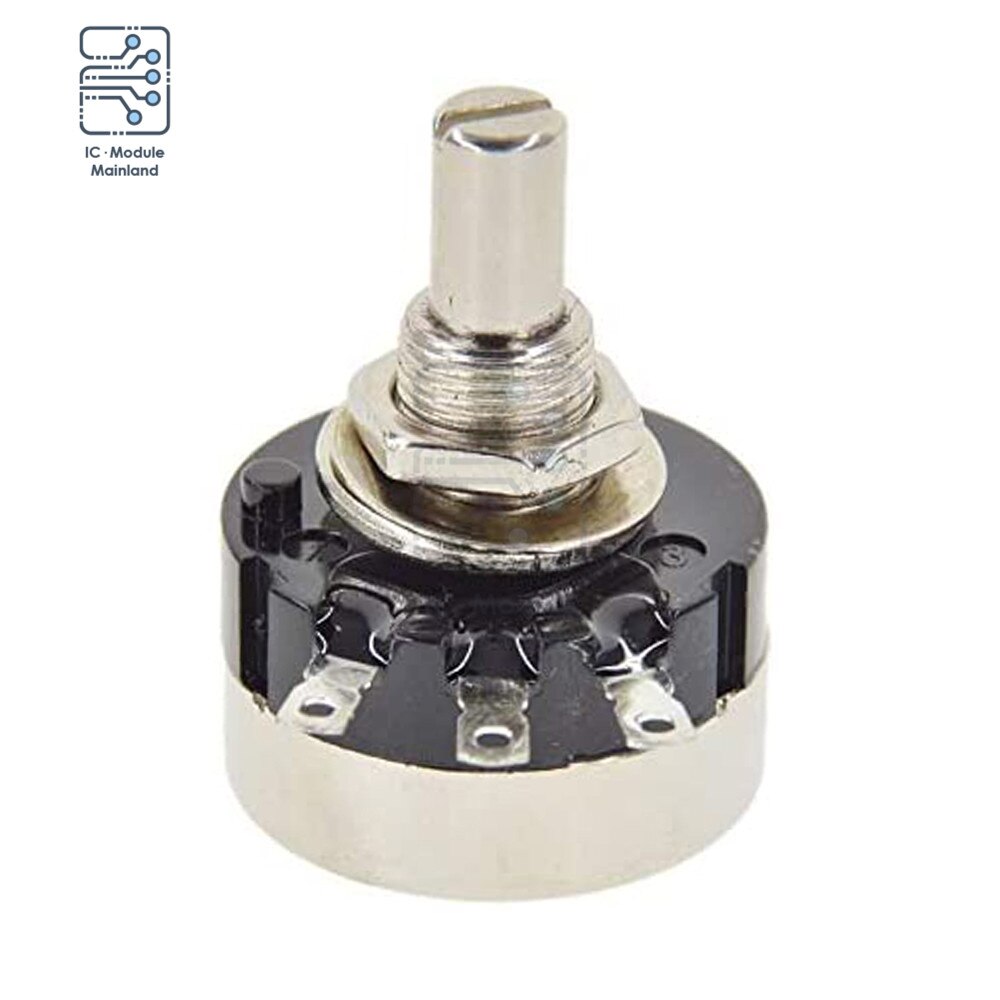

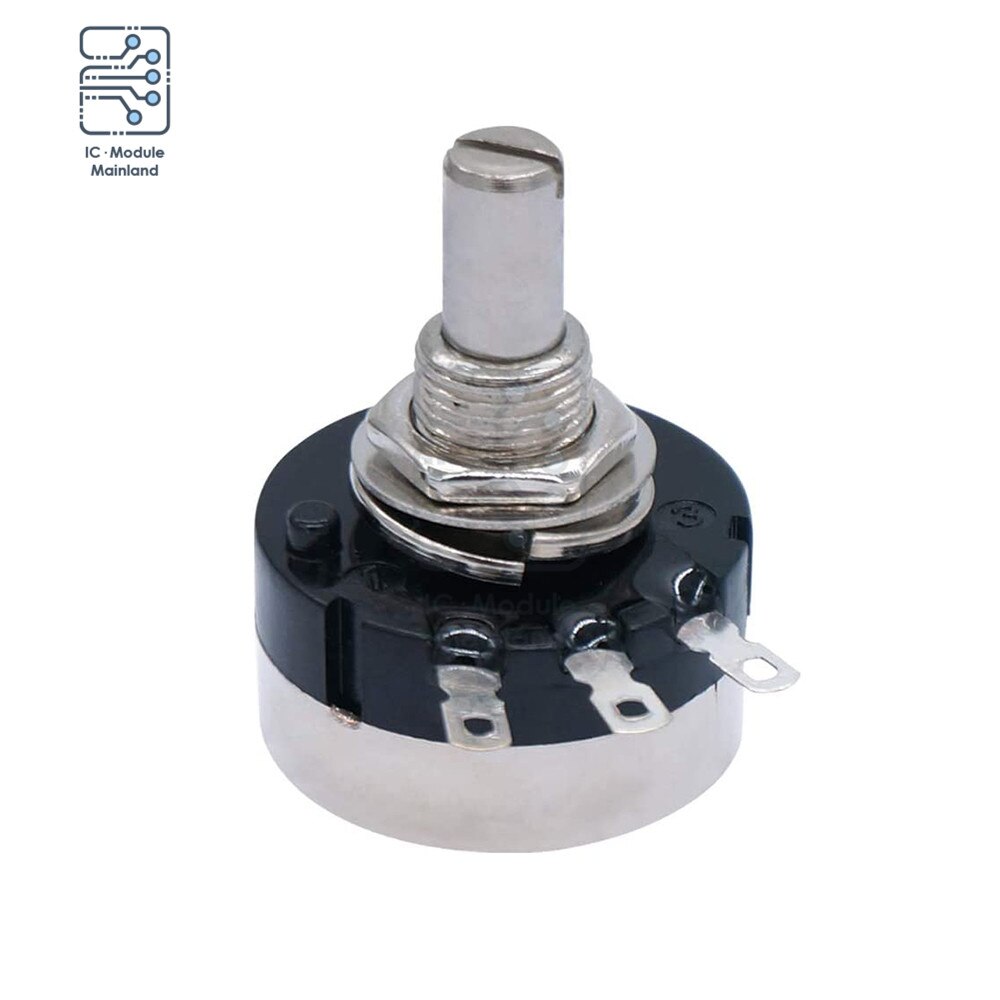

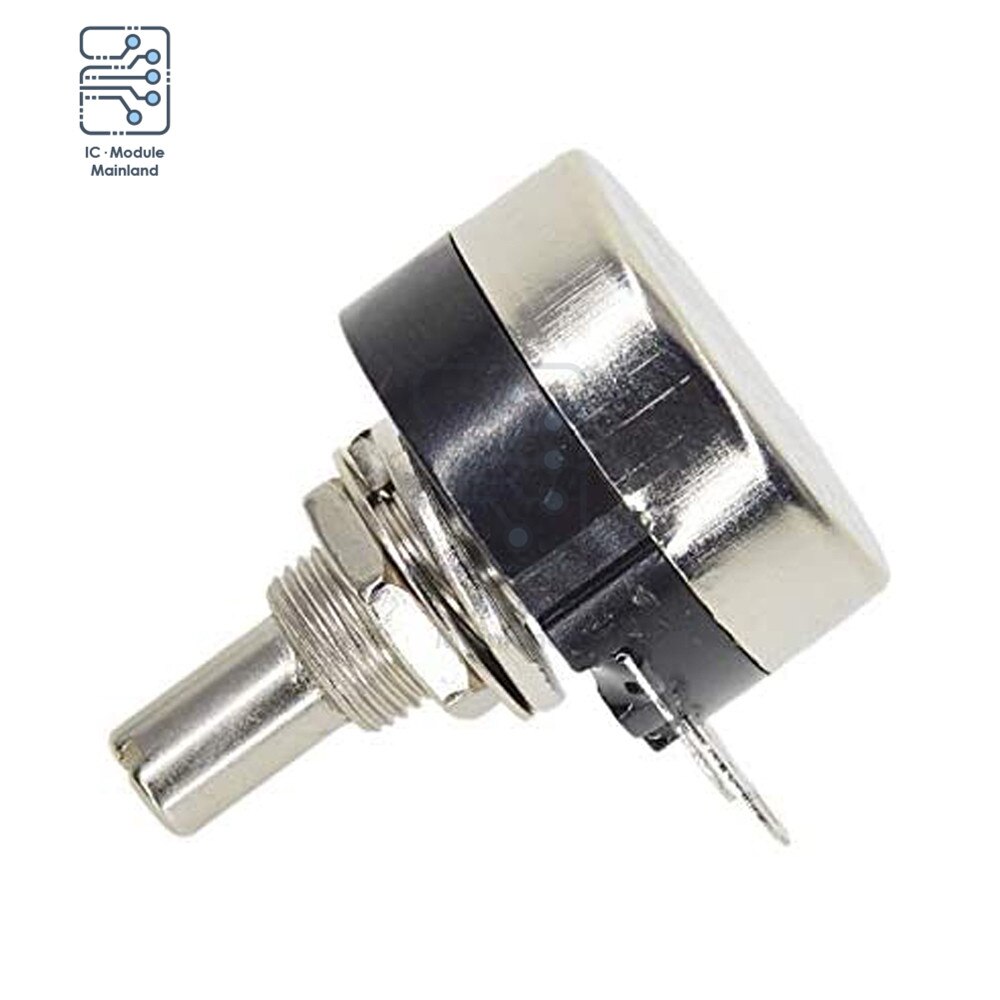

RV24YN20S Carbon Film Linear Rotary Potentiometer Variable Resistors Single Turn 1K -1M Ohm for Timer Temperature Controller Toy
Feature:
3 Terminals, Single Linear, Suits Most Standard Knobs.
Top adjustment type and knurled shaft for easy operate in daily use.
Main used to control electrical devices such as volume controls on audio equipment.
Knurled shaft with split design for push-on knob.
Specification:
Type: Rotary Potentiometer
Model: RV24YN 20S
Material: Carbon film Metal
Resistance Value: 1k Ohm, 2k Ohm, 5k Ohm, 10k Ohm, 20k ohm, 50k Ohm, 100k Ohm, 200k Ohm, 500k Ohm, 1M Ohm
Power: 2W
Tolerance: ±10%
Mechanical angle : 300°
Temperature range : -10°C -85°C
Rotational life : 100000 rpm
Turn Number: Single Turn
Terminals Number: 3

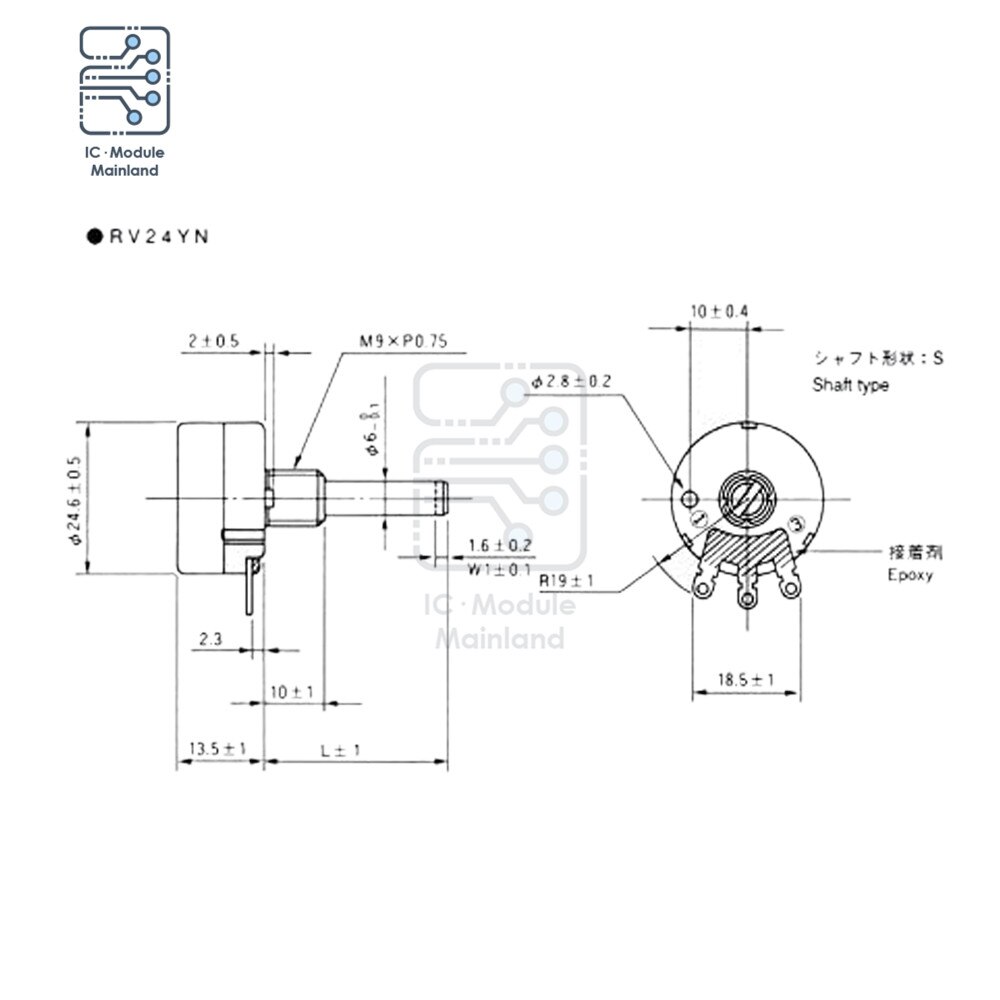

Total Size: 33.4mm x 24.4mm/1.31 x 0.96 inch (H * D)
Screw Thread Dia.: 8.7mm/0.34 inch
Shaft Diameter: 6mm / 0.24 inch
Shaft Length(do not include the Screw Thread parts): 10mm / 0.4 inch
Shaft Total Length 20.5mm/0.8 inch
Color: Black, Silver Tone
Application:
Generally used in mixers, toys, audio, car audio, amplifiers, radios, DVD/VCD, televisions, electronic message devices, headsets, lamps and other electronic digital and electronic equipment
Package Included:
1 x Carbon Film Potentiometer
