Description

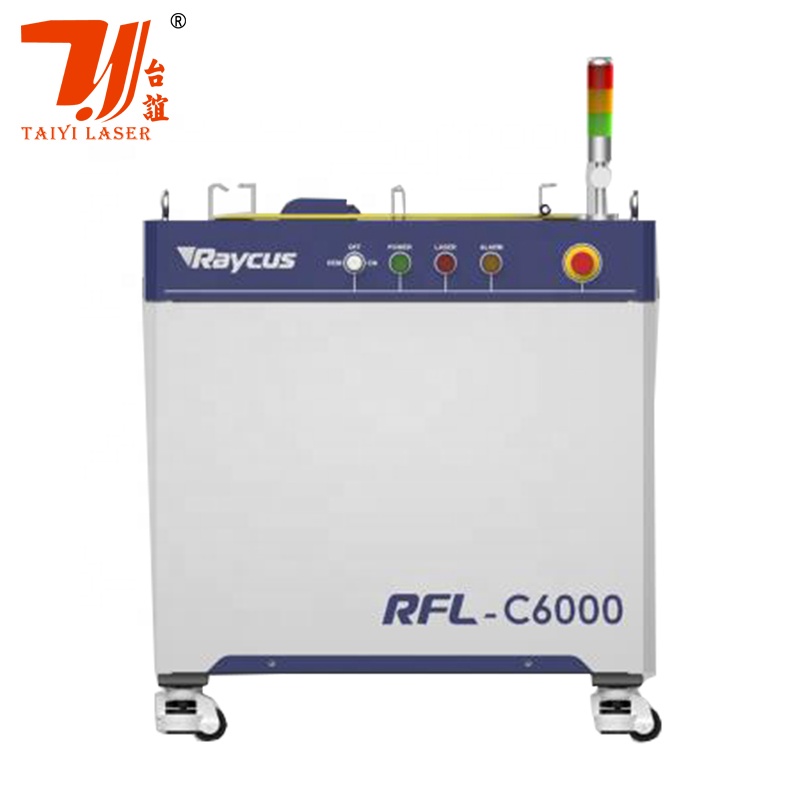

Raycus RFL-C6000 6000W 6KW High Power Multi-module Fiber Laser Cutting Source

Model	RFL-C4000	RFL-C6000	RFL-C8000	RFL-C10000	RFL-C12000	RFL-C15000
Optical Properties
Output Power (W)	4000	6000	8000	10000	12000	15000
Wavelength (nm)	1080±5
Operation Mode	CW/Modulate
Max.Modulation Frequency (KHz)	5	2
Output Power Stability	±1.4%
Red Laser	Yes(0.5mW-1mW)
Output Characteristics
Beam Delivery Optics	QBH(Customizable)
Output Fiber Diameter (μm)	100(Customizable)
BBP (mm.mrad)	≤4.5	≤5
Polarization State	Random
Delivery Cable Length (m)	20(Customizable)
Electrical Characteristics
Power Supply	340-420(Three Phase-Five Wire Connect)
Power Range (%)	10%-100%
Other Characteristics
Dimensions (mm)	670×990×1160	900×960×1160		1200×960×1160		960×1600×1188
Weight (KG)	<280	<360	<400	<450	<500	<800
Cooling	Water Cooling
Operating Temperature (℃)	10-40



1.After Sales

We provide 1-3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.



2.Quality Control

Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.

All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.

We will provide detailed Machine pictures and Test videos to customers before delivery.



3.OEM Service

Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.

No MOQ required.



4.Privacy

None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.

Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.
