Description

Passively Q-switched 266nm solid-state semiconductor industrial laser source microchip MA series

MA series microchip laser is a passively Q-switched solid-state laser based on semiconductor pump. The laser pulse is pure without tail, the single pulse energy is stable, and the beam quality is good. The integrated design of semiconductor pump module and laser crystal makes the compact laser head easy to install and integrate. The system supports internal and external triggering. This series of products include four wavelengths of 1064nm, 532nm, 355nm and 266nm. The full sealing module inside the laser head can be used by customers for secondary development and application.

Pulse energy up to 200uJ
External pump source fiber pump pulse energy
can reach 1.2mJ
Repetition frequency up to 20kHz
Beam mode is TEM00
Fully sealed design, high reliability

APPLICATIONS

Lidar
Laser Ranging
Atmospheric monitoring
Laser ultrasonic inspection
Optical metrology
Laser-induced fluorescence

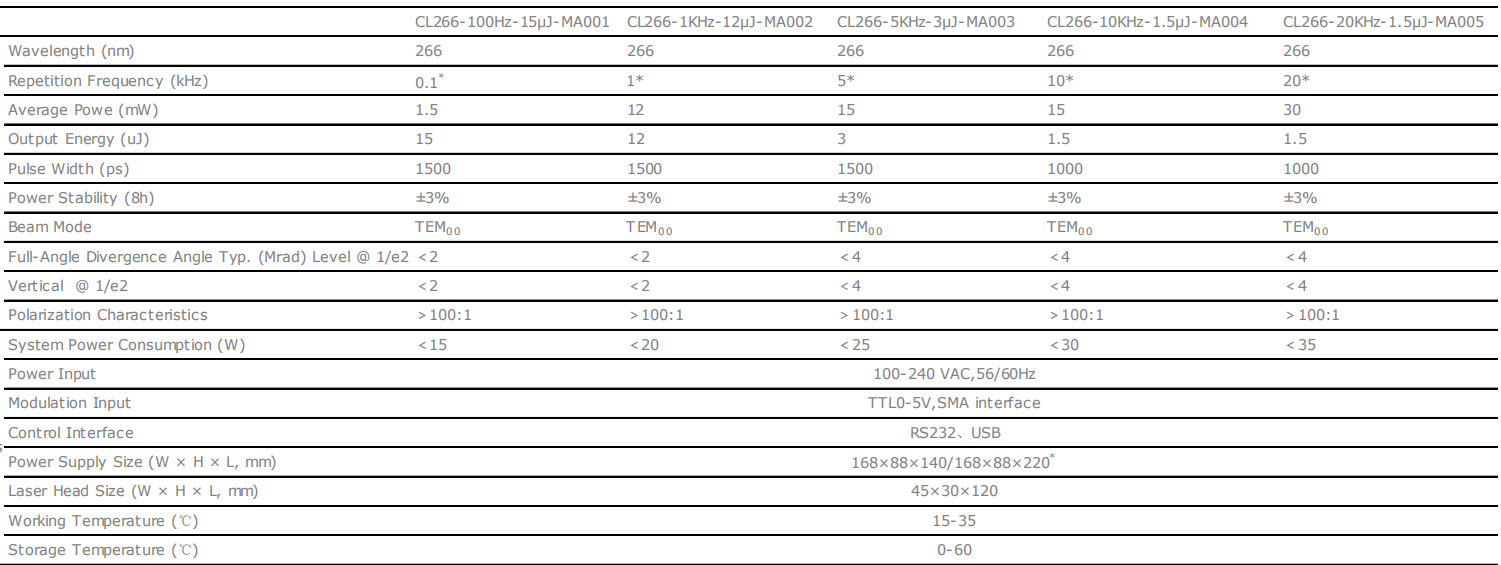

Download Datasheet for this 266nm Laser series

266nm-Microchip-Laser-System-of-MA-Series-datasheet
