OPT101 Analog Light Sensor Module Light Intensity Module Monolithic Photodiode The OPT101 is a monolithic photodiode

$1.50

20000 in stock

SKU: 1005003425467500 Category:

Description

  • Origin: CN(Origin)
  • Usage: Position Sensor
  • Material: Mixture
  • Type: Optical-Electronics Sensor
  • Output: Analog Sensor
  • Theory: Optical Sensor
  • Model Number: OPT101
  • is_customized: Yes

Description:

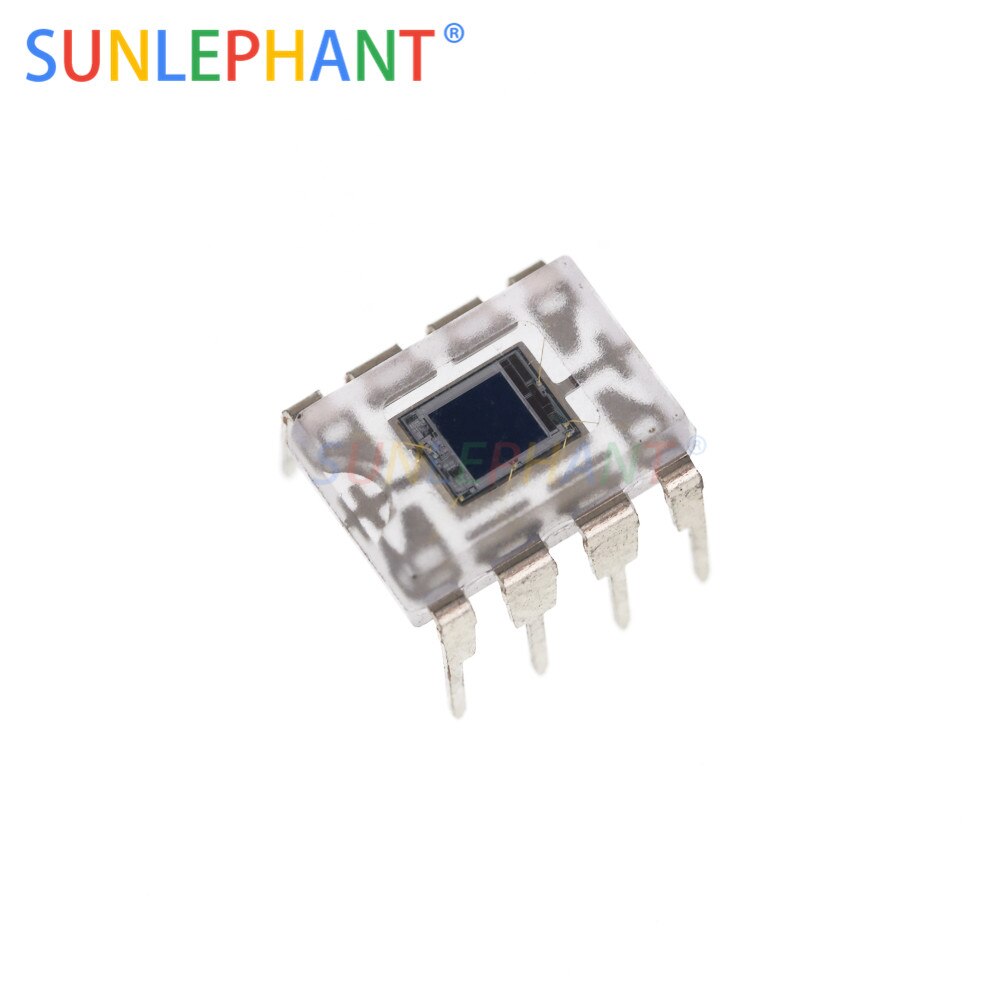

The OPT101 is a monolithic photodiode with on-chip transimpedance amplifier.The ingrated combination of photodiode and transimpedance amplifier on a single chip eliminates the problems commonly encountered in discrete designs, such as leakage current errors, noise pick-up, and gain peaking as a result of stray capacitance.Output voltage increases linearly with light intensity. The amplifier is designed for singlr or dual power-supply operation.


Features;


1.Single Supply:2.7-36V


2.Photodiode Size:2.29mm*2.29mm


3.Internal 1Mohm Feedback Resistor


4.High Responsivity:0.45A/W(650nm)


5.Bandwidth:14Khz


6.Low Qulescent Current:120UA


7.Packages:Clear plastic 8-pin PDIP and J-Lead SOP

Applications;


1.Medical Instrumentation


2.Laboratory Instrumentation


3.Position and Proximity Sensors


4.Photographic Analyzers


5.Barcode Scanners


6.Smoke Detectors


7.Currency Changers



Package Included:

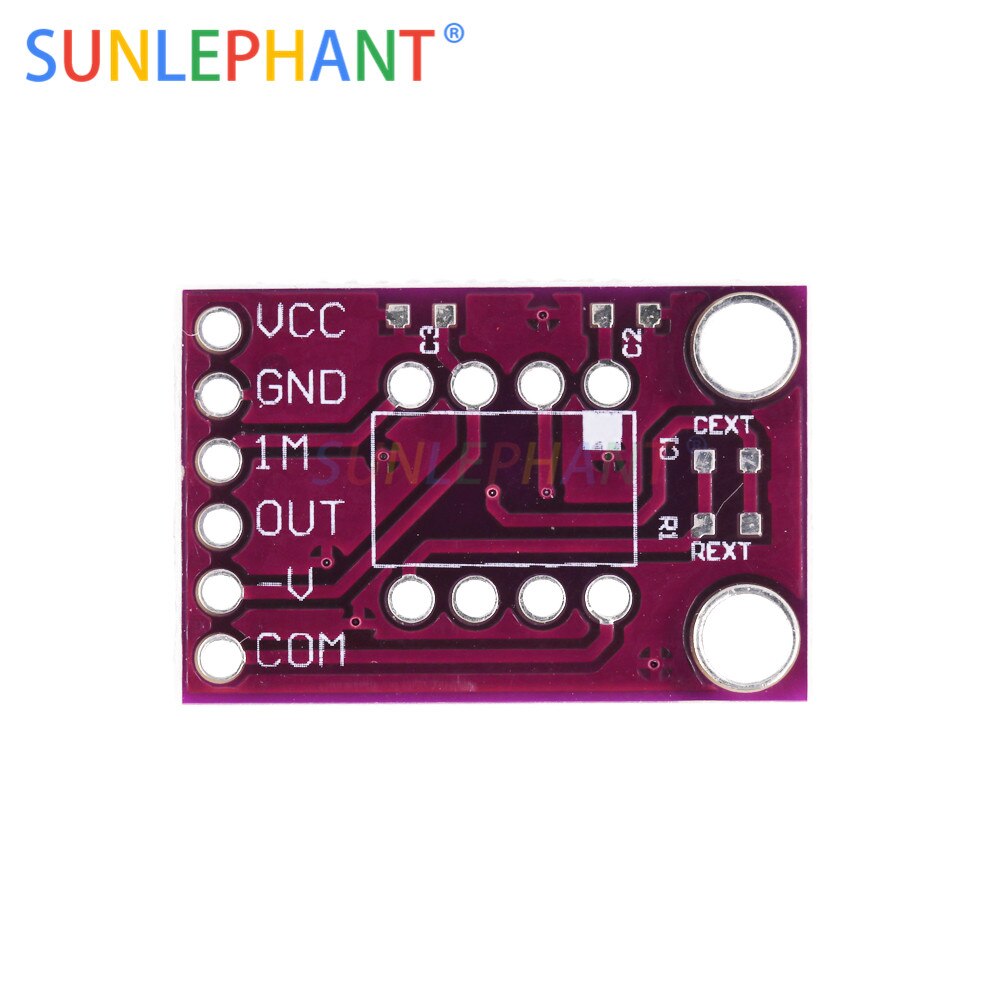

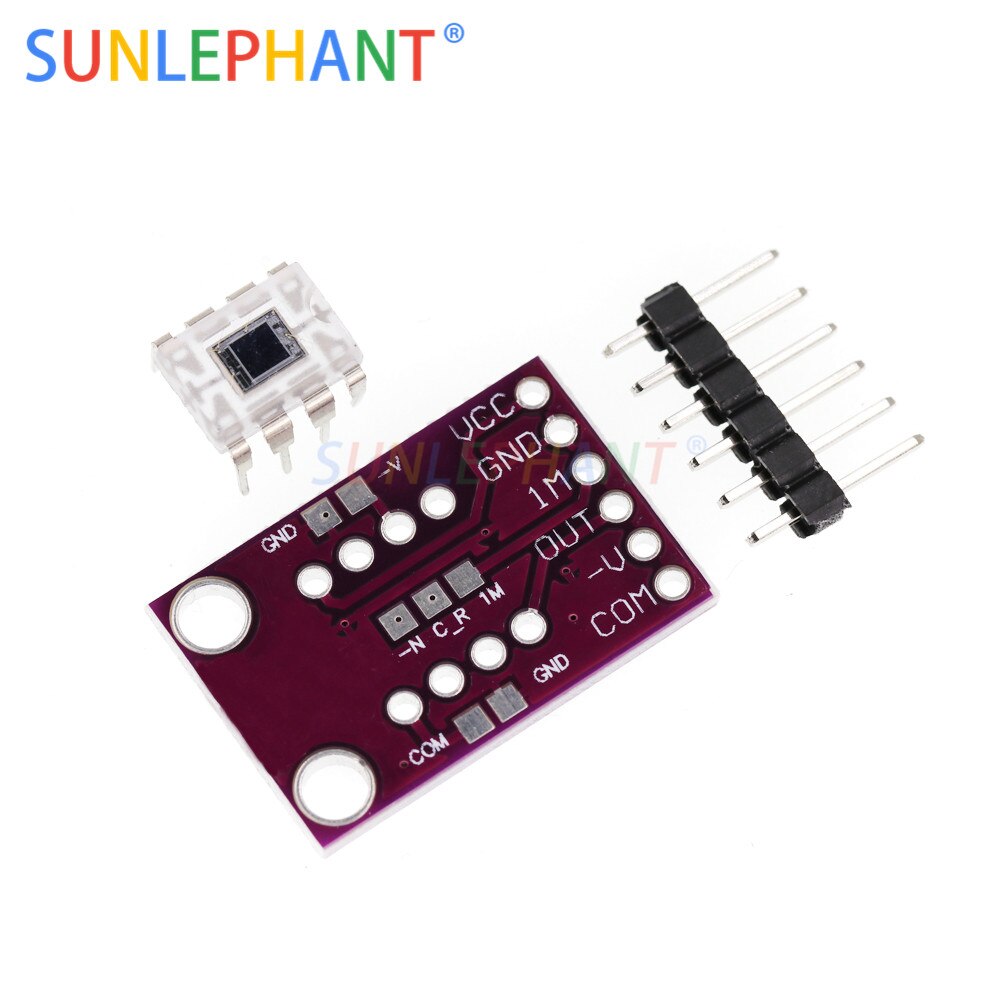

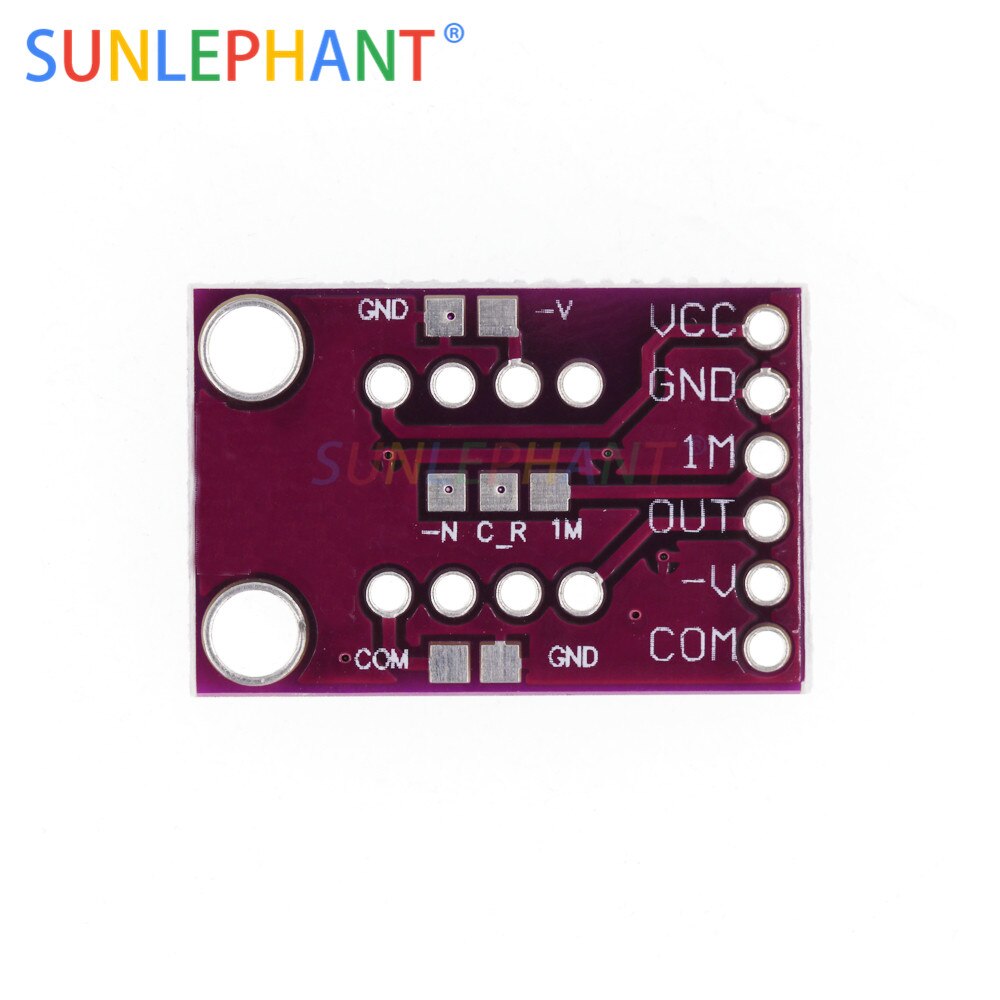

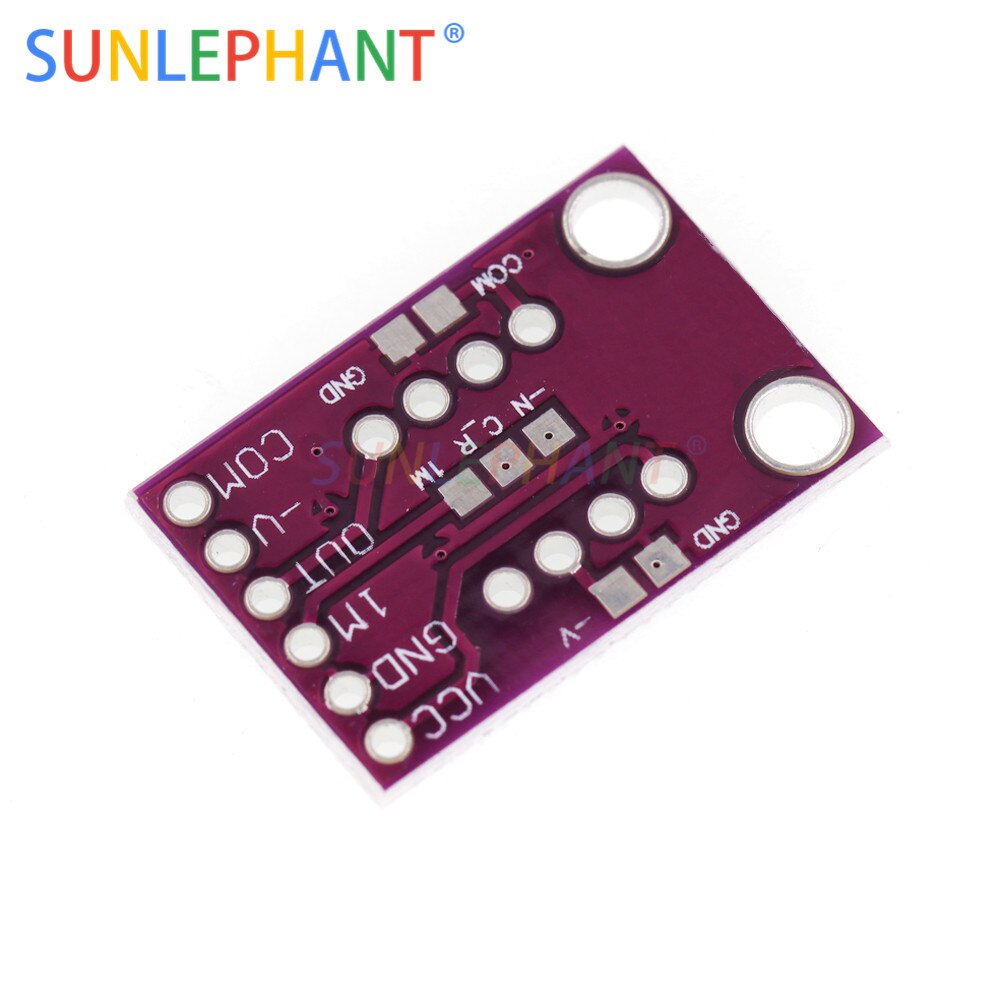

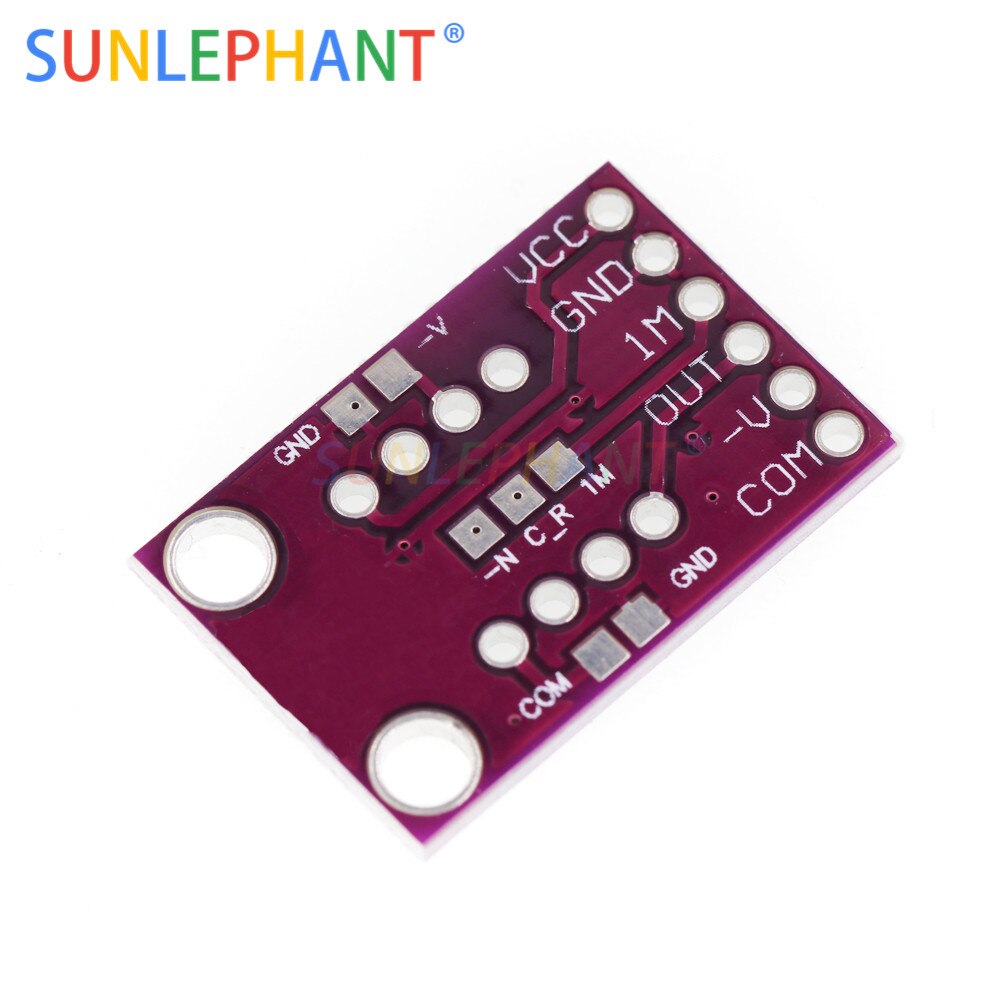

  1 x OPT101 Analog Light Sensor Module
356 (3)356 (4)356 (5)356 (6)
