Opt101 Analog Light Sensor Light Intensity Module Monolithic Photodiode Kit Professional Equipment

$1.36$1.54

SKU: 1005002978638655 Category:

Description

  • Brand Name: ONLENY
  • Certification: None
  • Origin: CN(Origin)
  • State of Assembly: Ready-to-Go
  • Compatibility: others
  • Bundle: none
  • Model Number: none

Features

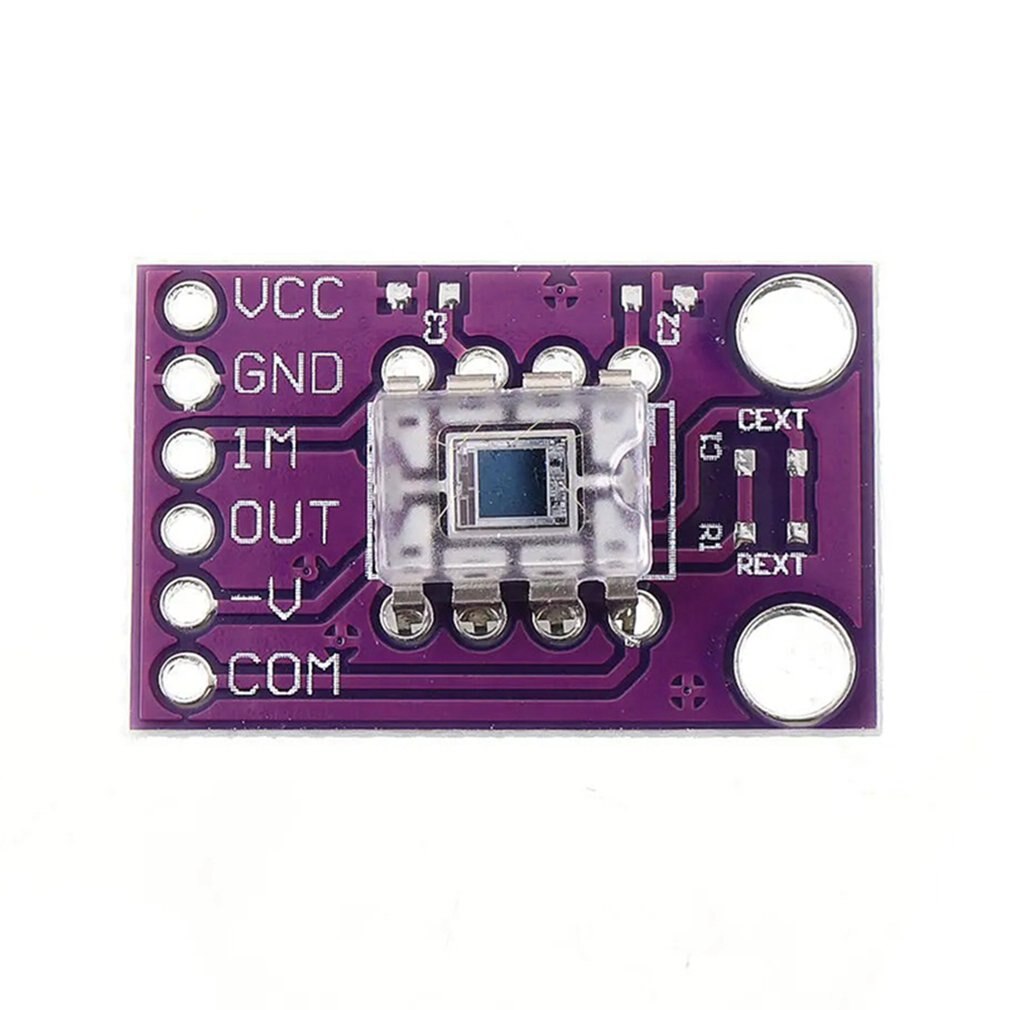

OPT101 is an illuminance photoelectric sensor integrating a photodiode and a specially optimized operational amplifier. Transparent packaging enables the photodiode to have a larger sensing surface, higher sensitivity and a wider spectral response range (infrared to visible light 300nm-1000nm)

Description:

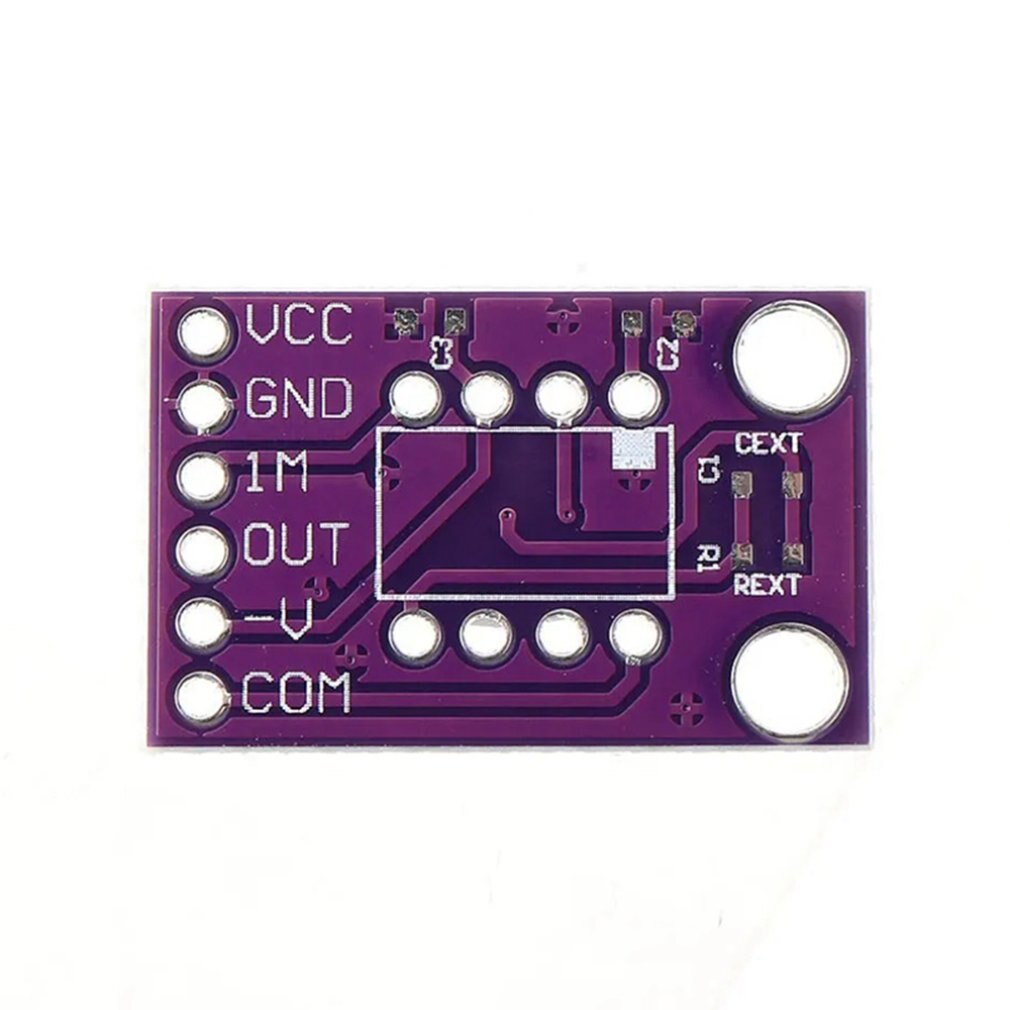

IN code description:
VCC: Positive power supply pin
-V: negative power supply
-IN: The inverting input of the internal operational amplifier and the negative electrode of the internal photodiode,
Do not connect or apply feedback that is abandoned in operation
1M: Internal 1MΩ feedback resistance input
OUT: amplifier output
COM: The anode of the internal photodiode, usually connected to GND

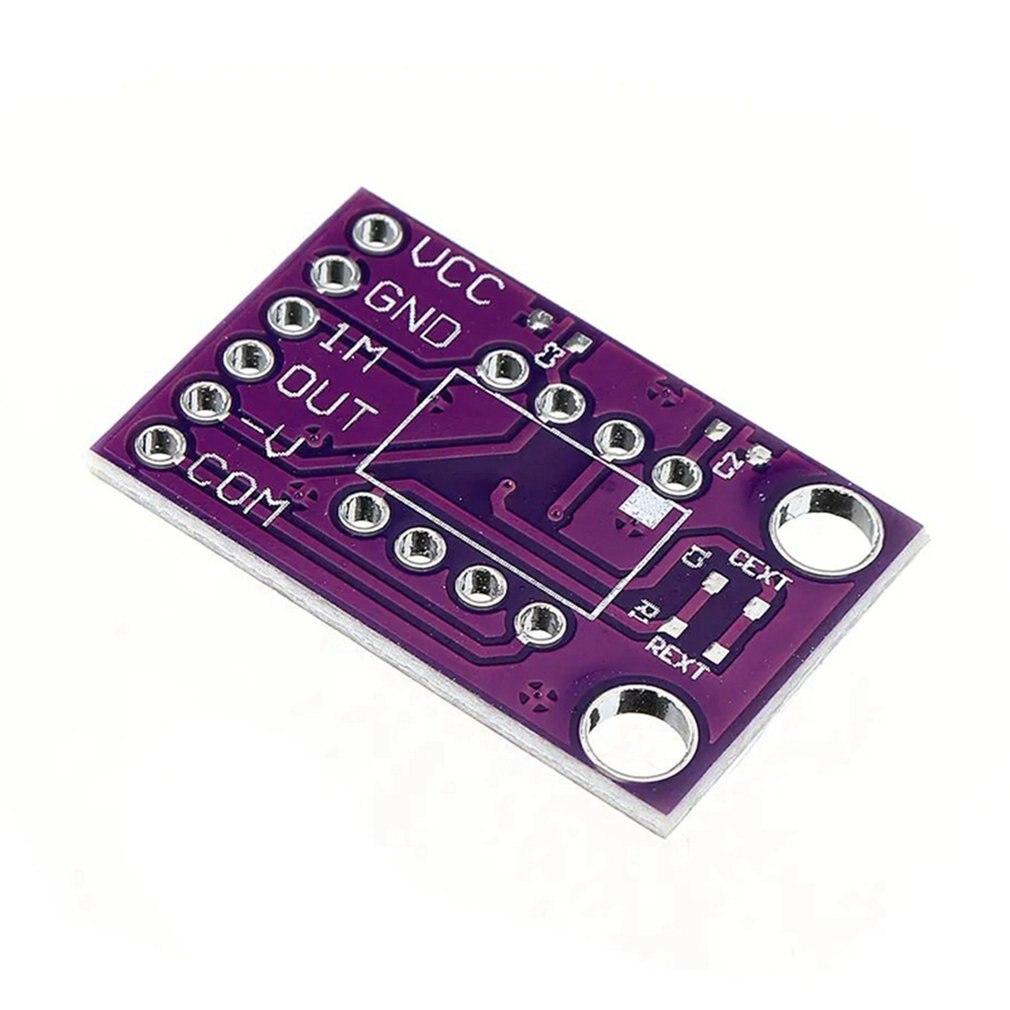

Note: The module does not solder CEXT external capacitors and REXT external resistors, and makes the pads easy to expand.

Specifications:
Material:plastic
Color:colorful
Working voltage: 2.7? 9? 136V
Working temperature: 0°C?9?170°C

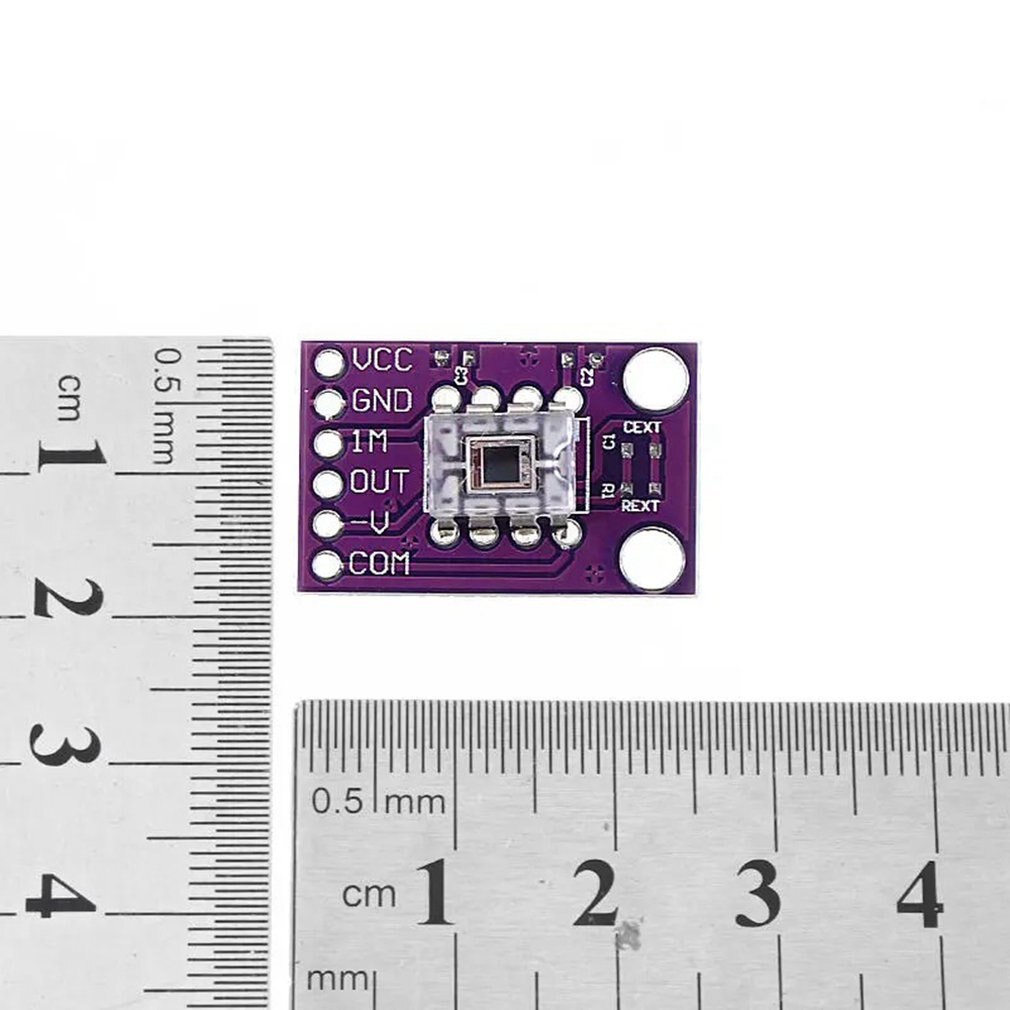

Photodiode irradiation area: 5.2mm2
Photocurrent: 0.45A/W (λ= 650nm)
Output voltage ratio: 0.45V/uW
Analog voltage output range: Vs-1.15
Bandwidth: 14KHz
Static power consumption: 120uA

Package Included:

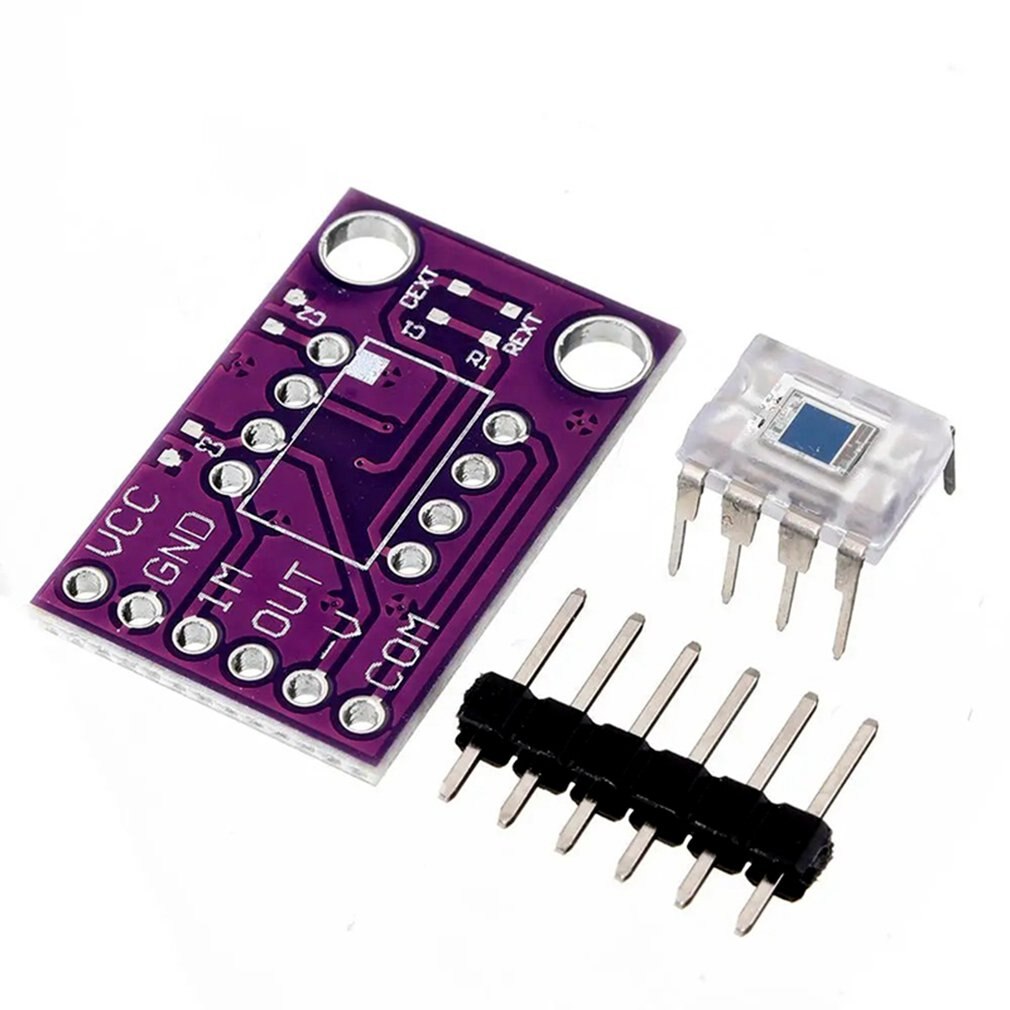

1*OPT101 lighting sensor

Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
