Description
- Brand Name: LanYuXuan
- Certification: CE
- Origin: CN(Origin)
- DIY Supplies: ELECTRICAL
- Model: Altra EV
- Year: 1999-2001
- OE NO.: 0000
- Car Fitment: Nissan
- Brand Name: Shenhai
- Place of Origin: Hebei, China
- Certificate: ISO/TS 16949:2002
- Effective Radius: 179mm
- Initial F1: 22N±6N(Accept OEM)
- Terminate F2: 39N±6N(Accept OEM)
- Initial Angle (a1): <1.2°
- Idle Angle(b1): <1.2°(Accept OEM)
- Idle Signal(P1.1: (15±1)%(Accept OEM)
- Limit output(P1max): (80±1.5)%(Accept OEM)
- Limit Angle (b2): 14.5°±1°
- Retarded( F5): >4N
|
Item
|

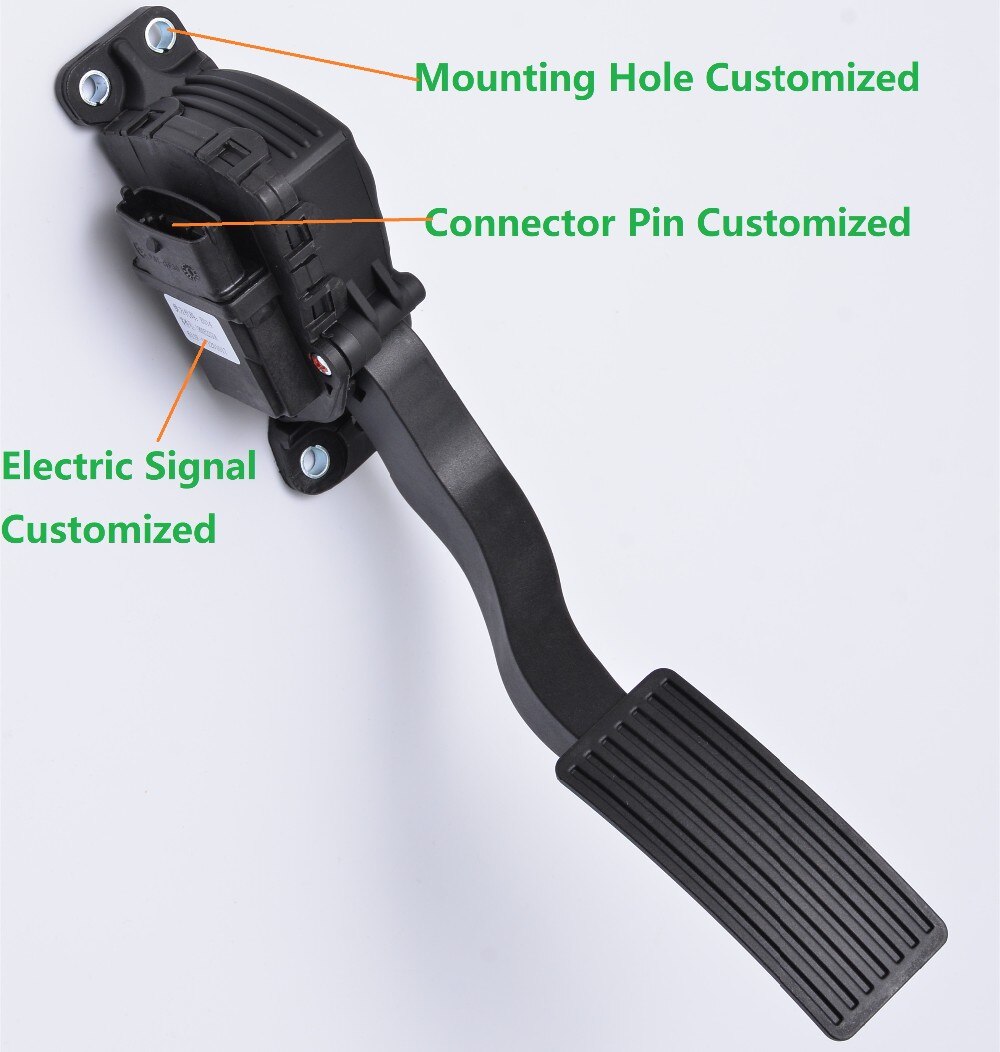

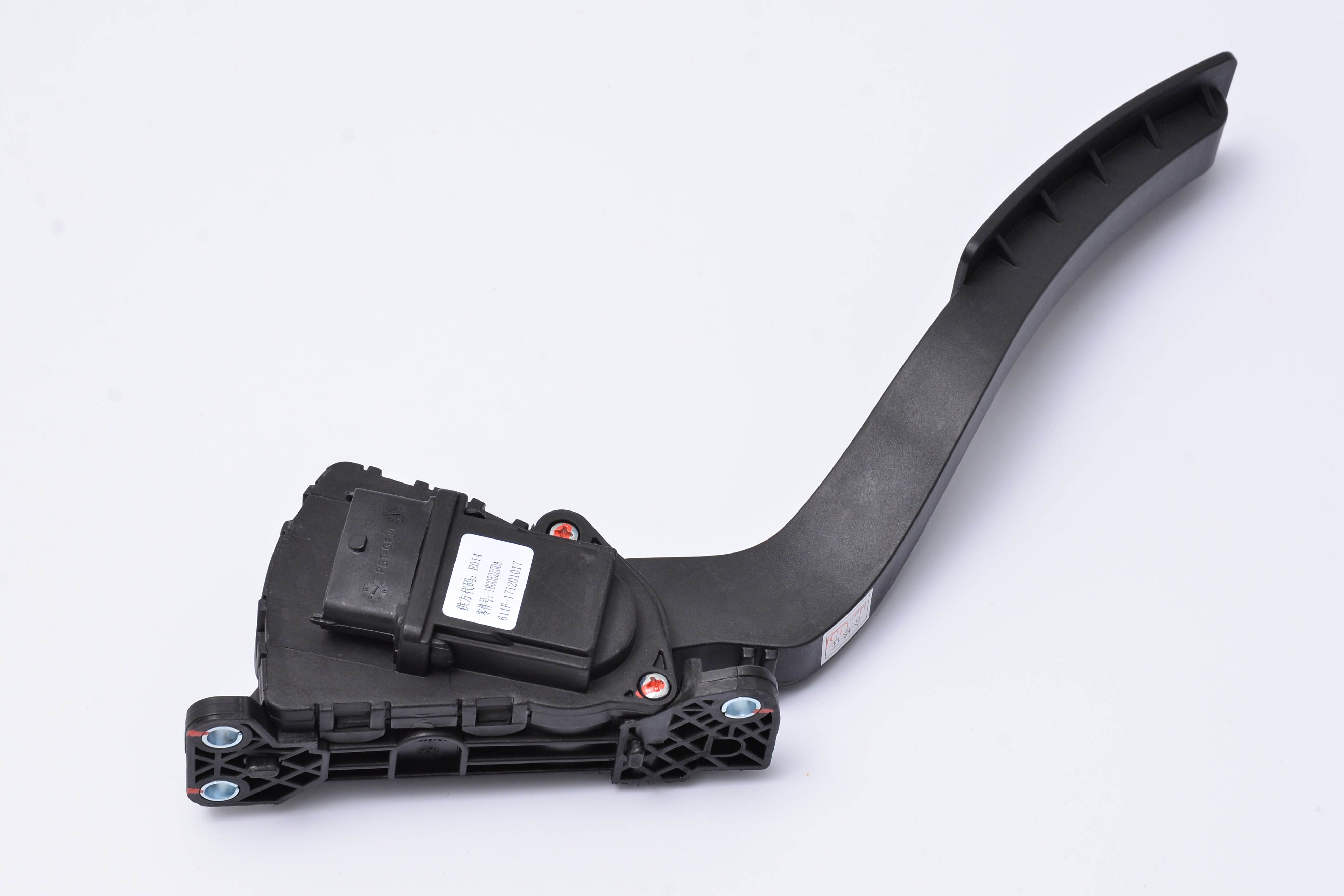

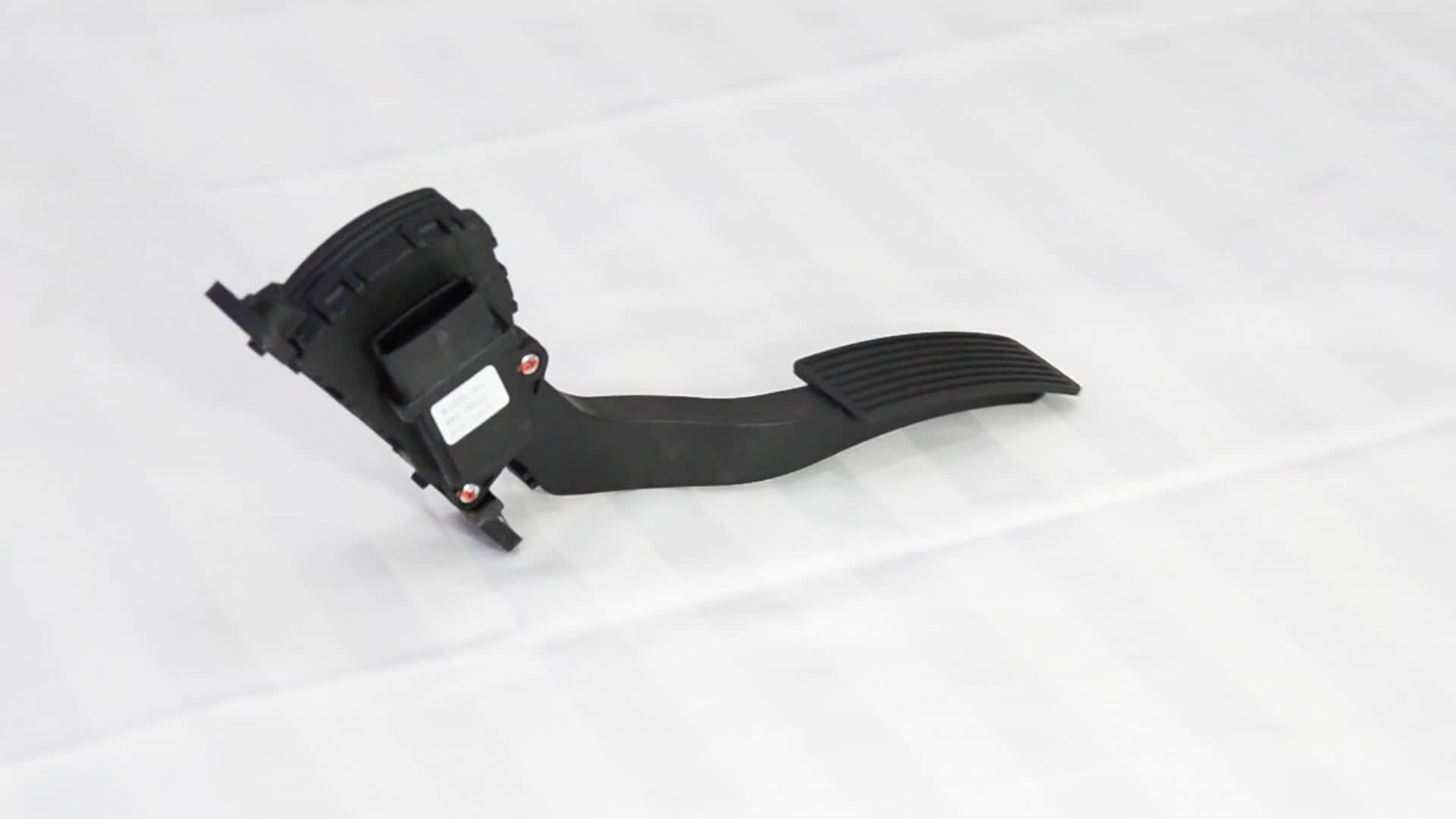

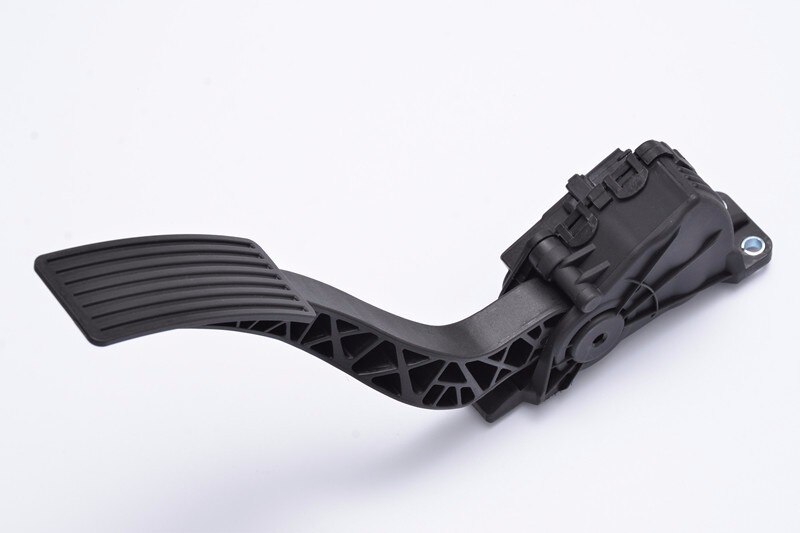

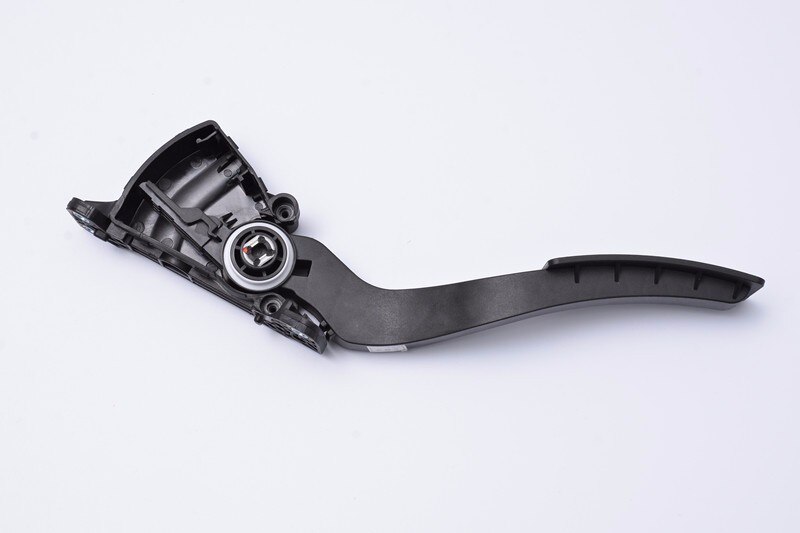

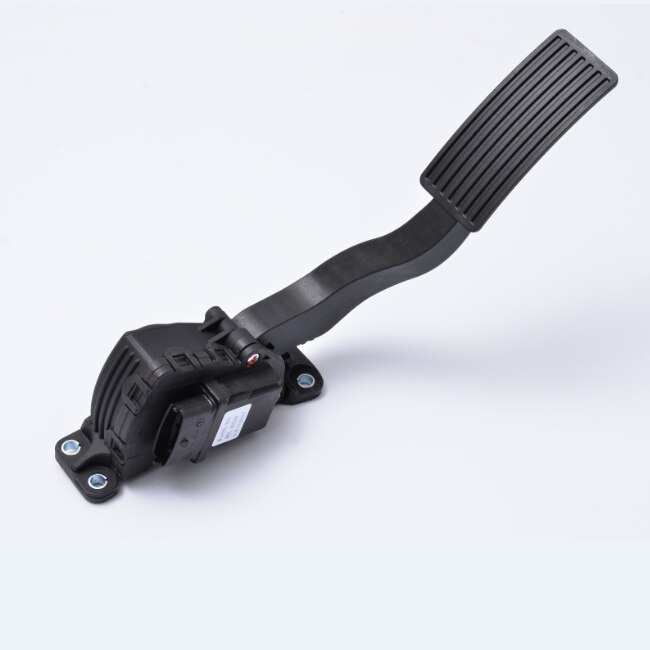

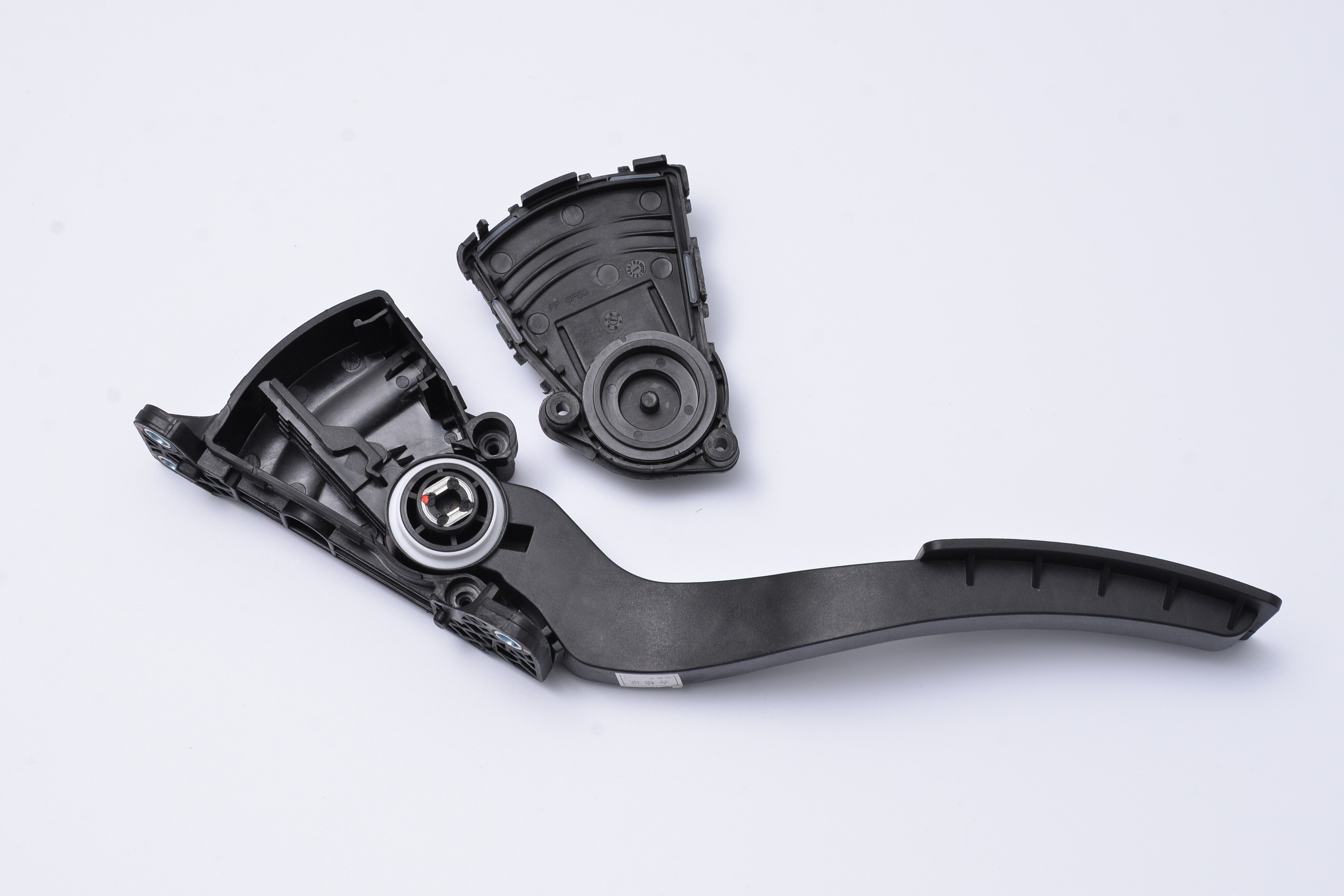

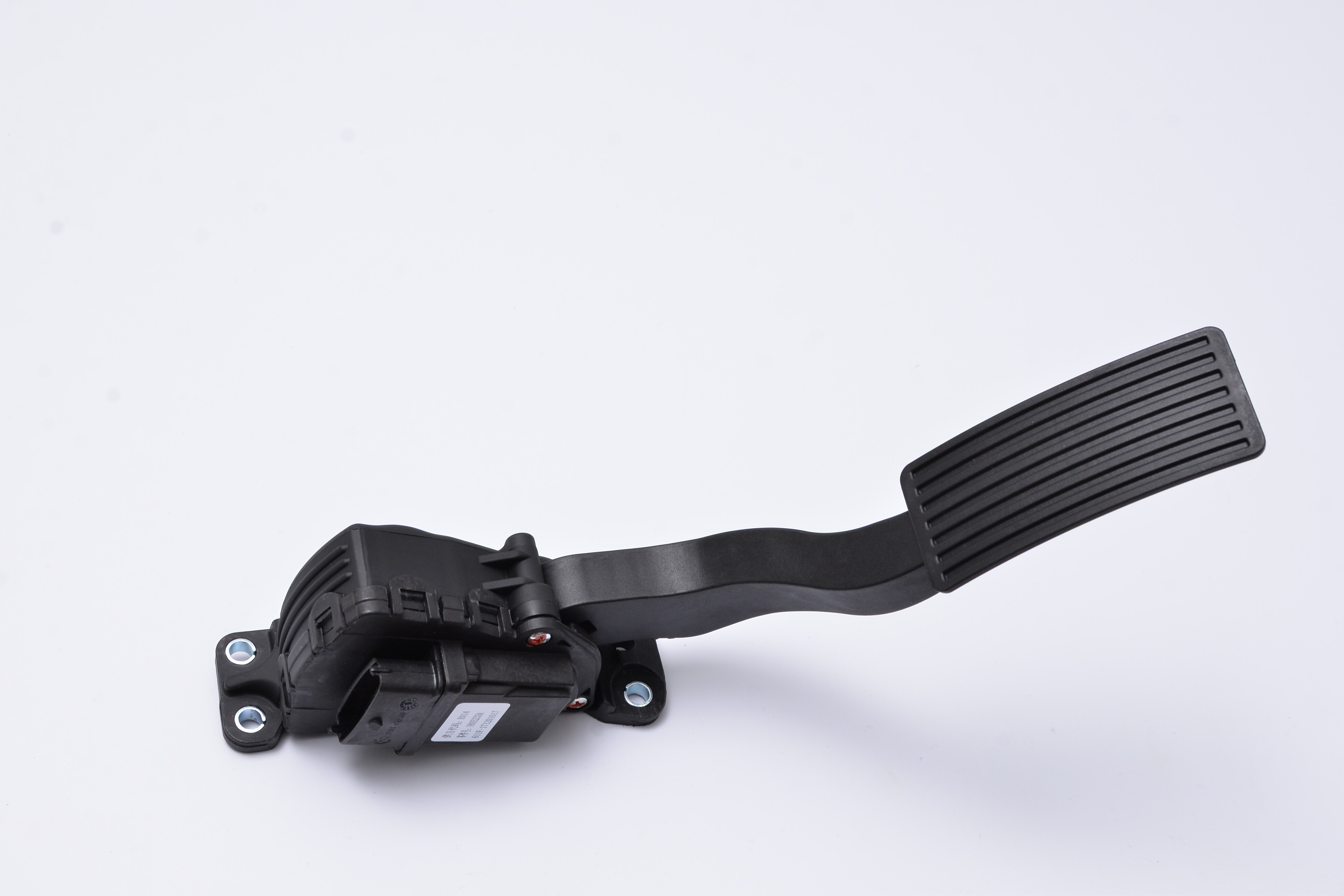

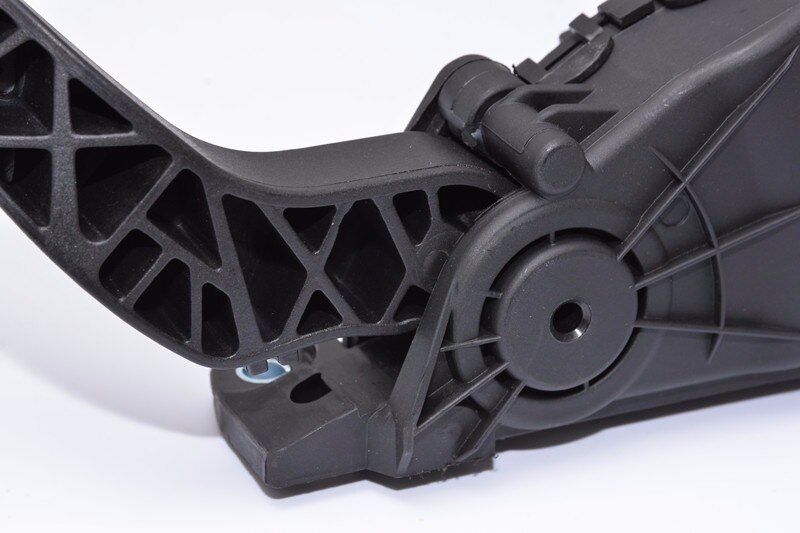

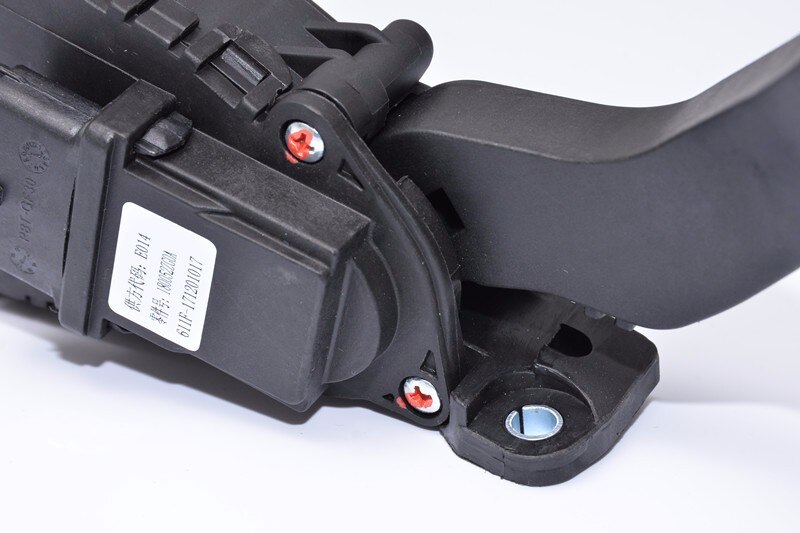

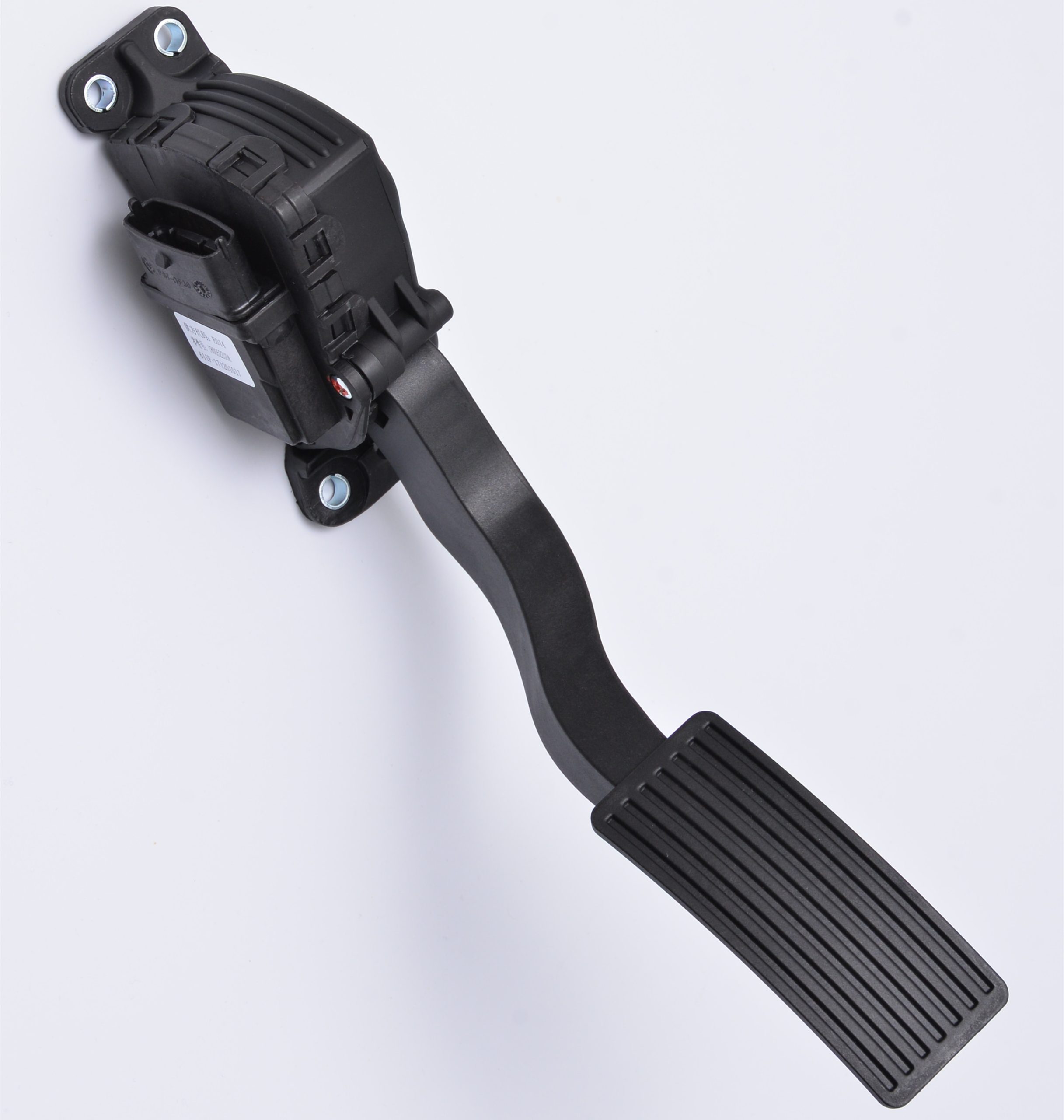

Auto Precision Electric Accelerator Pedal Sensor
|
||||
|
Model
|
HS-010-611F
|
||||
|
Effective Radius
|
179mm
|
Initial F1
|
22N±6N(Accept OEM)
|
||
|
Terminate F2
|
39N±6N(Accept OEM)
|
Initial Angle (a1)
|
<1.2°
|
||
|
Idle Angle(b1)
|
<1.2°(Accept OEM)
|
Idle Signal(P1.1)
|
(15±1)%(Accept OEM)
|
||
|
Limit output(P1max)
|
(80±1.5)%(Accept OEM)
|
Limit Angle (b2)
|
14.5°±1°
|
||
|
Retarded( F5)
|
>4N
|
linearity
|
<1.5%
|
||
|
sync
|
<0.5%
|
Load Power
|
85W(5m)
|
||
|
Using Environment:
|
Temperature – 40 ~ 85 ℃; Humidity < 95%; Input voltage: U = 5 V + / – 0.3 V
|
||||
Define & Application Fields
The Accelerator Pedal Connectors (APS) is a sensor that simulates traditional mechanical pedals and signals the engine’s ECU. The electronic accelerator pedal directly transmits the driver’s acceleration intention to the electric signal, which can quickly and accurately realize the driver’s intention after being sent to the engine management system.
This product is mainly used in passenger cars, heavy trucks, special vehicles, engineering vehicles, electric vehicles, etc.

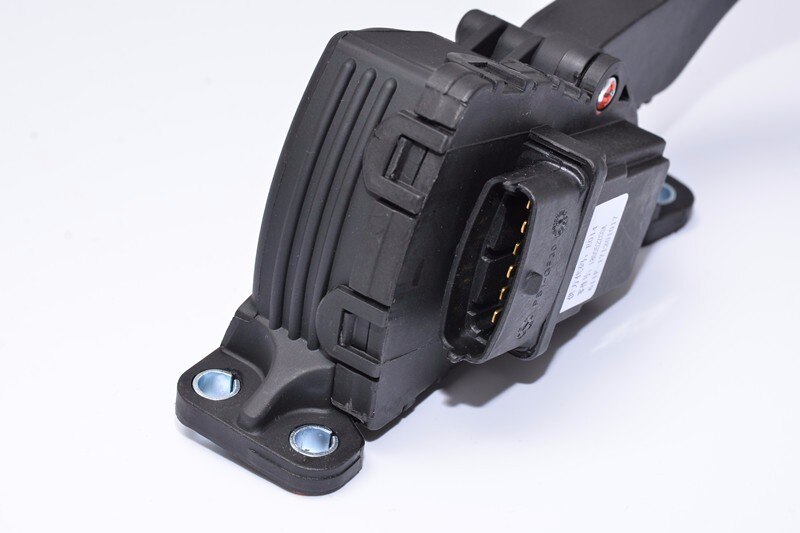

Electrical Interface

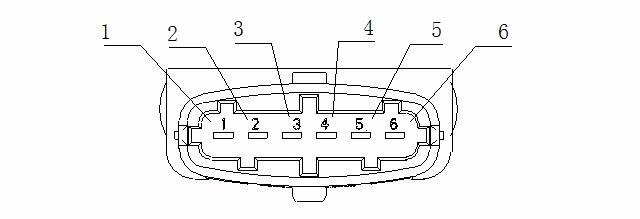

The type of connector to be matched model: AMP 174262-2 (Accept OEM), see follow the pin definition. (Accept OEM)
|
Pin No.
|
Sensor No.
|
Pin Definition
|
||
|
1
|
2
|
Power (VCC2)
|
||
|
2
|
1
|
Power (VCC1)
|
||
|
3
|
1
|
Ground (GND1)
|
||
|
4
|
1
|
Signal output (OUT1)
|
||
|
5
|
2
|
Ground (GND2)
|
||
|
6
|
2
|
Signal output (OUT2)
|
||

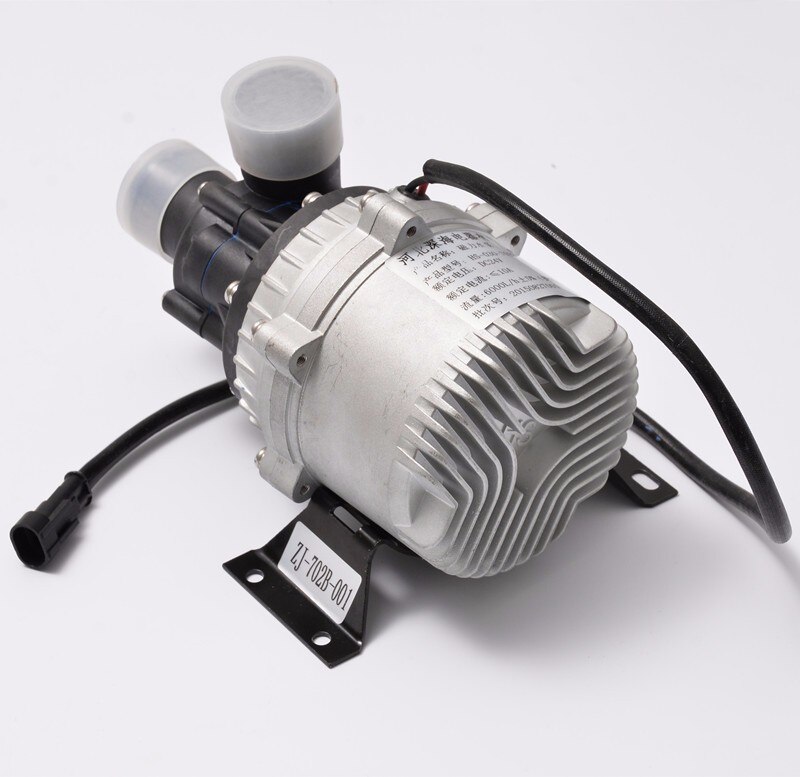

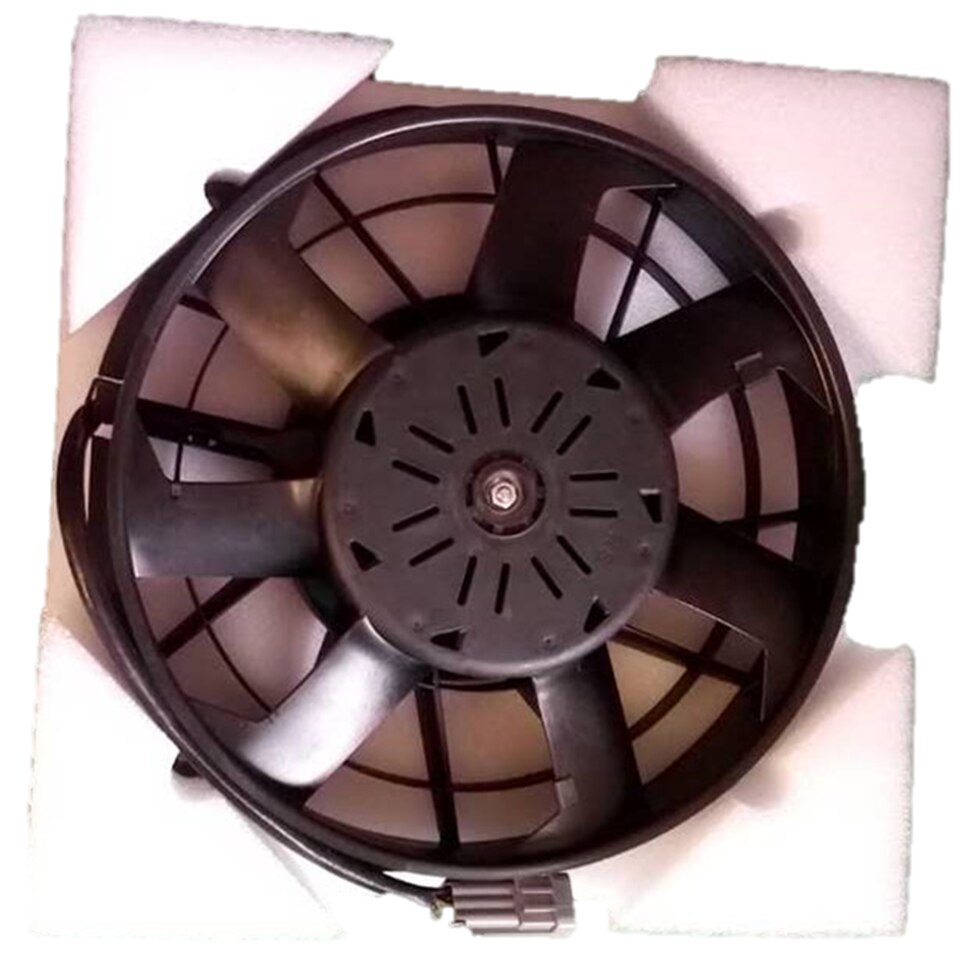

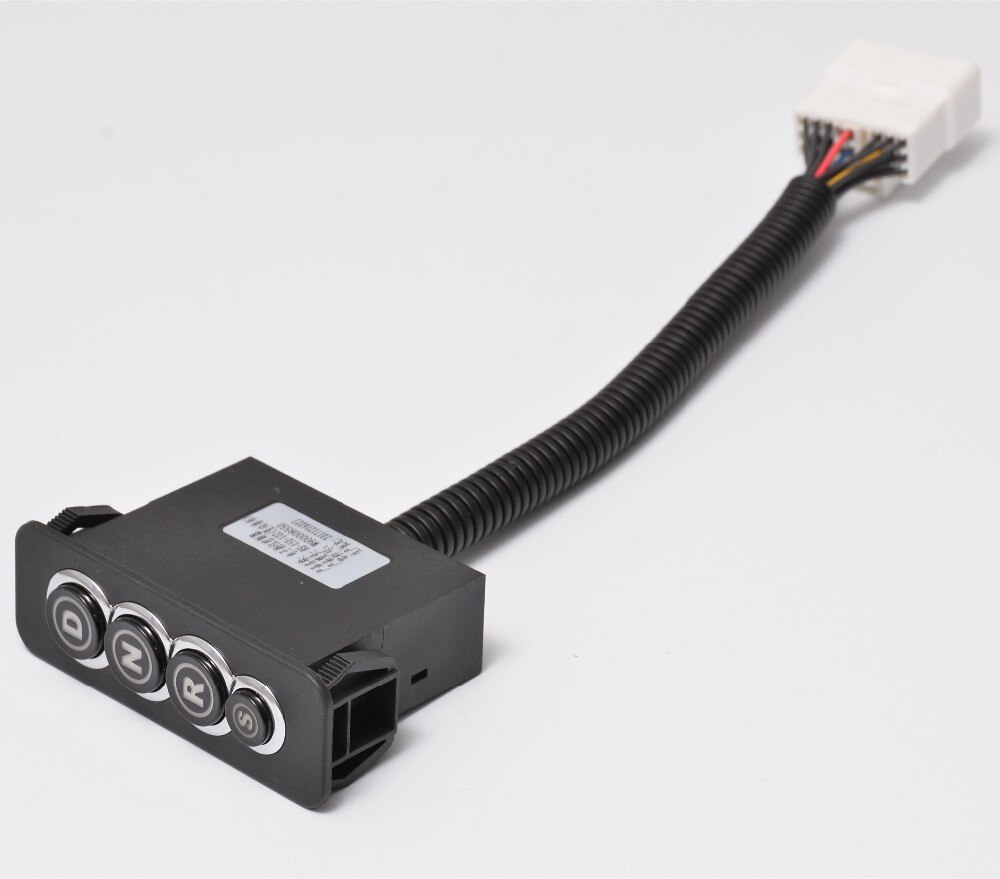

Magnetic Water Pump Car Electric Fan Electronic Gear Controller Insulation Monitor

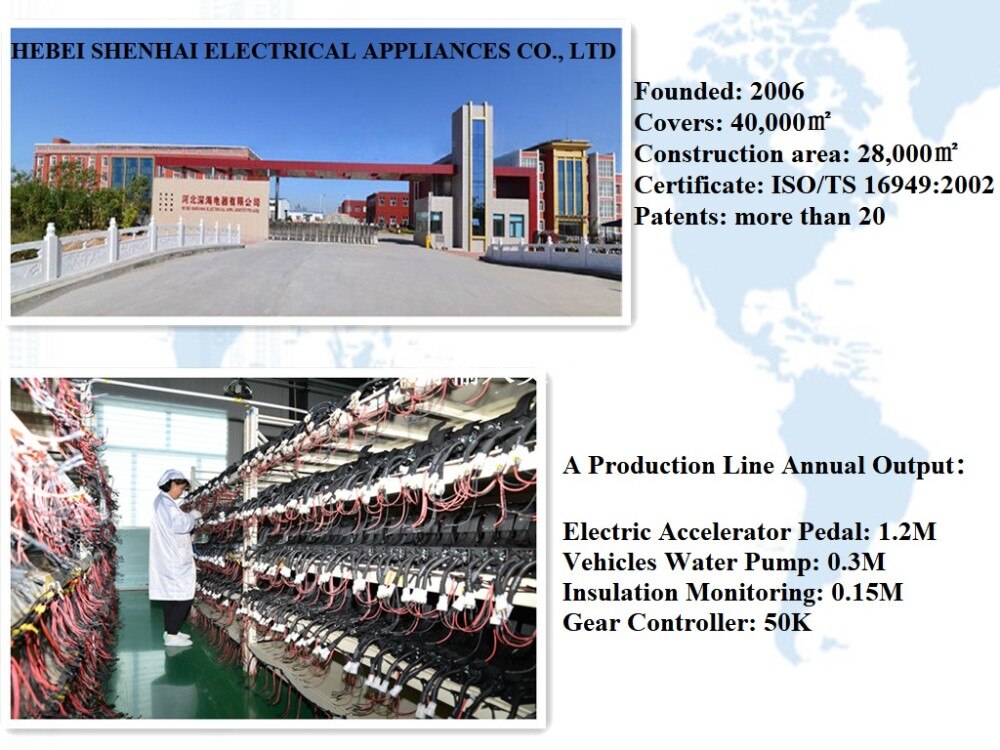

Located: Hebei Shenhai Electrical Co.,Ltd is one of members of Hebei Nanfeng Group. It lies in Wumaying industrial district of Nanpi county Hebei Province.
Founded:2006
Covering Area: 80,000 square meterswith the construction area of 24,000 square meters including the manufacturing building, the base of researches and development and the office block.
Certification: ISO 9001; ISO/TS16949:2002 ;ISO14001 Environment Management System;GB/T28001
Engineers: 30
Main Products: Auto Pump; Accelerator Pedal; Motor; Electric Car Fan; Insulation Monitor; Electric Gear Controller.
Office Area

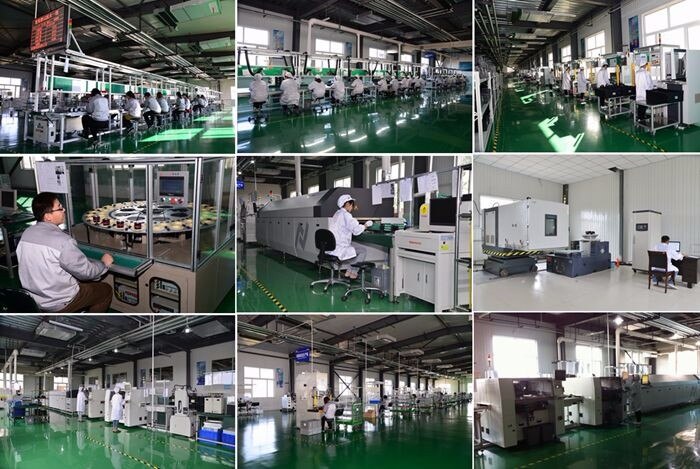

Workshop

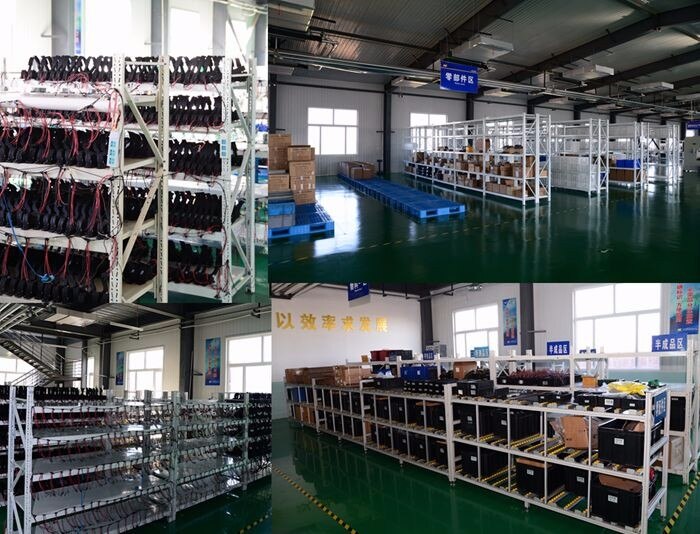

Warehouse

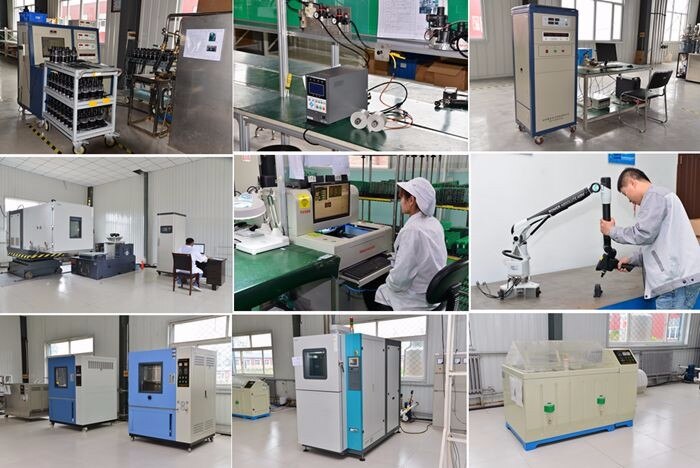

QC Check
Certification
1. OEM Manufacturing Welcome: Product, Package…
2. Sample order is accepted
3. We will reply you for your inquiry in 12 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the products, contact with us, we will offer
the solution for you.

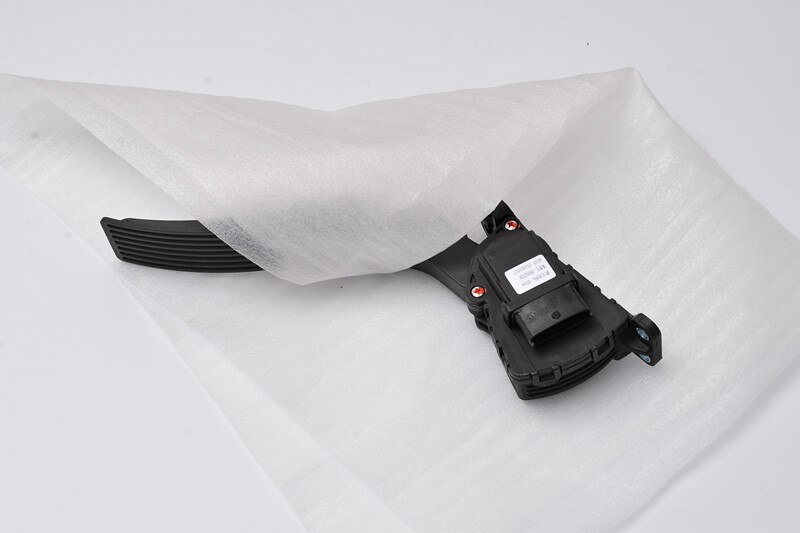

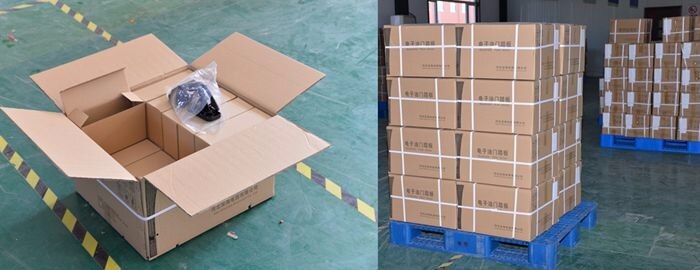

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Contacts: Demi Du
Email: demi.du(at)hbshenhai.com.cn
Phone: +86 152 1030 0284
Skype/WeChat: +86 152 1030 0284
