N30820 ligne rouge module laser diode 20w laser range finder module

$199.00

SKU: 3356069012971 Category:

Description

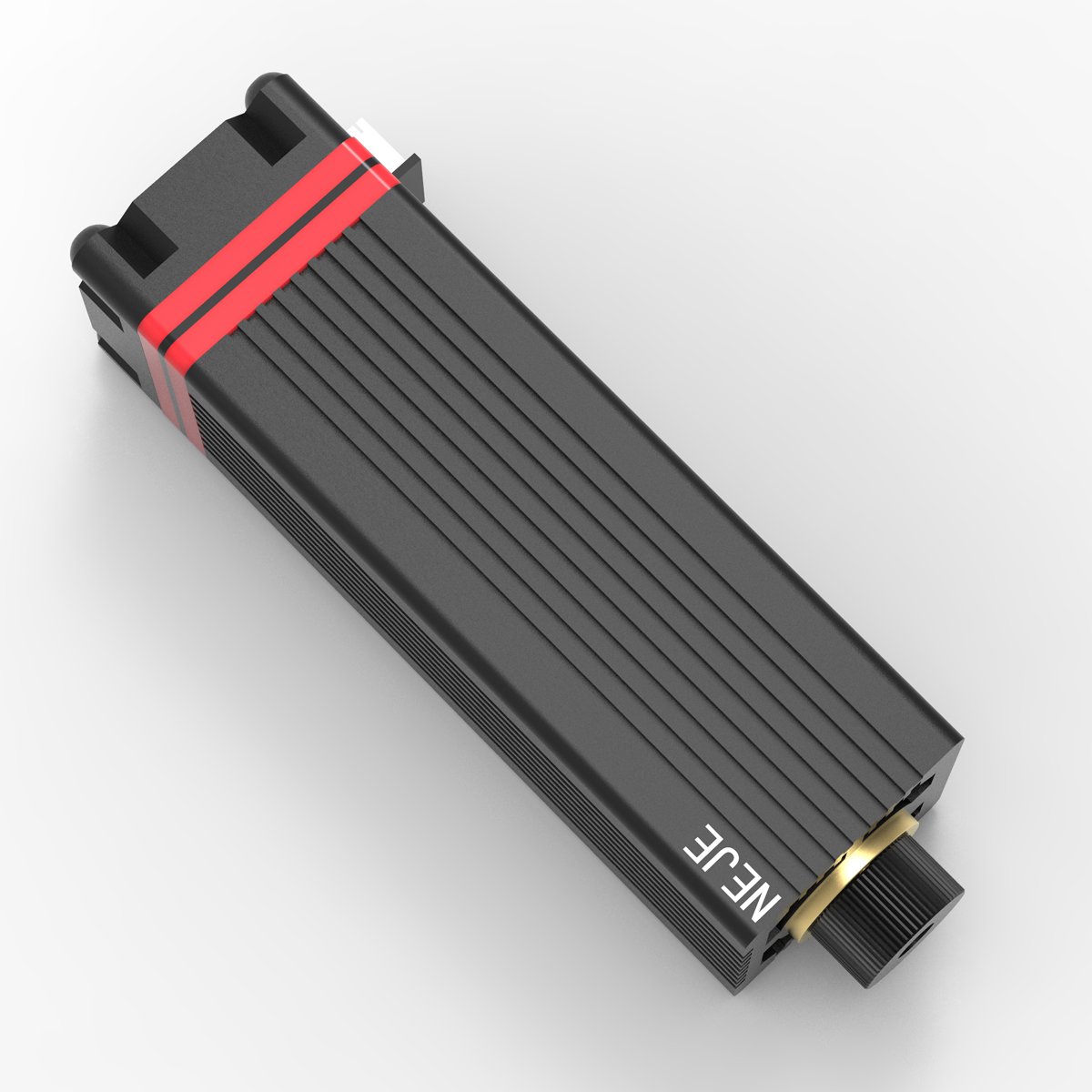

N30820 ligne rouge module laser diode 20w laser range finder module
Product Description
Selling points:
1. Warehouse in Netherlands,Poland,UK,Gemany,Spain,USA,Russia
2. Accept
Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept
OEM/ODM orders
Specification
Model
NEJE Module 5.5W (INPUT about 20W)
Heatsink Material
Aircraft Aluminum + Brass Shell
Luminous Color
 Blue
Laser diode
NUBM0A with NEJE Cap technology
LD Current
 3.2A
Section Size
30mm x 30mm
Cooling Mode
 40mm copper core + Heat Sink Groove+ Thermal silicone grease + 15000 rpm cooling fan
Dimension
80 * 30 * 30mm
Intput Voltage
DC 12V
Can Engrave
MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave
Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Module Input
18-20W
Laser Output Power
5.5W (5500mW)
Wavelength
 445-450nm
Beam Shape
 Dot (Focusable)
Working Voltage
 DC 12V
TTL&PWM Modulation
YES, Compatible with Both TTL & PWM Modulation
Input Voltage
DC12V
PWM/TTL Input
DC3.3V-12V Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)

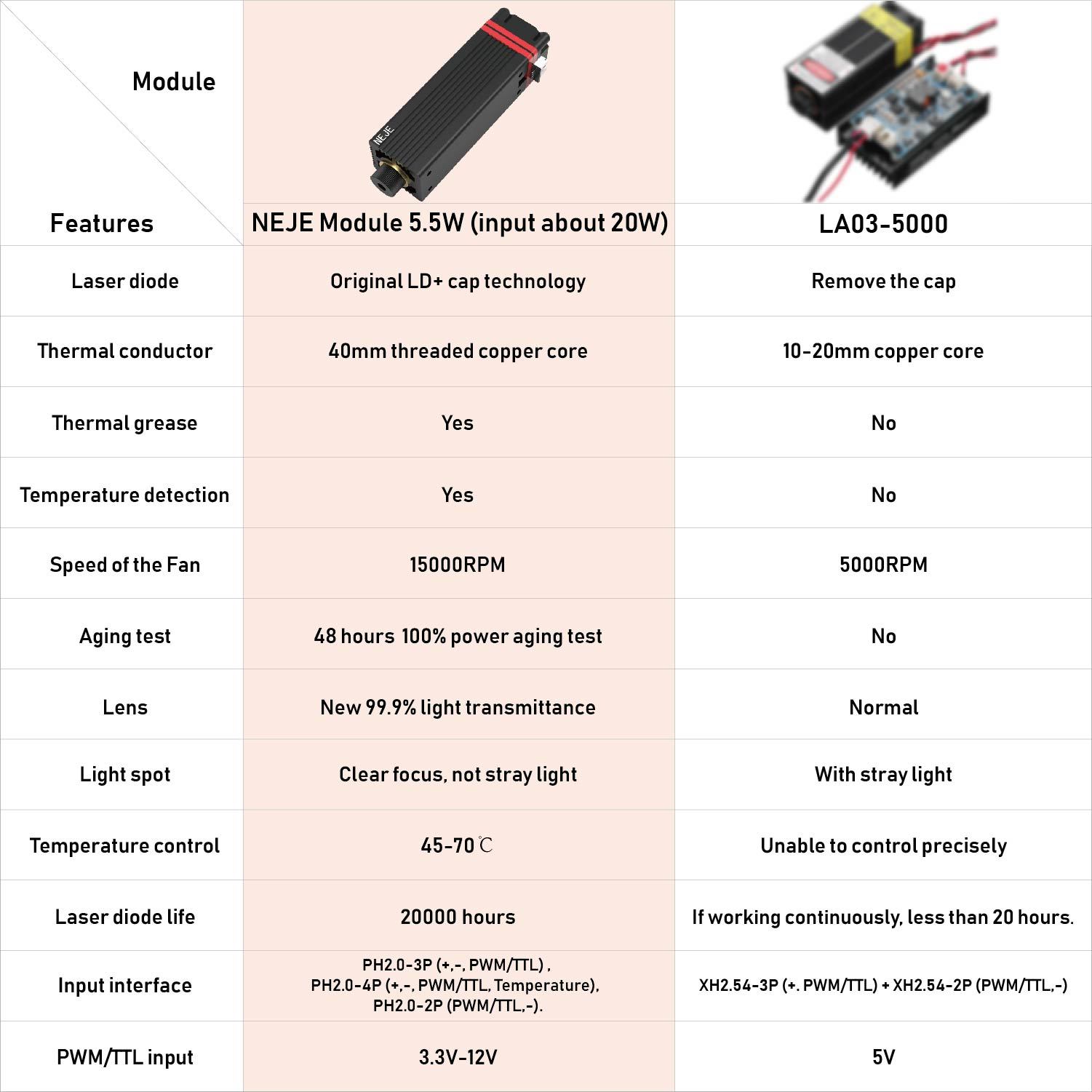

Features(Unique technology)

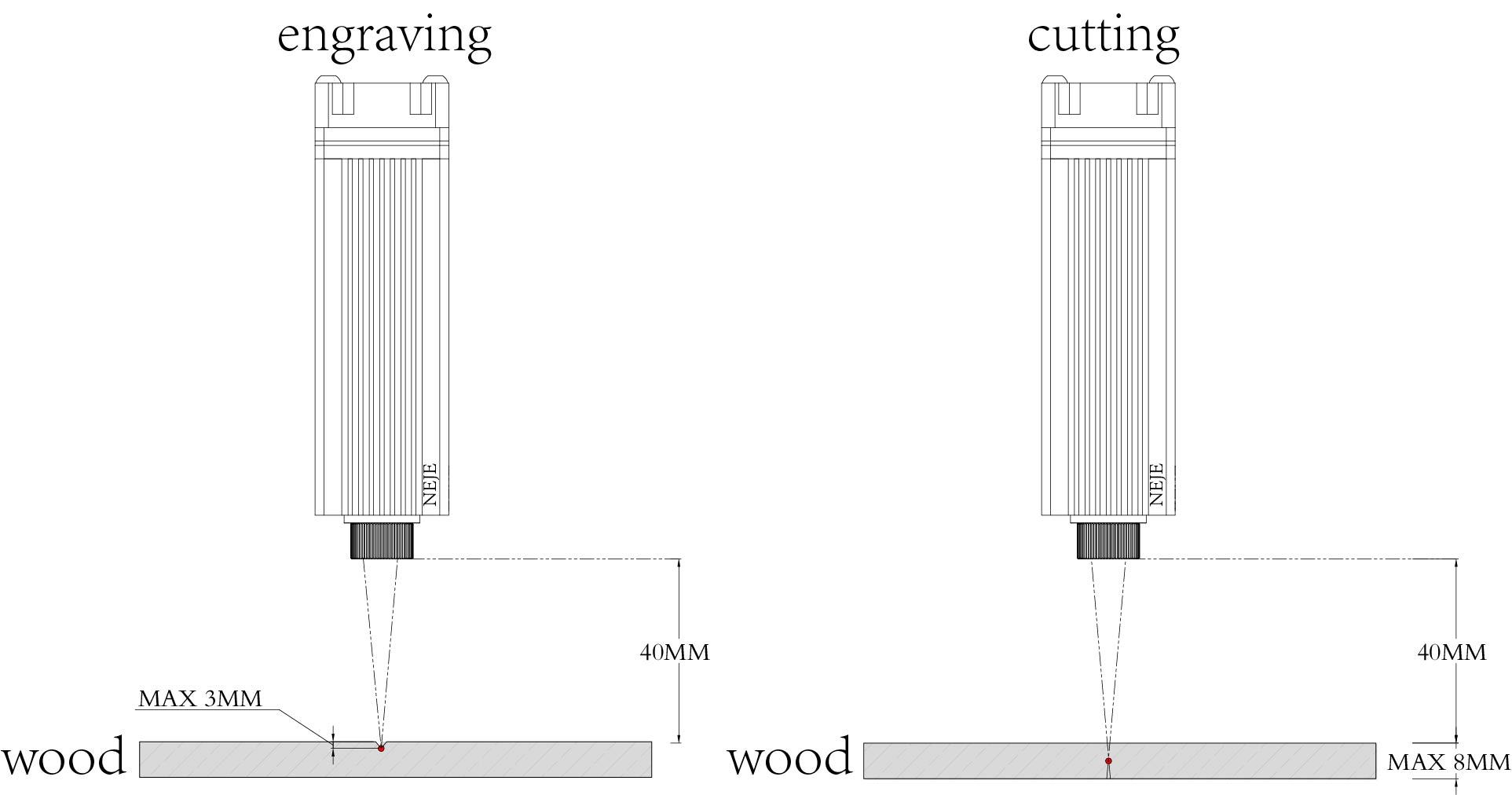

1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Original laser diodes, High-quality LD capping technology, Ensure service life!

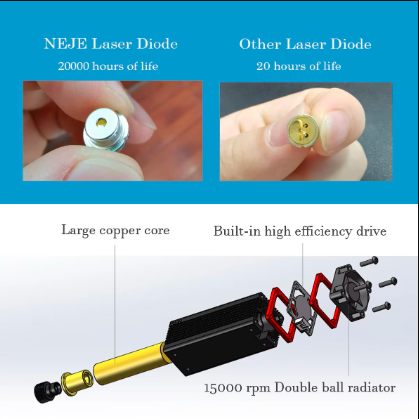

3. Built-in driver board, 40mm threaded copper core with thermal grease compound, Temperature sensor,NEJE factory 48 hours 100% power aging test, Ensure long time working!
4. New lens, Clear focus, Not stray light, Adjustable focal length.
5. Can carving / Cutting MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)

Note(Please pay attention)
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects,Pay attention to fire,Pay attention to pets when working!
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of the laser module is one year. If you have any quality problems (Except individual situations like using the laser module more than 30 minutes per time and cause damage ), please feel free to ask our customer service for help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem with the machine, please feel free to contact us. Many operative problems can be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE machine.

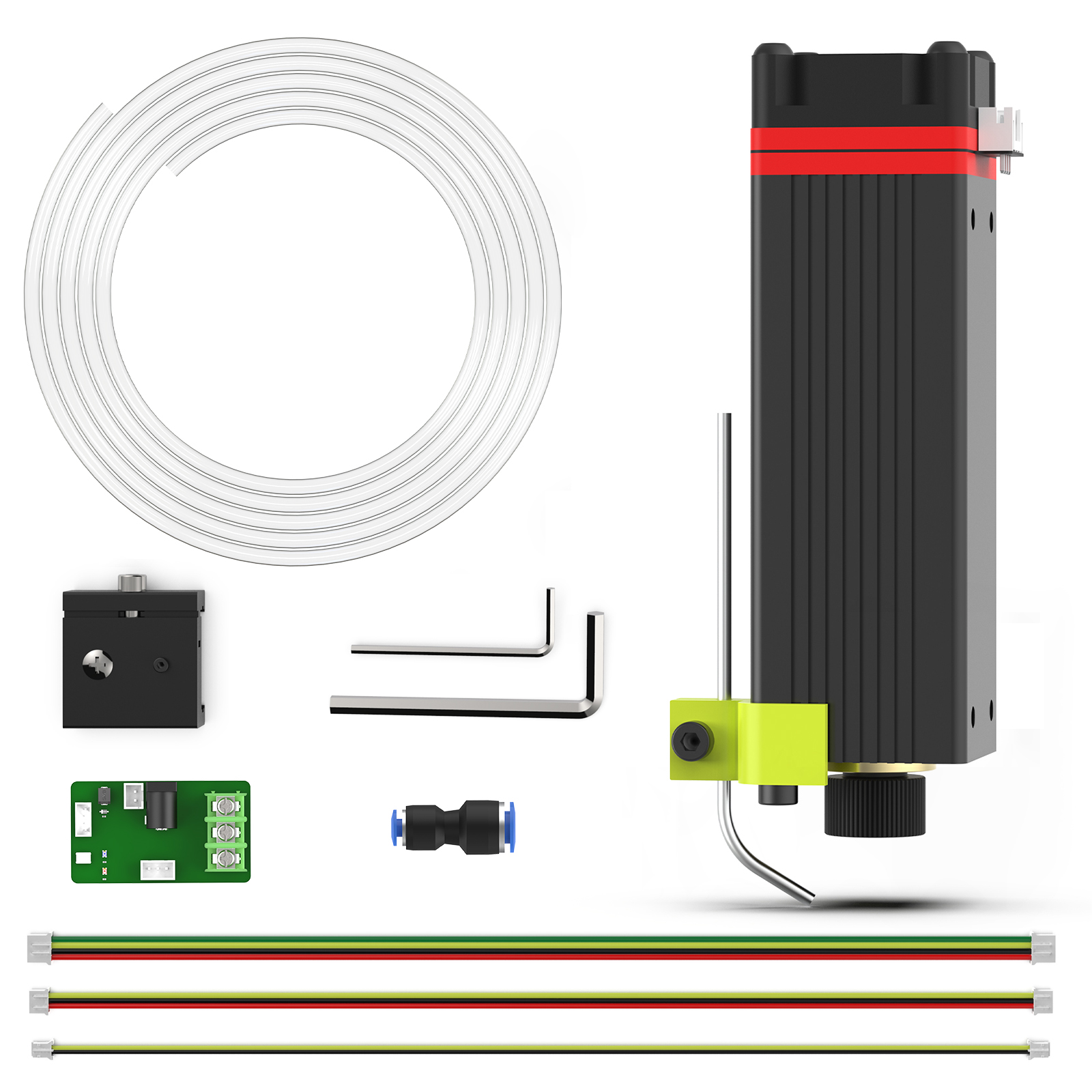

Package Included: * 1 x 5.5W Laser Engraving Module * 1 x 4 Pin Sport Cable * 1 x 3 Pin Sport Cable * 1 x 2 Pin Sport Cable * 2 x Screw * 1 x ABS cushion post * 2 x L-shaped wrench * 1 x PWM Tester * 1 x Air Assist set

Additional information

Model Number

20w module small kit
