NEJE Master2S 7W CNC Portable Laser Engraving Module TTL PWM Modulation Laser Engraving Machine Cutting Cutter Desktop DIY Tool

$129.00

SKU: 1005001941571843 Category:

Description

NEJE Master2S 7W CNC Portable Laser Engraving Module TTL PWM Modulation Laser Engraving Machine Cutting Cutter Desktop DIY Tool

  • Brand Name: NEJE
  • Certification: CE

Specification

Model: NEJE Module 7W
Heatsink Material: Aircraft Aluminum + Brass Shell
Luminous Color: Blue
Laser diode:Osram 2.2W 5.6mm (The maximum power 5.6mm laser diode)
LD Current: 1.6A
Section Size: 30mm x 30mm
Cooling Mode: 20mm copper core + Heat Sink Groove+Thermal silicone grease + 10000 rpm cooling fan
Dimension: 60 * 30 * 30mm
Adapter Output Voltage: DC 12V 2A
Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters:
Module Input: 10W
Laser Output Power: 2.5W (2500mW)
Wavelength: 445-450nm
Beam Shape: Dot (Focusable)
Input Voltage: DC 12V
TTL&PWM Modulation: YES,Compatible with Both TTL & PWM Modulation
Input Voltage: DC12V
PWM/TTL Input: DC3.3V-12V
Input Interface: PH2.0-4Pin (+,-,PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE: Temperature interface can be disconnected,NEJE provides text instructions for temperature acquisition on wiki. Drive Mode: External ACC
Safe temperature range: <70 ℃
Module weight: 115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time: 20,000 hours

Features(Unique technology)

【Easy to Use】12V input, 3.3-12V PWM/TTL control,Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser, Arduino.
【Original Laser Diodes】Sharp 5.6mm Original laser diodes, High-quality, Ensure service life!

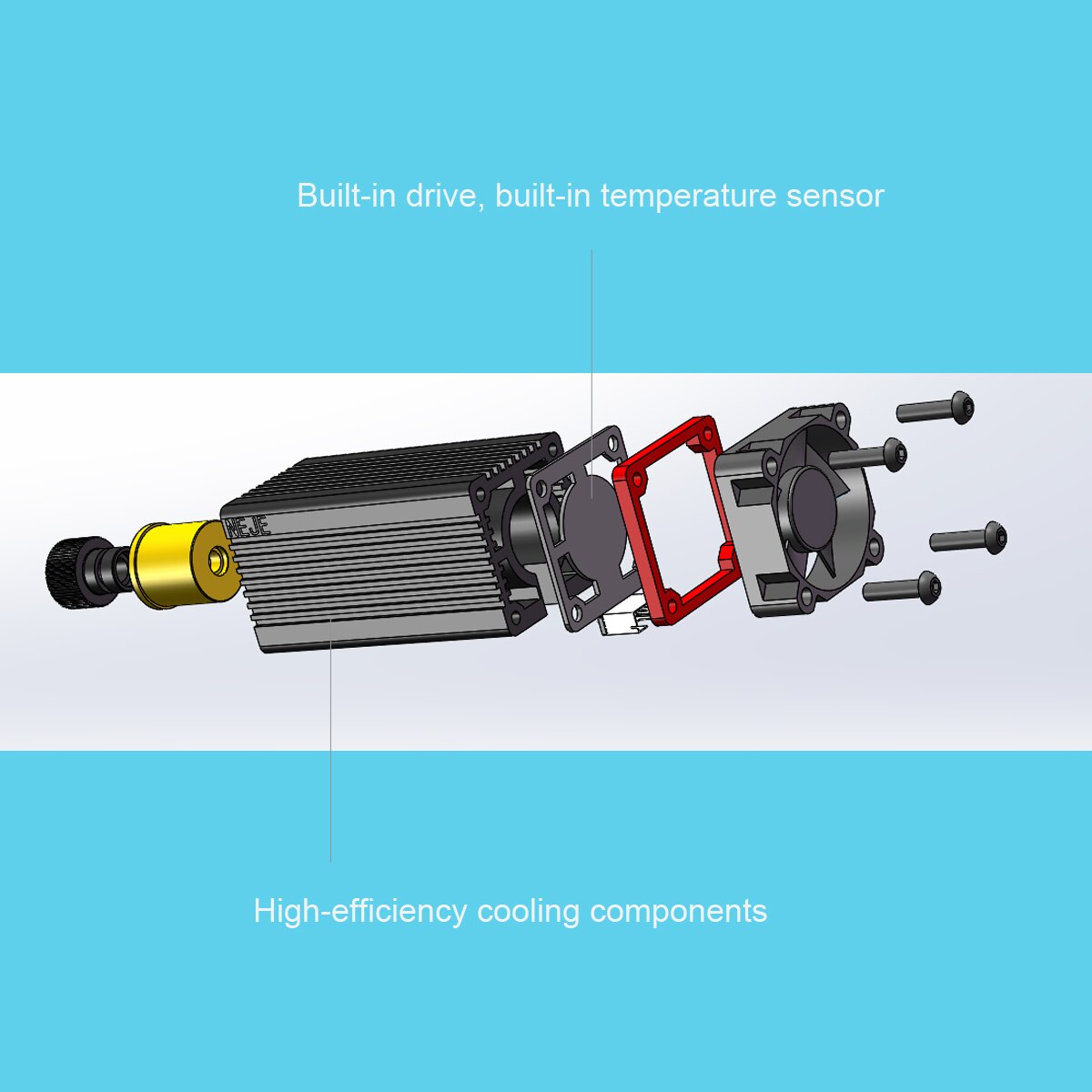

【20000hours service life】Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor,NEJE factory 48 hour 100% power aging test, Ensure long time working!

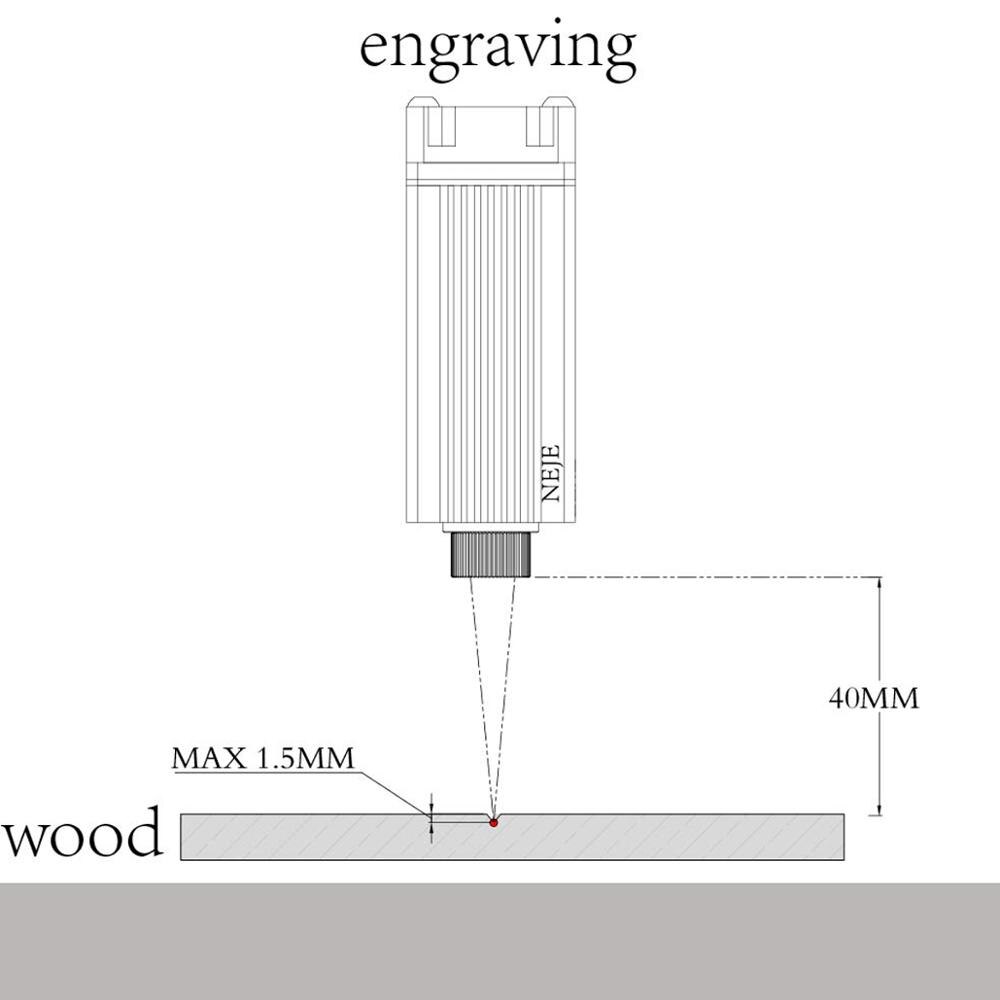

【Clear focus】New lens, Clear focus, Not stray light, Adjustable focal length.
【Application Material 】Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum,etc.(Not suitable for iron or other metal)

Note(Please pay attention)

1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. Do not engrave mirror objects,Pay attention to fire,Pay attention to pets when working!
3. Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
4. The warranty period of laser module is one year. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
5. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
6. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can
be solved according to your video and problem description. Thank you in advance.
7. This laser module is compatible with our NEJE machine .

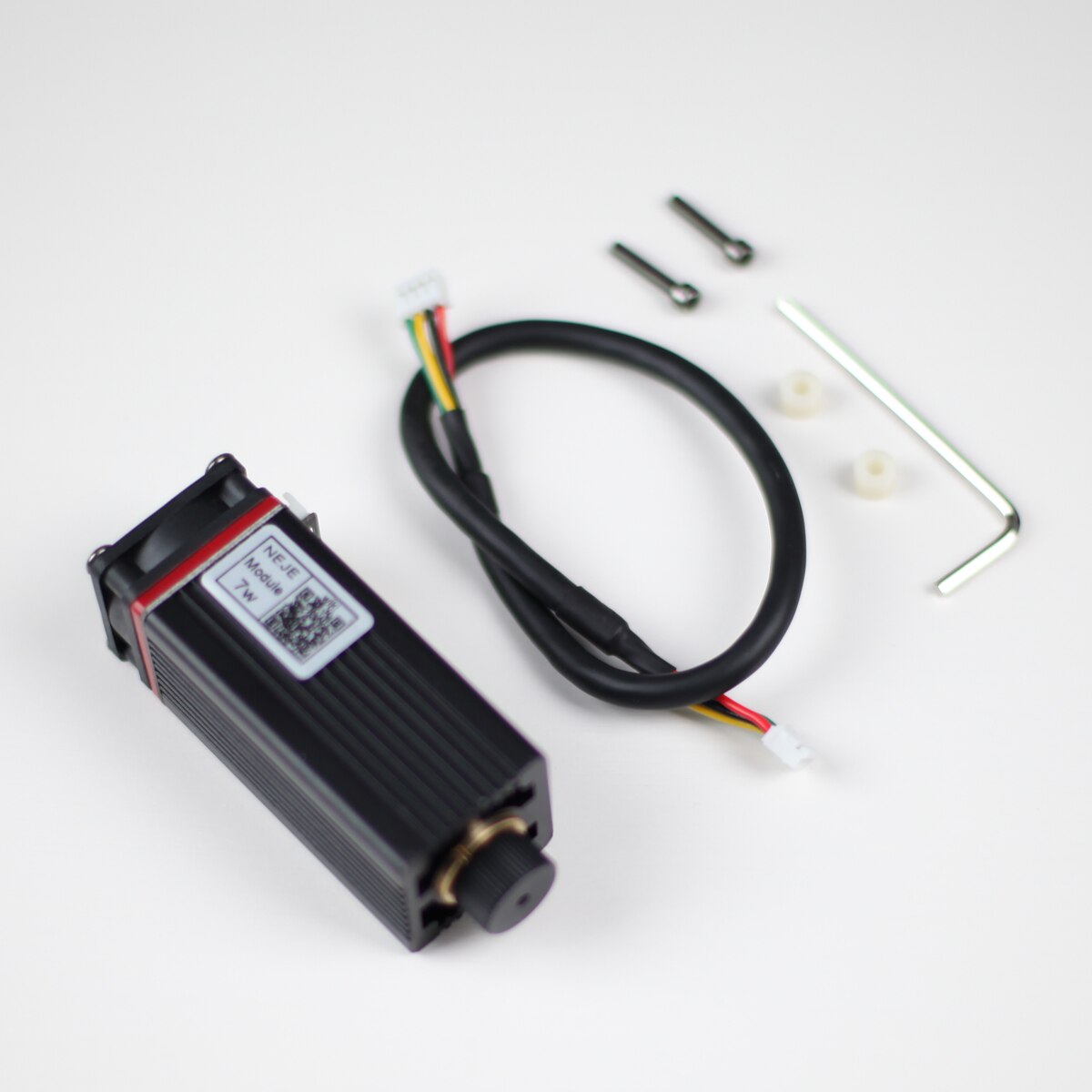

Package Included

1 x 7W Laser Engraving Module

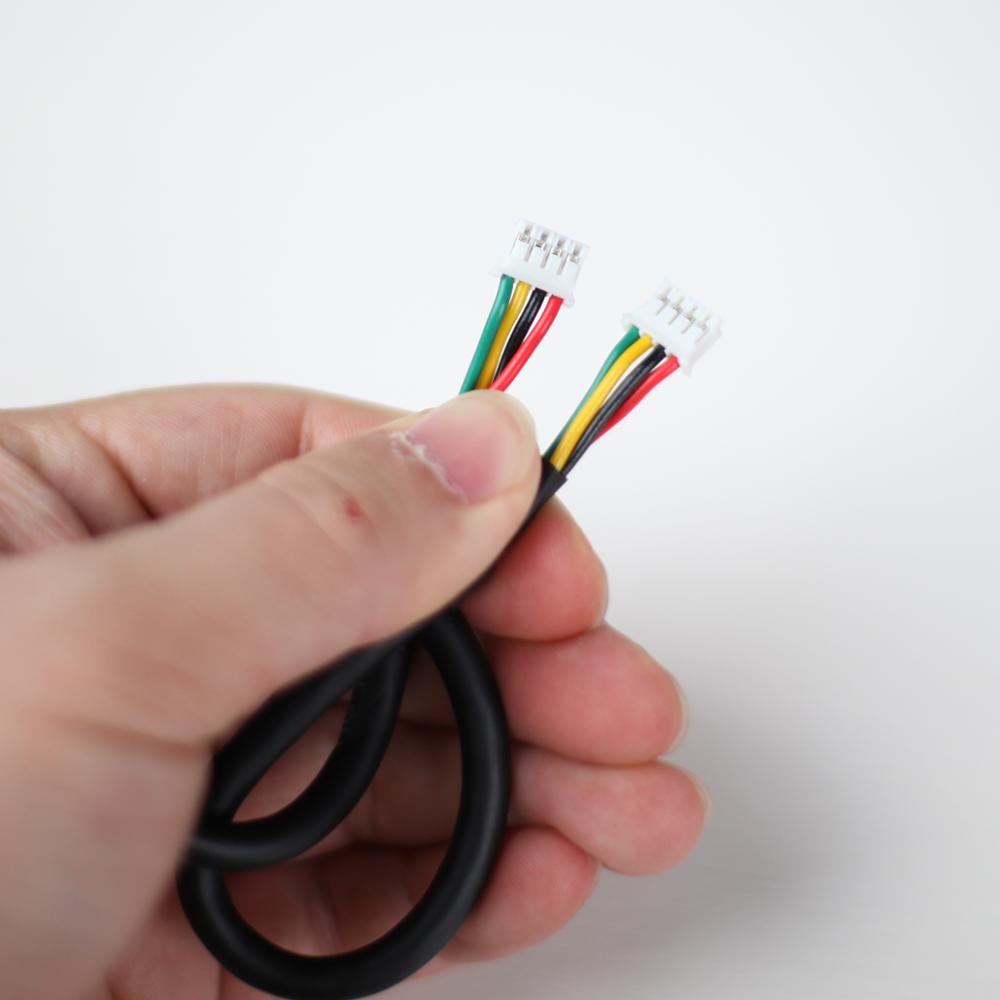

1 x 4 Pin Sport Cable
2 x Screw
2 x ABS cushion post
1 x L-shaped wrench.
