Description

Brand Name: ACEHE
DIY Supplies: ELECTRICAL
Certification: CE
Origin: CN(Origin)
Model Number: 5818
AC Current: –
AC Voltage: 10/50/250/500/1000V ±5.0% F.s.
Measuring Resistance Range: R1/R10/R100/R1k/R100k±10% of Arc
Operating Mode: Manual
Measuring Inductance Range: –
Display Type: Pointer Display
DC Current: 0.1mA/2.5mA/25mA/500mA ±2.5% F.s.
DC Voltage: 0.5/2.5/10/50/250/500/1000V ±2.5% F.s
Measuring Capacitance Range: C*0.1/C*10/C*100/C*1K/C*10K

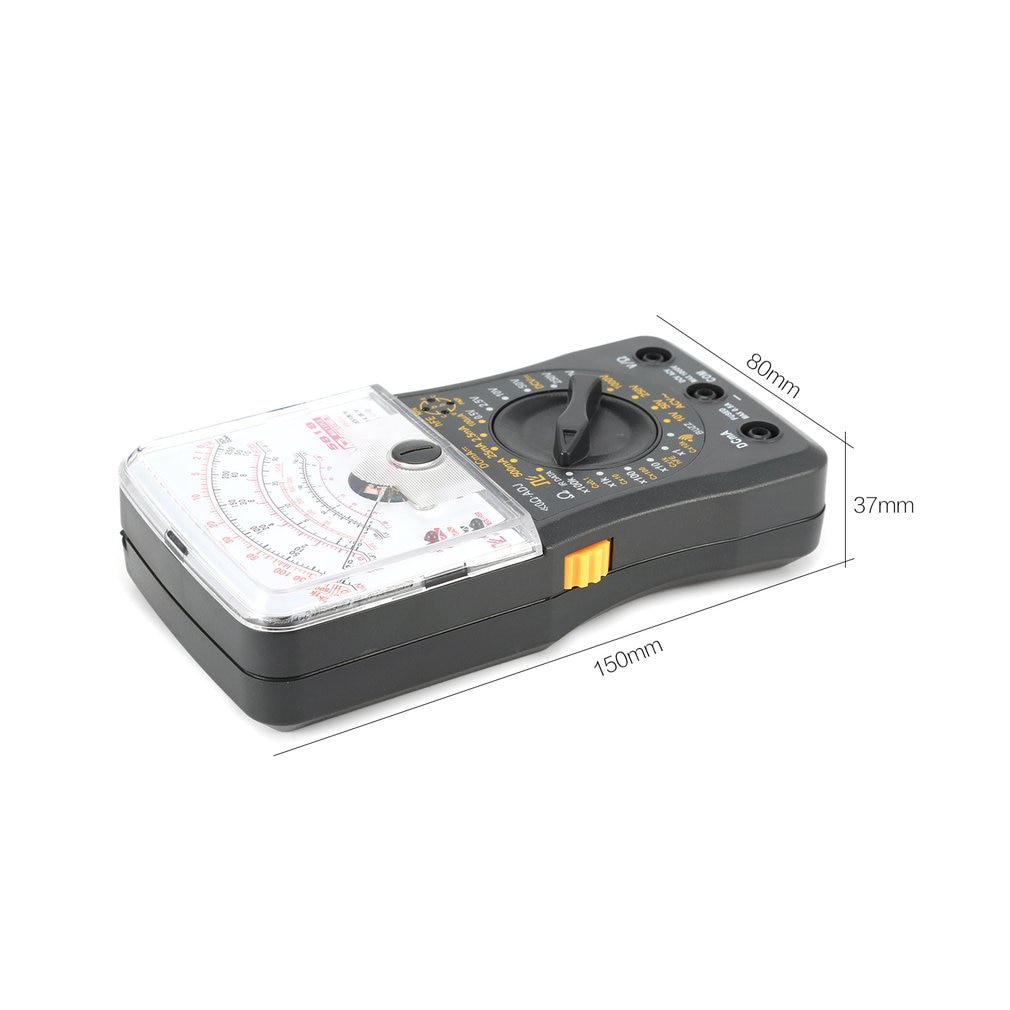

Dimensions: 150*80*37mm
Operating Temperature: 0 – 40 ℃
Unit Type: piece
Package Weight: 0.313kg (0.69lb.)
Package Size: 16cm x 14cm x 5cm (6.30in x 5.51in x 1.97in)

Features:

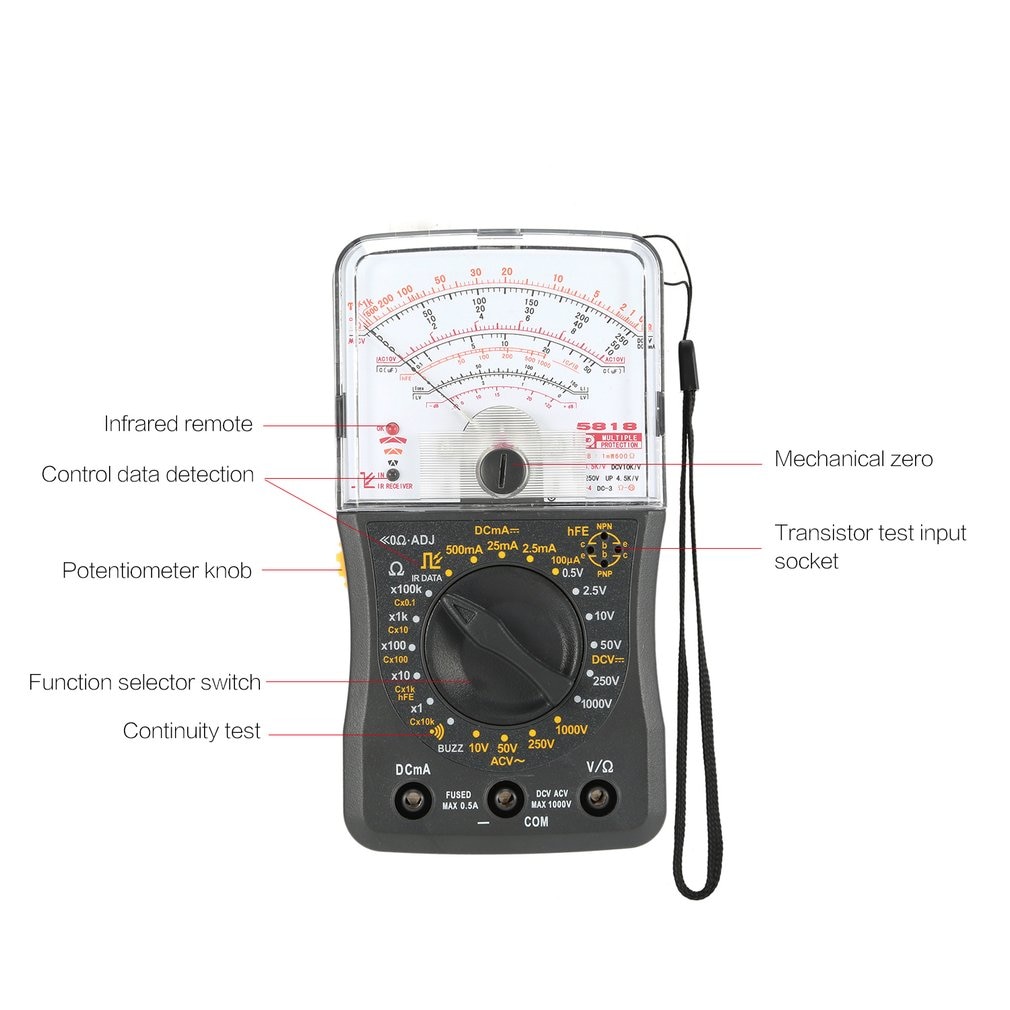

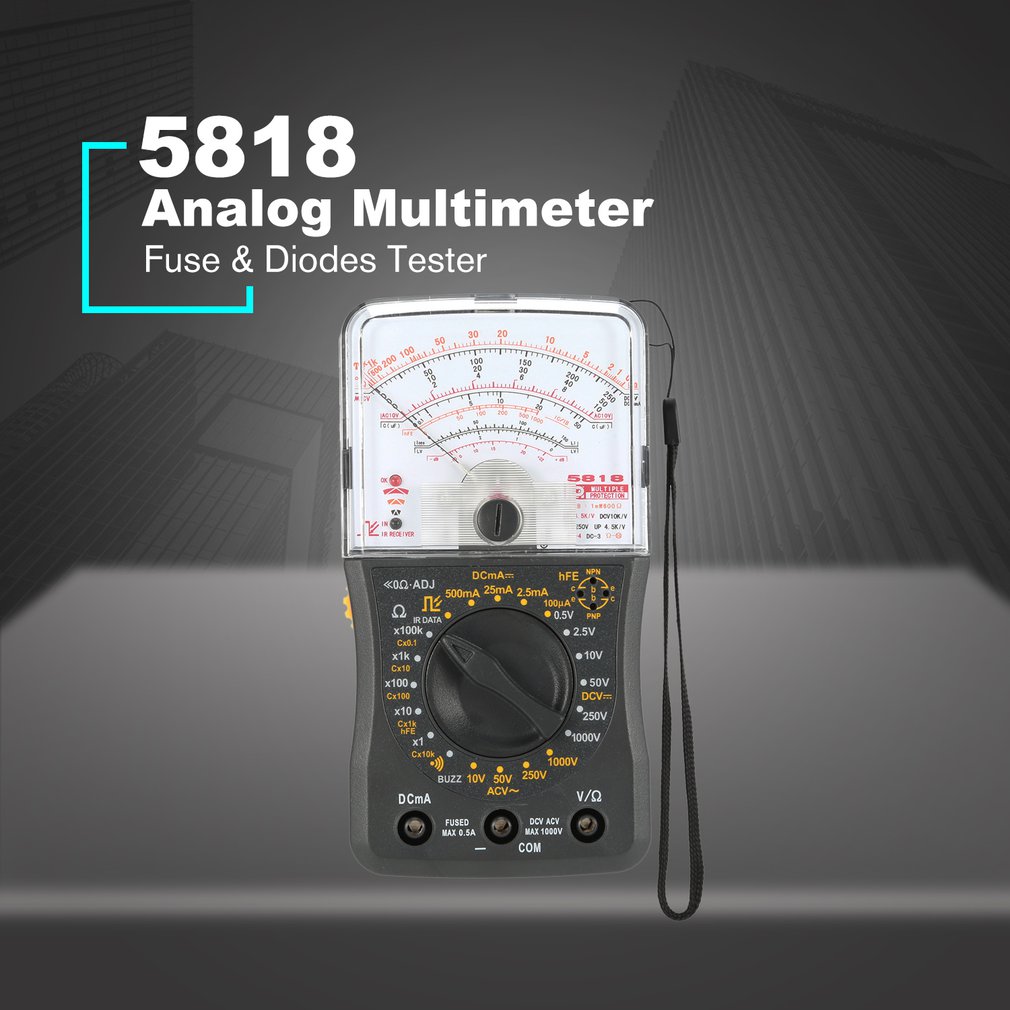

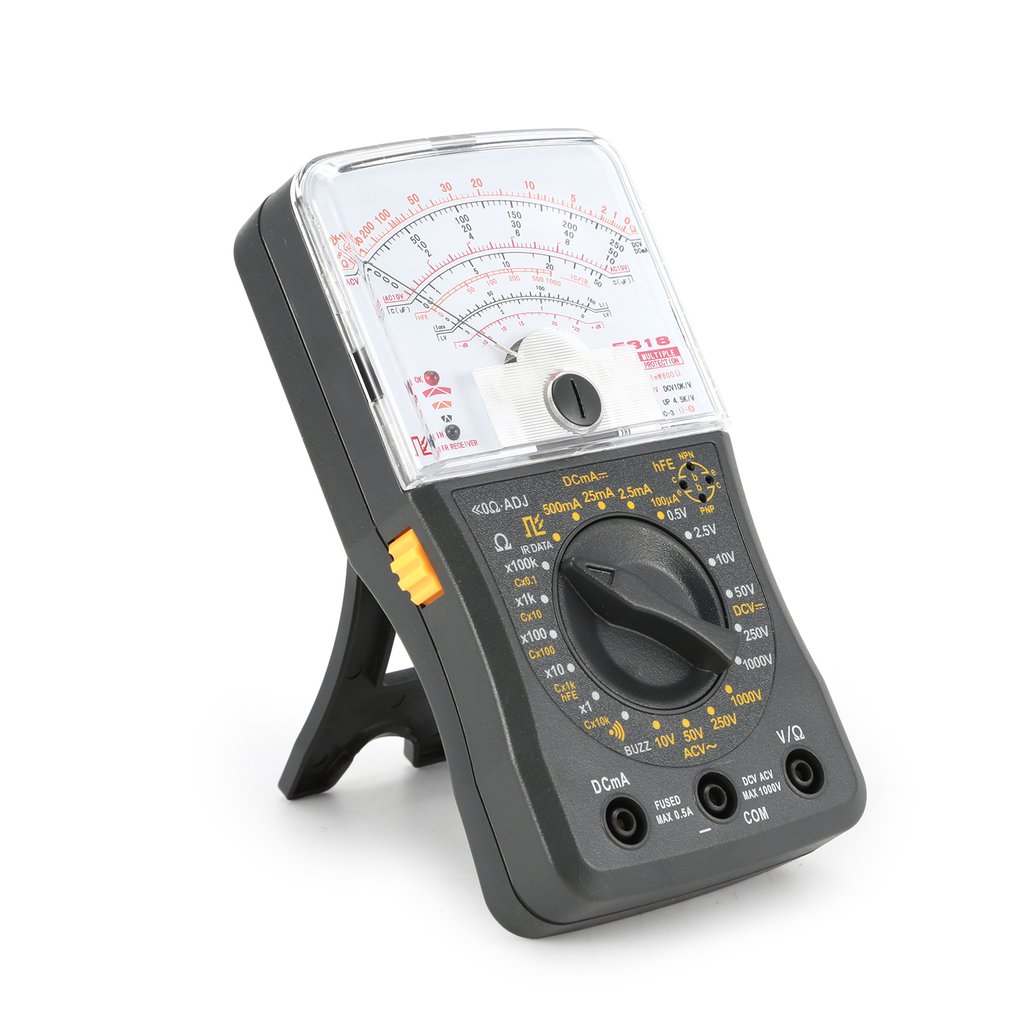

1.This tester is a battery-powered,easy-operating,durable & safe,handheld analogue instrument .
2.It has the high sensitivity 10kohm/V at DCV ranges & 4.5 Kohm/V at ACV ranges.

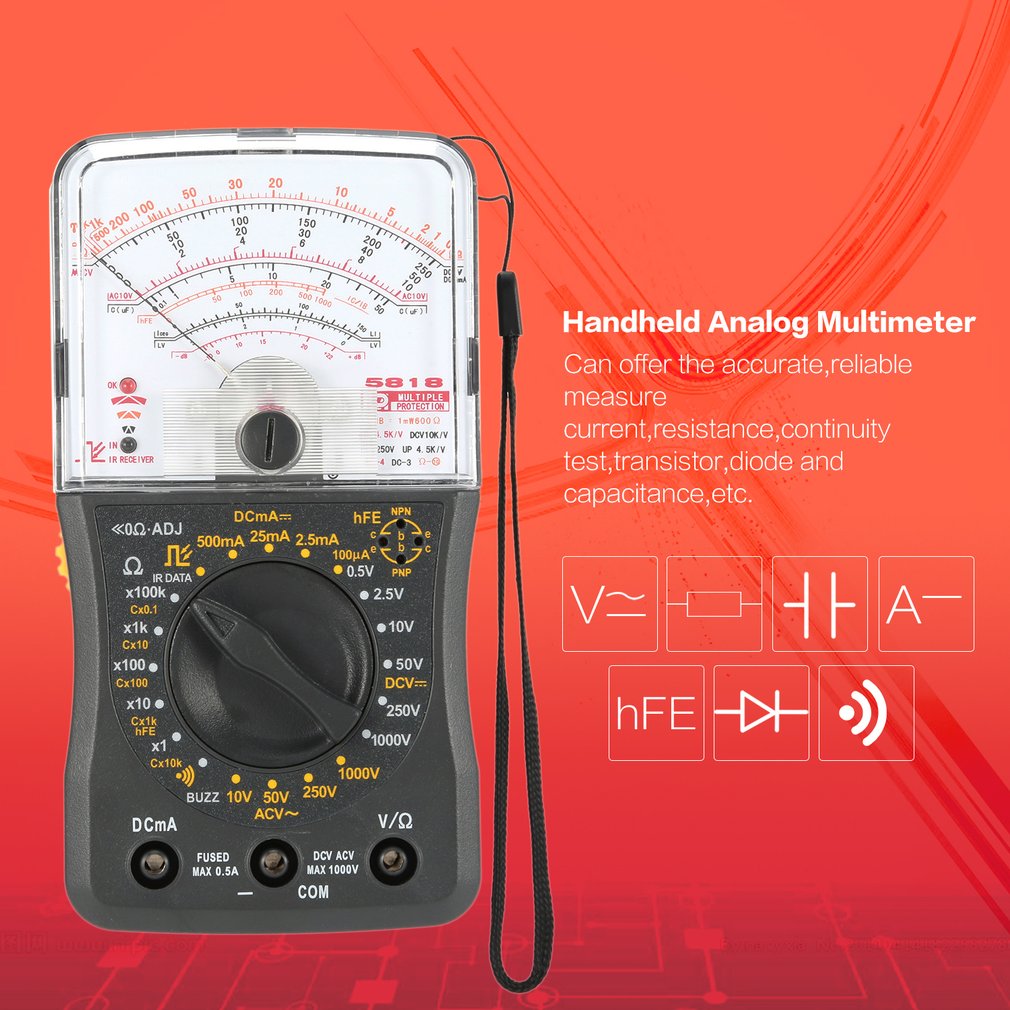

3.Can offer the accurate,reliable measure current,resistance,continuity test,transistor,diode and capacitance,etc .
4.It’s also provided with the good overload protection via Fuse & Diodes,etc.
5.It’s an ideal instrument for applications in the fields of garage,workshop,school and home,etc.

Descriptions:
1.This tester is a battery-powered,easy-operating,durable & safe,handheld analogue instrument .
2.Mirror scale feature for accurate reading.
3.Can offer the accurate,reliable measure current,resistance,continuity test,transistor,diode and capacitance,etc .

Specifications:
Model:5818
DC Voltage:0.5/2.5/10/50/250/500/1000V ±2.5% F.s.
AC Voltage :10/50/250/500/1000V ±5.0% F.s.
DC Current :0.1mA/2.5mA/25mA/500mA ±2.5% F.s.
Resistance:R1/R10/R100/R1k/R100k±10% of Arc
Capacitance test;C*0.1/C*10/C*100/C*1K/C*10K
Decibels test:-10 ~ +22dB
Color: Gray
Transistor test:Yes
Continuity test:Yes
Power supply:1.5V AA battery*2(not included)
Item weight:186g
Item size:150*80*37mm
