Description

Mestek Auto Range Digital Multimeter 6000 Counts Backlight AC/DC Ammeter Voltmeter Ohm Multitester Multi Meter DM90 Series

Brand Name: MESTEK
DIY Supplies: ELECTRICAL
Origin: CN(Origin)

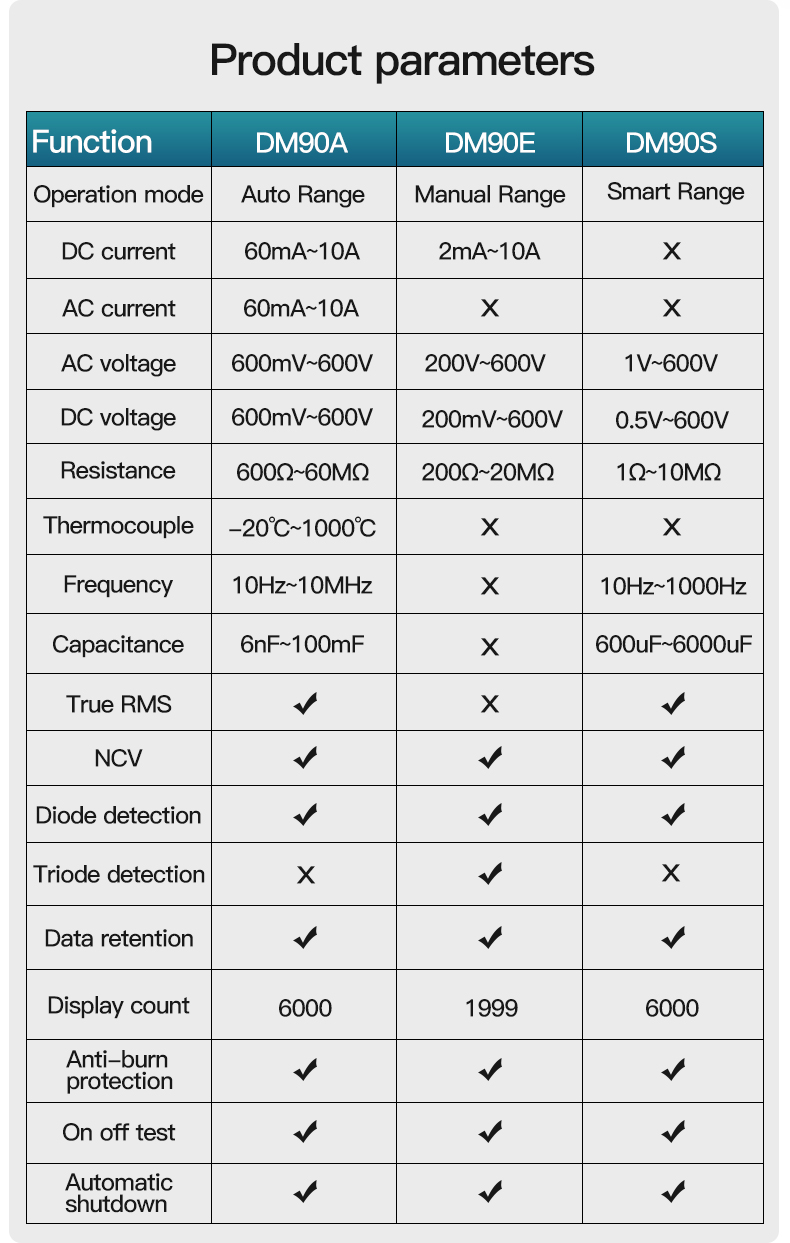

AC Voltage: 90A:600mV~600V 90E:200mV~600V 90S:1~600V
Operating Mode: Manual range
Display Type: Digital Display
DC Voltage: 90A:600mV~600V 90E:200mV~600V 90S:0.5V~600V
Model Number: DM90E/DM90A/DM90S
AC Current: 60mA~10A(DM90A)
Is Smart Device: No
Measuring Resistance Range: 90A:600ohm~60Mohm 90E:200ohm~20Mohm 90S:1ohm~10Mohm
Certification: CE
Measuring Inductance Range: multimeter
DC Current: 90A:60mA~10A 90E:2mA~10A
Measuring Capacitance Range: multimeter
Dimensions: 147mm*71mm*45mm
Operating Temperature: 0 – 40 ℃
Maximum counts: 90E:1999 90A/S:6000
Frequency: 90A:10Hz~10MHz 90S:10Hz~1000Hz
Auto power-off: 15 minutes no operation auto power-off
Flashlight: Yes
NCV: Yes
On and off test: Yes
Diode test: Yes
Low voltage display: Yes
Keeping data: Yes
Anti-drop rubber sleeve: Yes
Triode measurement: only DM90E
Item1: Multimeter
Item2: multimetro
Item3: multimeter digital

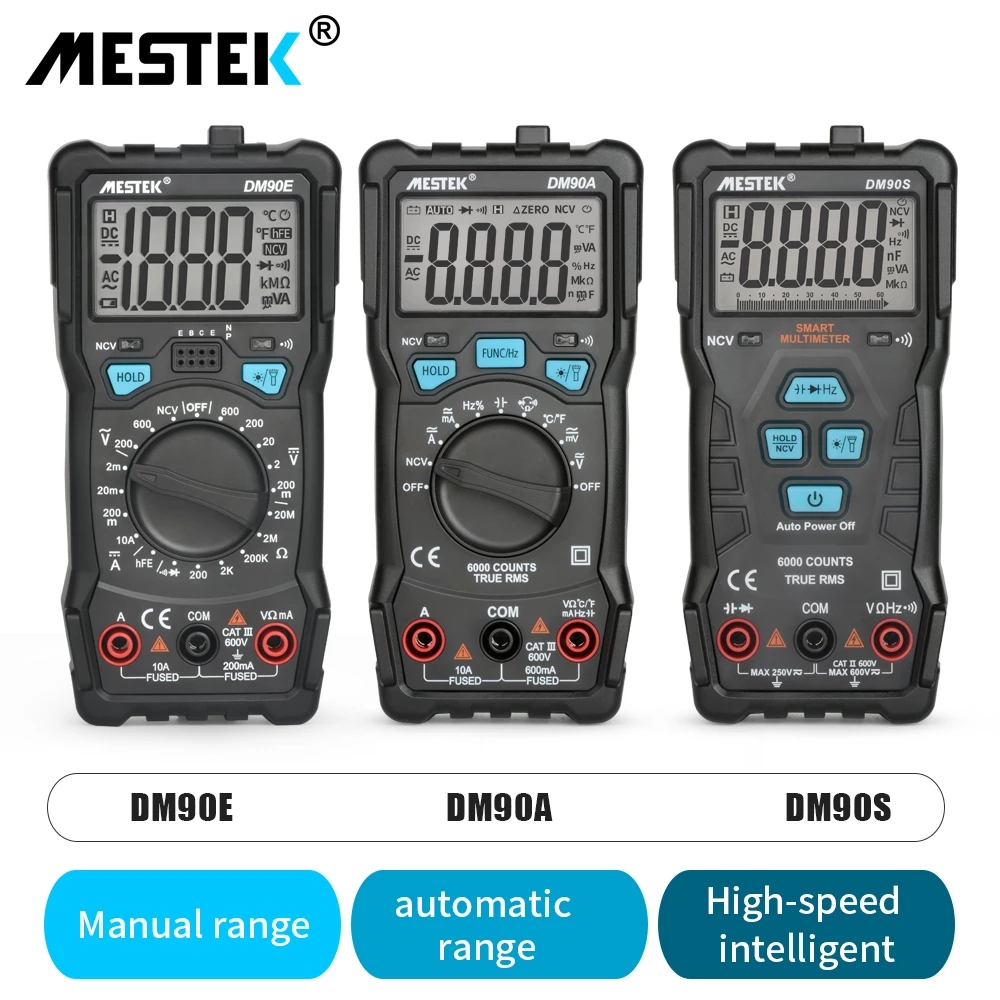

DM90E/DM90A/DM90S

DM90A-Auto Range

DM90E-Manual Range

DM90S-Smart Range

Core Fuctions

● DM90E:

manual range,1999 display counts,AC/DC voltage and current,on-off buzzer/diode,HFE triode,resistance,non-contact voltage test,backlight/flashlight/1.5v/9v battery measurement,data hold,auto power-off

● DM90A:

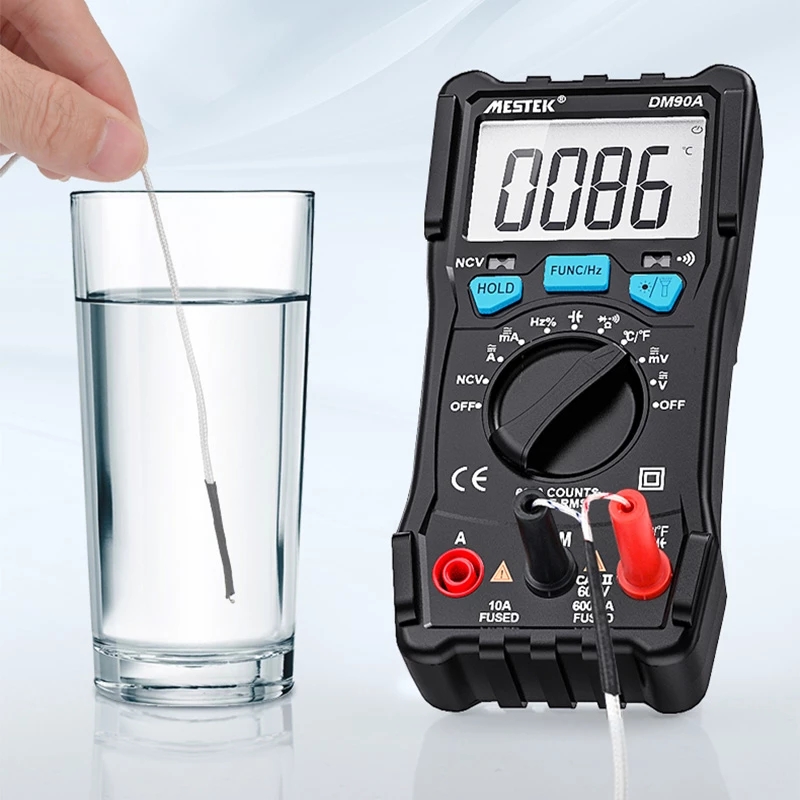

Temperature measure & have temperature probe, auto range,6000 display counts,AC/DC voltage and current,on-off buzzer/diode,capacitance,resistance,temperature,non-contact voltage test,T-RMS,backlight/flashlight/1.5v/9v battery measurement,data hold,auto power-off

● DM90S:

smart measure, intelligent shift,6000 display counts,AC/DC voltage,on-off buzzer/diode,intelligent recognition,capacitance,resistance,non-contact voltage test,T-RMS,backlight/flashlight/1.5v/9v battery measurement,data hold,auto power-off
