Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Size: 50*41*22mm
- Certification: CE
- Weight: 200g
- Model Number: HPCS300
- Wavelength Range: 380-780nm
- Measurement Range: 380-780nm
- Warranty: 2 years
Product Details

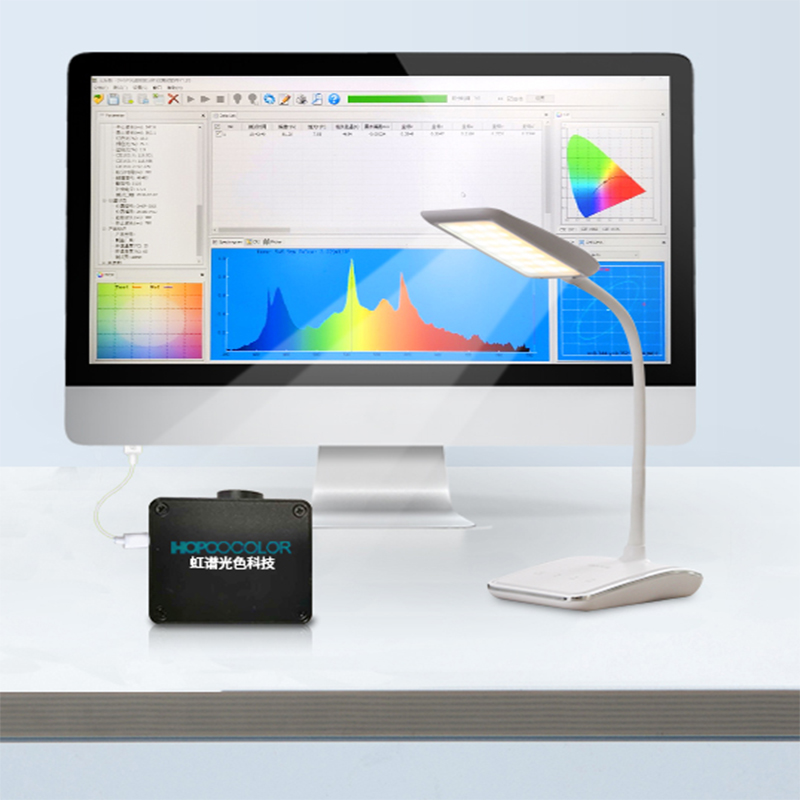

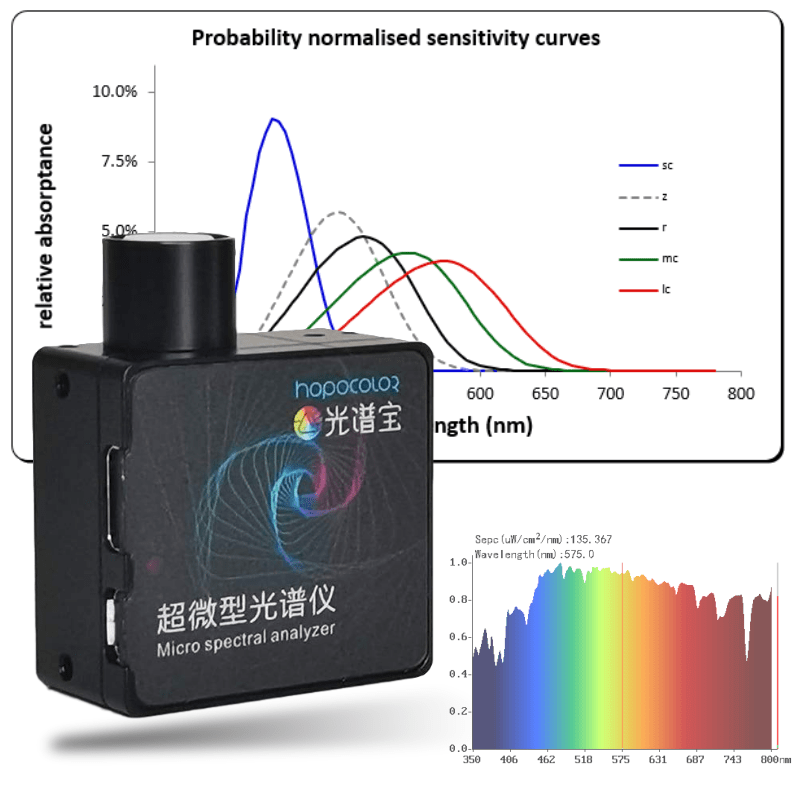

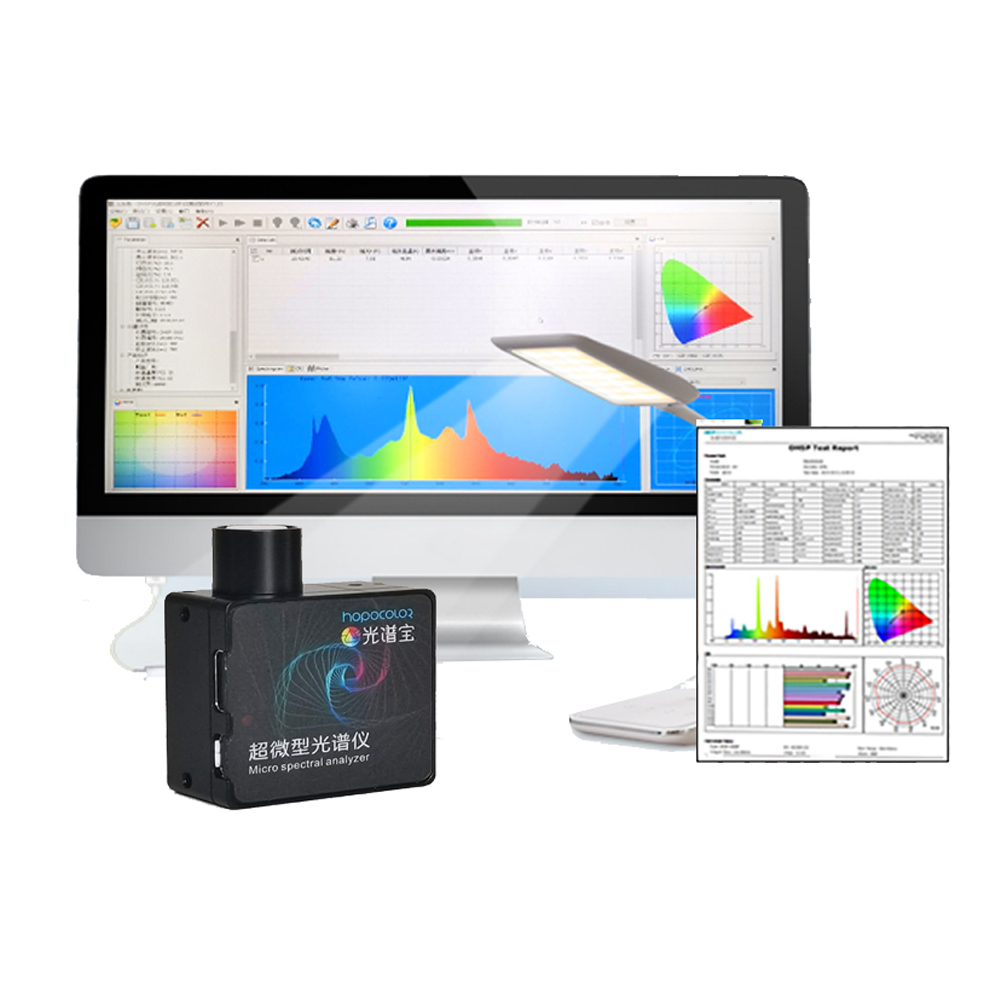

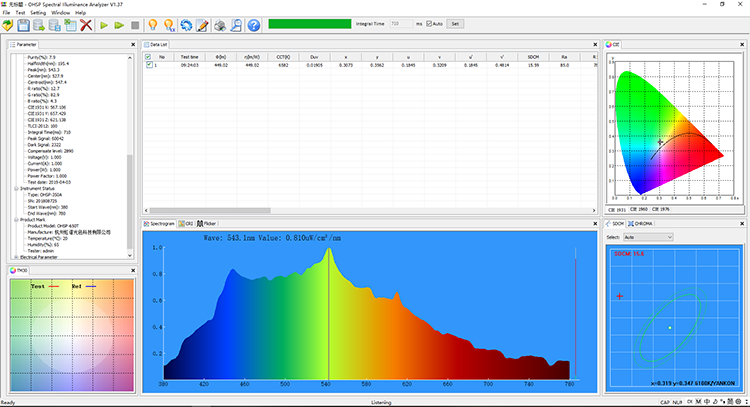

HPCS300 Spectral Illuminance Sensing Module, adopt advanced technology, used in production line, achievement On-line analysis of light and color parameters, USB interface to output test result, open Modbus communication, it can use by self-programme, read spectrum data, CCT, Lux etc. also can customize with RS485 or 232 interface.
Models
|
Model |
Wave Range |
communication interface |
Parameters |
|
HPCS300 |
350-780nm |
USB |
Base +USB interface |
|
HPCS300P |
350-800nm |
USB |
Base+plant light parameters |
|
HPCS300I |
350-800nm |
USB/RS45 |
IO Control, Rs485 |
Technical Indicator
|
Name |
Specifications |
Name |
Specifications |
|
Spectral platform |
Long focus CT system |
illuminance range |
5-200000lx |
|
(FWHM) |
4nm |
CCT range |
1000-100000K |
|
Spectral Resolution |
0.5nm |
x,yAccuracy |
±0.0025 ±0.0025 ±4% |
|
Sensor |
CCD |
x,yRepeatability |
|
|
Sensor array points |
1500 |
Illuminance accuracy |
|
|
Zeroing mode |
Auto zeroing |
Wave Accuracy |
±1nm |
|
Integration time |
50us-20000ms |
resolution |
16bits,250kSPS |
|
Window size |
⌀10mm |

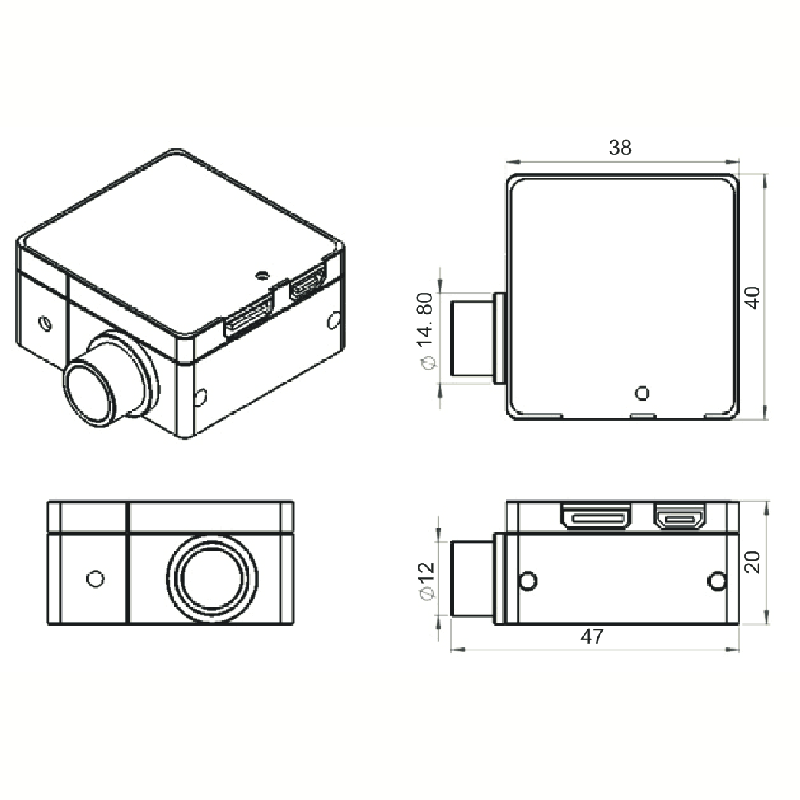

size |
50*41*22mm |
