Description
LASER TREE High Power 20W Optical Power Laser module with Air Assist TTL Blue Light Module for Laser DIY Cutting Engraving Tools
- Model Number: LT-4LDS-V1
- Wavelength: 455nm
- Optical power: 20W
- Input voltage: 24V 4A
LT-4LDS-V1:

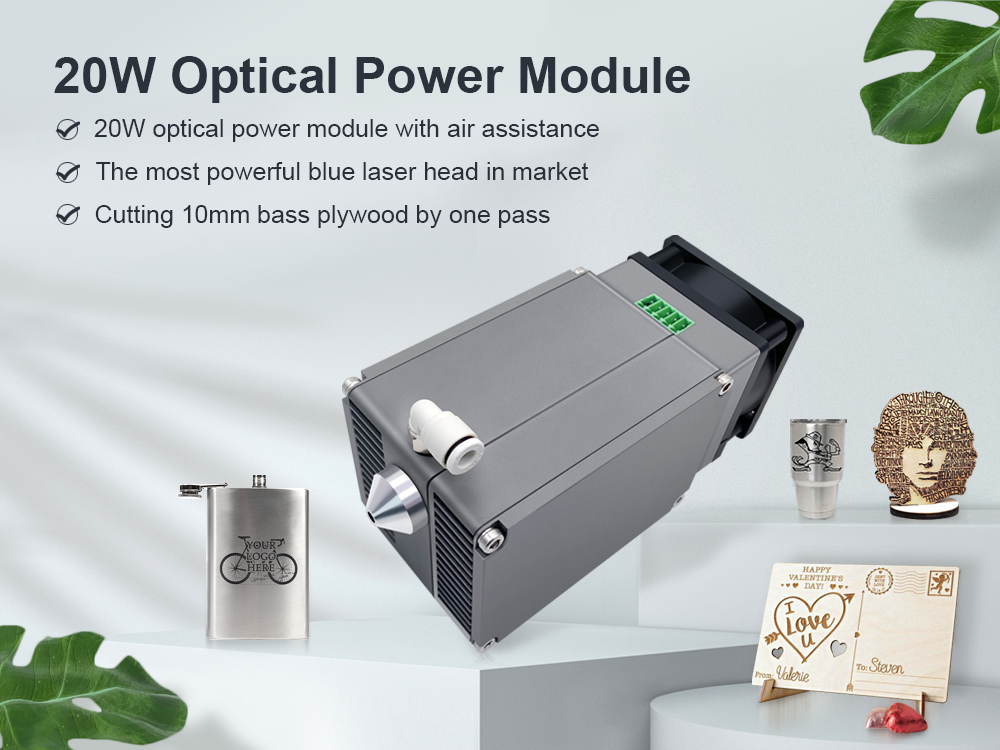

The optical power 20W module is the most powerful blue laser head on the market.

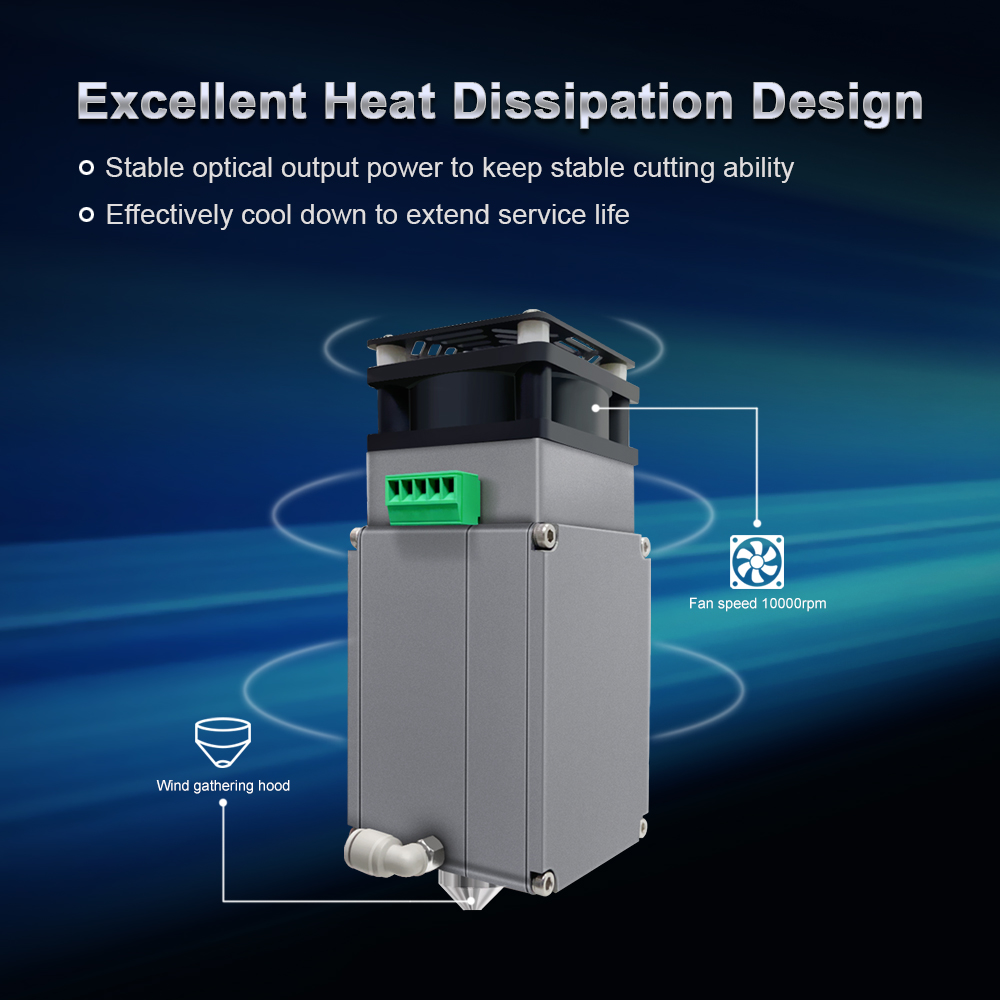

Excellent Heat Dissipation Design

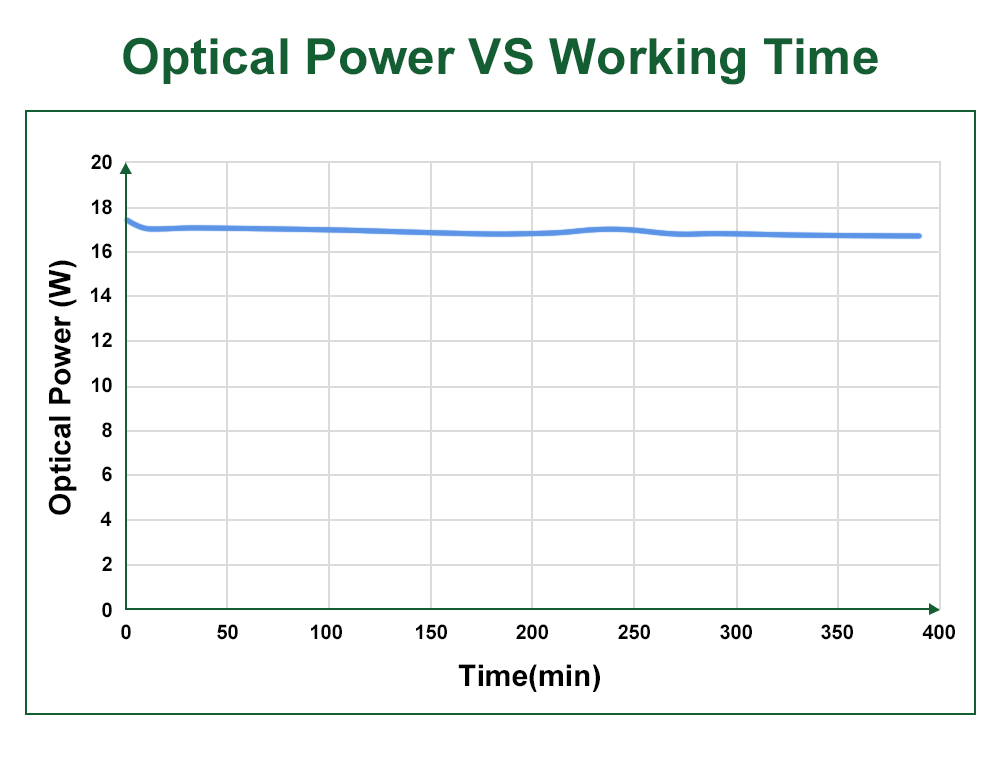

1.Stable optical output power to keep stable cutting ability.
2.Effectively cool down to extend service life

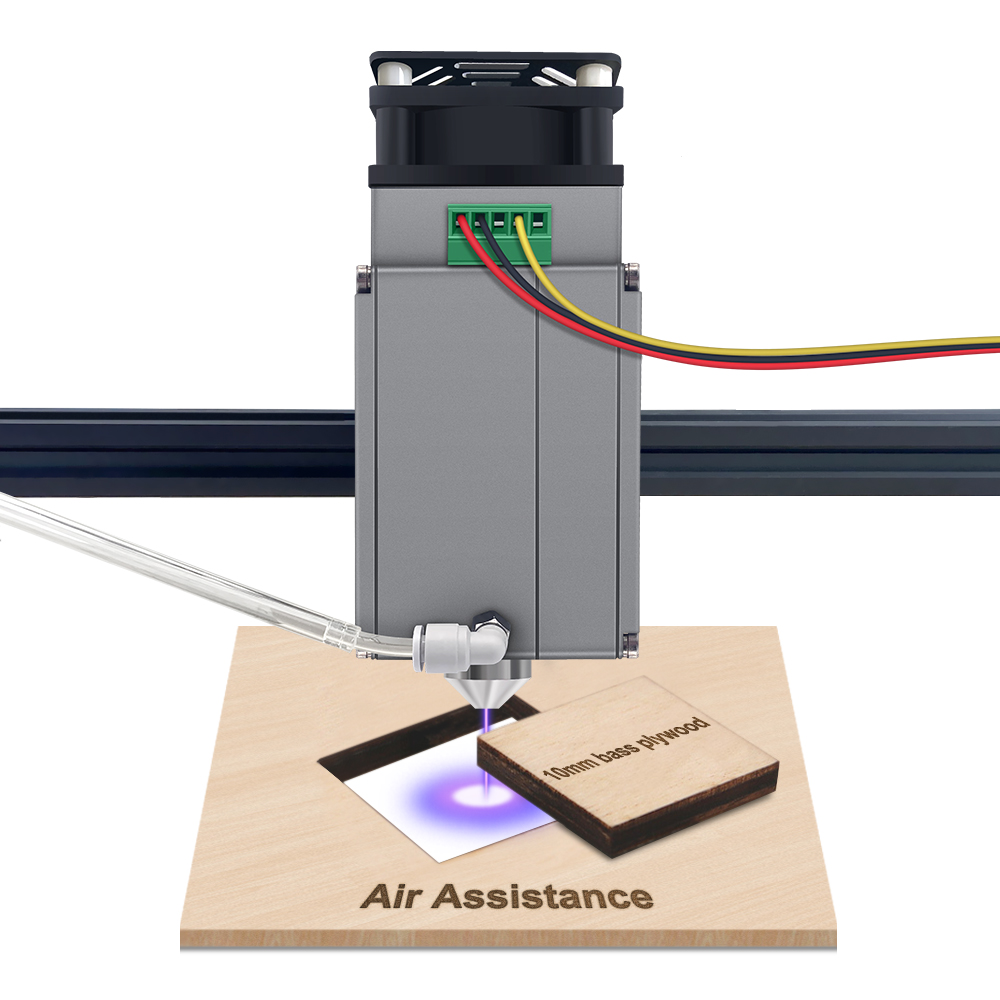

With air assist
When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

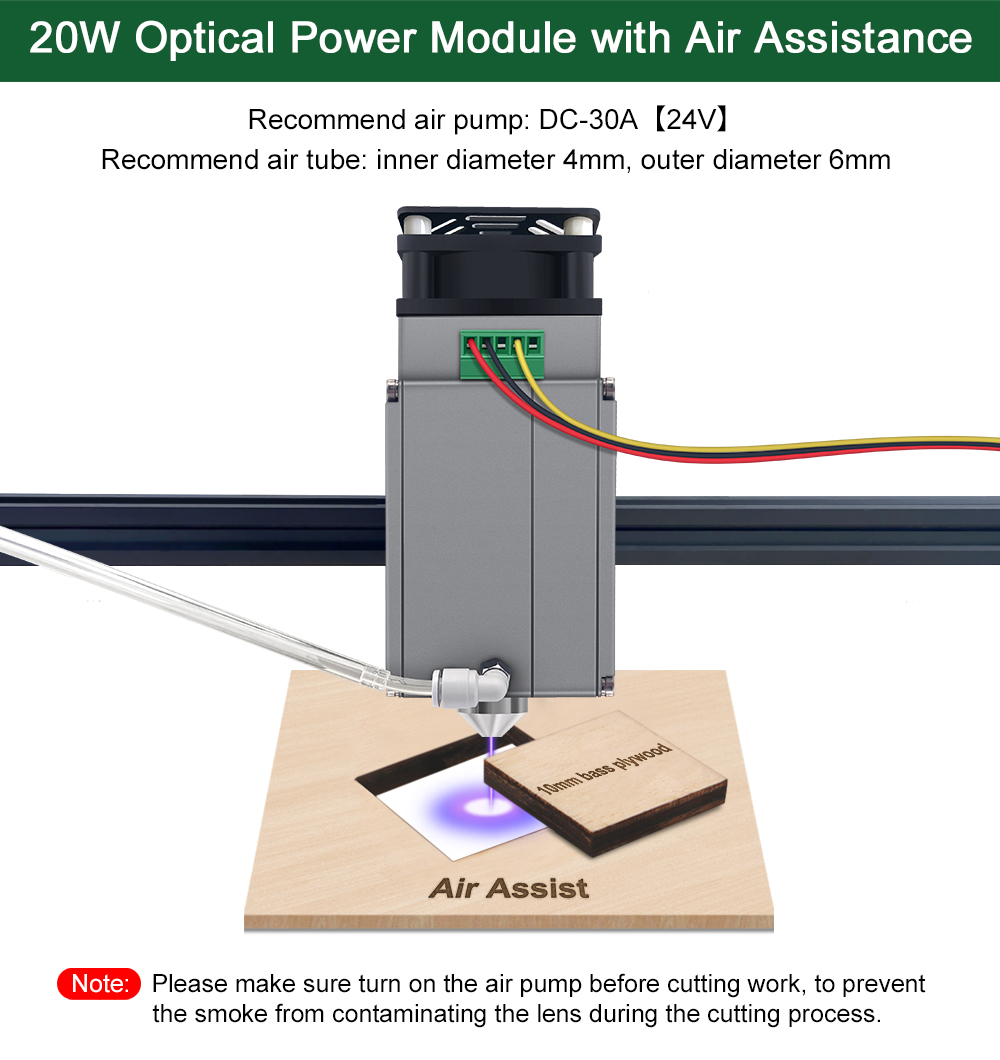

Note: Please make sure turn on the air pump before cutting work, to prevent the smoke from contaminating the lens during the cutting process.
Recommend air pump: DC-30A 【24V】
Recommend air tube: inner diameter 4mm, outer diameter 6mm
4-Beam Compression Technology
Built-in 4pcs 5W beam compressed laser diodes

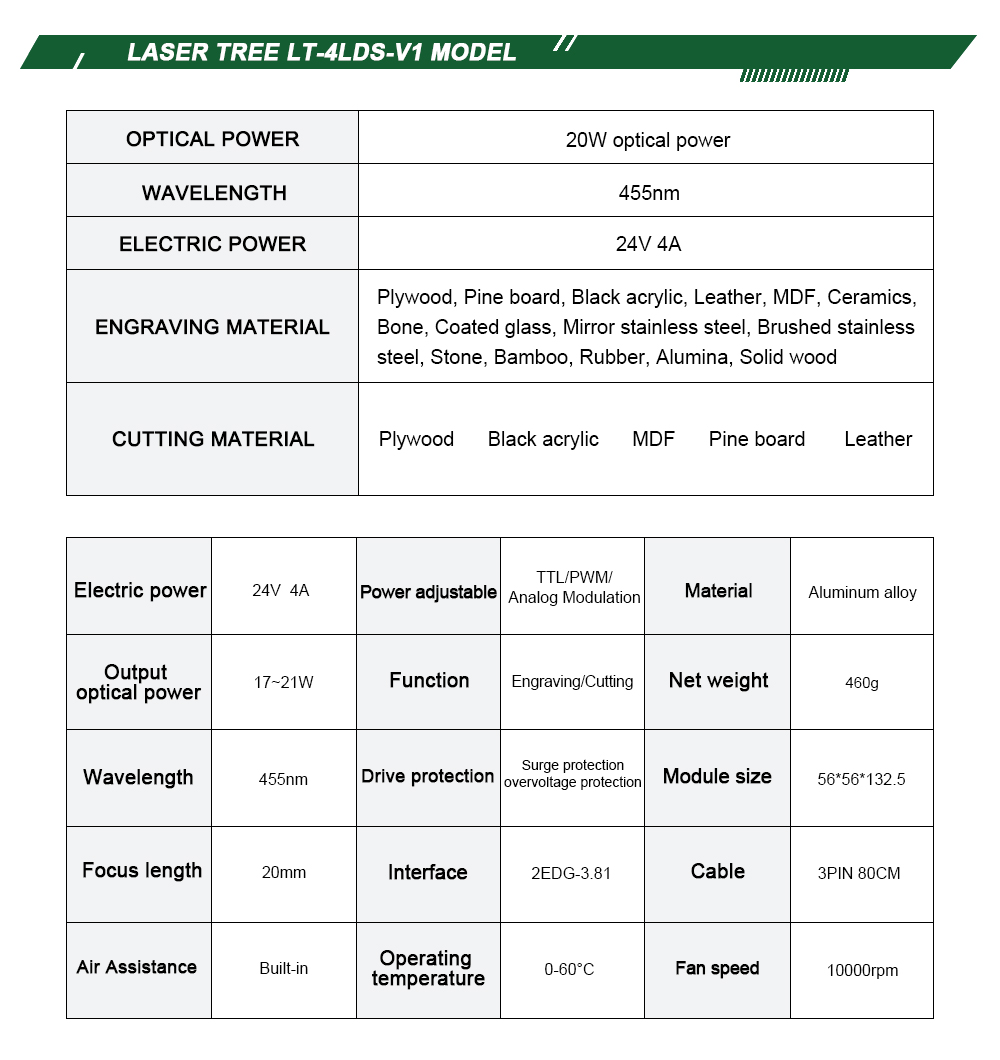

Specification:
Optical power: 20W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 455nm

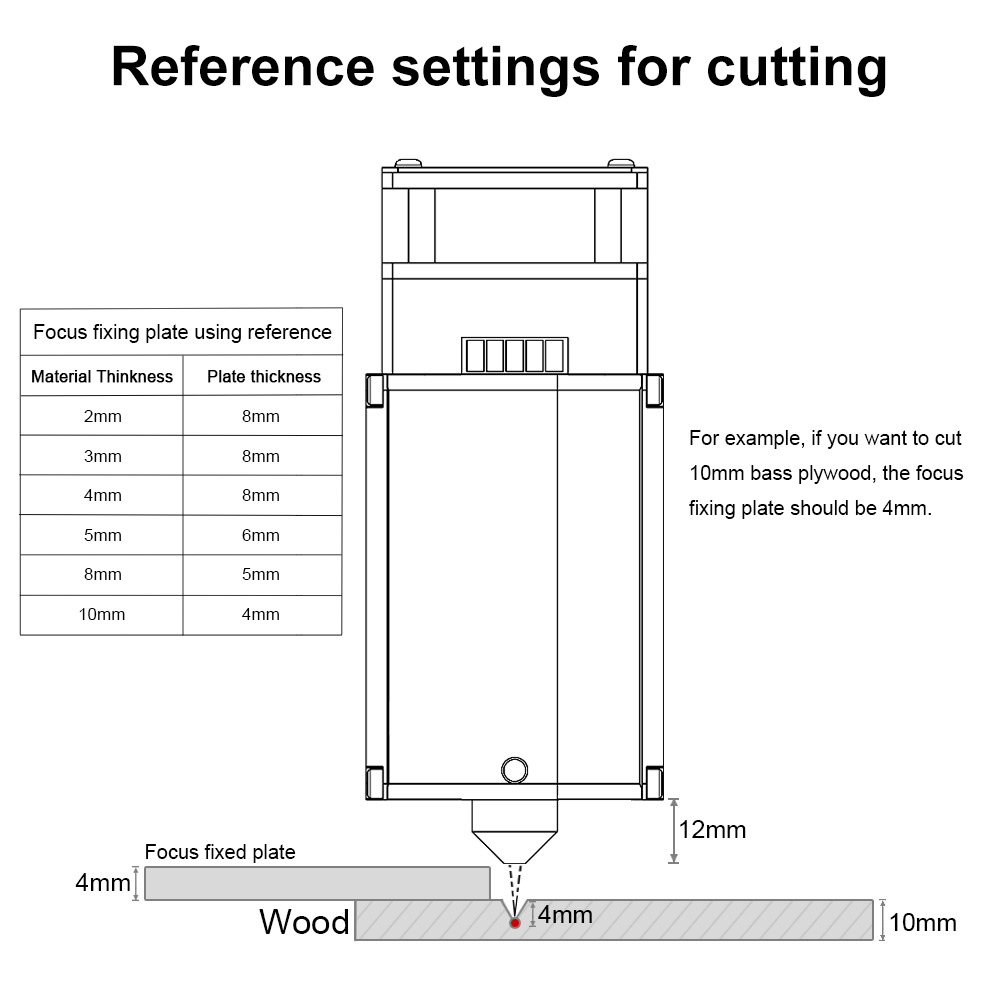

Spot form: Punctiform, fixed focus
Input voltage: 24V 4A

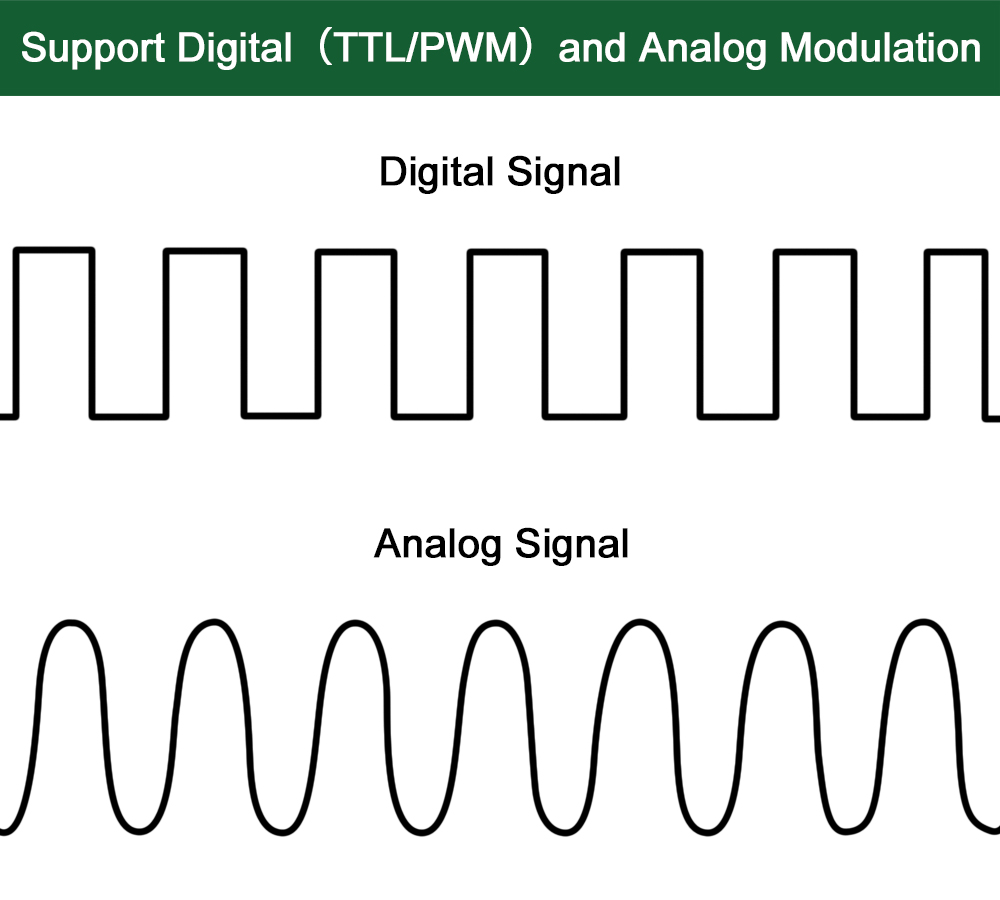

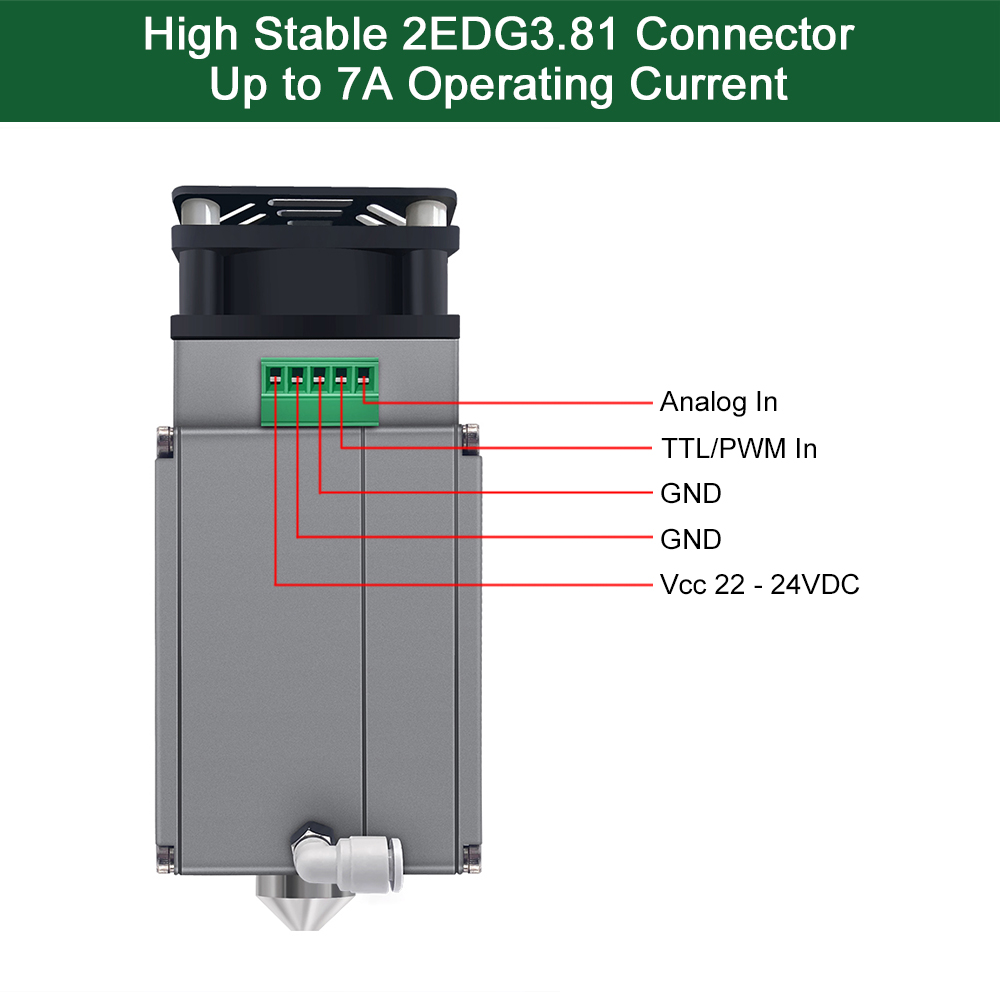

Interface parameters: support TTL signal control power

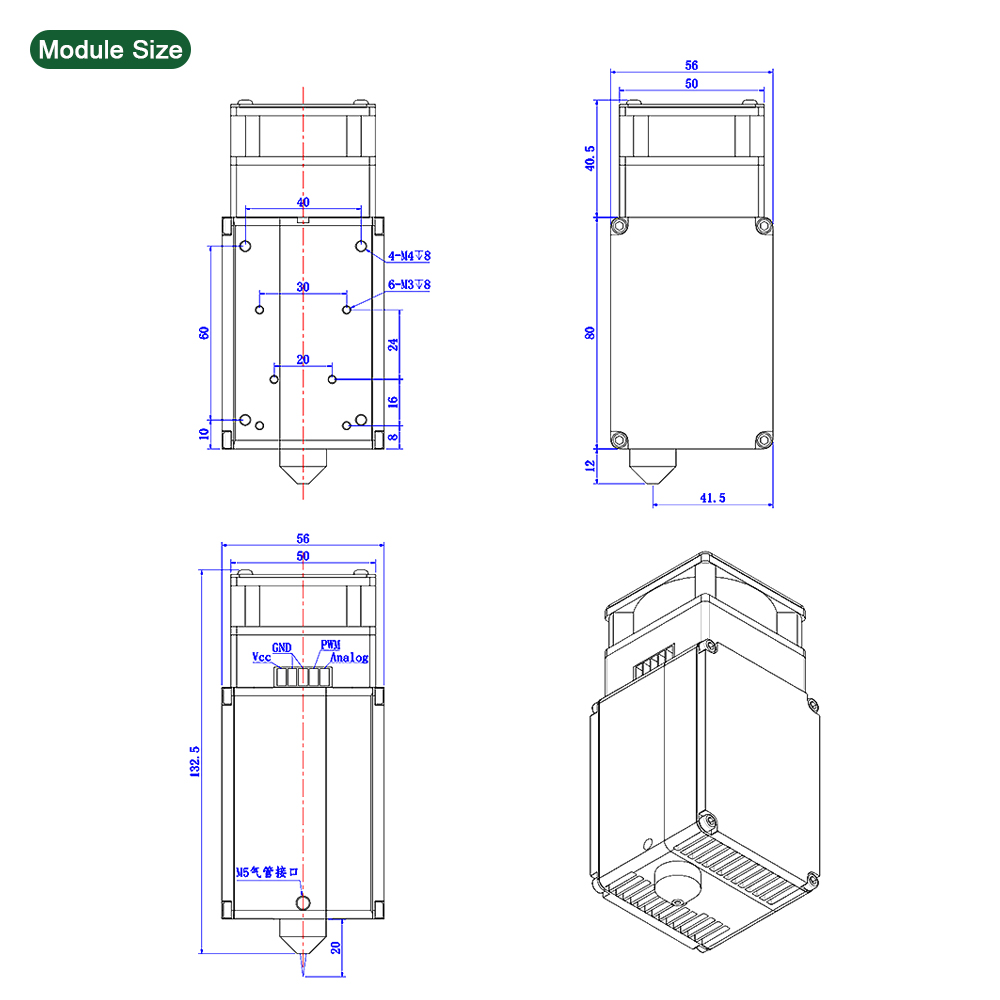

Item size: 56 * 56 *132.5mm
Engraving accuracy: 0.08mm
Focusing method: fixed focus lase
