Laser Driver Board 450nm 532nm 650nm 808nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC DC 12V TTL PWM

  • Home
  • Laser Driver Board 450nm 532nm 650nm 808nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC DC 12V TTL PWM

Laser Driver Board 450nm 532nm 650nm 808nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC DC 12V TTL PWM

$77.37

72 in stock

SKU: 32836918084 Category:

Description

  • Certification: Blue Laser Diode Module Driver
  • Voltage: 12V
  • Usage: Laser Driver
  • Name: Laser Driver
  • Type: Laser Diode Driver
  • Input Voltage: AC/DC 12V
  • Output Voltage: DC 2.8V – 11V
  • Output Current: 0 – 4A ( Constant Current )
  • TTL: Yes, ( 0-20KHz )
  • Wavelength: 405nm, 445nm, 450nm
  • Profile: Laser driver, Laser power supply, TTL laser driver, Laser diode driver
  • Applications: Laser diode, Laser module, Laser light, Laser machine, Laser diy

Laser Driver Board 450nm 520nm 532nm 638nm 650nm 808nm 980nm Laser Diode Driver with Heat sink 200mW 500mW 1W 2W 2.5W 5W 5.5W AC / DC 12V with TTL / PWM

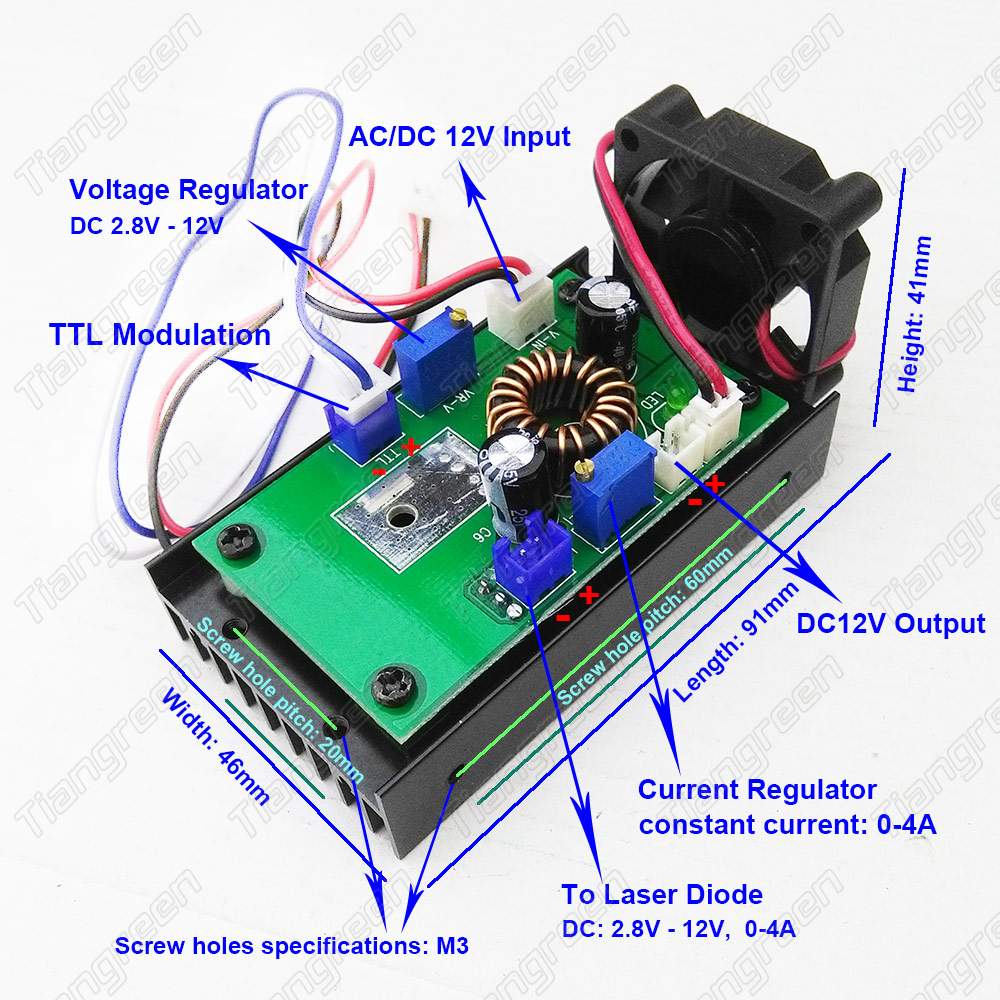

Item Description:

Name: Laser Diode Driver

Power: Suitable for 405nm, 450nm, 532nm, 650nm 50mw ~ 5.5W laser diode;

Input Voltage: AC/DC 12V

Output Voltage: DC2.8V – 11V

Output Current: 0 – 4A

TTL Modulation: Yes, 0-20KHz

Size: 91mm x 46mm x 41mm

Applications: Laser driver, Laser power supply, Laser diode driver, TTL laser driver, Laser light,

Laser machine, Blue laser driver, Laser driver circuit, Laser cut driver, Laser engraving driver, Laser diy.





Features:

*Stability is very good!
*This driver have been rigorously tested.
*This driver is not a simple circuit, not is just raise the voltage or reduce voltage.

*Constant current Stable voltage IC circuit, laser diode can be better protected without being damaged.



Package: 1 X Driver Board

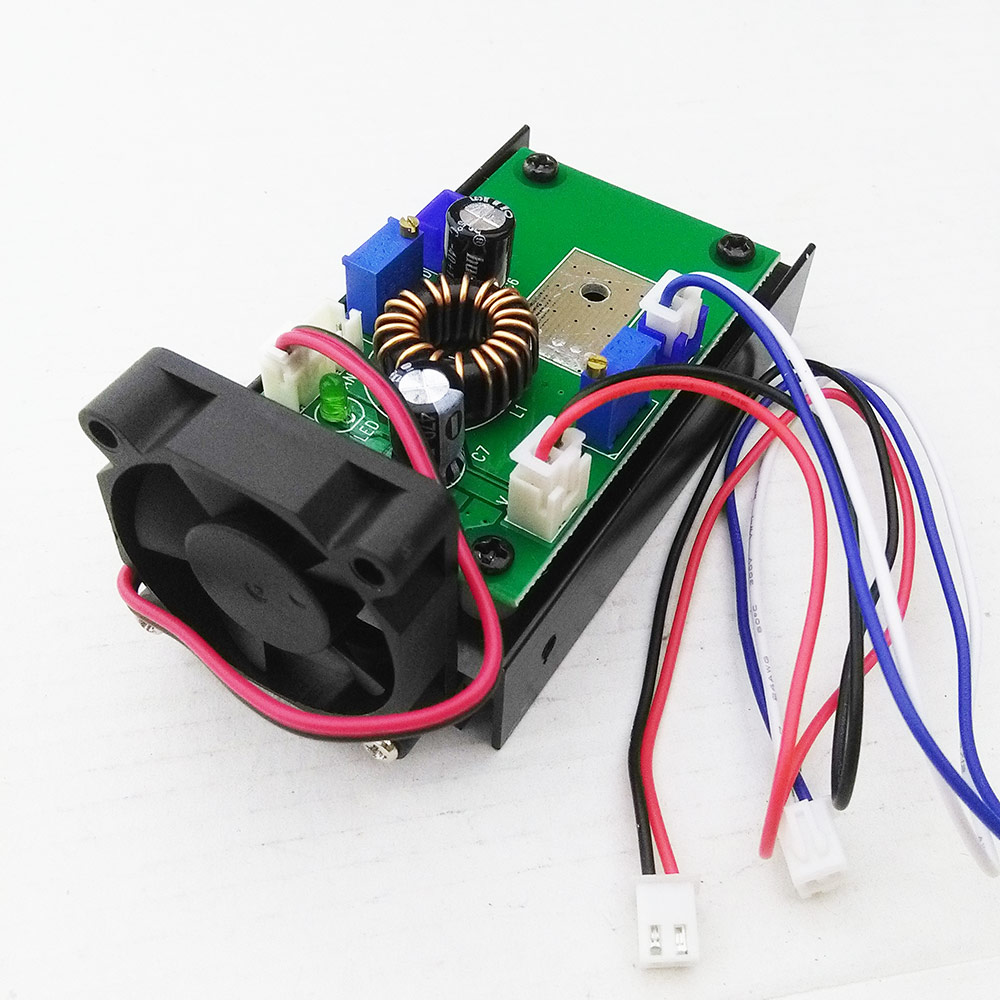

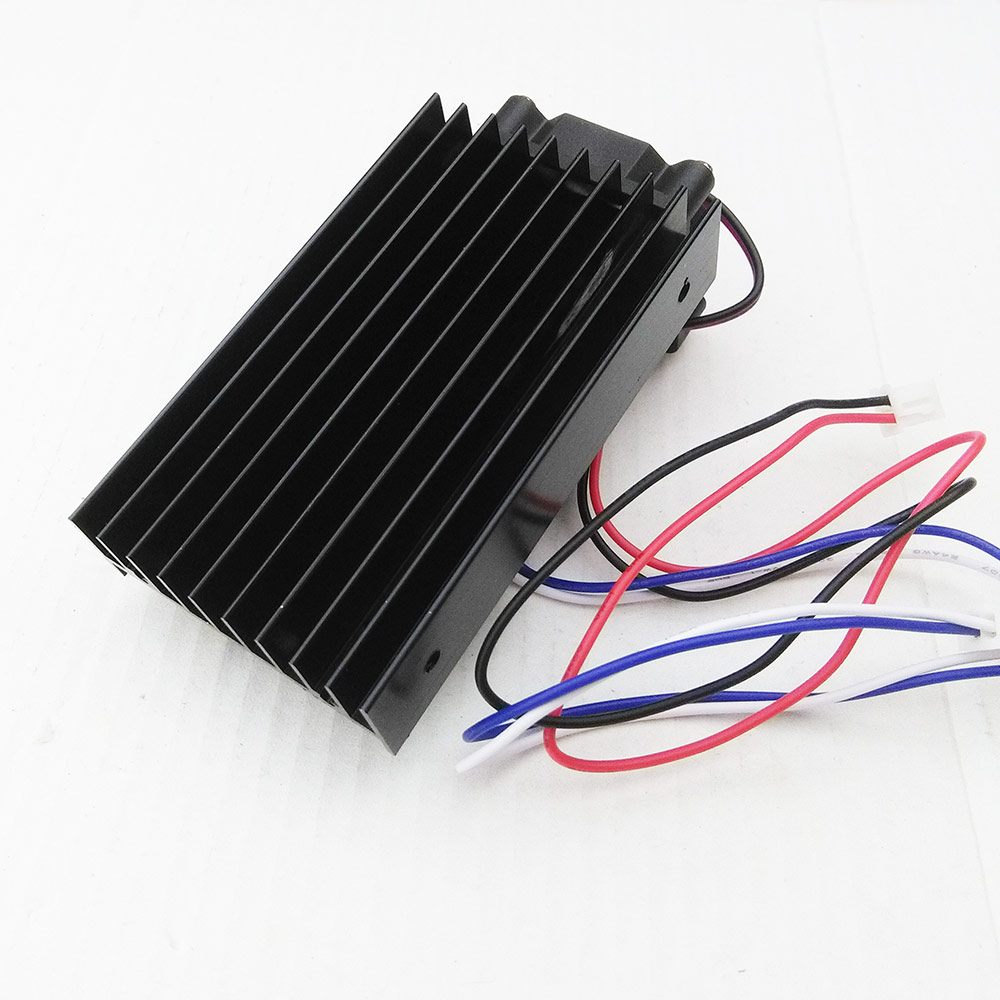

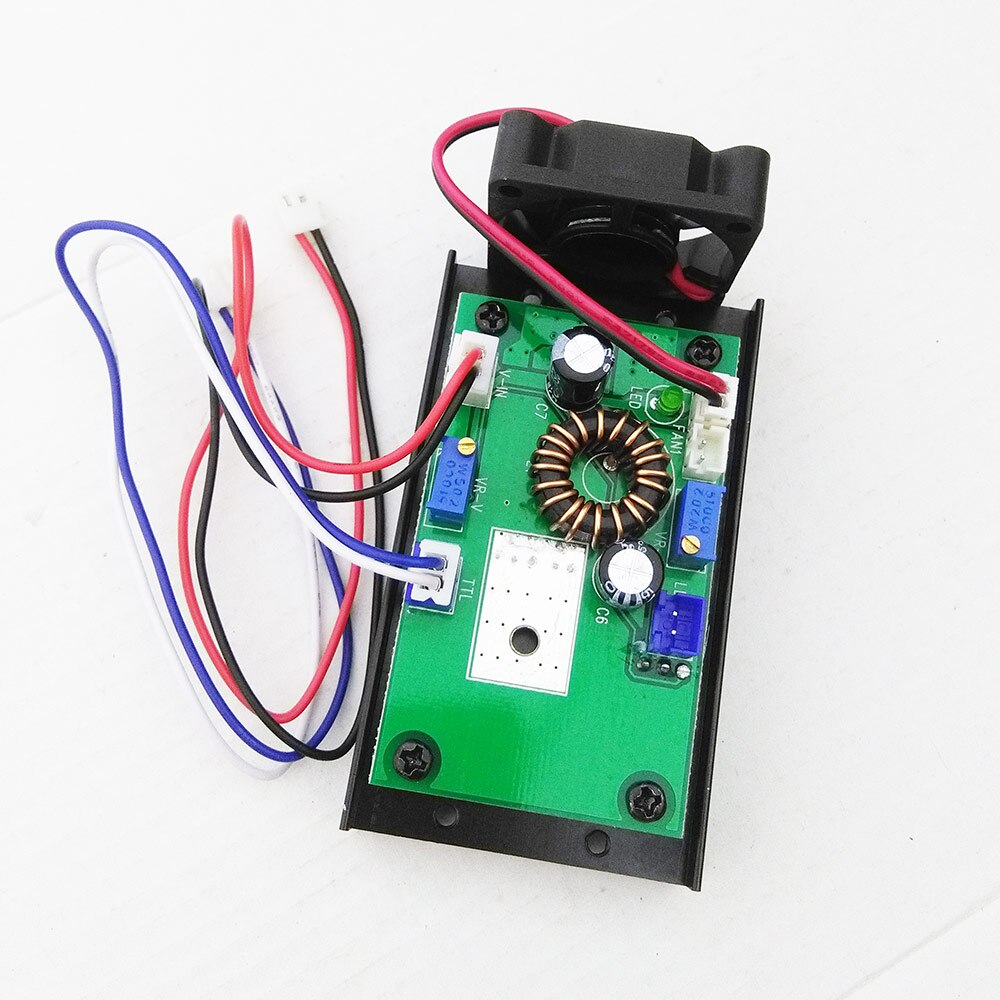

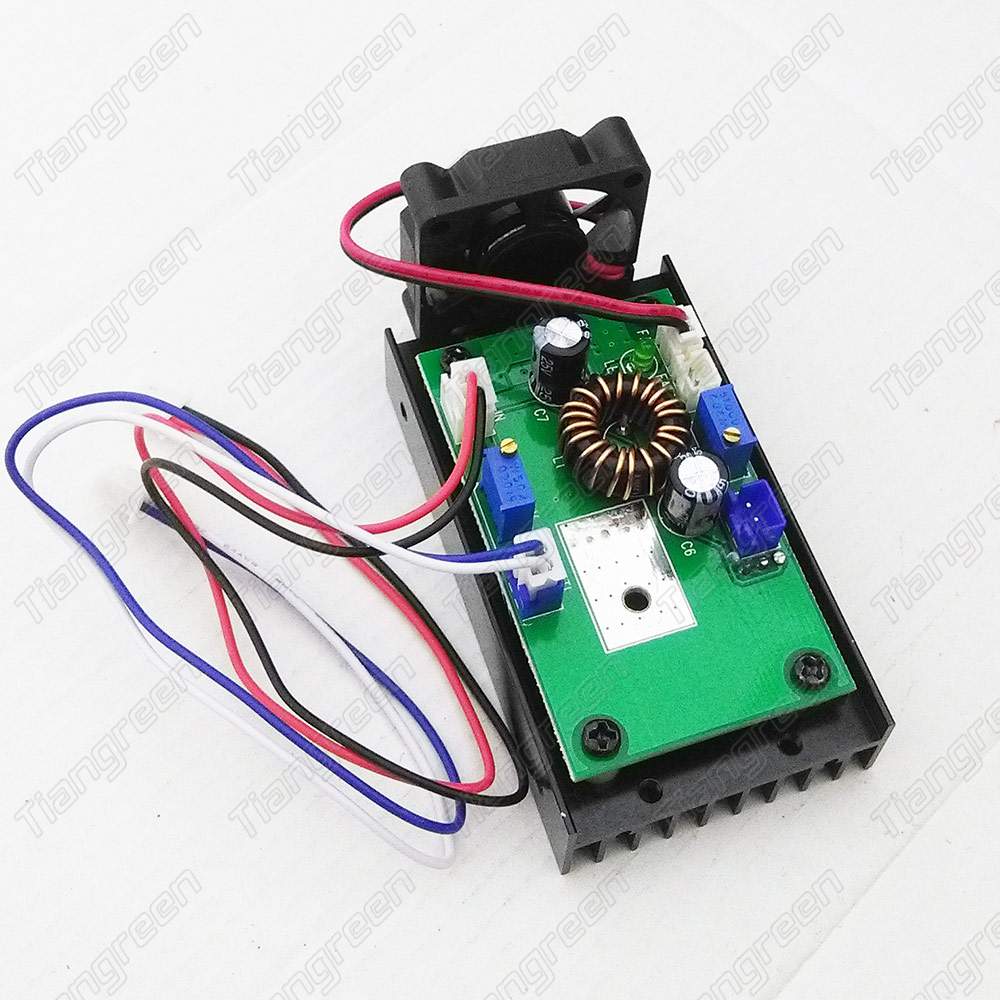

Item Pictures:
