Description
- Brand Name: LanYuXuan
- Certification: NONE
- Origin: CN(Origin)
- Place of Origin: Guangdong, China
- Brand Name: DECCA
- Model Number: DC-SR62
- Power: Electronic
- Product name: portable photo digital spectrophotometer 3nh colorimeter

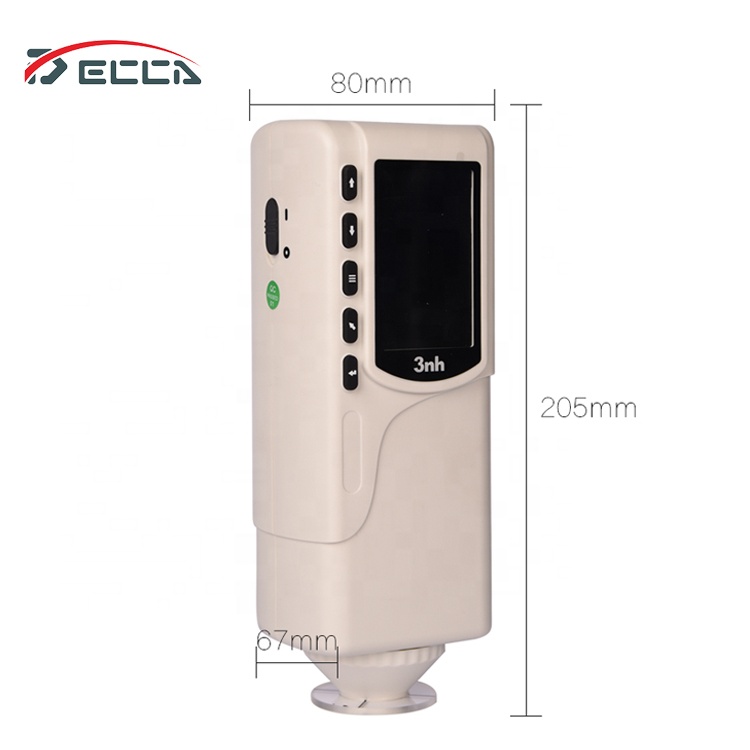

- Size: 80*67*205mm
- Illuminating: 8°/D
- Measuring Aperture: 8mm & 4mm
- Observer Angle: 10°
- Light Source Type: D65, D50, A
- Repetitive Error: ≤0.03
- Inter-Instruments Error: ≤0.2
- Data Port: USB
- Display Size: 2.8″
Lab guangzhou portable photoelectric textile calibration digital spectrometer 3nh color analysis photo fruit colorimeter price
Parameters
| Iluminating/Viewing Geometry | 8°/D (8° illumination, diffused viewing angle), |
| Conform to standard CIE No. 15, GB/T 3978. | |
| Measuring Aperture | Φ8mm&4mm |
| Integrating Sphere | Non |
| Locating Method | Illumination Locating & Cross Locating |
| Repetitive Error | Standard deviation ΔE*ab≤0.03 (Measurement Conditions: White calibration plate measured 30 times at 5 seconds intervals after white calibration performed.) |
| Inter-Instruments Error | ΔE*ab≤0.2 |
| Wavelength Range | Non |
| Wavelength Pitch | Non |
| Reflectance Range | Non |
| Color Space | CIE L*a*b, CIE XYZ, CIE RGB, CIEL*u*v, CIE*C*H, |
| Whiteness&Yellowness, Color Fastness | |
| Color Difference Formula | ΔE*ab, ΔL*ab, ΔE*C*H, ΔECIE94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔEHunter |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation |
| Other Chromaticity Data | WI(ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925, ASTM 313), | |
| Color Strength, Color Stain, Color Fastness, | |
| JPC79, BFD(1.5:1), FMCII | |
| Observer Angle | 10° |
| Light Sources Type | D65, A, C, D50, F2, F6, F7, F8, F10, F11, F12 |
| Light Source Device | LED Blue Light Excitation |
| Light Source Life | 5 years, More than 1.6 million measurements |
| Sensor | Silicon Photoelectric Diode Array |
| Measuring Time | 1.5s |
| Data Storage | 100 Standards, 20000 Samples |
| Data Port | USB |
| Display Size | TFT 2.8″ |
| Touch-Screen | Non |
| Operating Temperature | 0~40℃ (32℉~104℉) |
| Storage Temperature | -20℃~50℃ (-4℉~122℉) |
| Humidity | 0~85%, No condensation |
| PC Software | CQCS3 |
| Weight | 500g |
| Dimension | 205*68*80mm |
| Battery | Large Capacity Li-ion Battery |
| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White Calibration Plate, Φ8mm and Φ4mm Measuring Aperture |
| Certificates | CE & RoHS & TUV & FCC & ISO9001 |
Product features:
This product is colorimeter features the built-in white calibration parameter and a physical white plate, making it’s very convenient to be calibrated, and also a simple interface making it’s very easy to operate. Elegant appearance combines perfectly with the ergonomic design, which makes it a model of portable handheld colorimeter.
also features its two locating methods: illumination locating and cross locating, which can solve the problem of measuring small spots very well.
Repetitive error is less than 0.03ΔE*ab, inter-instrument error is less than 0.2ΔE*ab, which make its stability and reliability of measurement very superior.
The colorimeter is widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing,food, medical, cosmetic, automotive, toy…industries. It with the advantages:
Built-in white plate parameters: No need to calibrate each time which realize rapid measurement.
New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Having the advantages of the highest measurement stability and precision.
Equipped with rechargeable high-capacity Li-ion battery.
Configure CQCS3 software: Connect PC computer to realize more functions.
Cross Platform Measuring Aperture &Small Area Measuring Aperture
