Description
- Brand Name: Aideepen
- DIY Supplies: ELECTRICAL

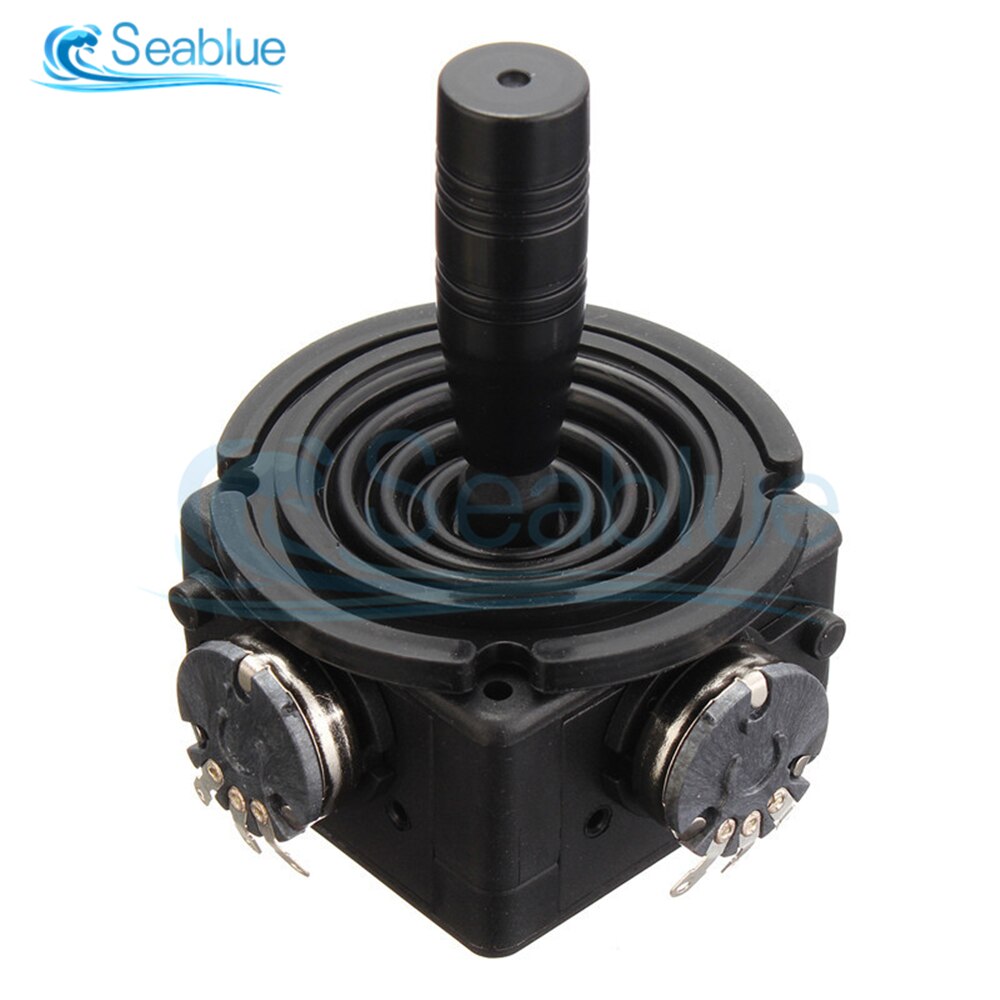

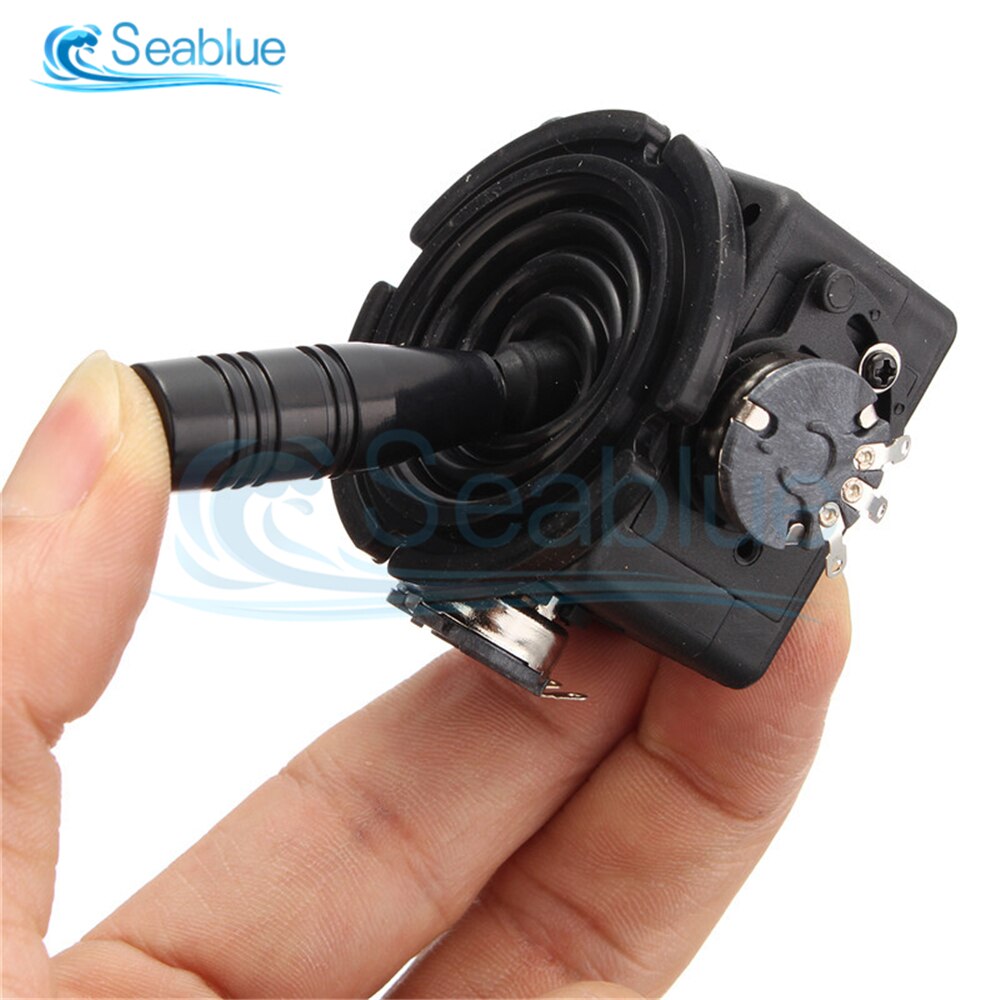

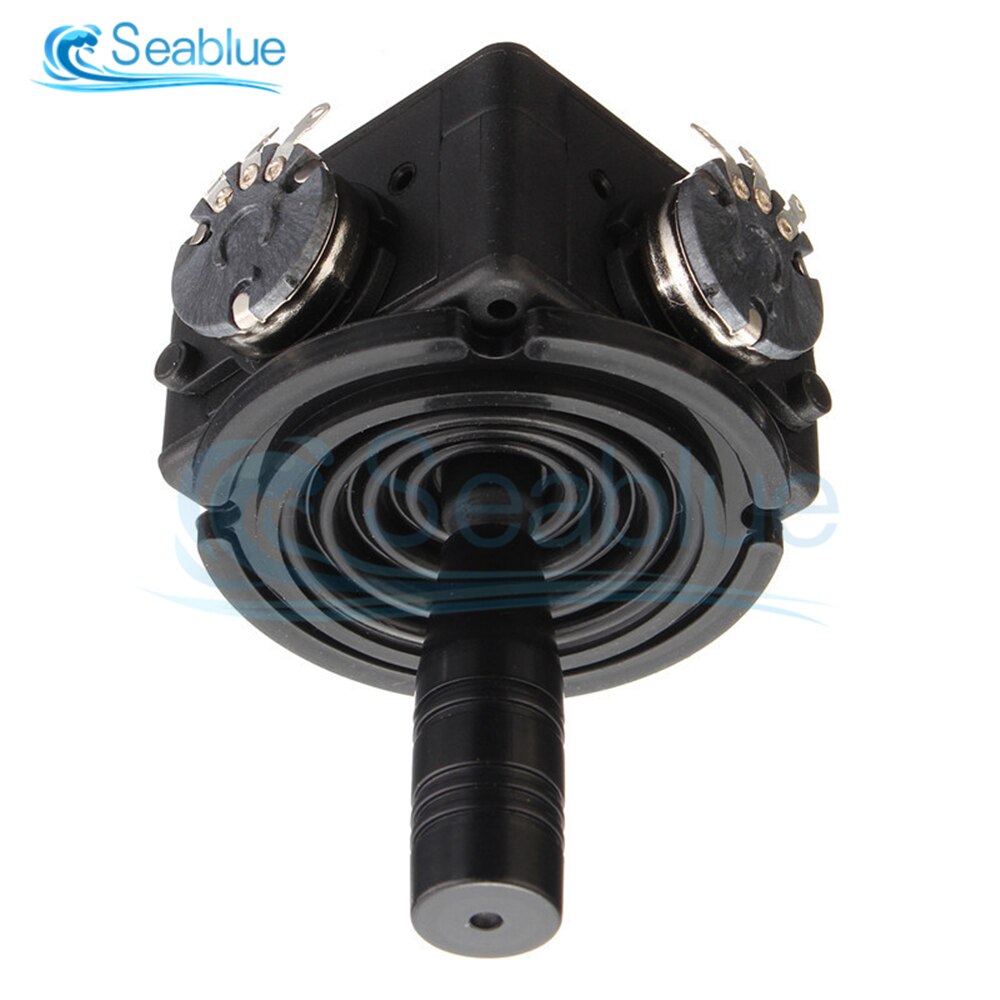

- Accuracy Class: JH-D202X-R2 5K joystick reset potentiometer
- Model Number: JH-D202X-R2 5K joystick reset potentiometer
- Measuring Range: JH-D202X-R2 5K joystick reset potentiometer
- Dimensions: JH-D202X-R2 5K joystick reset potentiometer
Description:
Color: Black
Resditance Value: Standard 5KΩ
Resditance Tolerance: ±20%
Independent Linearity: ±1%
Resolution: Essentially Infinite
Temperature Coefficient Resistance: ±400 ppm/°C
Outpoot Smoothness: 0.5% maximum
X& Y Axis Electricity Corner: ±25°
Z Axis Electricity Corner: ±45°
R300Z Axis Potentiometer, R400Z Axis Potentiometer And Button Switch Lead: AWG28 Color Coded, Silver Plated, PTFE inslatedlead wires standard length 100mm other lengths on request.
Insulation Resistance: 50MΩ @ 500VDC, 60 sec.
Specification:
Operate Torque: X& Y axis 90gf and 250gf, Z axis 330gf.
Restoration Error Rate: ±0.03KΩ
Prolepsis Mechanical Lifecycle: 500,000 cycle
Operating Temperature Range: -10~ 80°C
Scope of application:
1. Move photography and television control system
2. Curative imaging system
3. Film frequency compile and produce equipment
4. Automatization machine control
5. Instruments for industrial and scientific
Package:

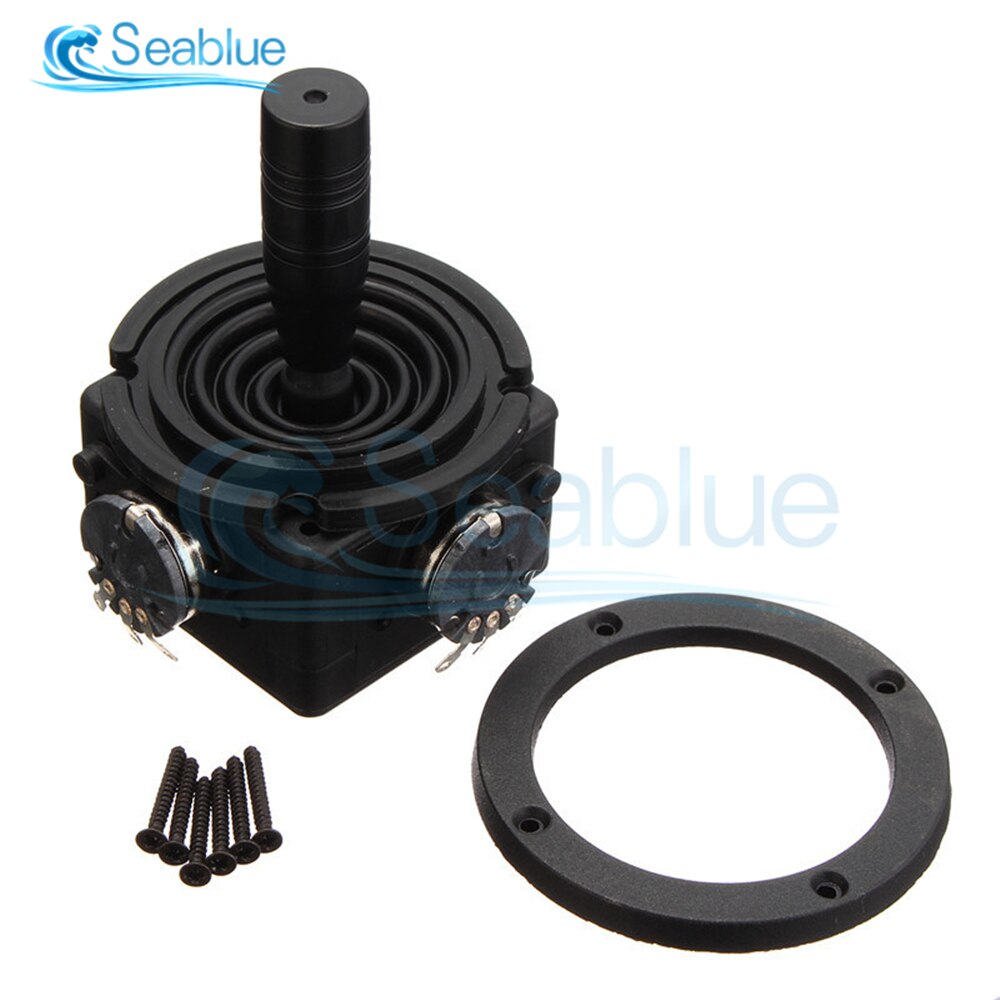

1 x Joystick potentiometer
