Description

InGaAs PIN photodiode. Hamamatsu InGaAs Photodiode G12183-003K G12183-005K G12183-010K

download datasheet specs as following:

Hamamatsu InGaAs Photodiode G12183-003K G12183-005K G12183-010K g12183_series_kird1119e datasheet specs

Long wavelength type (cutoff wavelength: 2.6 μm)

Features
– Cutoff wavelength: 2.6 μm
– Low cost
– Photosensitive area: φ0.3 mm
– Low noise
– High sensitivity
– High reliability
– High-speed response



Photosensitive area φ0.3 mm
Number of elements 1
Package Metal
Package Category TO-18
Cooling Non-cooled

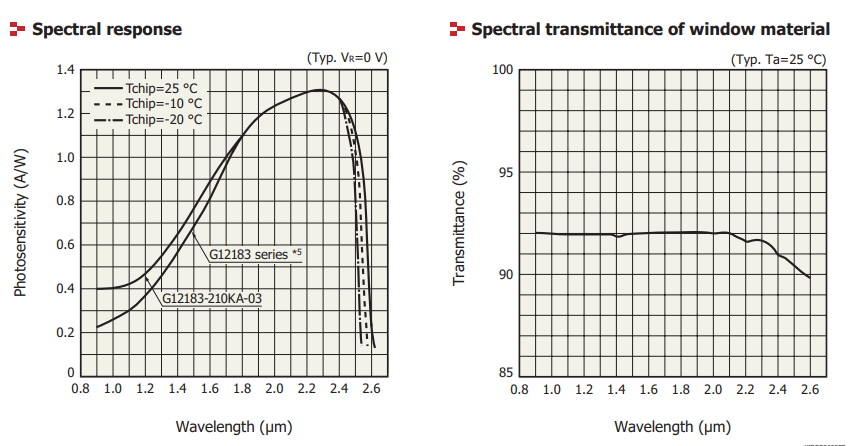

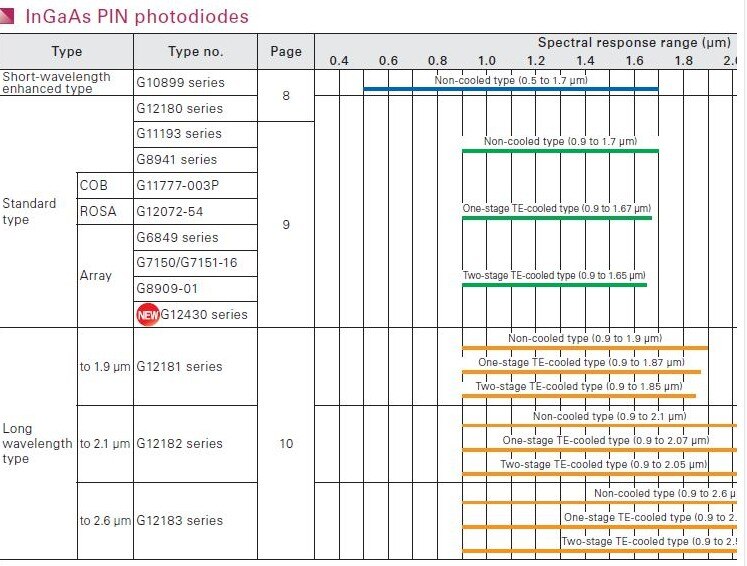

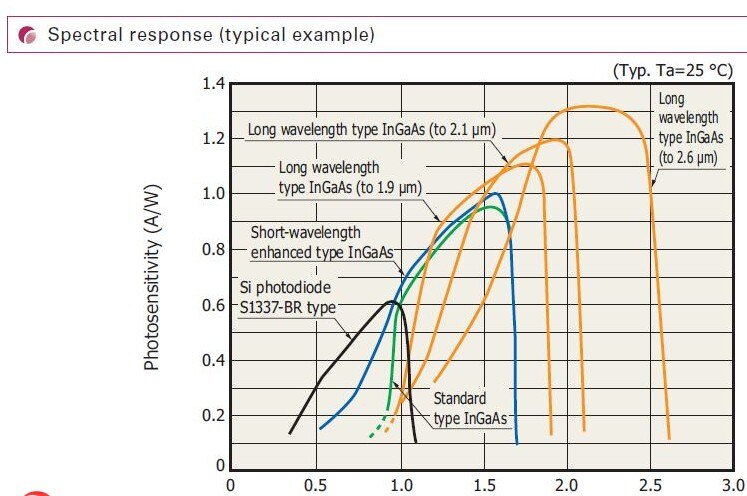

Spectral response range 0.9 to 2.6 μm
Peak sensitivity wavelength (typ.) 2.3 μm
Photosensitivity (typ.) 1.3 A/W
Dark current (max.) 4000 nA
Cutoff frequency (typ.) 50 MHz
Terminal capacitance (typ.) 50 pF
Noise equivalent power (typ.) 4×10-13 W/Hz1/2
