Description
CNC 3018 Pro MAX Engraver,5500mw 15w Big Power Laser ,GRBL Control With 200W Spindle DIY CNC Machine 3 Axis PCB Milling Machine
- Brand Name: TwoWin
- Certification: CE
- Condition: New
- Model Number: cnc 3018 pro max
- CNC or Not: CNC
- Type: Mini CNC Milling
- Function: Wood Router
- Usage: CNC DIY Milling
- laser cutter: 3.175mm
- Engraving area: 30x18x4.5cm
- Type 1: CNC machine, cnc milling machine , cnc router , cnc laser
- Type 2: nc router 3018,cnc er11 3018 grbl,cnc 3018 pro, cnc 3 axis 3018
- Type 3: cnc machine laser, cnc laser ,engraving machine ,tools ,cnc 3018
- Type 4: mini 3000mw engraving machine,3w laser machine ,7w laser machine
- Type 5: CNC 3018, wood router
- laser power: 500mw ,2500mw ,1w,1.6w,5w ,7w,10w,15w
- Power mode: DC
CNC 3018 MAX 200W Spindle Laser Engraver Wood CNC Router Machine GRBL DIY Mini Engraving Machine for Wood PCB PVC
|
Specifications |
|
|
Working area |
300*180*40mm |
|
Frame size |
400*330*240mm |
|
Control software |
GRBL control |
|
Construction |
Full aluminum material |
|
Spindle motor |
DC24V, Rated power 200W, 12000rpm |
|
Stepper Motor |
1.3A 0.25N.m |
|
Power supply |
Input: AC100-240V Output: DC24V 10A /240W |
|
Supported system |
Windows XP/ Win 7/ Win 8/ Win10 Home |
|
Laser (options) |
500mw,2500mw,5500mw,7w,10w. |
|
7W & 10W Can engrave metal such as stainless steel ( all laser can not cut plywood) |
|
|
One year warranty |
|
[Introduction to 3018 MAX]

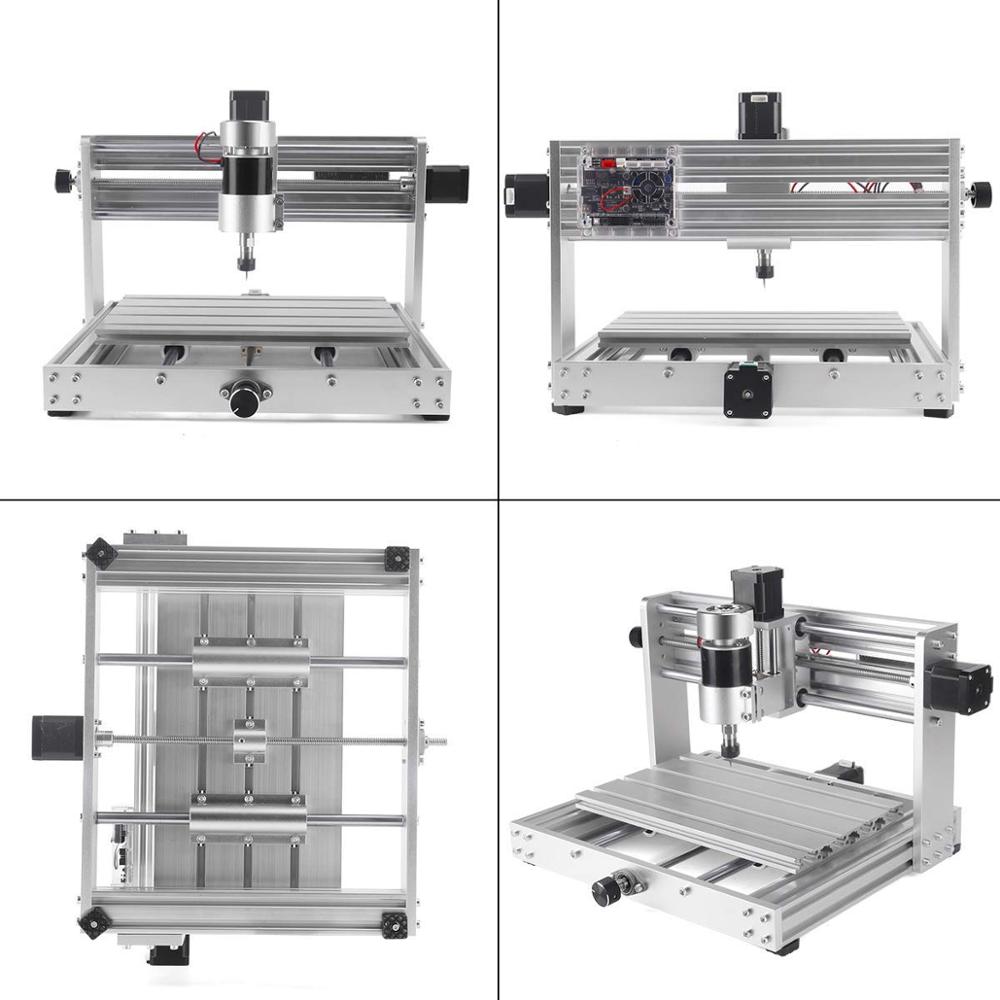

1. All-aluminum alloy body, XYZ components are all processed by CNC, non-aluminum plate splicing, high precision and high strength.

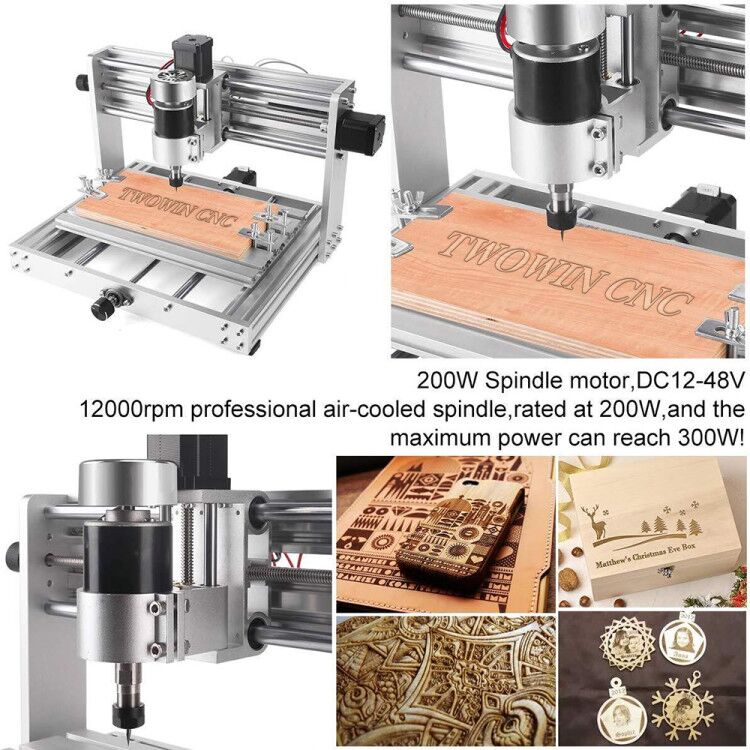

2. The main shaft adopts 52mm diameter professional air-cooled main shaft, rated at 200W, and the maximum power can reach 300W.

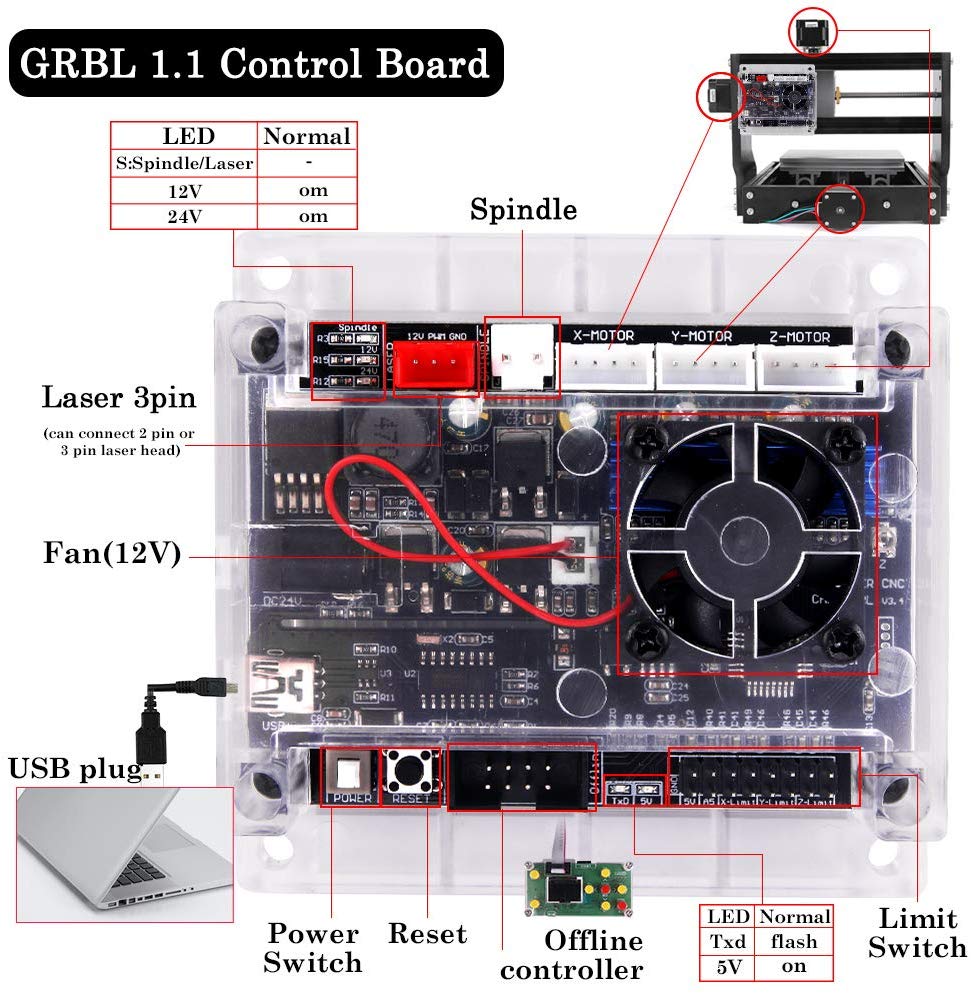

[Control board new upgrade]
1.GRBL1.1f firmware, stable performance
2. Offline engraving (optional offline module), offline tool setting, engraving
3. Laser support PWM / TTL signal control, power 0-100% adjustable!
4. Spindle support PWM power 0-100% adjustable
5. Stepper motor over-current protection to avoid damage, upgrade integrated stepper motor drive, 2A large current, high stability
6. Laser directly into the picture engraving, no programming, no design, simple and convenient!
7.Professional shell protection, active fan cooling, no heat for long time use.
[Notes on engraving machine]
1. Three-axis engraving: wood, plastic, PCB, acrylic, plywood, etc.
2. Laser engraving: wood, plastic, leather, bones, stone, paper, outer casing, etc.
3. Note: 10000mw laser can engrave stainless steel and other metal materials

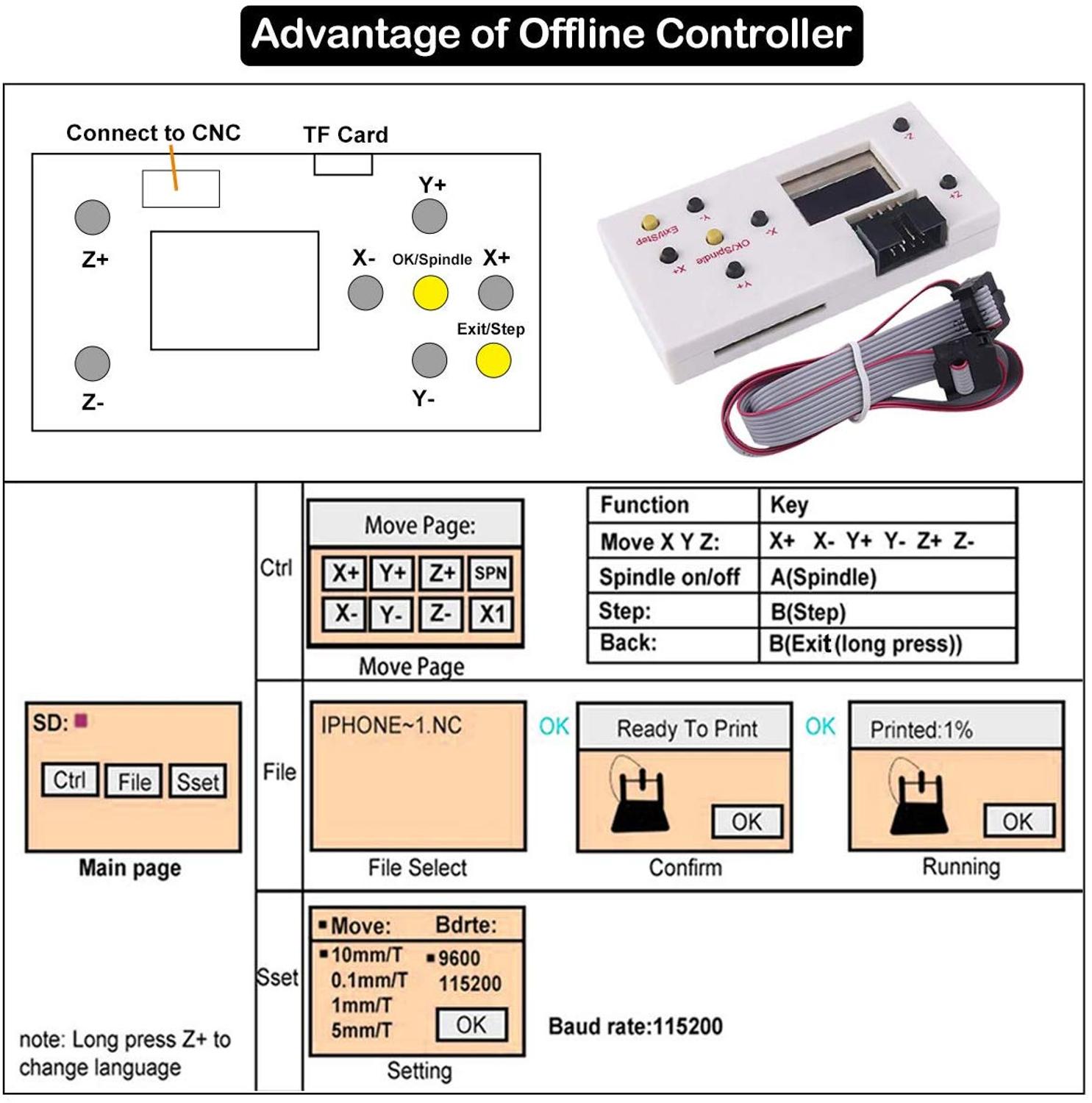

4. Offline controller supports offline work, you do not need to connect to the computer
5. We have Euro plug, US adapter, Australia plug, I will send the correct plug according to your country.

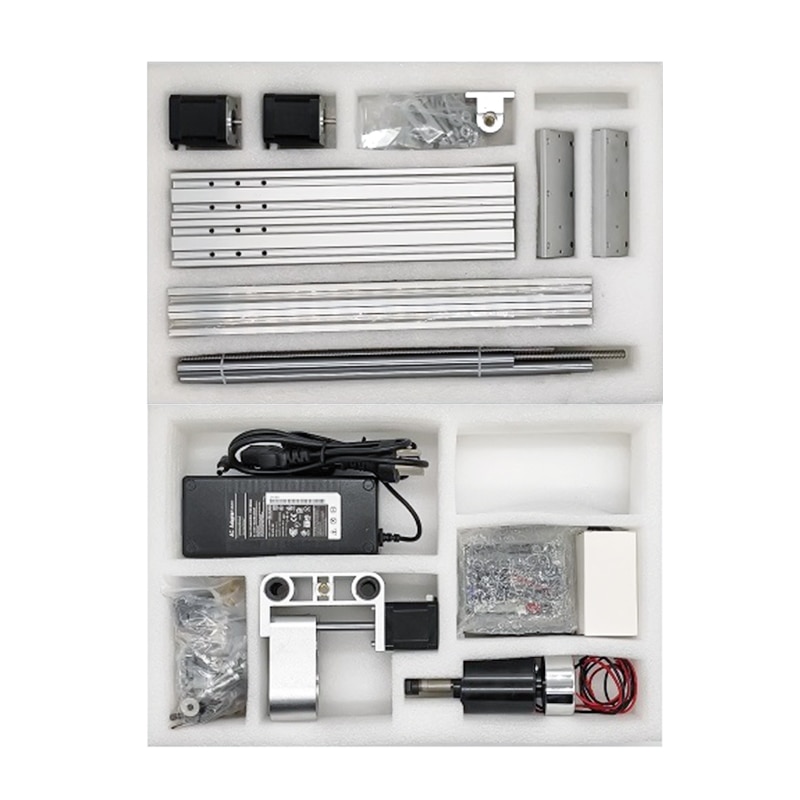

6. The complete spare parts machine is simple to install and should be installed by the buyer. We recommend buying a cnc-based buyer that is not an industrial grade.
7. Note: Usually, it is a bit difficult to install the ER11 bracket. Installation: The hole diameter is less than the actual 0.02mm. 4. According to the principle of high frequency heating, thermal expansion and contraction, first ream the hole, then insert and lock the main shaft, and then completely fix the spindle collet after cooling.
8. If you need more accessories, please contact me.
