AT-173 Window Tint Meter the Transmittance of Ultraviolet Light, Visible Light, and Infrared Light and Infrared Light rotatable

  • Home
  • AT-173 Window Tint Meter the Transmittance of Ultraviolet Light, Visible Light, and Infrared Light and Infrared Light rotatable
Sale!

AT-173 Window Tint Meter the Transmittance of Ultraviolet Light, Visible Light, and Infrared Light and Infrared Light rotatable

$222.20

999 in stock

SKU: 1005002238286646 Category:

Description

  • Brand Name: AERMANDA
  • Certification: CE
  • Origin: CN(Origin)
  • Size: 184x70x30mm
  • Model Number: AT-173
  • Weight: 160g(Not Including batteries)
  • Wavelength Range: 380-760nm
  • Type: Single Beam Spectrometers
  • Measurement Range: 0 to 100% Light Transmission
  • Resolution: 0.1
  • Accuracy: ±2%
  • Light Source: LED

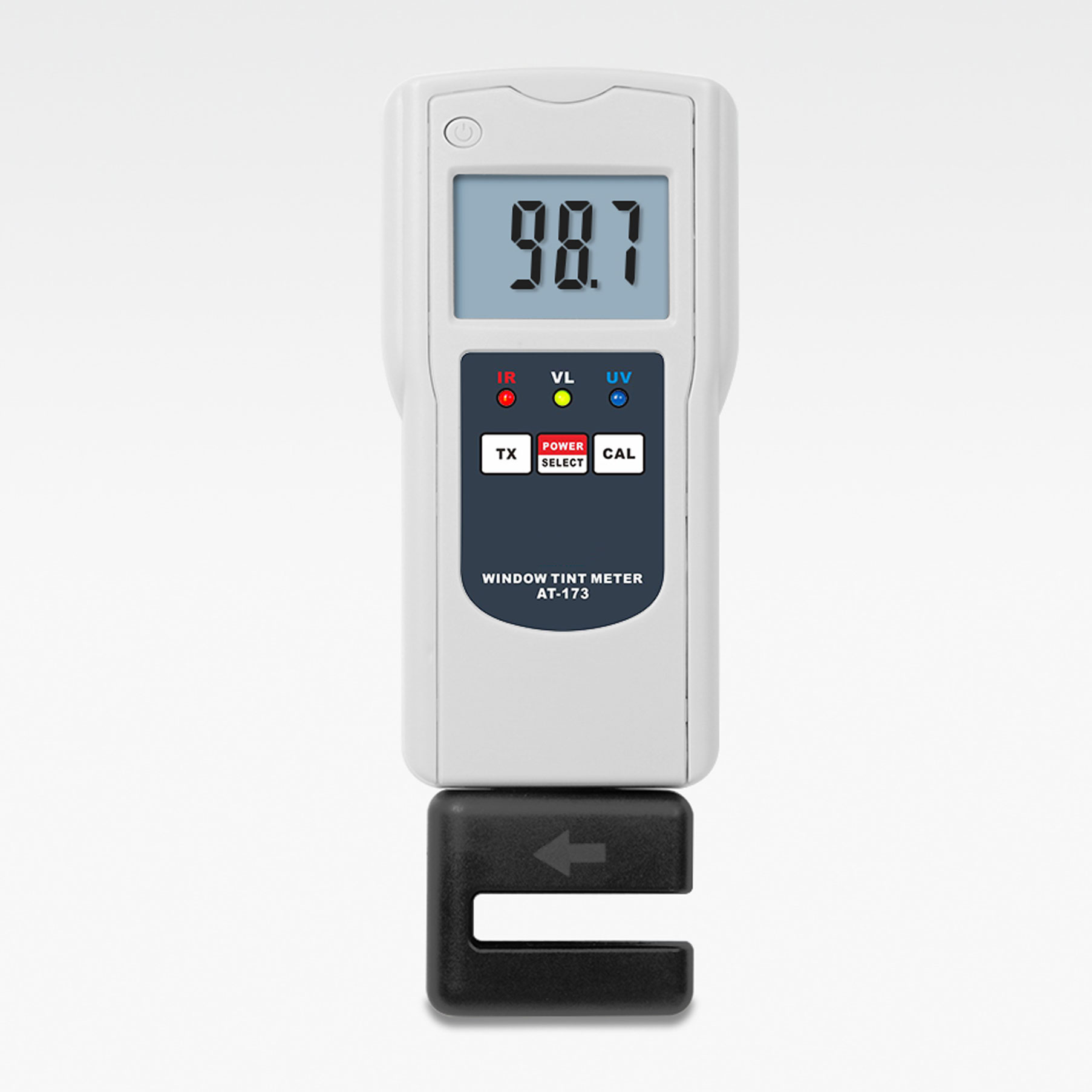

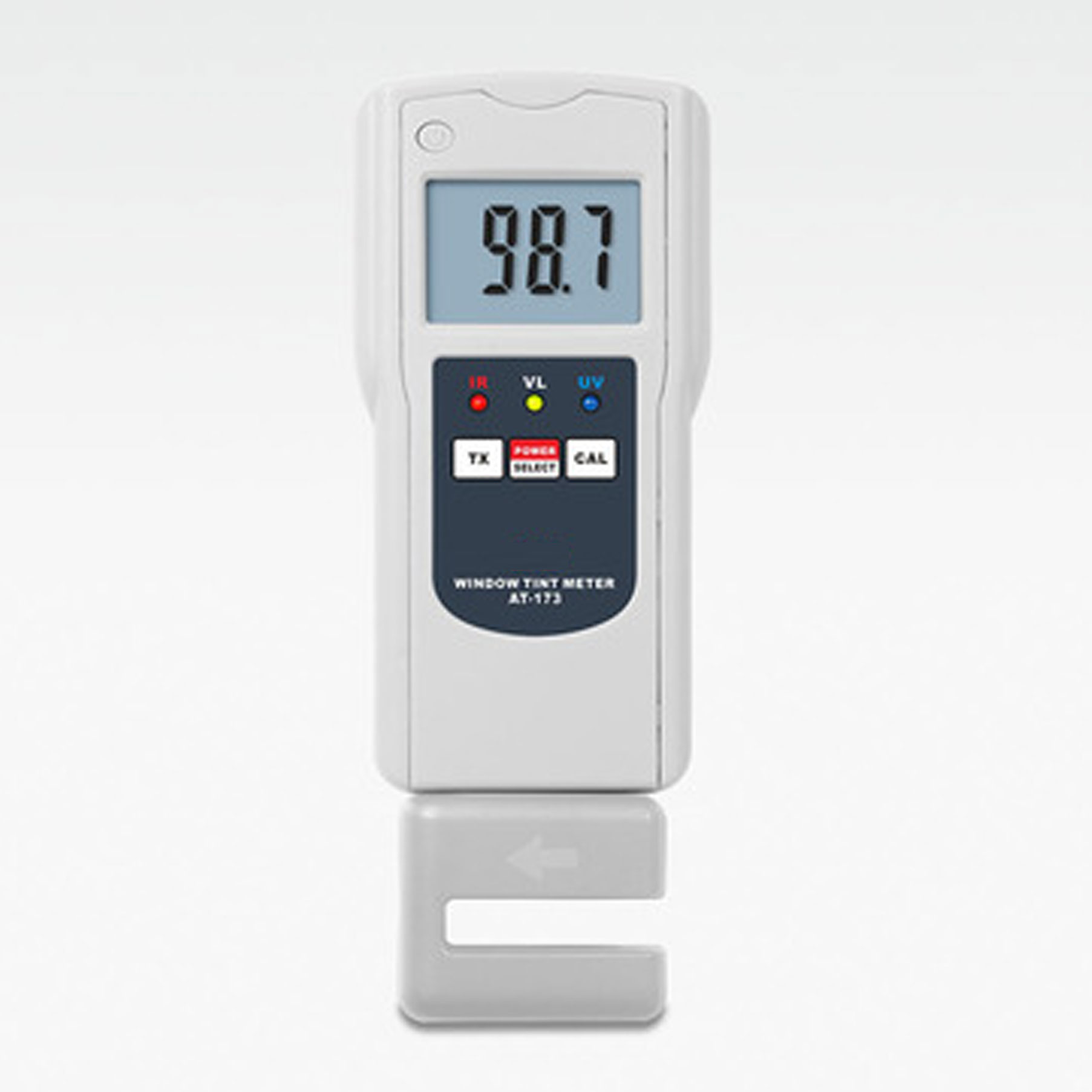

AT-173 Window Tint Meter the Transmittance of Ultraviolet Light, Visible Light, and Infrared Light and Infrared Light rotatable sensor

Product Description

The Window Tint Meter is applicable to measure the transmittance of all kinds of transparent, translucent samples with parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheet,sheet, etc). Also can be used to determine the turbidity or clarity of liquid sample (water, drinks and so on).

Product Feature

* This Window Tint Meter is a hand held device that mea-   sures the amount of light that passes through a window.

* Technology is designed in accordance with GB 2410-80,ASTM D1033-61, JIS k7105-81 and other standards.

* Digital display, wide measurement range, high resolution.

* Can measure the transmittance of ultraviolet light, visible light, and infrared light.
* It has a rotatable sensor, which can meet the needs of more different measurement angles.

* One key calibration, easy to use.

* Solid structure, exquisite, easy to carry, small volume, light weight.

* Use USB data output to connect with PC.
* Provide Bluetooth ™ data output choice

Product Parameters

Measuring range

0 to 100% Light Transmission

Resolution

0.1

Accuracy

±2%

Light Source

LED

Sample Thickness

Less than 10 mm/0.4inch

Ultraviolet Light Wavelength

380nm

Visible Light Wavelength

380-760nm

Infrared Light Wavelength

central wavelength 950nm

Measurement mode

Visible light transmittance measurement, Ultraviolet light transmittance measurement,
Infrared light transmittance measurement, Light transmittance measurement cycle.

Sensor rotation angle

0-340°(do not rotate the sensor more than 340°, otherwise it will damage the sensor)

Lamp Life

10 Years

Operating Conditions

Temperature : 0~50°C

Humidity: below 90% RH

Power Supply

4×1.5v Um-4Battery

Size

184x70x30mm

Weight

160g(Not Including batteries)

Standard Accessories

Main Unit

Carrying Case

Operation Manual

Optional Accessories

USB Data Output

Bluetooth™ Data Output
