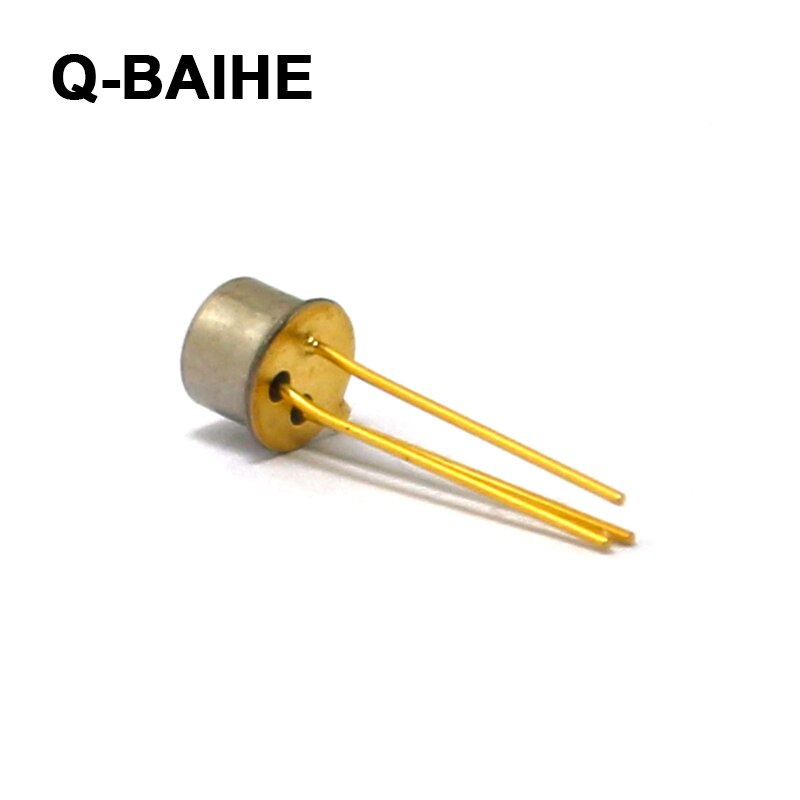

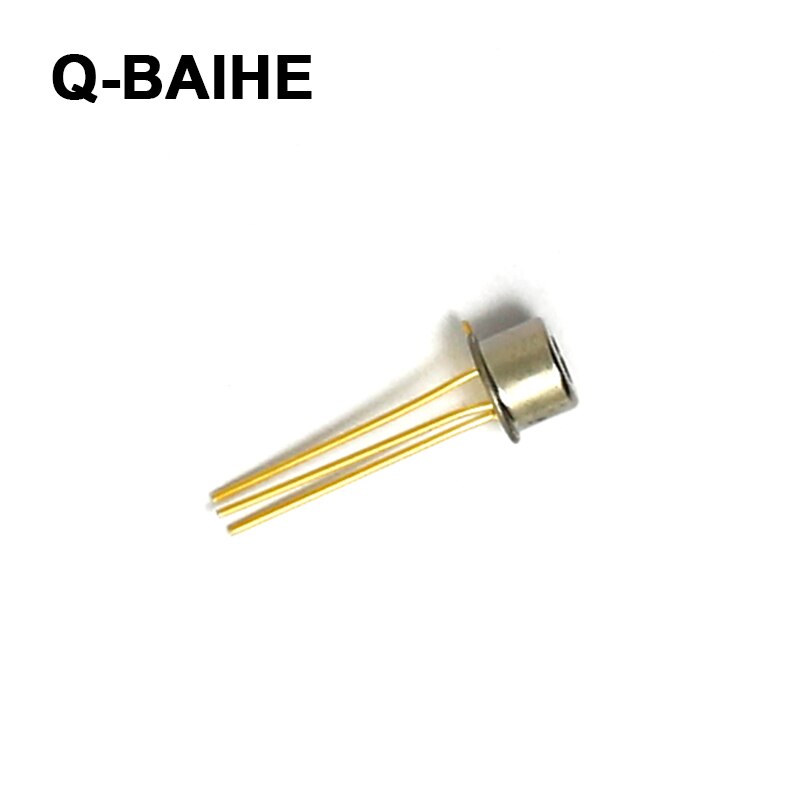

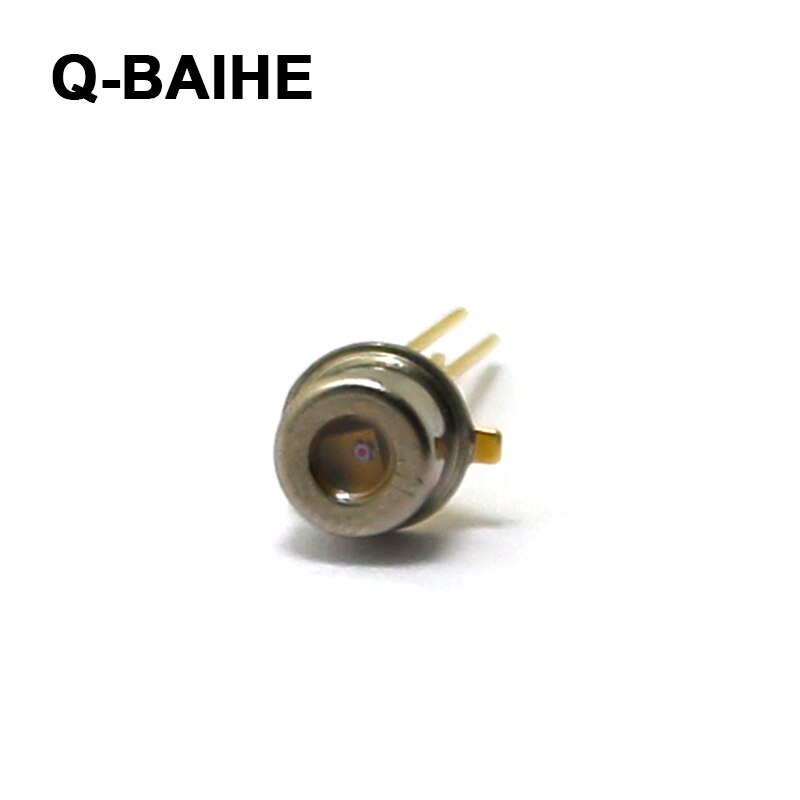

905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package

  • Home
  • 905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package
Sale!
905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package
905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package - Image 2
905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package - Image 3
905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package - Image 4
905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package - Image 5

905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package

Original price was: $44.23.Current price is: $37.91.

995 in stock

SKU: 32836538468 Category:

Description

  • Brand Name: Q-BAIHE
  • Model Number: LSSAPD9-230
  • Item Type: Stage Lighting Effect
  • Style: Mini
  • Power: 0.23W
  • Occasion: Home Entertainment



Product Description

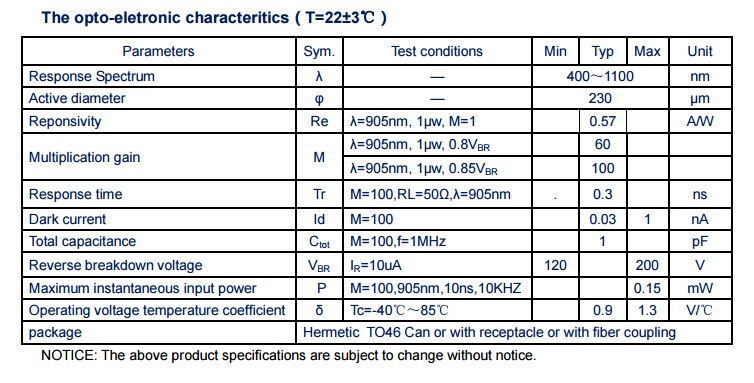

Main performance:

1. Model: LSSAPD9-230

2. Photosensitive surface diameter: 230um

3. Response wavelength: 400-1100nm

4. Dark current: 0.2nA@M=100

5. Rise time: 0.4ns@905nm

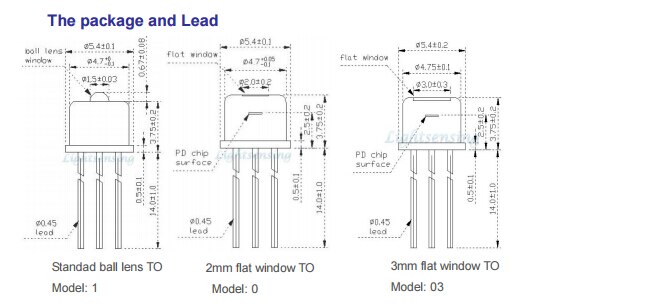

6. Package: TO-46 Can, fiber coupling, optical interface optional

7. Response: 55 mA / mW @ 905 nm, M = 100









Application:

1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television

4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer

7. Optical fiber sensor



LSSAPD9-230 1LSSAPD9-230 2LSSAPD9-230 3LSSAPD9-230 4LSSAPD9-230 5





Package:

1*905nm Silicon 230um Avalanche Photodiode Peak response @ 900nm with TO-46 Package
