800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber
800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 2
800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 3
800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 4
800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 5

800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46 Can be equipped with fiber

Original price was: $680.93.Current price is: $583.66.

999 in stock

SKU: 32835431705 Category:

Description

  • Item Type: Stage Lighting Effect
  • Occasion: Home Entertainment
  • Style: Mini
  • Brand Name: Q-BAIHE
  • Model Number: LSIPD47-0.5
  • Power: 0.9W

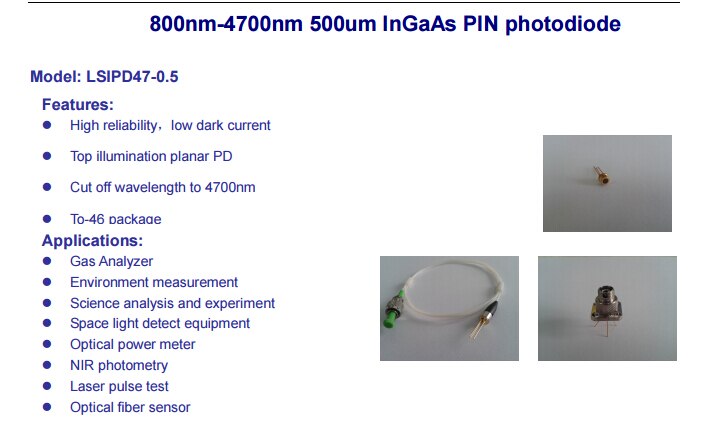

Product Description

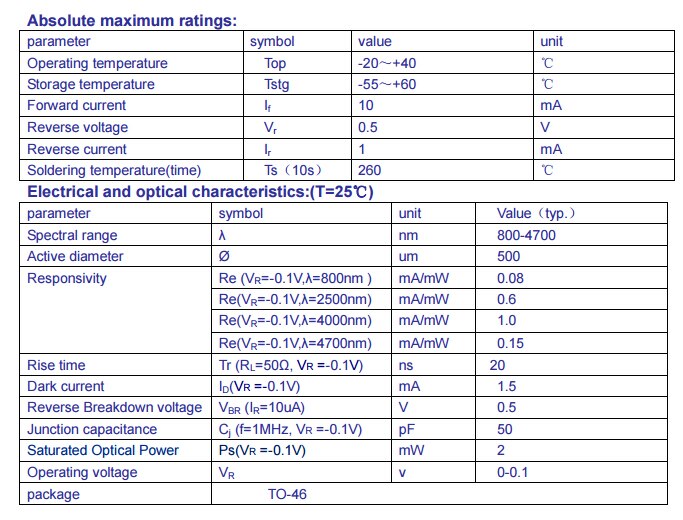

1. Model: LSIPD47-0.5

2. Photosensitive surface diameter: 500um

3. Response wavelength: 800-4700nm

4. Dark current: 1.5mA@-0.1V

5. Response time: 20ns@-0.1V

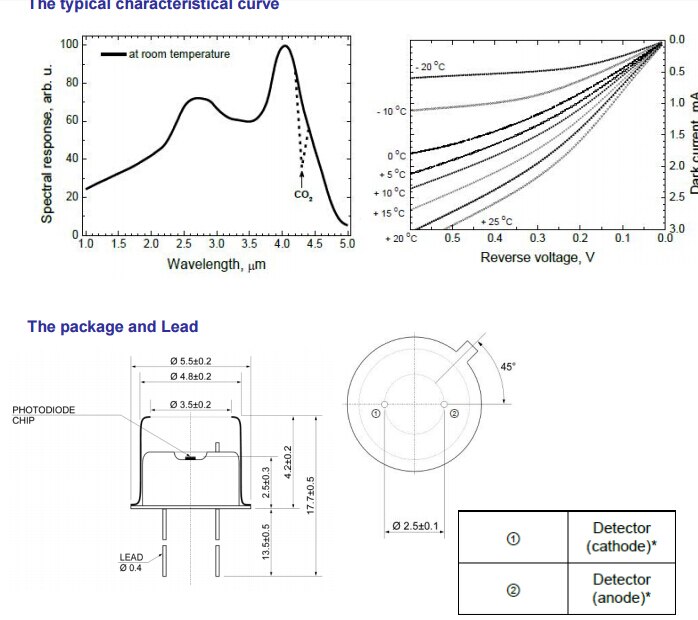

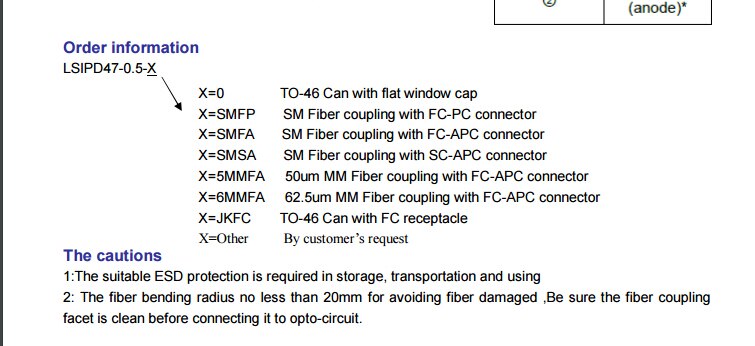

7. Package: TO-46 Can, fiber coupling, optical interface optional

8. responsiveness:

0.08 mA / mW@800 nm 0.6 mA / mW @ 2500 nm 1.0 mA / mW @ 4000 nm 0.15 mA / mW@4700 nm









Application:

1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television

4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer

7. Optical fiber sensor



47-0.5 147-0.5 247-0.5 347-0.5 4





Package:

1*800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46
