800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber

  • Home
  • 800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber
Sale!

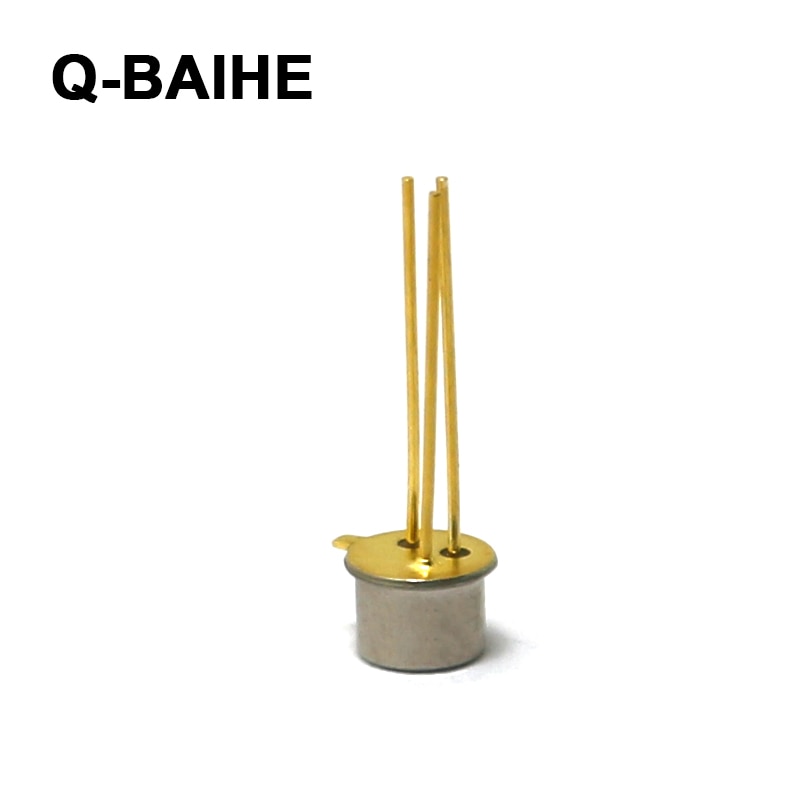

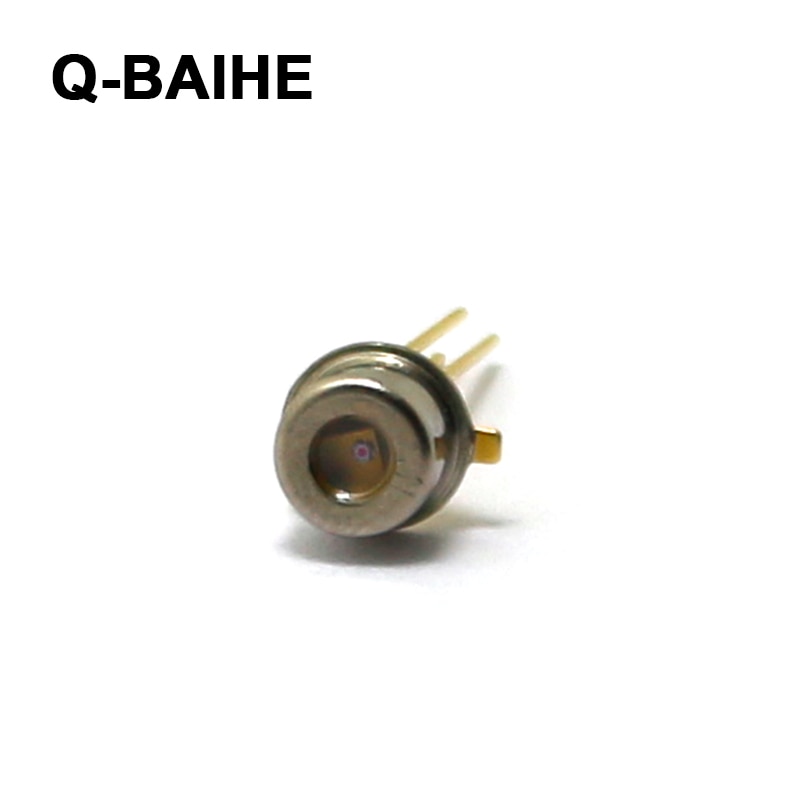

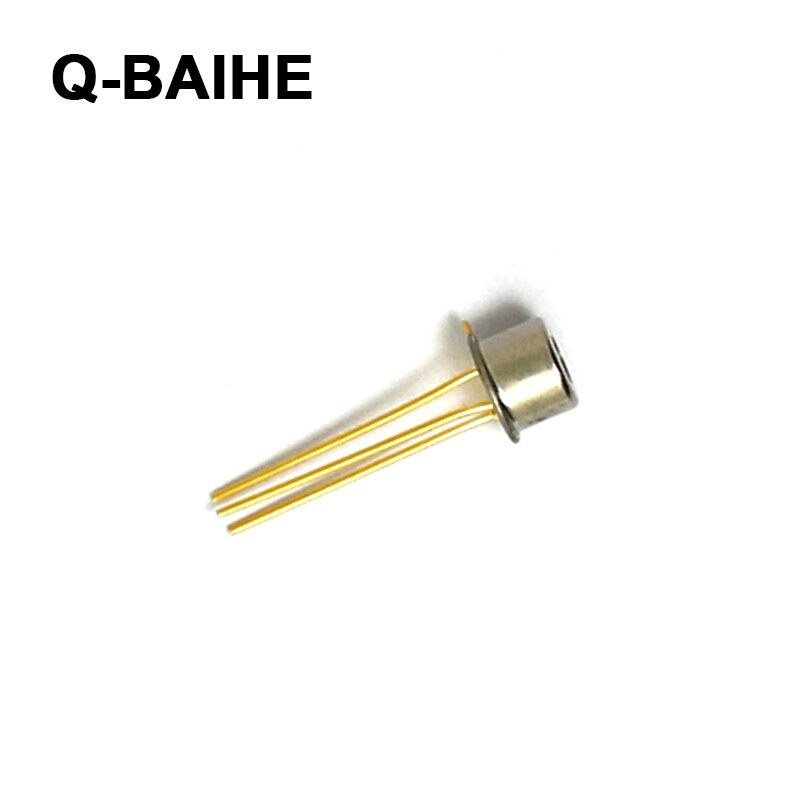

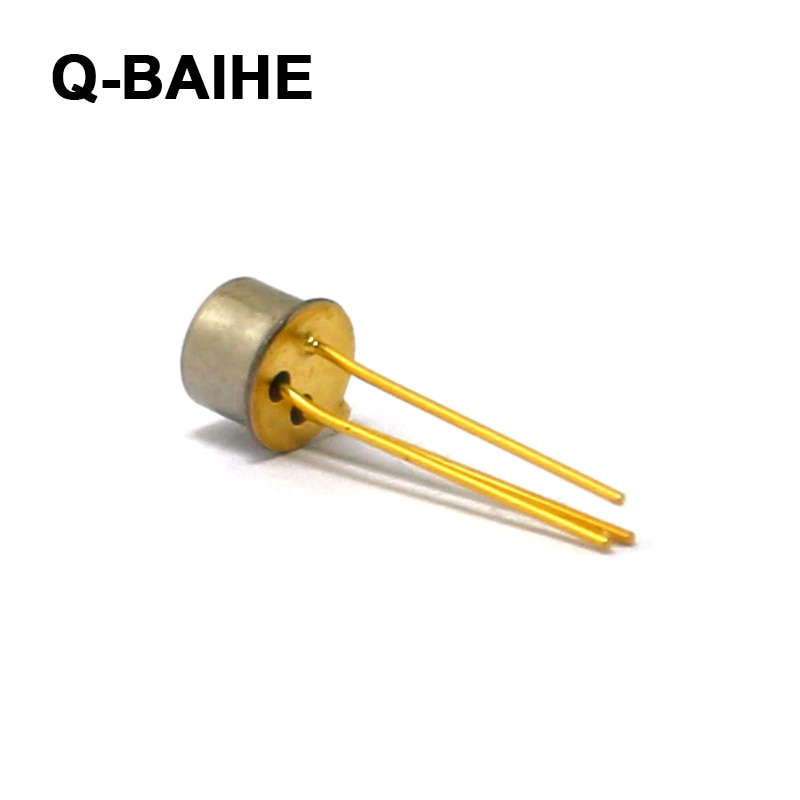

800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber
800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 2
800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 3
800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 4
800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber - Image 5

800-3600nm 300um InGaAs PIN photodiode To-46 Can be equipped with fiber

Original price was: $480.09.Current price is: $411.50.

999 in stock

SKU: 32833552921 Category:

Description

  • Item Type: Stage Lighting Effect
  • Occasion: Home Entertainment
  • Style: Mini
  • Model Number: LSIPD36-0.3
  • Brand Name: Q-BAIHE
  • Power: 0.9W



Product Description

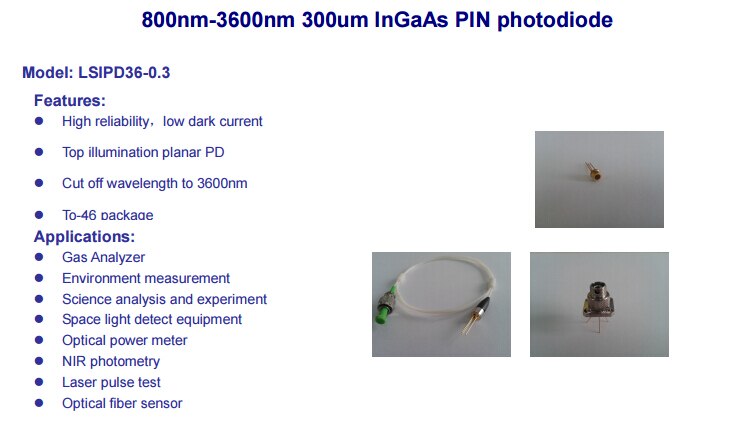

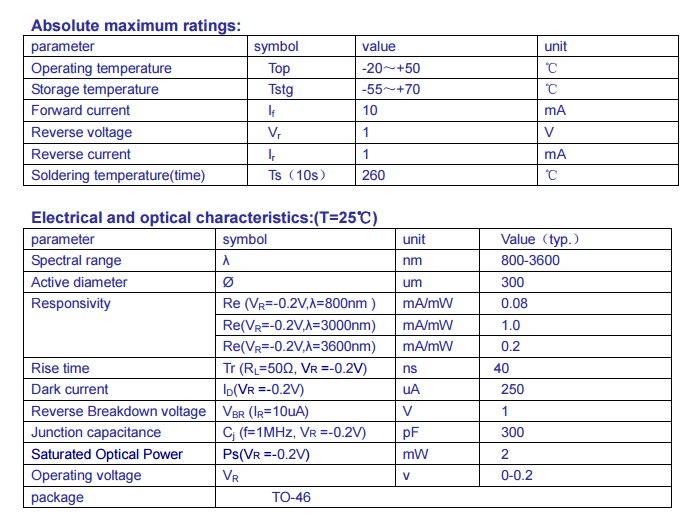

1. Model: LSIPD36-0.3

2. Photosensitive surface diameter: 300um

3. Response wavelength: 800-3600nm

4. Dark current: 250uA@-0.2V

5. Response time: 40ns@-0.2V

6. Package: TO-46 Can, fiber coupling, optical interface optional

7. Response:

0.08 mA / mW@800 nm 1.0 mA / mW @ 3000 nm 0.2 mA / mW @ 3600 nm









Application:

1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television

4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer

7. Optical fiber sensor

36-0.3 136-0.3 236-0.3 336-0.3 4







Package:

1*800-4700nm 800nm-4700nm 500um InGaAs PIN photodiode To-46
