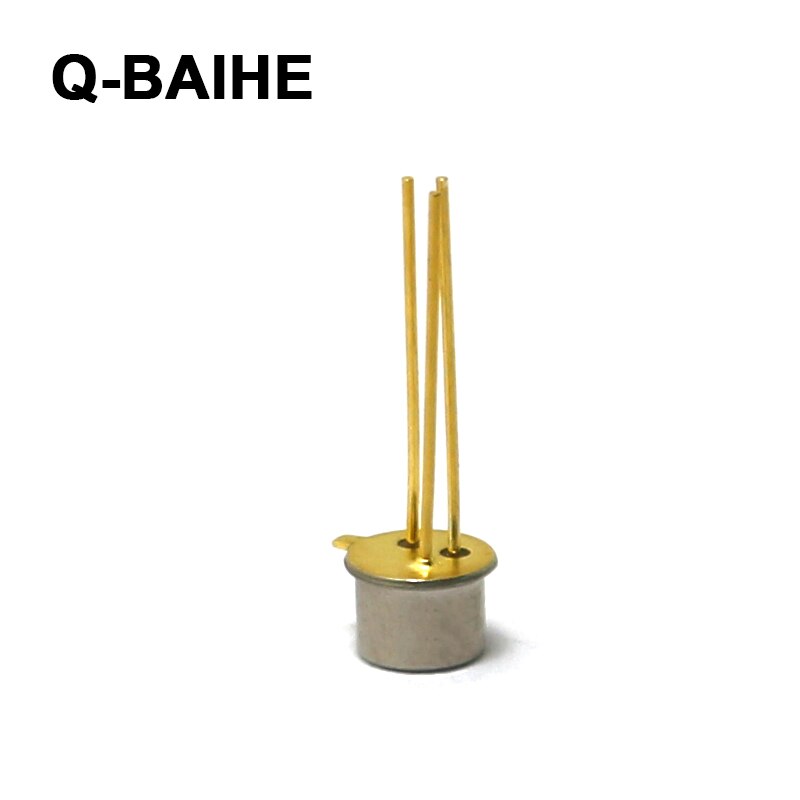

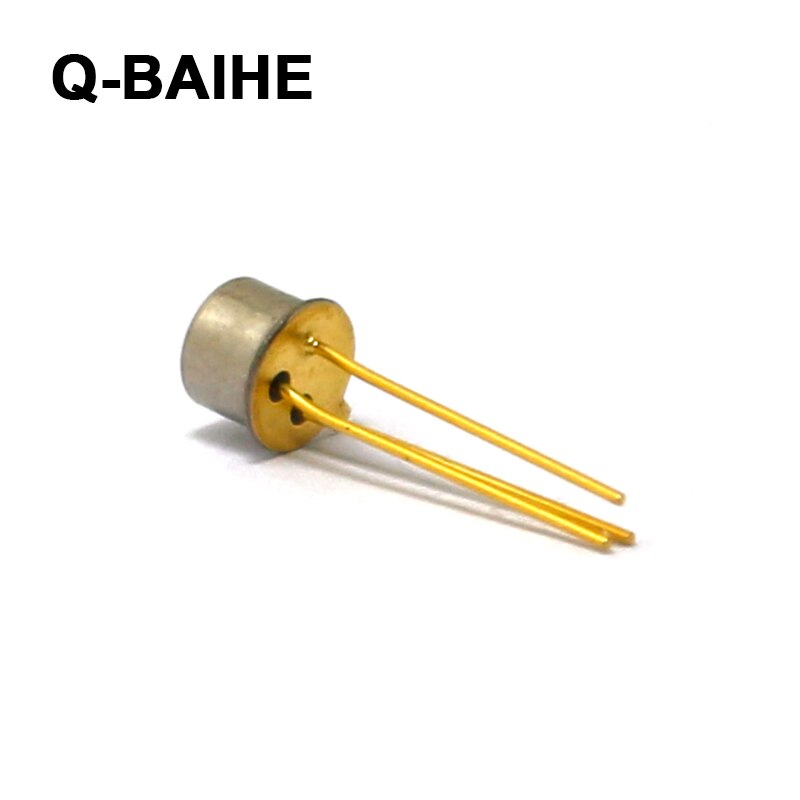

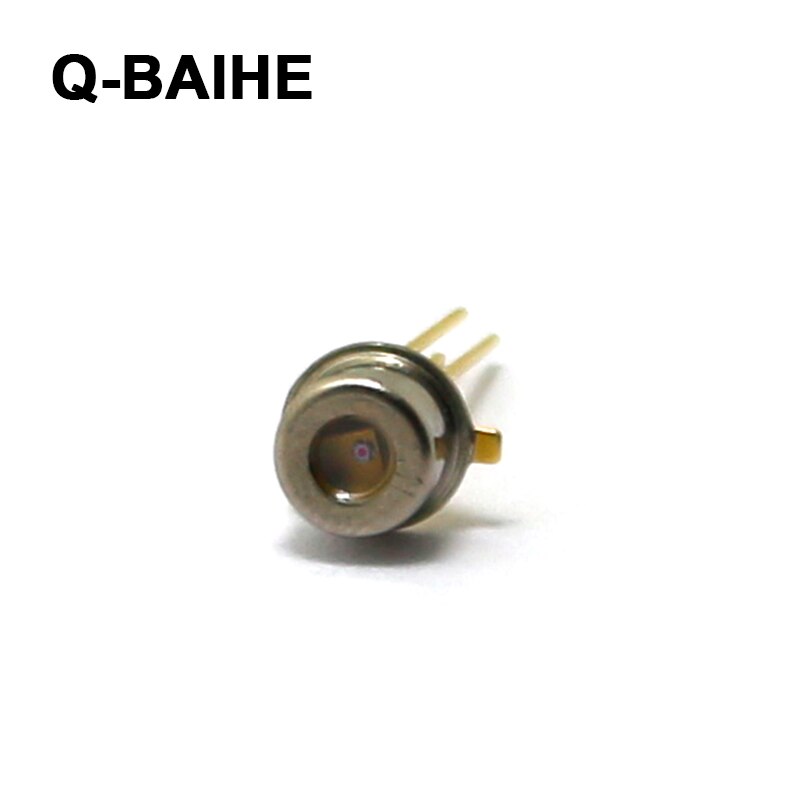

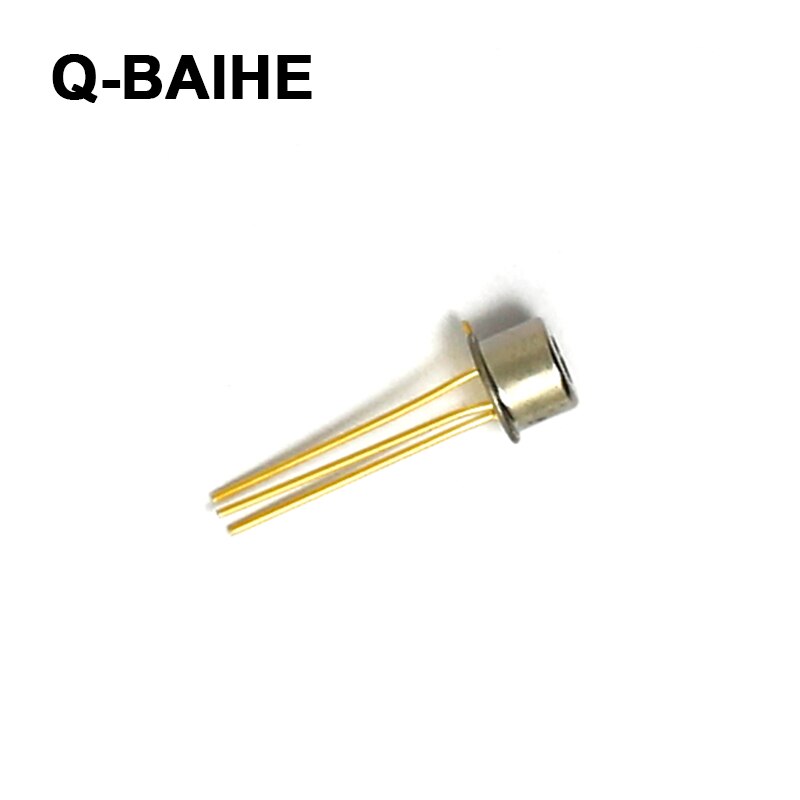

800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1
800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1 - Image 2
800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1 - Image 3
800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1 - Image 4
800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1 - Image 5

800-1700nm 300um 0.3mm InGaAs PIN photodiode high reliability low dark current TO-46 Model 1

Original price was: $28.35.Current price is: $24.30.

1090 in stock

SKU: 32832125309 Category:

Description

  • Brand Name: Q-BAIHE
  • Style: Mini
  • Model Number: LSIPD-L0.3-B-1
  • Power: 0.9W
  • Item Type: Stage Lighting Effect
  • Occasion: Home Entertainment



Product Description

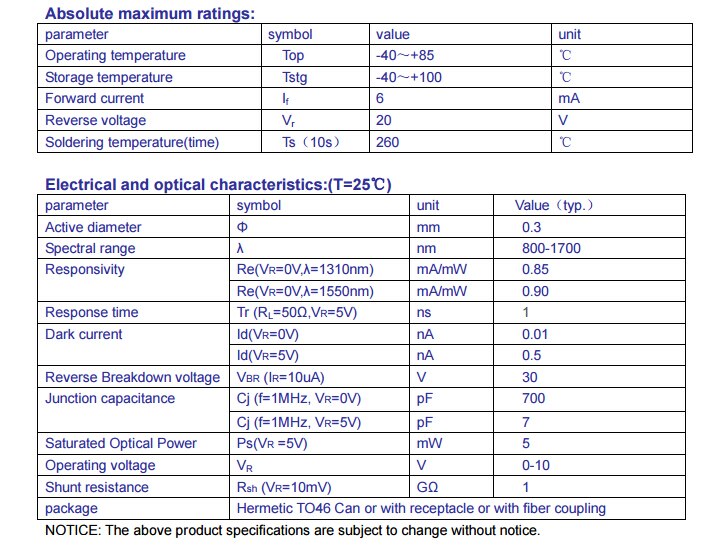

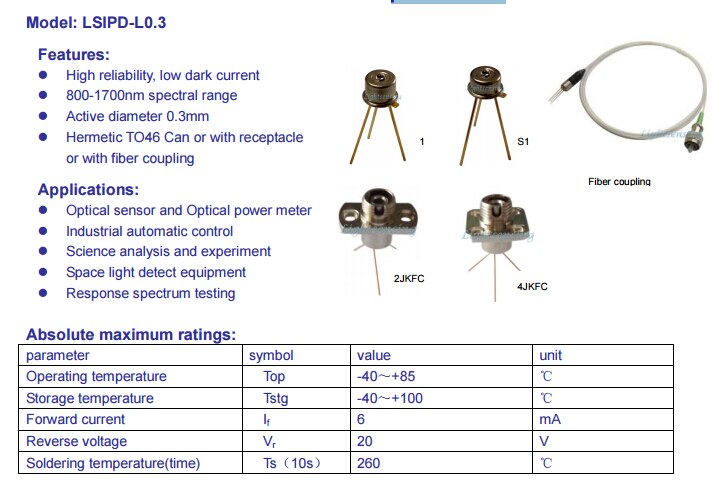

1. Model: LSIPD-0.3-Model 1

2. Photosensitive surface: 300um

3. Response wavelength: 800-1700nm

4. Dark current: 0.5nA@-5V

5. Rise time: 0.8ns@-5V

6. Package: TO-46 Can, fiber coupling, optical interface optional

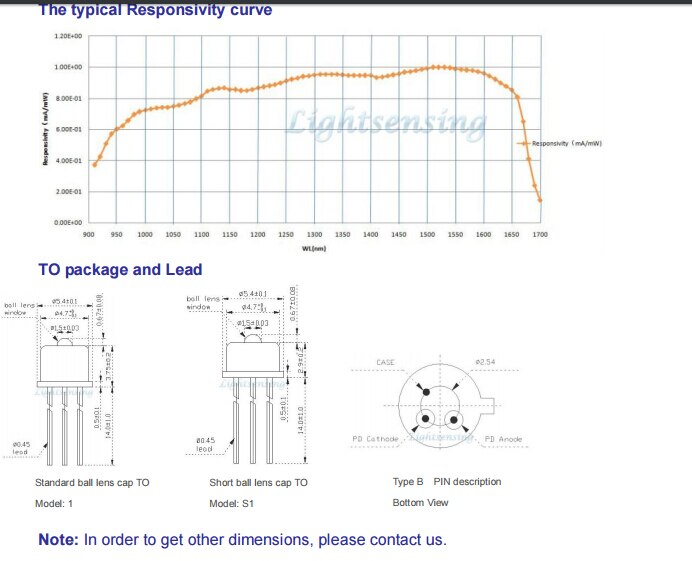

7. Response:

0.85 mA / mW @ 1310 nm 0.90 mA / mW @ 1550 nm
L0.3-1L0.3-2L0.3-3




Application:

1. Industrial automation control 2. Scientific analysis and experiment 3. Simulation of cable television

4. Optical fiber communication 5. Fast optical pulse test 6. Optical time domain reflectometer

7. Optical fiber sensor









Package:

1*TO-46 800-1700nm 300um 0.3mm InGaAs PIN photodiode  high reliability low dark current TO-46 Model 1.
