Parameter

Model:HLD7950035
Wavelength : 795 nm(±5nm)
Output Power:35mW
Small package : ø5.6 mm(TO-18)
Operating Current:70mA
Threshold current:20mA
Operating voltage:2.1V
Operating Temperature:-10 ~ 50 ℃
Divergence angle:15 * 30
Life span:10000h

Features：

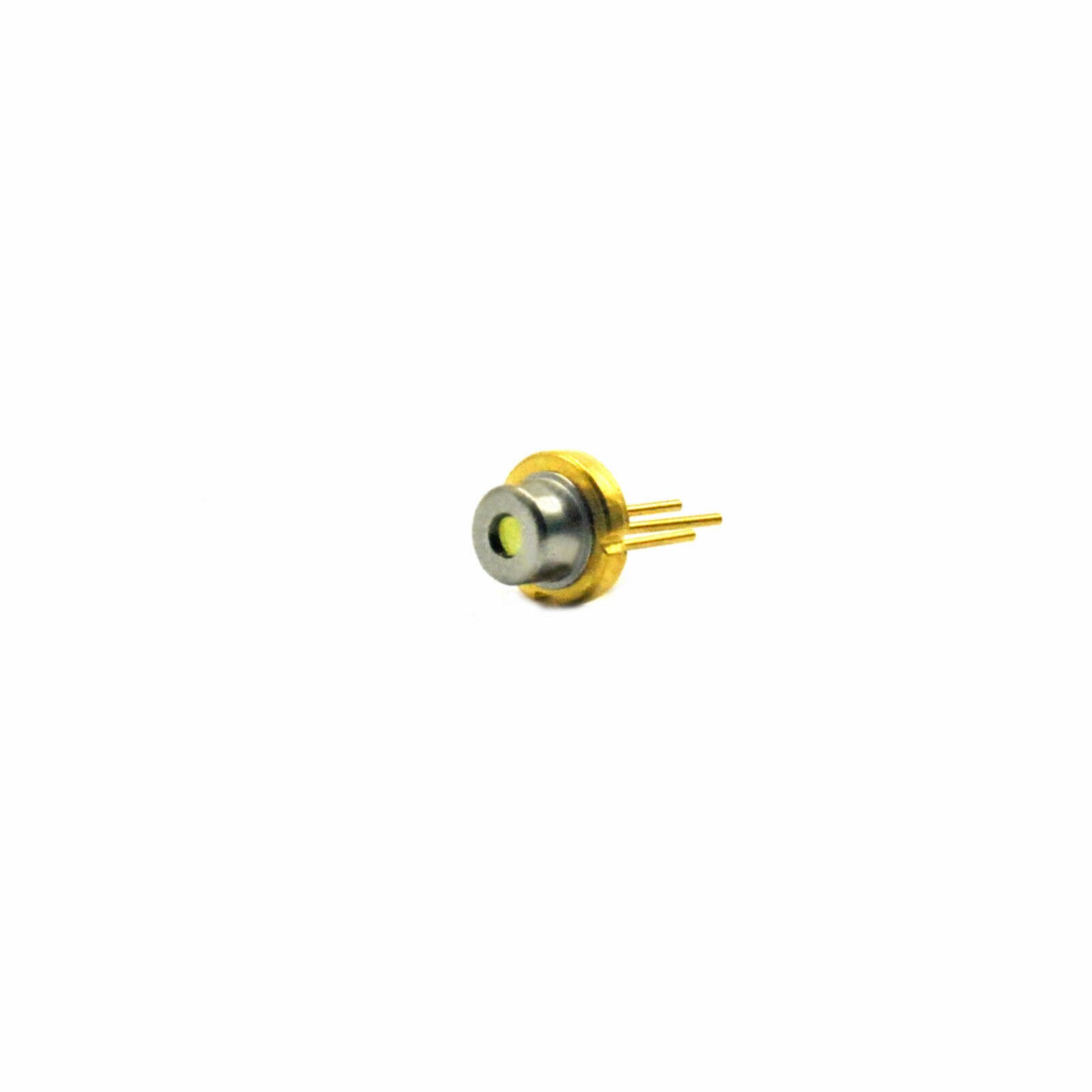

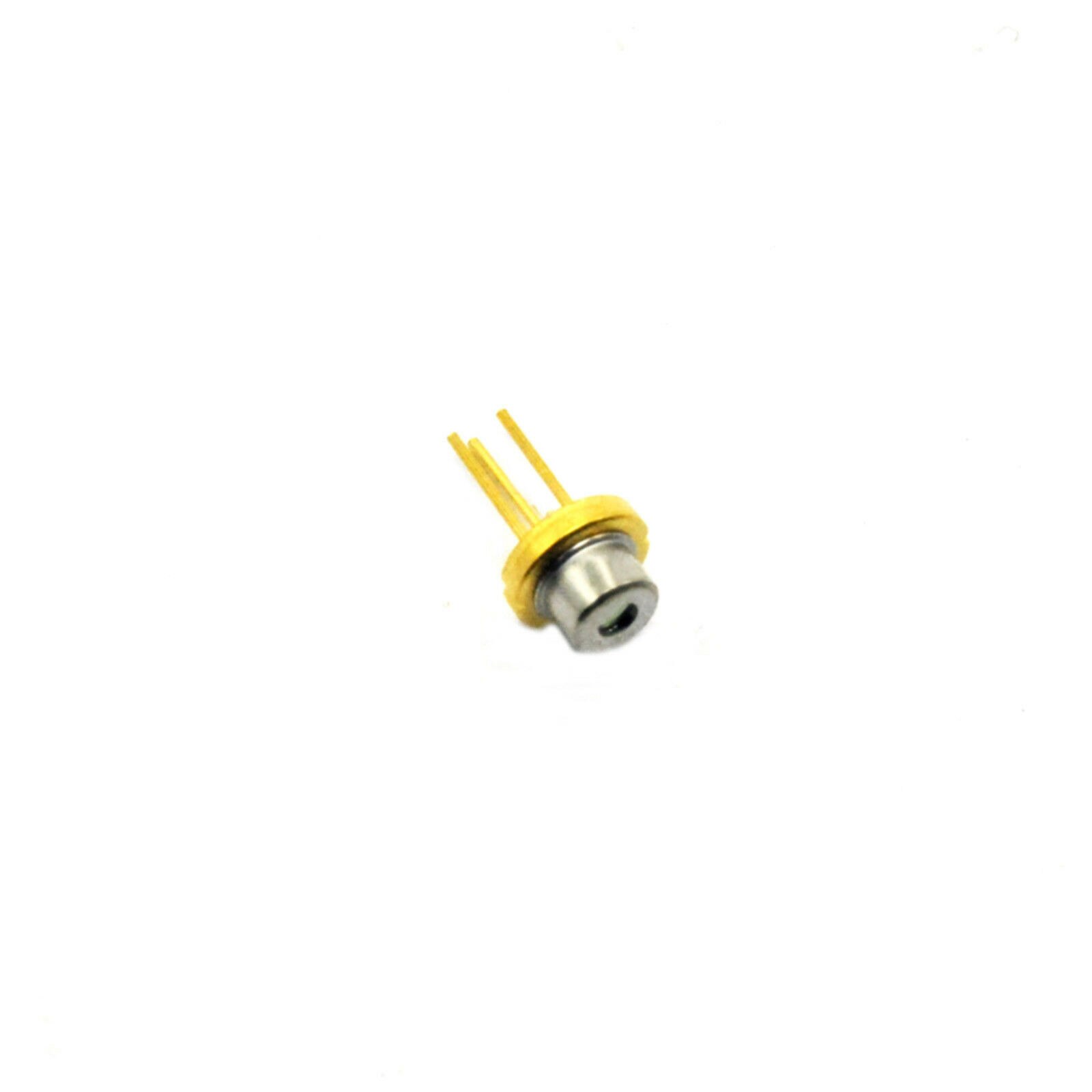

795nm 35mw 5.6mm Laser diode, New & Original parts, Laser diode serial number is HLD7950035.
The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don’t operate when the power is connected.

Package

1pc HLD7950035 795nm 35mW 5.6mm IR Laser Diode
