Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±20%
- Technology: Carbon Film
- Type: Rotary Potentiometer
- Operating Temperature: -10 -100℃
- is_customized: Yes
- Max. Operating Voltage: AC 250V
- Model Number: WH148
- Rated Power: 0.05W

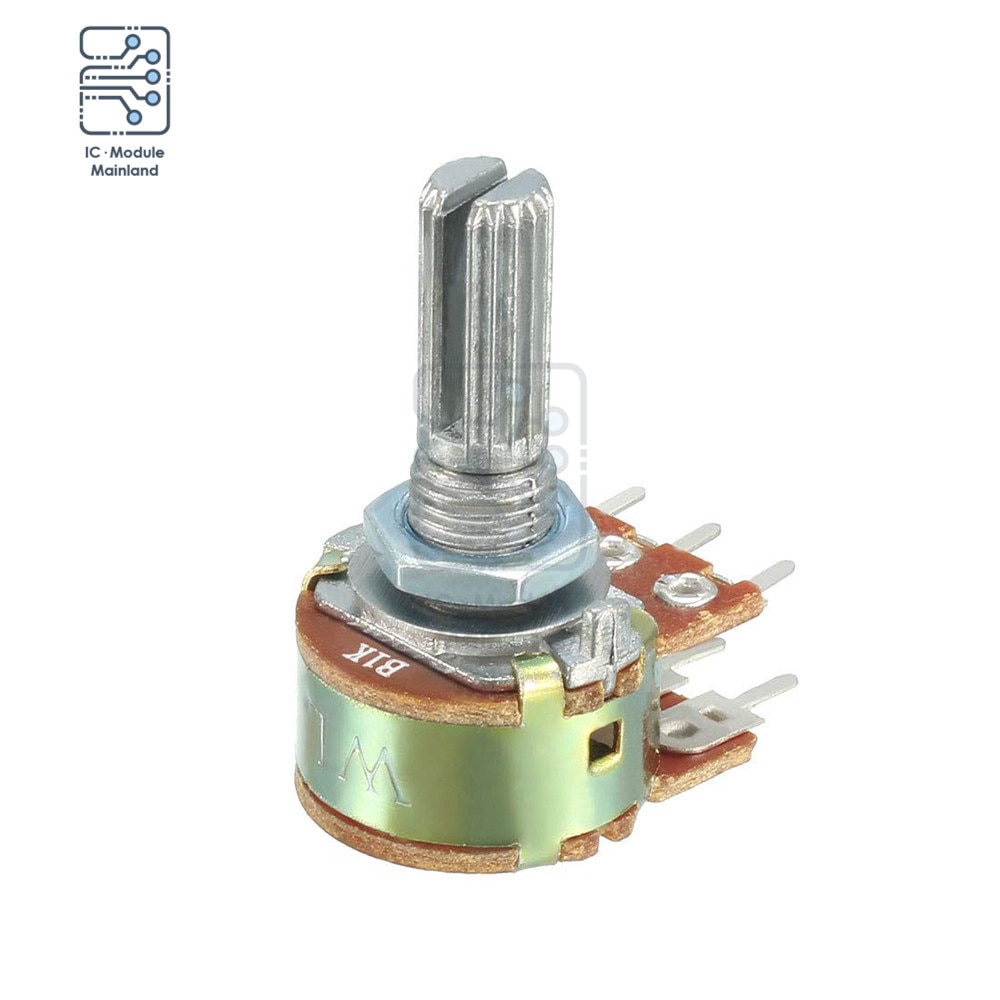

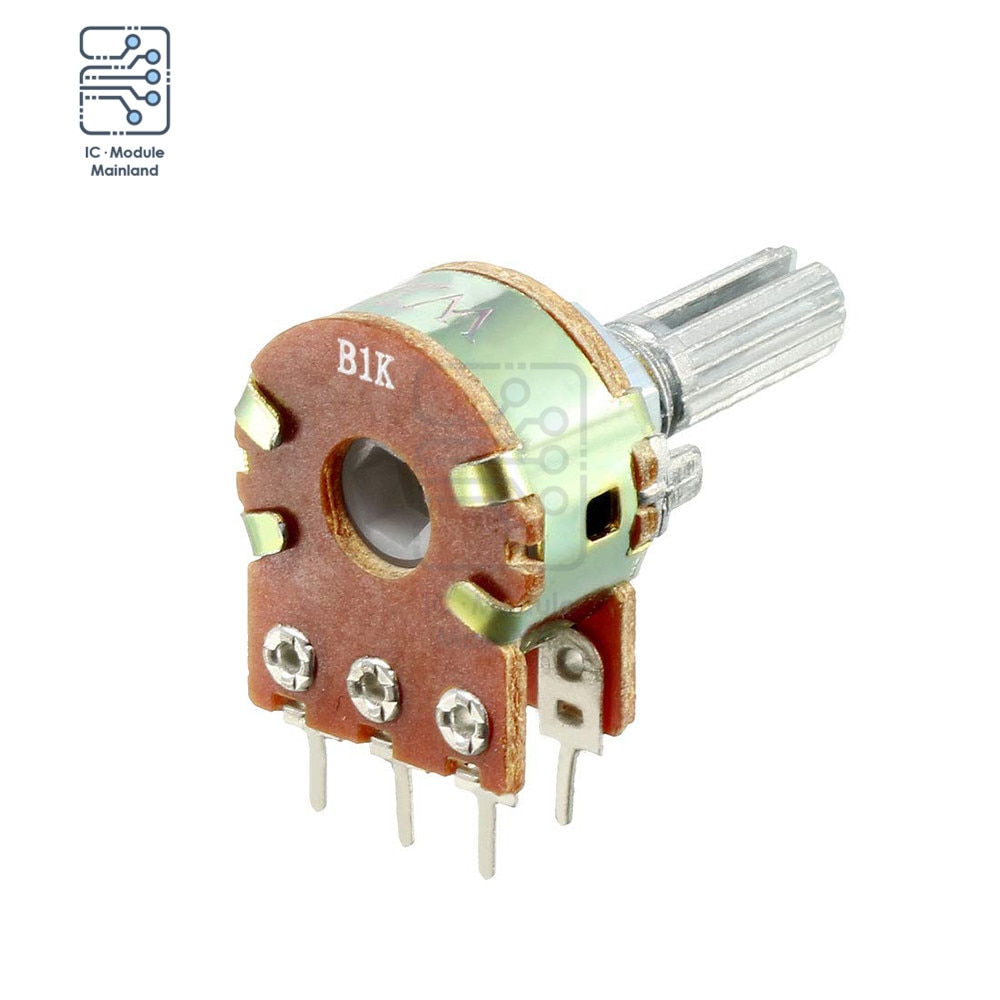

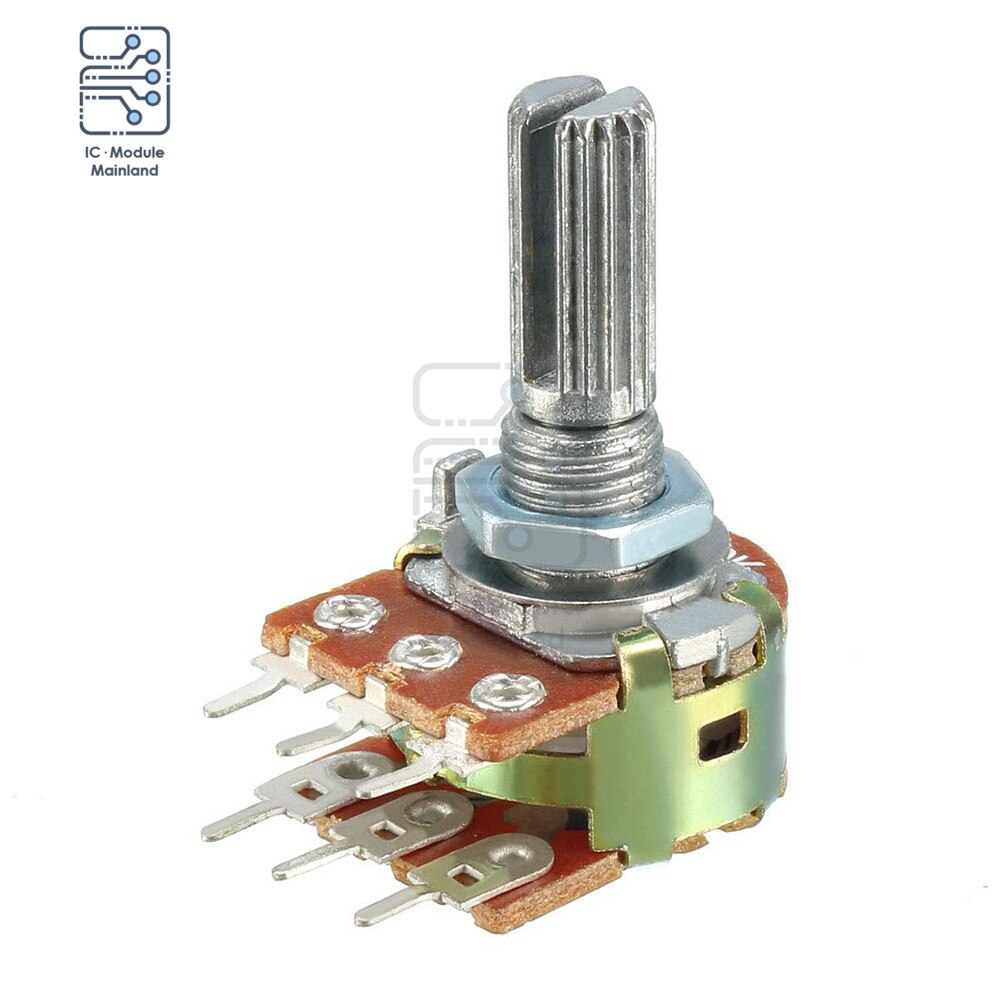

5PCS/Lot 1K 2K 10K 20K 100K 250K 1M Ohm Variable Resistors Dual Linear 6 Pin Rotary Carbon Film Taper Potentiometer 20mm ShaftFeature:
Resistance identified on potentiometer, convenient to distinguish and install.
Specification:
Name: Rotary Potentiometer
Type: Dual Linear
Terminal: 6 Pin
Resistance Value: 1K, 2K, 5K, 10K, 20K, 50K, 100K, 250K, 500K, 1M Ohm
Material: Metal + Carbon Film
Rotation angle: 300°±10°
Rotational torque: 10 -200gf.com
Point electric torque: 50 -150gf.cm
Resistance tolerance: ±20%
Withstand voltage: 1 minute AC 250V
Rotating noise: less than 100mV
Rotation life: 10000 cycles
Load power: Curve B: 0.05W, other than B: 0.025W
Operating voltage: Curve B: 50V DC other than B: 25V AC
Package Included:

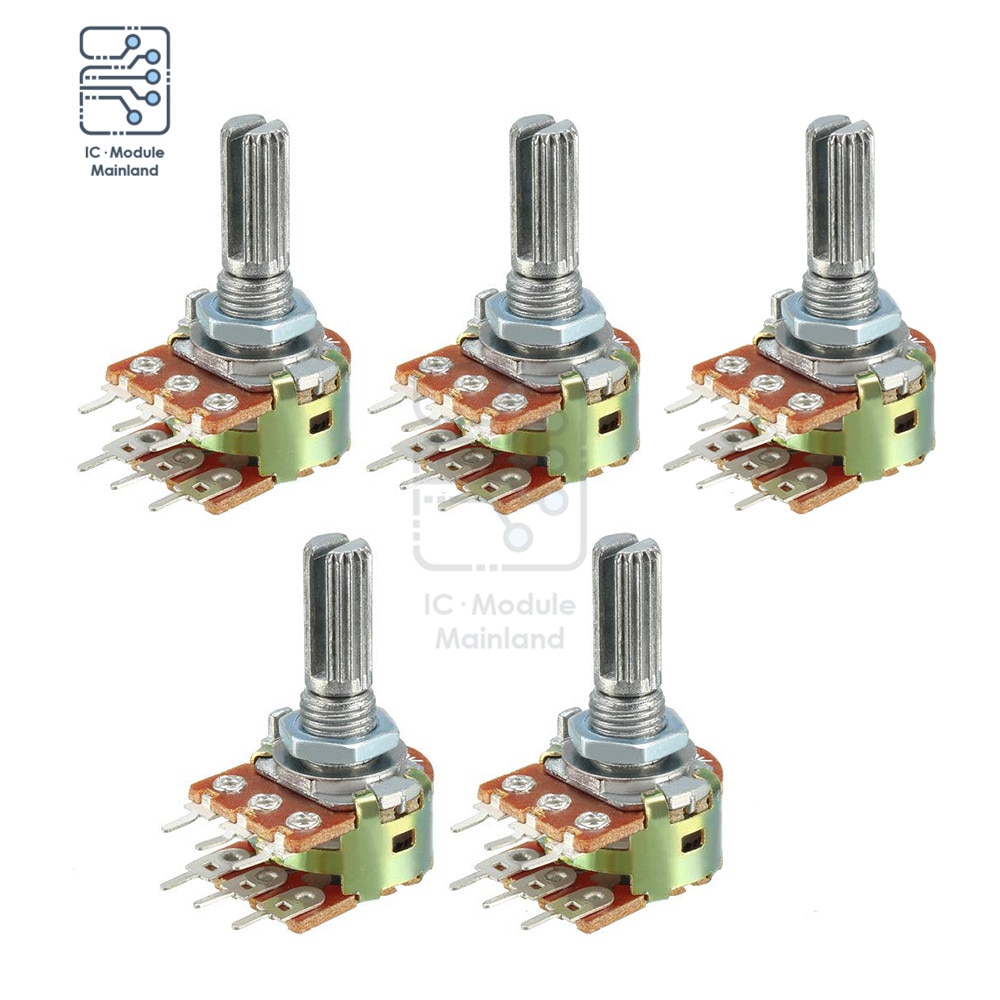

5 x 20mm Shaft Dual Linear 6 pin Rotary Potentiometer
