Laserlands has both New and Used NICHIA NDB7a75 Laser Diode for sale. And the used one is tested and functional.

Please search NDB7a75 in our store if you need to buy a brand new one or a used one.

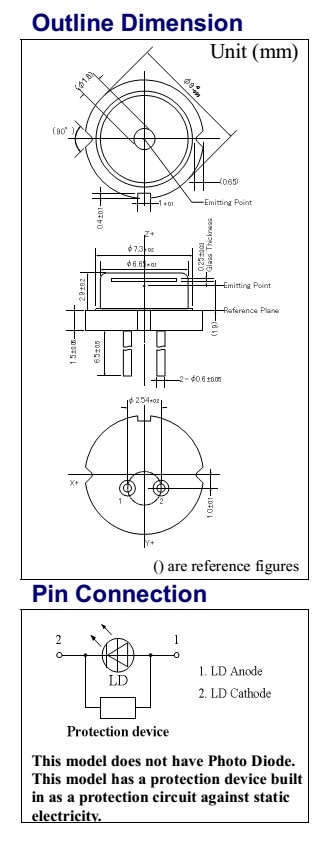

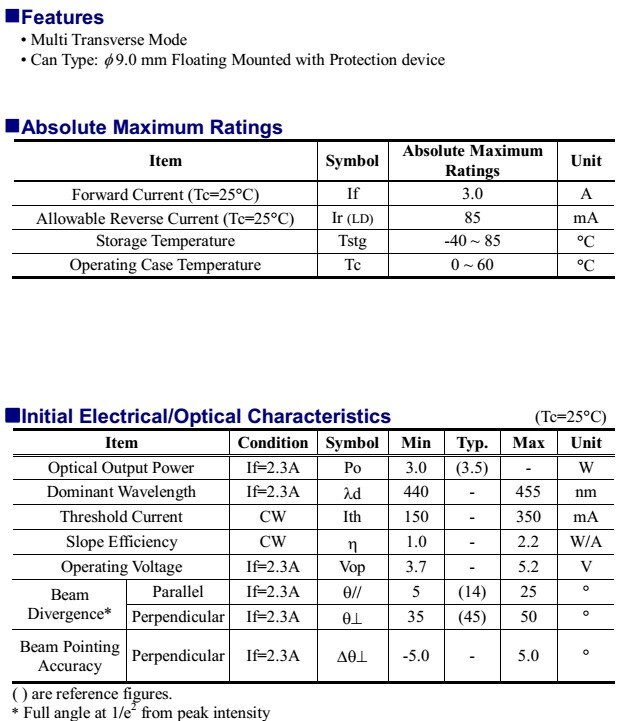

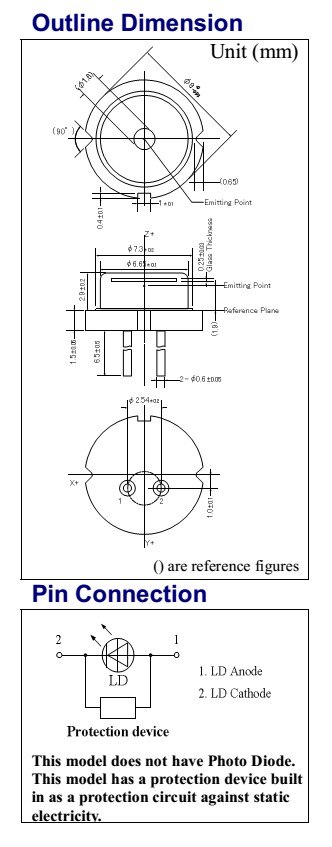

Please refer to the datasheet pictures as below before you take any operations with the diode.

Brief Specifications:

NICHIA ndb7a75 USED

Wavelength: 445nm

Maximum output power: 3.5W

Pulse output: 7w

Threshold current :150-350mA

Operating voltage :3.7-5 .2 V

Package: TO-5 (9mm)

Operating temperature: 0 to +60 degrees Celsius

Storage temperature: -40 to +85 degrees Celsius

Working life: more than 10,000 hours

Package: one pc only

Attn: only express shipping method no matter which shipping method you have chosen. no air mail, pls leave us your receiver name, address, phone number, tax number when you pay.



Applications:

This diode Can be used for equipment, health care (beauty instrument), printing equipment, bio-analysis, stage lighting, projection turned teaching Page pen, flashlight, warm measurement (ranging) instrument, Swinger, marking device, horizontal ruler, toys and other products.
