Description
- Brand Name: SZEKS
- Compatible Brand/Model: None
- Origin: CN(Origin)
- Model Number: 3590S-2
- is_customized: NO
- Condition: New
- Type: Rotary Potentiometer

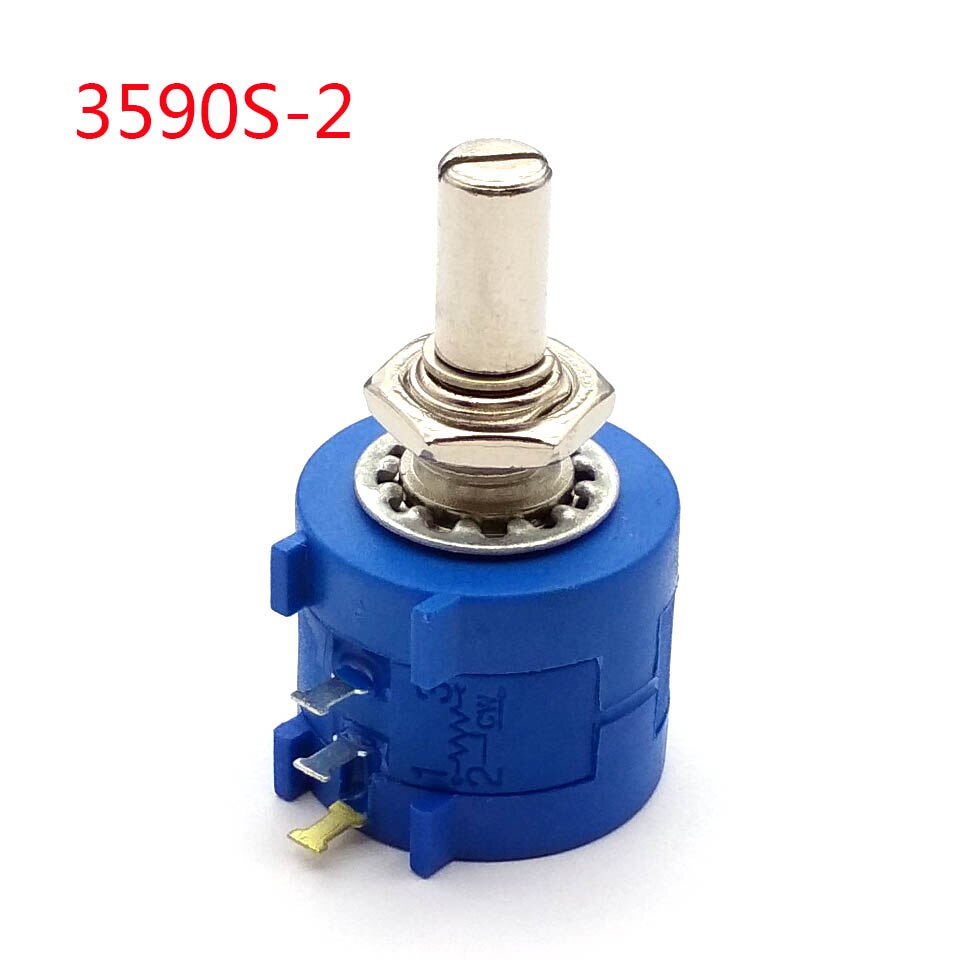

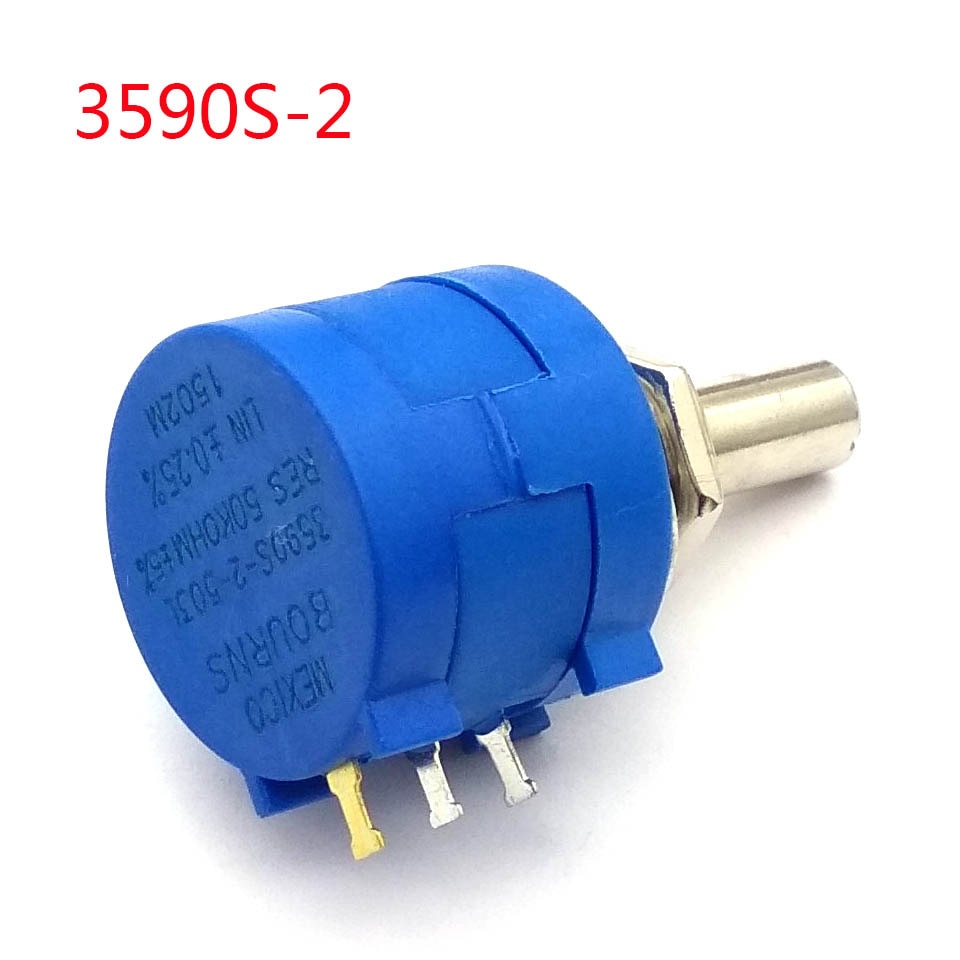

3590S-2 For BOURNS Variable Resistor Potentiometer Precision Potentiometer 1K 2K 5K 10K 20K 50K 100K 100R 500R
Buyers Optional:
3590S-2-102L 1K
3590S-2-202L 2K
3590S-2-502L 5K
3590S-2-103L 10K
3590S-2-203L 20K
3590S-2-503L 50K
3590S-2-104L 100K
3590S-2-101L 100R
3590S-2-501L 500R
Description:
BOURNS-3590S-2 potentiometer: optional plastic sleeve installation shaft or a metal shaft seal wirewound resistors whole…
Electrical Characteristics:
Resistance Tolerance: ± 5%.
Independent Linearity: ± 0.25%;
Power: 2W;
Effective electronic angle: 3600 ° + 10 ° -0 °
Environmental Characteristics: Operating temperature range 1 ° C —– + 125 ° C,
Storage temperature: -55 ° C —– + 125 degrees Celsius;
Rotational Life: 1,000,000 turn; Load Life: 1000 hours;
Mechanical properties: mechanical angle: 3600 ° + 10 ° -0 °
Shaft diameter: 6.35mm.
