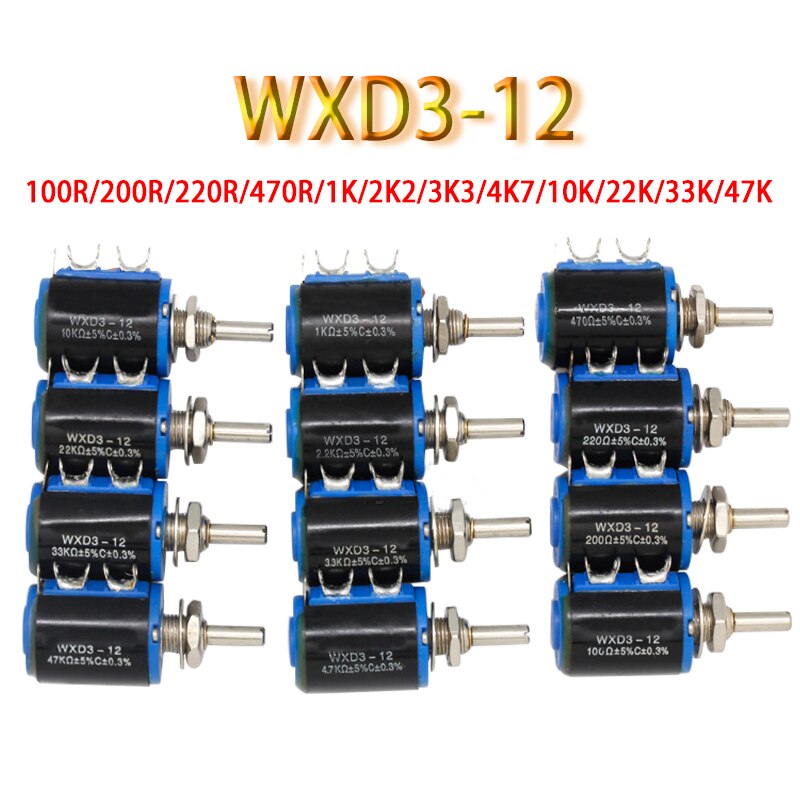

1pcs WXD3-12 Precision Multi-turn Wirewound Potentiometer 100R/200R/220R/470R/1K/2.2K/3.3K/4.7K/10K/22K/33K/47K Sliding Rheostat

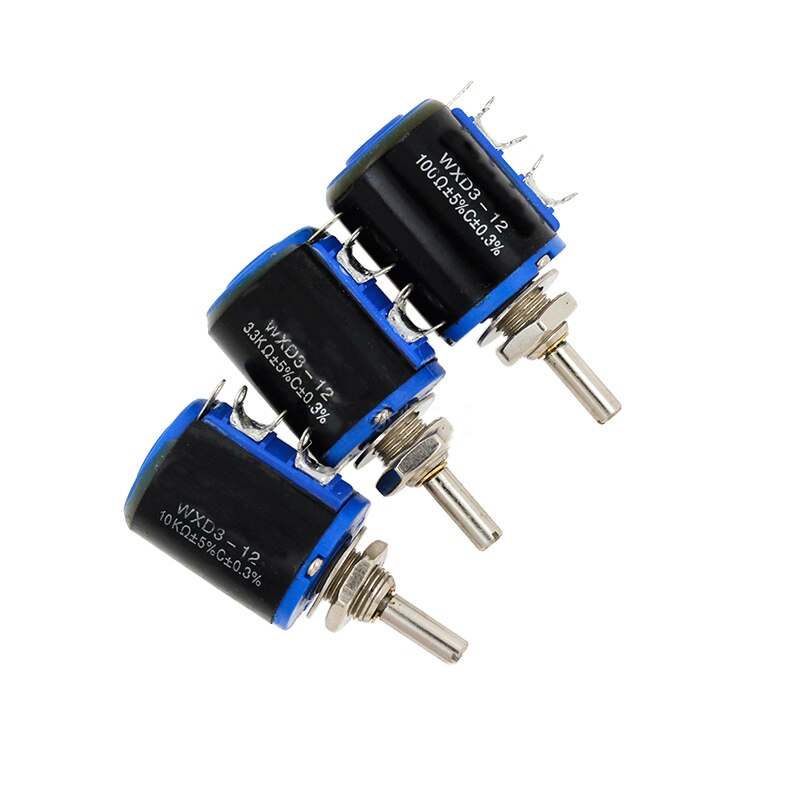

1pcs WXD3-12 Precision Multi-turn Wirewound Potentiometer 100R/200R/220R/470R/1K/2.2K/3.3K/4.7K/10K/22K/33K/47K Sliding Rheostat - Image 2

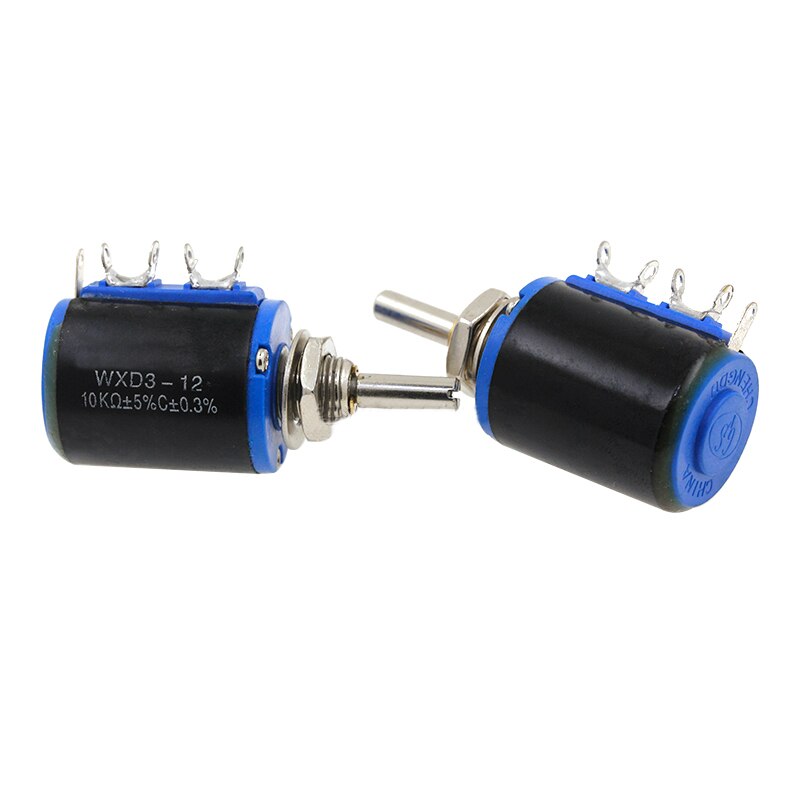

1pcs WXD3-12 Precision Multi-turn Wirewound Potentiometer 100R/200R/220R/470R/1K/2.2K/3.3K/4.7K/10K/22K/33K/47K Sliding Rheostat - Image 3
1pcs WXD3-12 Precision Multi-turn Wirewound Potentiometer 100R/200R/220R/470R/1K/2.2K/3.3K/4.7K/10K/22K/33K/47K Sliding Rheostat - Image 4

1pcs WXD3-12 Precision Multi-turn Wirewound Potentiometer 100R/200R/220R/470R/1K/2.2K/3.3K/4.7K/10K/22K/33K/47K Sliding Rheostat

Price range: $1.56 through $1.79

SKU: 1005003303423747 Categories: ,

Description

  • Brand Name: SISJQRR
  • Condition: New
  • Origin: CN(Origin)
  • Resistance Tolerance: 5%
  • Technology: Wirewound
  • Type: Wirewound Potentiometer
  • Operating Temperature: 55~100
  • is_customized: Yes
  • Max. Operating Voltage: 160v
  • Model Number: WXD3-12
  • Rated Power: 1w
  • Functions: Electronic Module
  • Range of application: Switch And Sensor For Arduino STM

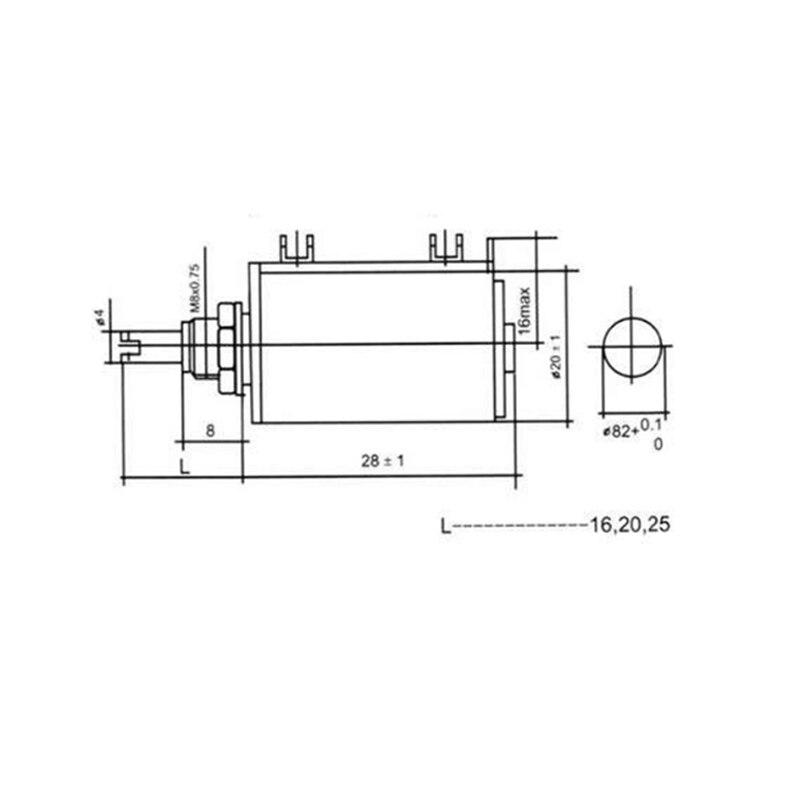

Product Parameters:
Nominal resistance range: 100Ω-47KΩ
Resistance tolerance: ±5%
Rated power: 1W (55℃) 0W (100℃)
Rated voltage: 160V
Rotation angle: 1800°±20°
Starting torque: 3.5-100mN.m
