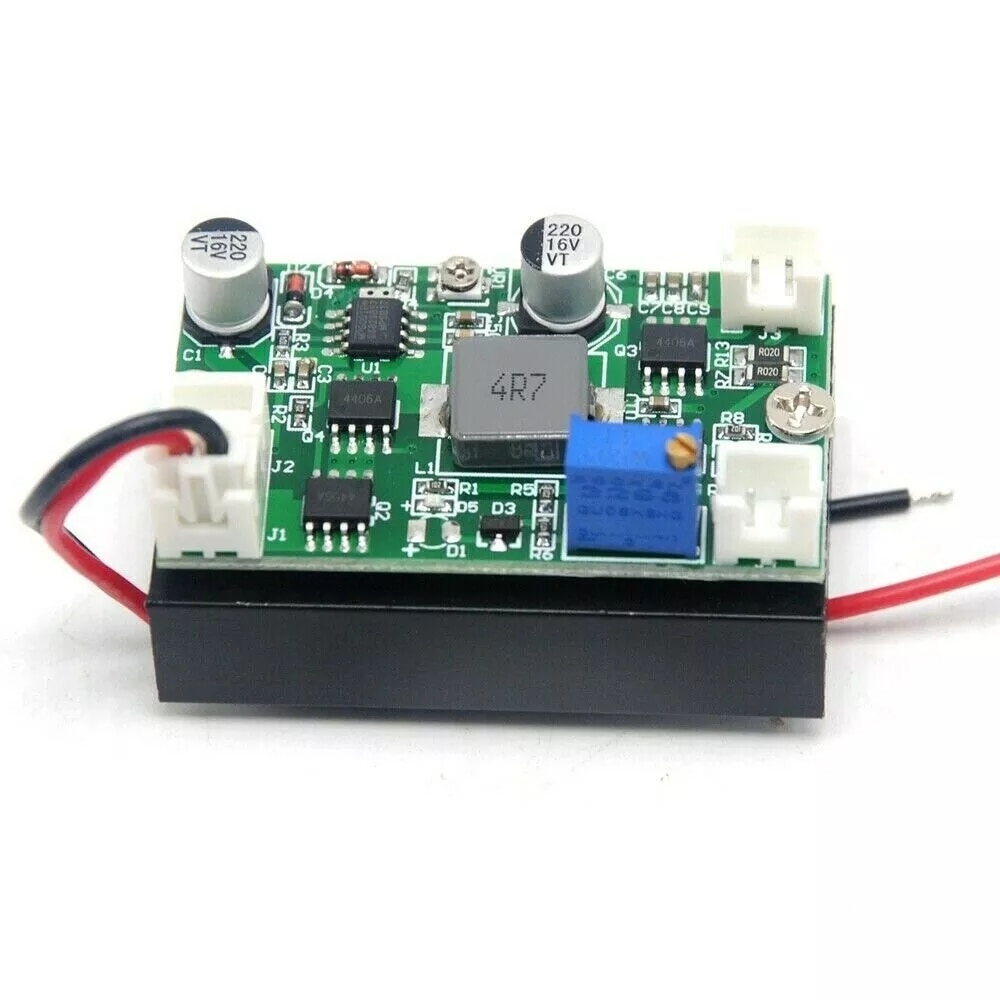

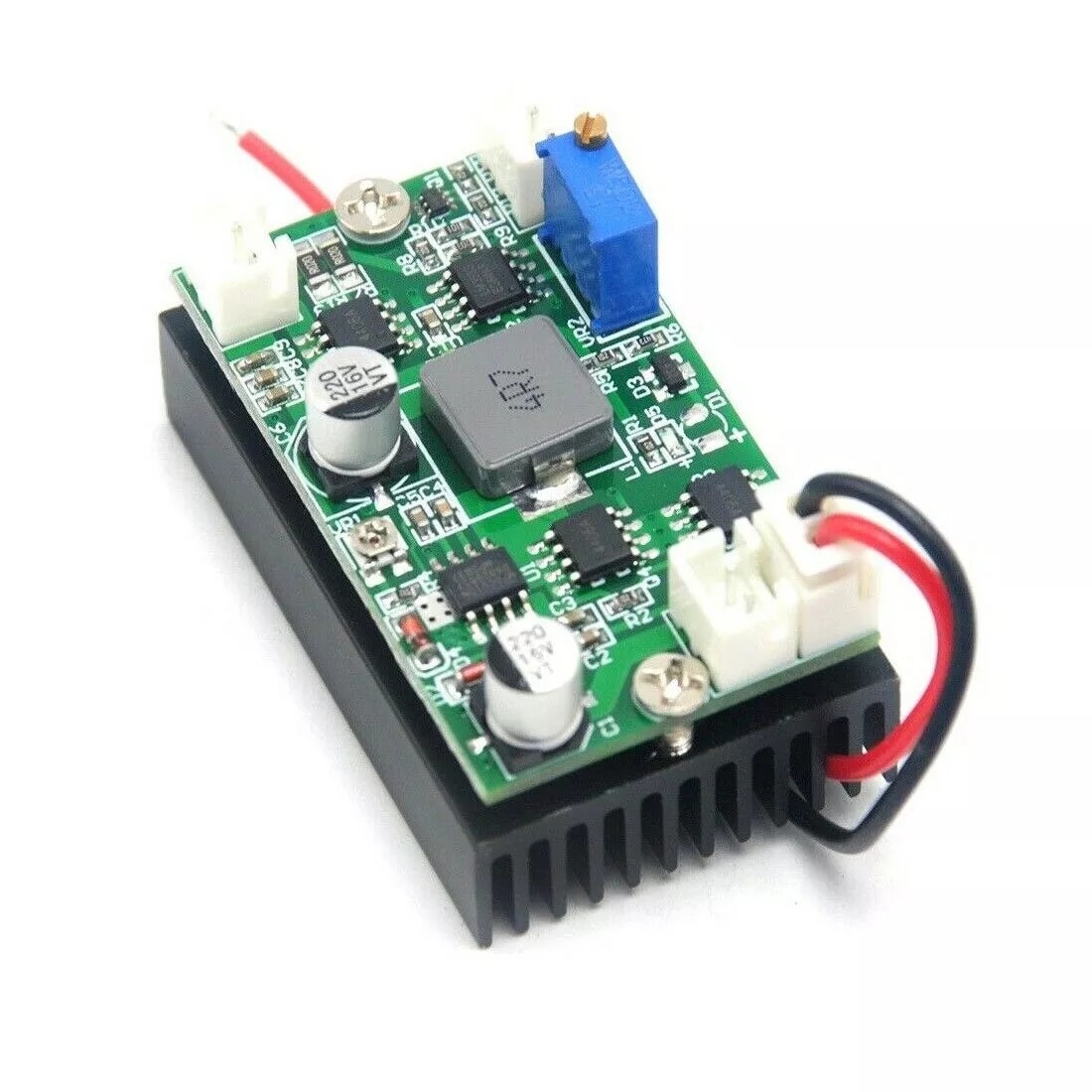

1pc Driver Board TTL For 405nm 450nm 520nm Blue Green 500mW 1W 2W 3W 4.5W Laser Diode Module 12V 4A

  • Home
  • 1pc Driver Board TTL For 405nm 450nm 520nm Blue Green 500mW 1W 2W 3W 4.5W Laser Diode Module 12V 4A
Awaiting product image

1pc Driver Board TTL For 405nm 450nm 520nm Blue Green 500mW 1W 2W 3W 4.5W Laser Diode Module 12V 4A

$43.05

100 in stock

SKU: 1005002395987567 Category:

Description

  • Brand Name: Jolooyo
  • Certification: NONE
  • Origin: CN(Origin)
  • Item Type: Stage Lighting Effect
  • Model Number: DB450-4A

Parameter:

Output Current: Max 4A

Input voltage: 9-12V

Power: 500mW-4.5W

Wavelength: 405-450nm Violet Blue; 515nm 520nm Green

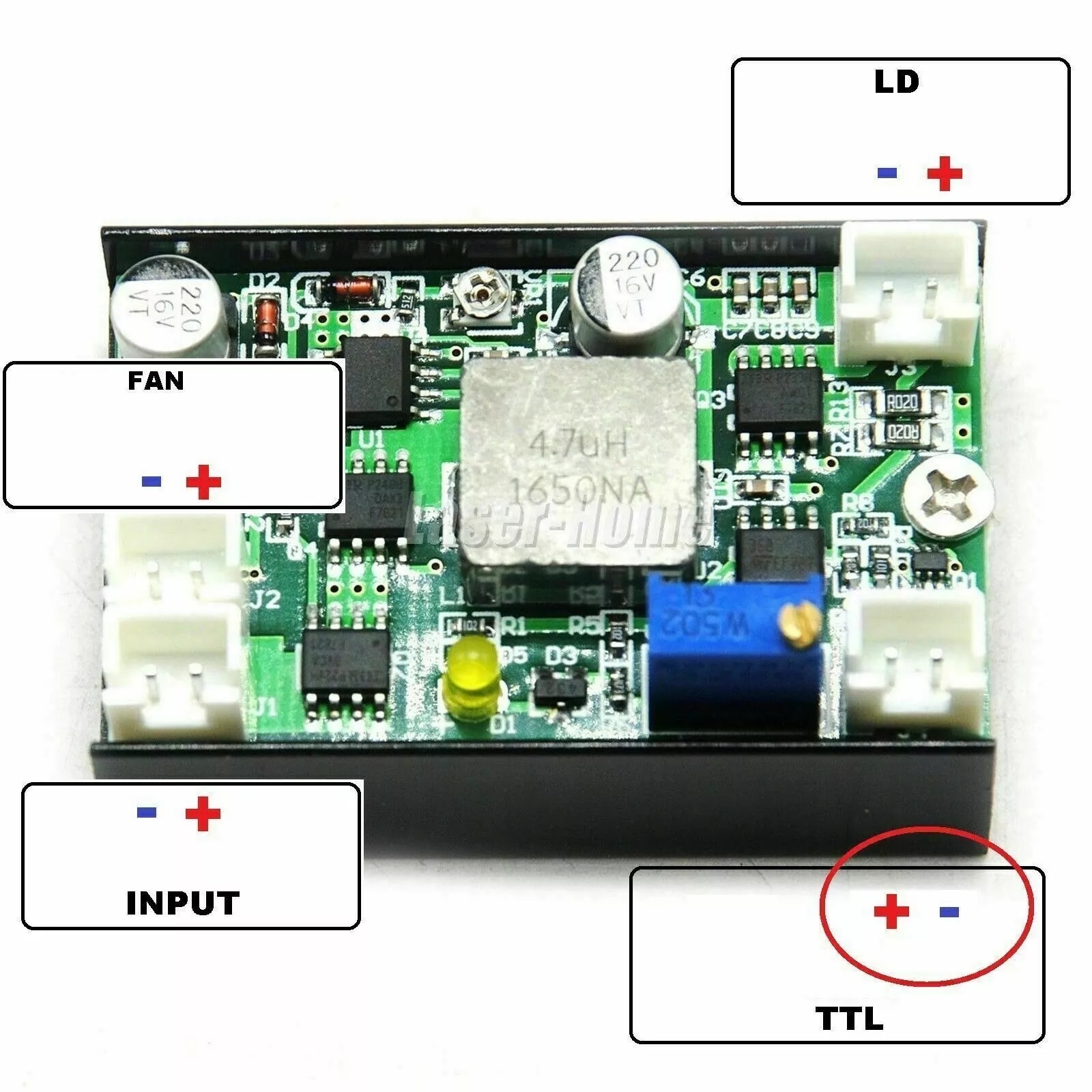

Circuit control: 12V step-down circuit, constant current output (current and voltage are adjustable)

Can use it with TTL Modulation

Frequency control: 0-20Khz

Modulation voltage: 0-5V (0V off, 5V on)

Note: Default power is 500mW. please turn the potentiometer clockwise to increase the power. Increase the power by 500MW per millimeter.

Package

1pc 12V 4A Driver Board
