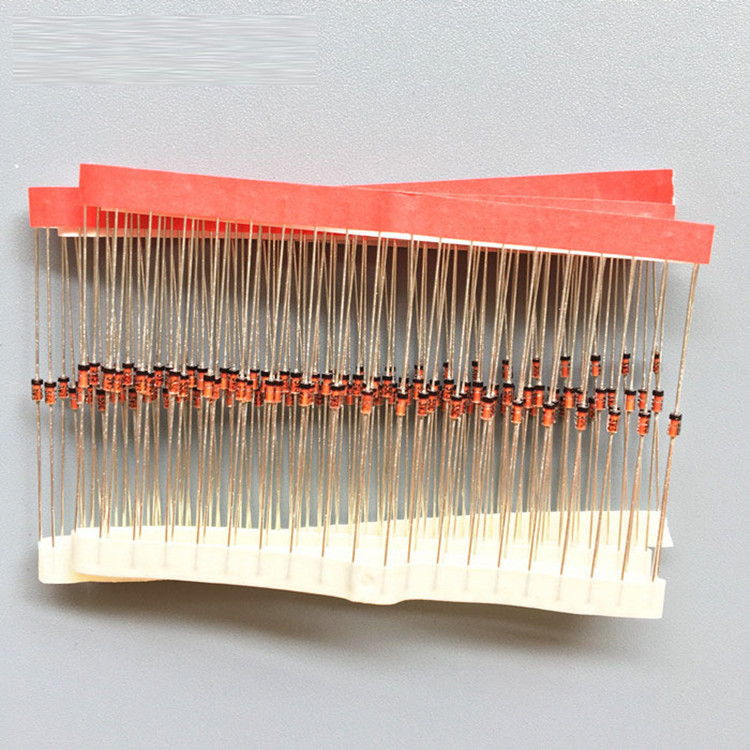

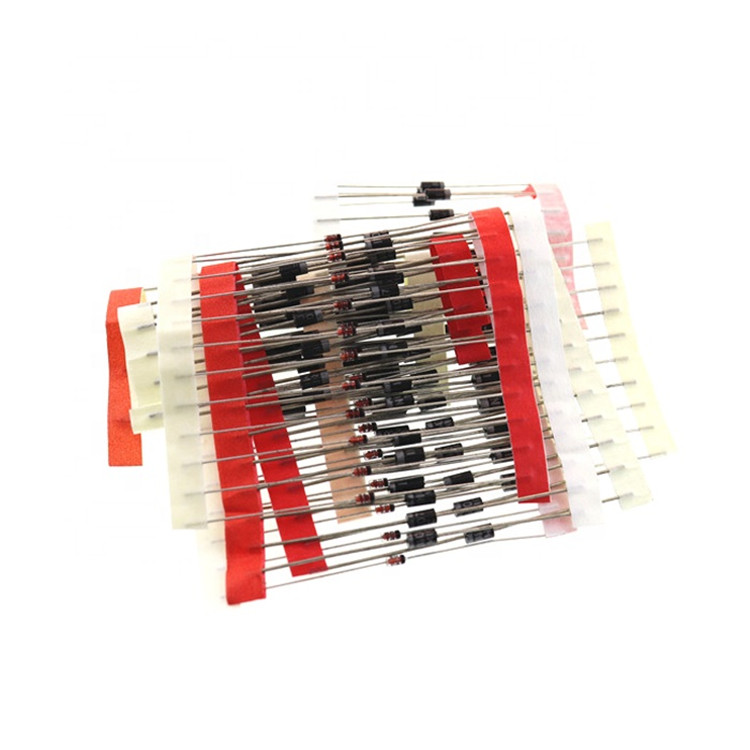

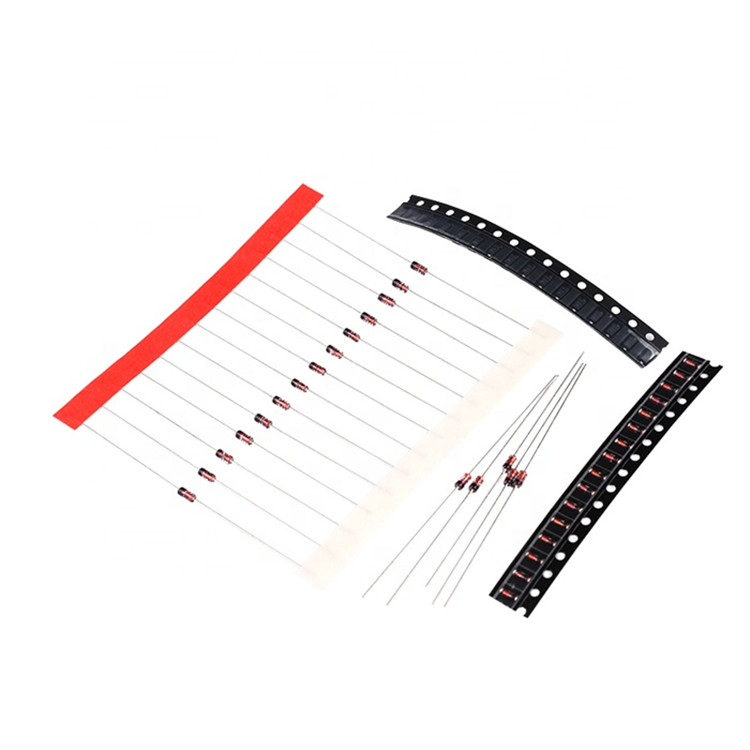

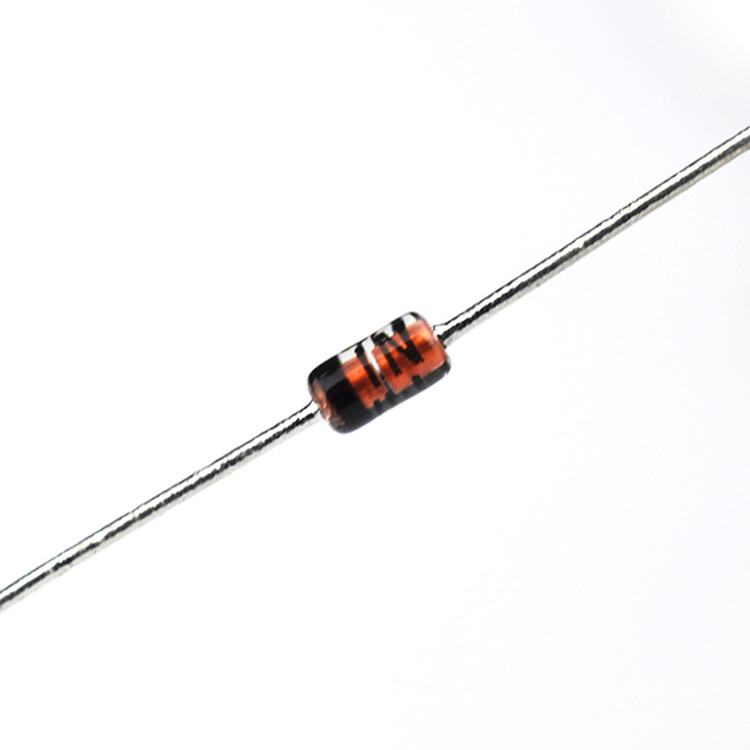

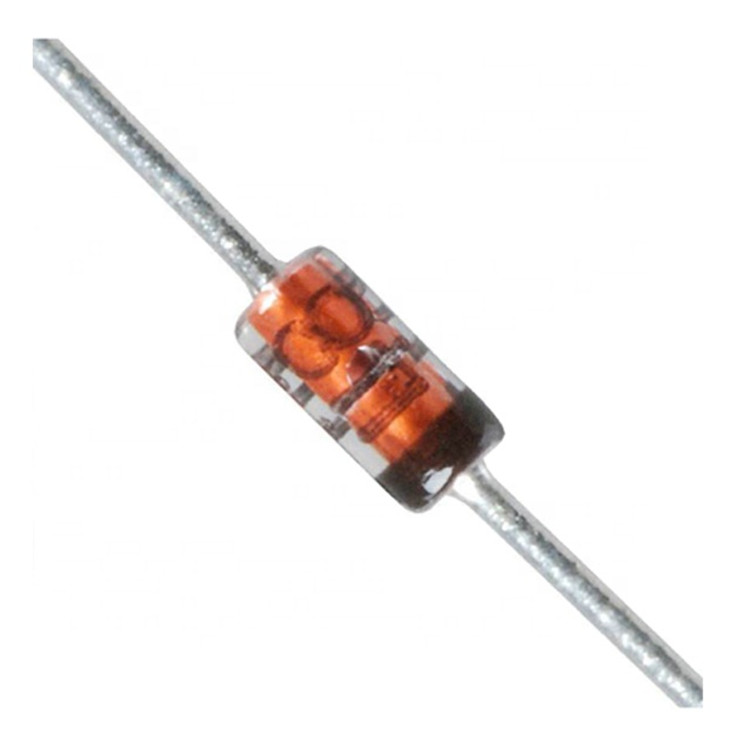

1N914 Switching Diode with Fast Switching Speed Glass sealed case75V 150MA DO-35 DB3 1N4148

$3.87

SKU: 3582128018651 Category:

Description

17826943j125



Symbols

1N914

1N4148

1N4448

Units

Maximum repetitive peak reverse voltage

VRMM

100

100

100

Volts

Maximum Average Rectified Current

IO

75

150

150

mA

Maximum Power Dissipation Tamb=25



Pd



250



500



500



mW

Maximum Forward Voltage

VF

1.0/10

1.0/10

1.0/100

V/mA

Maximum Reverse Current

IR

5.0/75

5.0/75

5.0/75

μA/V

Maximum Reverse Recovery Time

Trr

4.0

nS

Typical Junction Capacitance

CJ

4.0

pF

Operating and Storage Temperature Range



TJ,TSTG



-65 to + 200
