Products Description

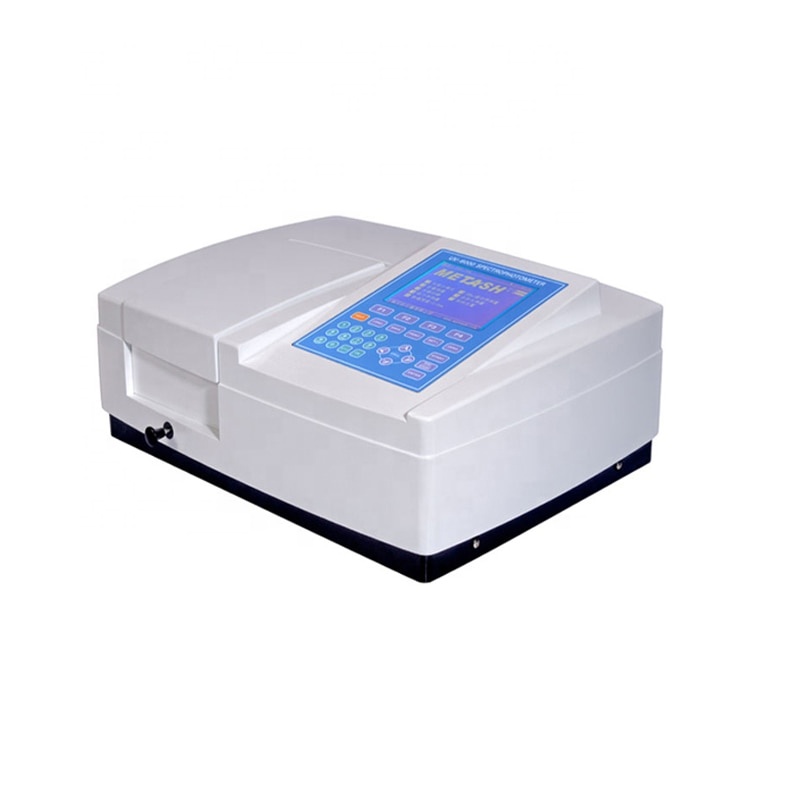

190-1100nm single beam uv-visible uv vis spectrometer
The models of 5800 Series are developed for precise test, its stray light is only 0.05%T. They are flexible, easy to use and maximize value. The value is evident from the performance provided every day. The local standalone software provide functions of Basic Mode, Quantitative Test, Kinetics and System Utilities.
Basic Mode
Absorbance, transmittance or concentration measurements. It can display and save 200 groups of data, 5 groups per screen.
Specification
Model
|
UV-5800(PC)
|
Wavelength Range
|
190-1100nm
|
Bandwidth
|
2nm
|
Wavelength Accuracy
|
±0.5nm
|
Wavelength Repeatability
|
0.2nm
|
Photometric Accuracy
|
±0.3%T
|
Photometric Repeatability
|
0.2%T
|
Photometric Range
|
0-200%T, -0.3-3.0A, 0-9999C
|
Stability
|
0.002A/h @ 500nm
|
Baseline Flatness
|
±0.0015A
|
Stray Light
|
≤0.05%T@220nm, 360nm
|
Data Output Port
|
USB
|
Display
|
LCD (128*64 Dots )
|
