Parameters
Wavelength:532nm
Output Power:50mw
Core device: Mitsubishi
Working Voltage:DC5v
Working Current:260mA
Working Temperature:＋15 ℃~＋35 ℃
Lens:Glass
Optical Part:Collimating lens+K9 glass lens
Laser Shape:Line
Focusable:N/A
Material:Aviation aluminum
Dimensions:￠18 mm X 75mm

Features
1. The laser adopts the original diode, the volume is small, the light is clear;
2. Can not be focusable, but the glass lens light fine;
3. The use of international standard female interface, DC specifications for the 5.5×2.1mm. The core is positive, the product tail with special plug head;
4. All-metal package, good heat dissipation, can effectively ensure product stability and service life. The product is internally assembled with copper, which can quickly cool the laser diode.

Package

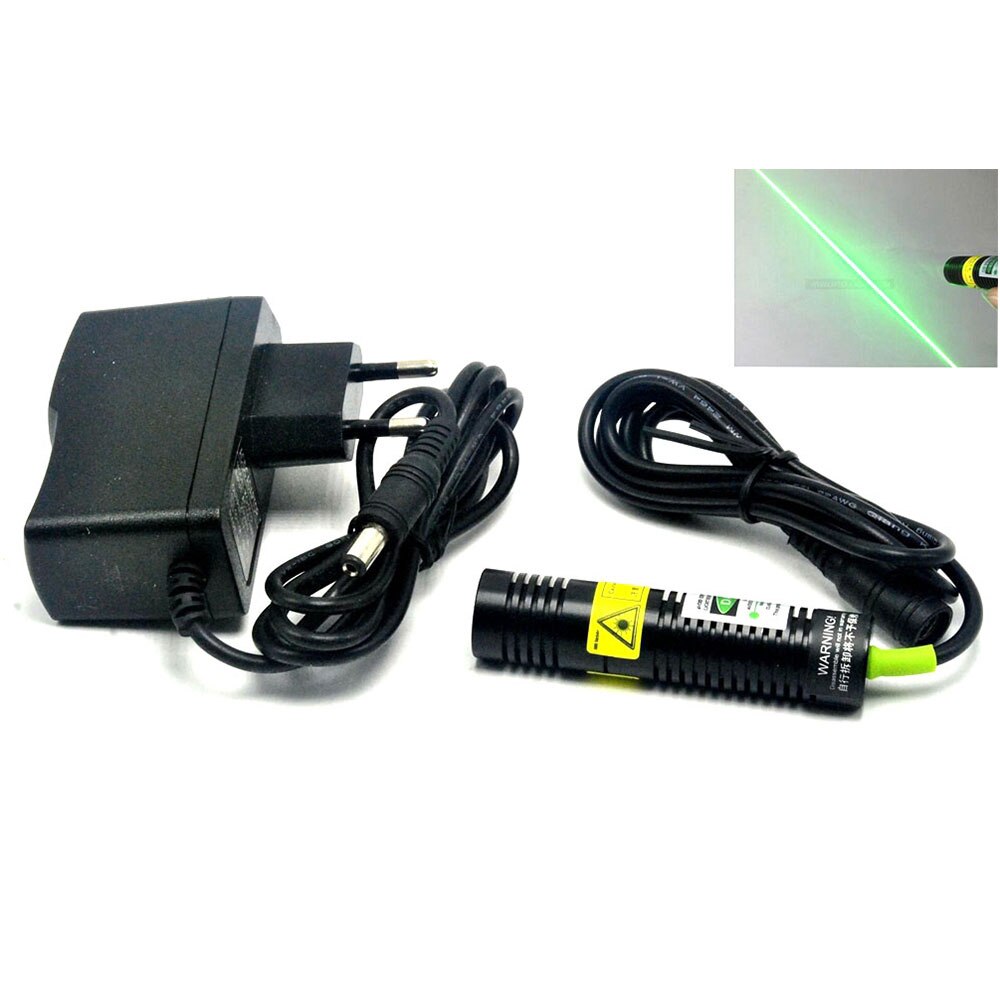

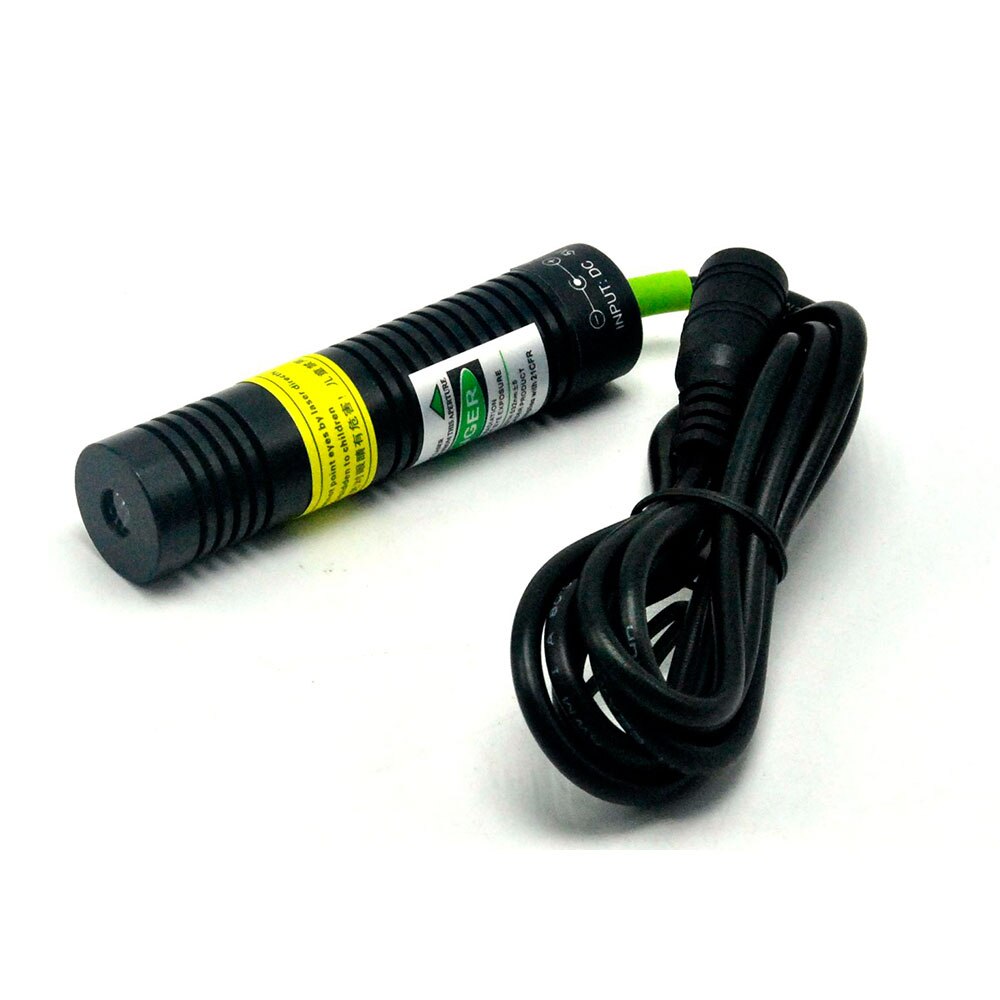

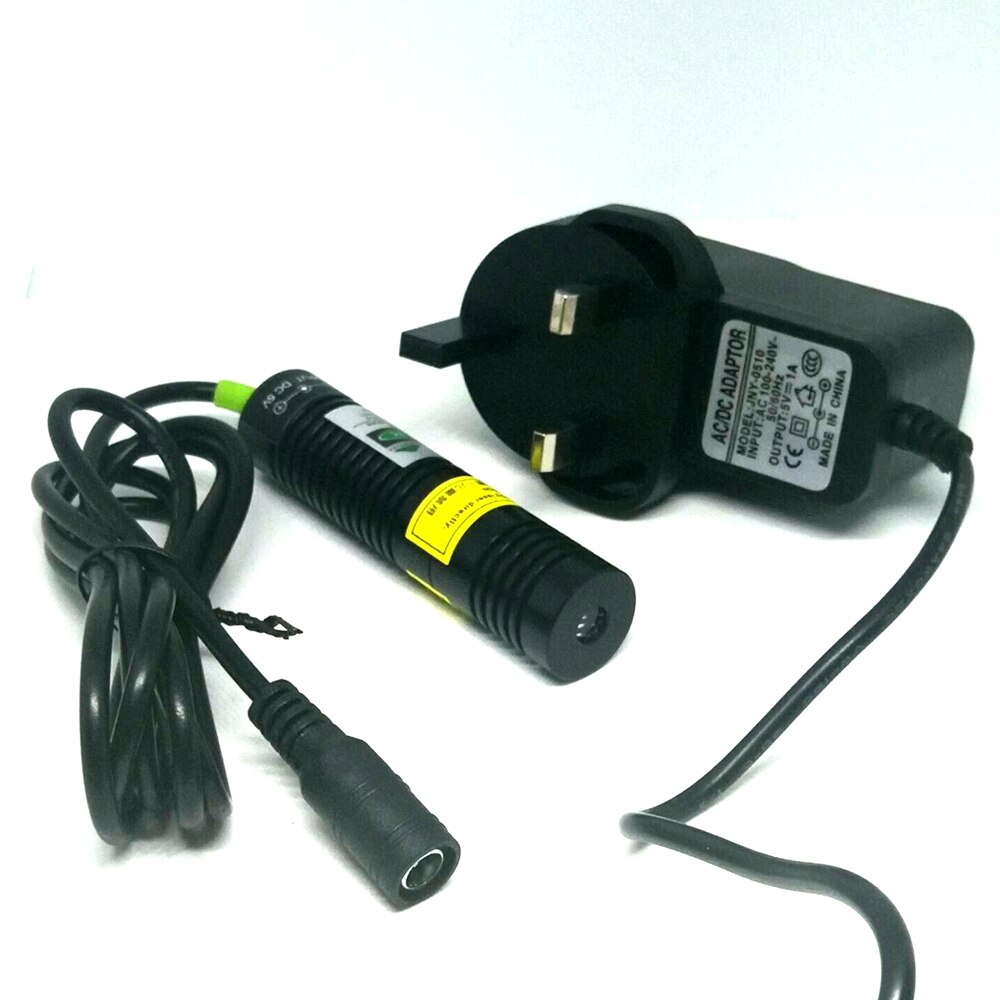

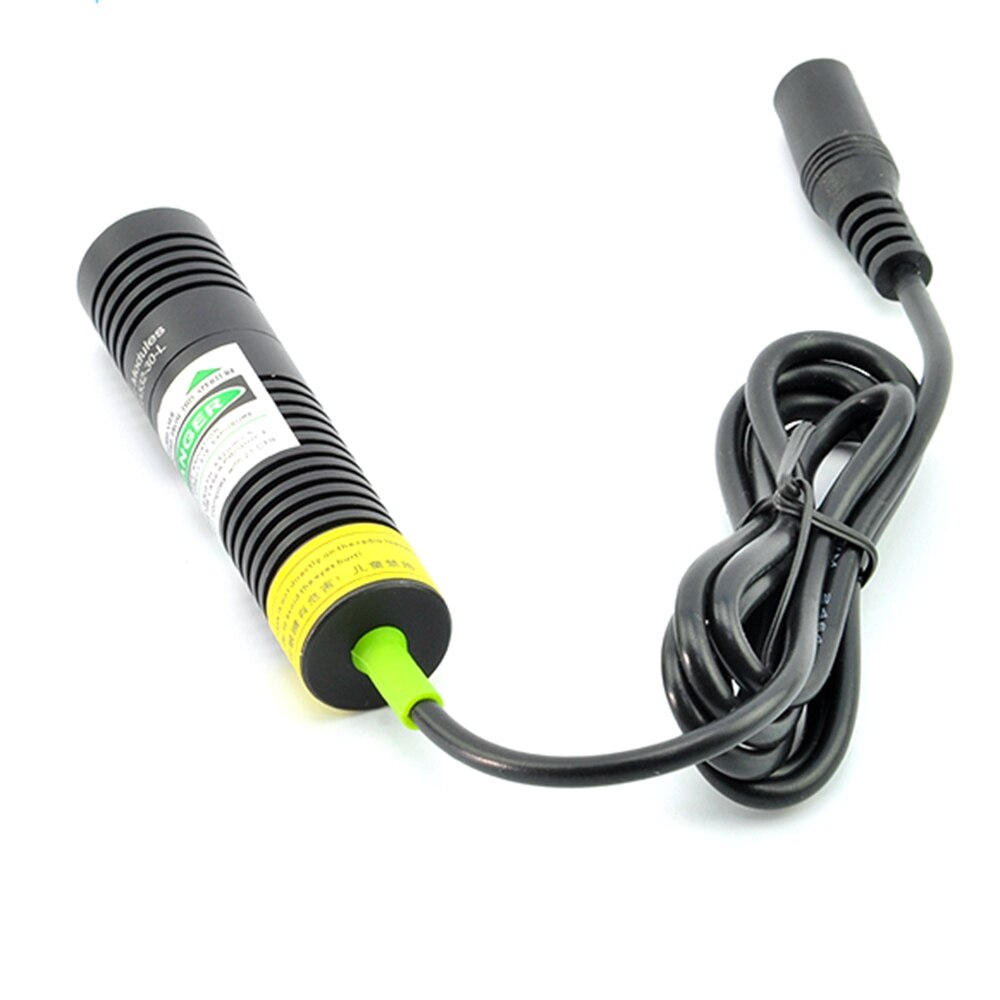

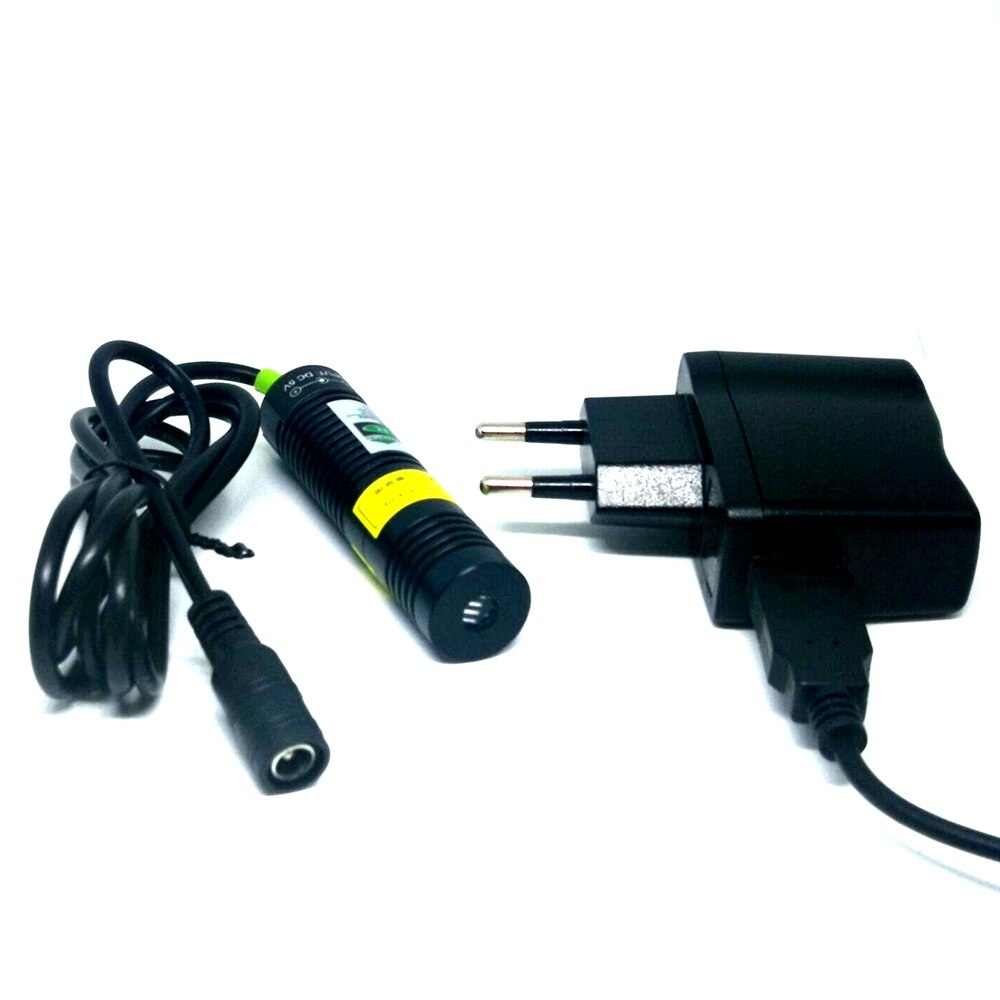

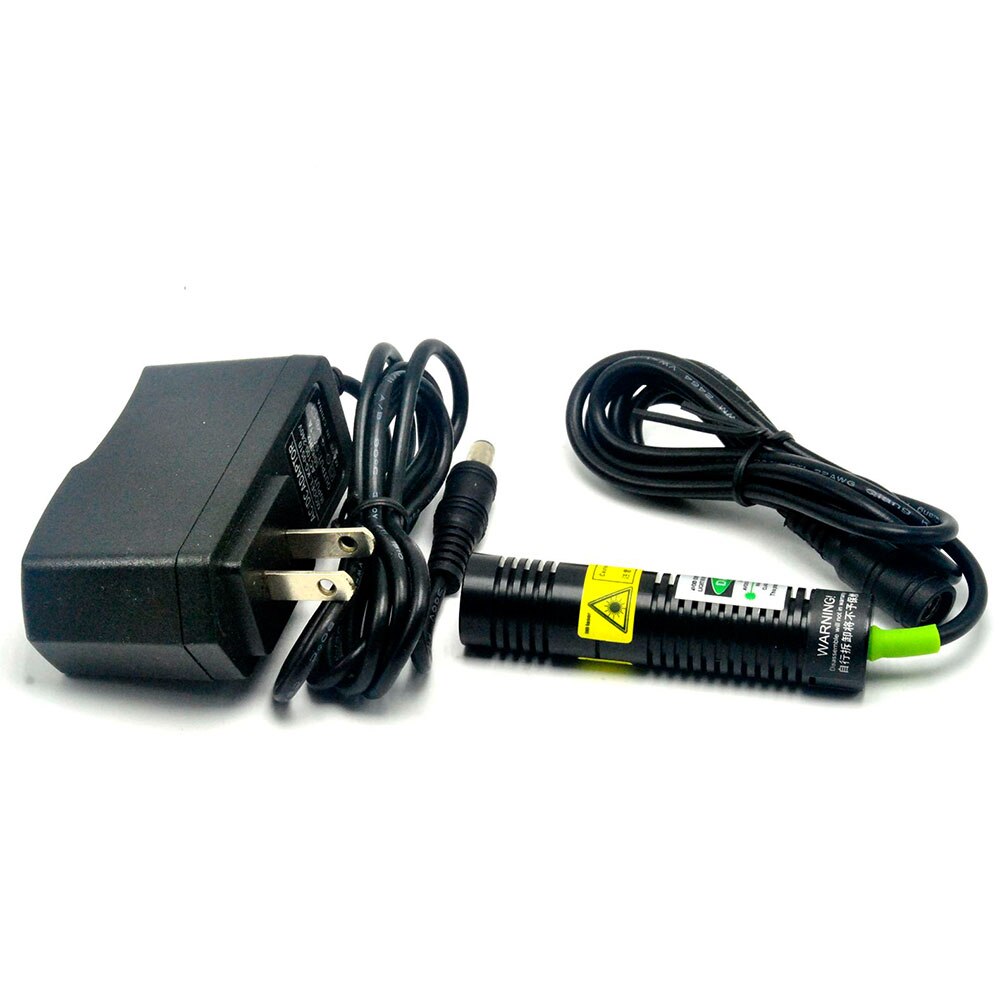

1pc 532nm 50mW Laser Diode Line Locator Module
1pc 5V adapter
